◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11169 - FVZ SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#21357) — 20 parça
çizim 128536
370 370 370
BalonParca AdiParca NoAdetTipApplied Date
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 1001-1211
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212-

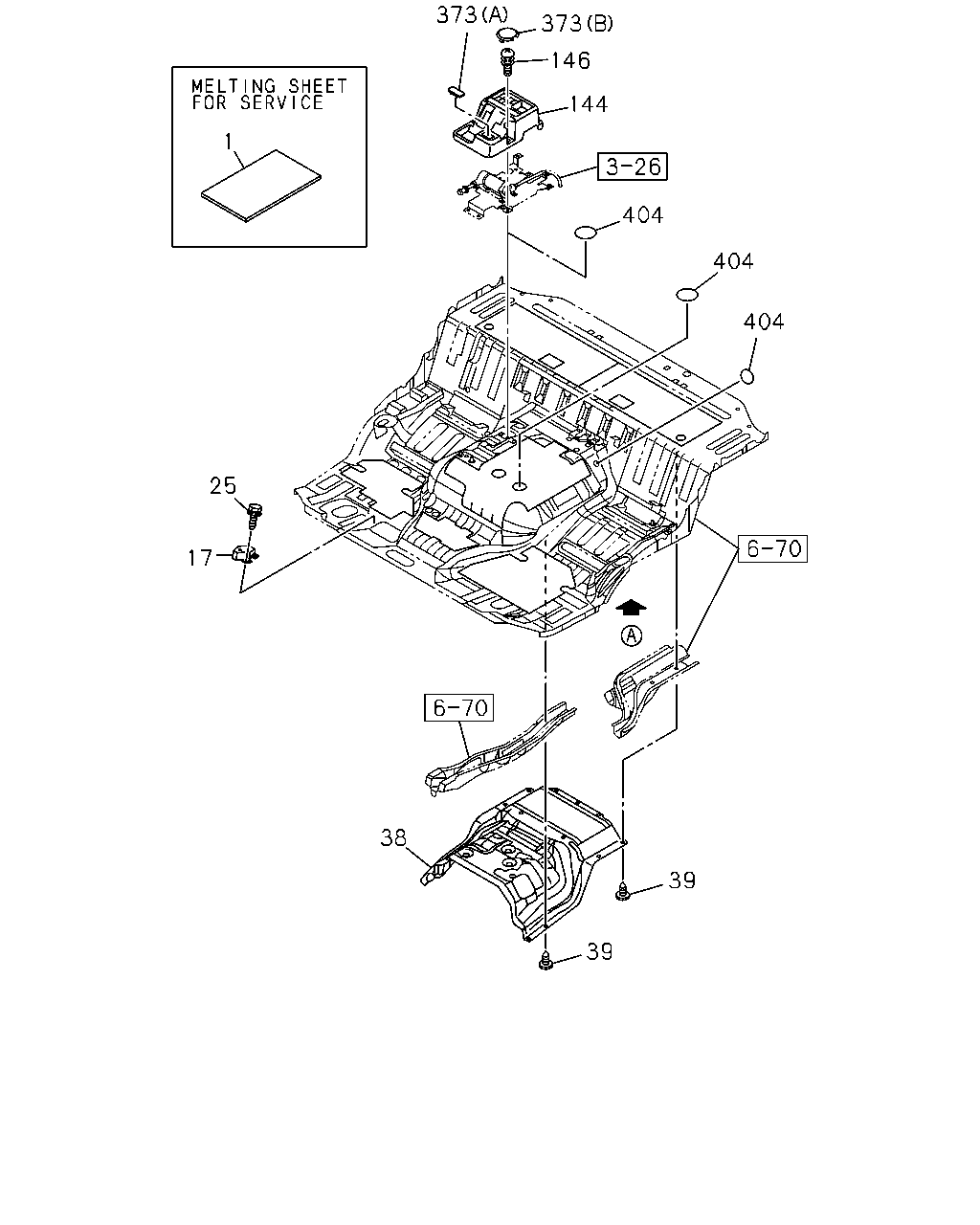

çizim 128548
373 373 146 144 1 404 404 404 25 17 38 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY SOU 		8-94262-093-0 AR 1 1001-
17 REST; FOOT,DRIVER 8-98076-322-1 01 1 1001-
25 SCREW; FOOT REST
BOLT M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 03 1 1001-
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98180-258-0 01 1 1012-1310
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98248-305-0 01 1 1311-
38 INSULATOR; ENG COVER 8-97586-180-6 01 1 1001-1011
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-97586-180-6 01 1 1012-1310
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98240-137-1 01 1 1311-
39 CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 24 1 1012-
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 24 1 1001-1011
39 CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 17 1 1012-
144 COVER; HAND BRK VLV
GRAY 		8-97407-974-0 01 1 1001-
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 1001-
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 1001-
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 1001-
404 SEAL; FLOOR,HOLE
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> OD=25 BLACK SOU 		1-76798-019-0 01 1 1005-
404 SEAL; FLOOR,HOLE
OD=25 BLACK SOU 		1-76798-019-0 12 1 1001-
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK SOU 		1-76798-019-0 02 1 1001-
