◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#2135) — 204 parça

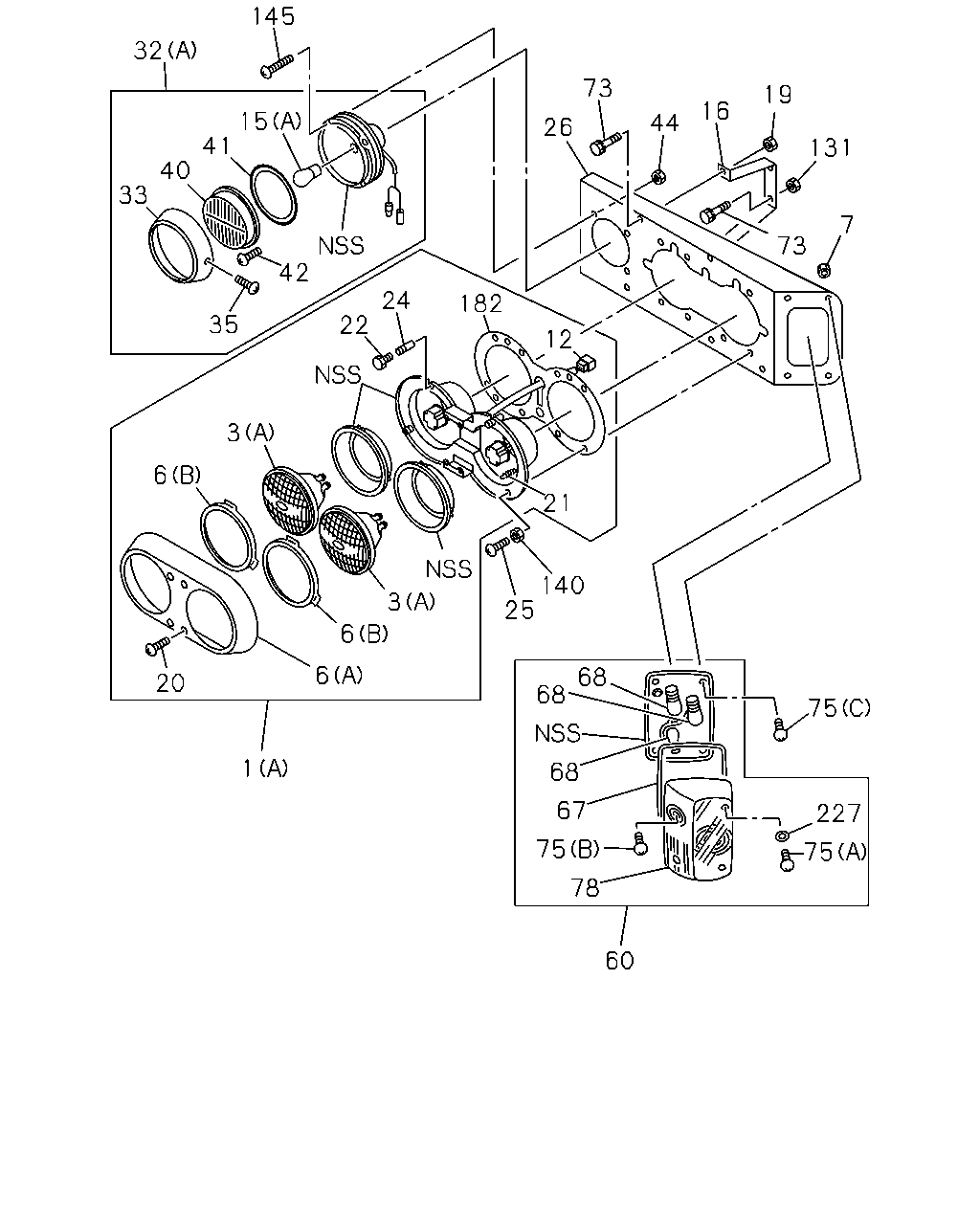

çizim 27346
145 32 73 19 16 15 44 26 41 131 40 33 7 42 73 24 182 35 22 12 3 6 21 140 25 3 6 6 68 68 75 1 68 67 227 75 75 78 60 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(A) 		1-82110-101-1 01 1 9001- ●
1 LAMP ASM; HEAD
(A) 		1-82110-100-1 01 1 9001- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 		1-82110-120-0 01 1 9001- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 		1-82110-119-0 01 1 9001- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75> (A) 		1-82110-099-0 01 1 9001-9407 ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82110-099-1 01 1 9408- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75> (A) 		1-82110-098-0 01 1 9001-9407 ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82110-098-1 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) INNER TYPE 1 24V 55W 		1-82110-251-3 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) OUTER TYPE 2 24V 50/65W 		1-82110-255-4 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) INNER TYPE 1 24V 55W 		1-82110-250-3 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) OUTER TYPE 2 24V 50/65W 		1-82110-253-4 01 1 9408- ●
3 SEALED BEAM; HEADLAMP
(A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9001-9407 ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9001-9407 ●
3 SEALED BEAM; HEADLAMP
(A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
(A) TYPE-2 24V 60/40W 		1-82191-008-0 02 1 9001- ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (A)TYPE1 24V55/50W 		1-82191-012-0 02 1 9001- ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (A)TYPE2 24V55/50W 		1-82191-013-0 02 1 9001- ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (A)TYPE2 24V40/60W 		1-82191-009-0 02 1 9001-9407 ●
3 SEALED BEAM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A)TYPE2 24V40/60W 		1-82191-009-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 55W 		1-82191-023-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 50/65W 		1-82191-024-0 02 1 9408- ●
6 RIM; HEADLAMP
(B) 		1-82117-004-0 04 1 9001-9407 ●
6 RIM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (B) 		1-82117-004-0 04 1 9001-9407 ●
6 RIM; HEADLAMP
(B) 		1-82117-004-0 04 1 9408- ●
6 RIM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82117-004-0 04 1 9408- ●
6 RIM; HEADLAMP
(A) 		9-82612-168-0 02 1 9001-9407 ● ●
6 RIM; HEADLAMP
(A) 		9-82612-168-0 02 1 9408- ●
6 RIM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 		9-82612-168-0 02 1 9408- ●
6 RIM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (C) 24V 70W 		1-82114-018-0 02 1 9408- ●
6 RIM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (C) 24V 75/70W 		1-82114-019-0 02 1 9408- ●
7 NUT; FRT COMB LAMP
M5 		9-99110-405-0 08 1 9001- ● ●
12 HARNESS; HEADLAMP 9-82691-570-0 02 1 9001-9407 ● ●
12 HARNESS; HEADLAMP 9-82691-570-0 02 1 9408- ●
12 HARNESS; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		9-82691-570-0 02 1 9408- ●
15 BULB; FOG LAMP
(A) 24V 35W 		1-82194-011-0 02 1 9001-9407 ● ●
15 BULB; FOG LAMP
(A) 24V 35W 		1-82194-011-0 02 1 9408- ●
15 BULB; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 35W 		1-82194-011-0 02 1 9408- ●
15 BULB; FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 35W 		1-82194-012-0 02 1 9408- ●
16 BRACKET; HEADLAMP 9-82615-154-2 04 1 9001- ● ●
19 NUT; HEADLAMP
M6 		9-09110-406-0 08 1 9001-9606 ● ●
19 NUT; HEADLAMP
M6 FLANGE 		0-91150-106-0 08 1 9607- ● ●
19 NUT; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-056-0 08 1 9408- ●
20 SCREW; HEADLAMP
M4X6 		9-93490-406-0 12 1 9001-9407 ● ●
20 SCREW; HEADLAMP
M4X6 		9-93490-406-0 12 1 9408- ●
20 SCREW; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M4X6 		9-93490-406-0 12 1 9408- ●
20 SCREW; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-104-0 16 1 9408-9704 ●
20 SCREW; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-023-0 16 1 9705- ●
21 SPRING; ADJ HEADLAMP 9-82615-114-0 04 1 9001-9407 ● ●
21 SPRING; ADJ HEADLAMP 9-82615-114-0 04 1 9408- ●
21 SPRING; ADJ HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		9-82615-114-0 04 1 9408- ●
21 SPRING; ADJ HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-021-0 04 1 9408-9704 ●
21 SPRING; ADJ HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-105-0 04 1 9705- ●
22 SCREW; ADJ,HEADLAMP 1-82119-005-0 08 1 9001-9407 ●
22 SCREW; ADJ,HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-005-0 08 1 9001-9407 ●
22 SCREW; ADJ,HEADLAMP 1-82119-005-0 08 1 9408- ●
22 SCREW; ADJ,HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> 		1-82119-005-0 08 1 9408- ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		9-82615-124-0 08 1 9001- ●
22 SCREW; ADJ,HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-095-0 08 1 9408- ●
24 MOUNTING; ADJ SCREW HD LAMP 1-82119-004-0 08 1 9001-9407 ● ●
24 MOUNTING; ADJ SCREW HD LAMP 1-82119-004-0 08 1 9408- ●
24 MOUNTING; ADJ SCREW HD LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-004-0 08 1 9408- ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 16 1 9001- ● ●
26 BRACKET ASM; HEADLAMP 9-82611-699-0 01 1 9001- ● ●
26 BRACKET ASM; HEADLAMP 9-82611-698-0 01 1 9001- ● ●
32 LAMP ASM; FOG
(A) 		1-82110-082-1 02 1 9001-9407 ● ●
32 LAMP ASM; FOG
(A) 		1-82110-082-1 02 1 9408- ●
32 LAMP ASM; FOG
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 		1-82110-082-1 02 1 9408- ●
32 LAMP ASM; FOG
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 		1-82110-146-5 02 1 9408- ●
33 RIM; FOG LAMP 9-82611-469-1 02 1 9001-9407 ● ●
33 RIM; FOG LAMP 9-82611-469-1 02 1 9408- ●
33 RIM; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		9-82611-469-1 02 1 9408- ●
35 SCREW; RIM,FOG LAMP
M5X14 OVAL-HEAD 		9-93280-514-0 02 1 9001-9407 ● ●
35 SCREW; RIM,FOG LAMP
M5X14 OVAL-HEAD 		9-93280-514-0 02 1 9408- ●
35 SCREW; RIM,FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5X14 OVAL-HEAD 		9-93280-514-0 02 1 9408- ●
40 LENS; FOG LAMP 1-82115-002-0 02 1 9001-9407 ● ●
40 LENS; FOG LAMP 1-82115-002-0 02 1 9408- ●
40 LENS; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82115-002-0 02 1 9408- ●
40 LENS; FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82115-005-0 02 1 9408- ●
41 GASKET; LENS,FOG LAMP 9-82611-734-0 02 1 9001-9407 ● ●
41 GASKET; LENS,FOG LAMP 9-82611-734-0 02 1 9408- ●
41 GASKET; LENS,FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		9-82611-734-0 02 1 9408- ●
41 GASKET; LENS,FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82216-013-0 02 1 9408- ●
42 SCREW; LENS,FOG LAMP
M4X6 		9-93490-406-0 06 1 9001-9407 ● ●
42 SCREW; LENS,FOG LAMP
M4X6 		9-93490-406-0 06 1 9408- ●
42 SCREW; LENS,FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M4X6 		9-93490-406-0 06 1 9408- ●
42 SCREW; LENS,FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-009-0 04 1 9408- ●
44 NUT; FOG LAMP
M5 		9-99110-405-0 08 1 9001-9407 ● ●
44 NUT; FOG LAMP
M5 		9-99110-405-0 08 1 9408- ●
44 NUT; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5 		9-99110-405-0 08 1 9408- ●
44 NUT; FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> M6 FLANGE 		0-91150-106-0 04 1 9408- ●
60 LAMP ASM; FRT COMB 1-82210-028-0 01 1 9001- ● ●
60 LAMP ASM; FRT COMB 1-82210-027-0 01 1 9001- ● ●
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 9001- ● ●
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 9001- ● ●
68 BULB; FRT COMB LAMP
24V 25W 		9-82691-347-0 04 1 9001- ● ●
68 BULB; FRT COMB LAMP
24V 10/4W 		9-82691-607-0 02 1 9001- ● ●
73 BOLT; BRKT,HEADLAMP
M6X14 W/LK WASHER 		9-01900-614-0 08 1 9001-9204 ● ●
73 BOLT; BRKT,HEADLAMP
M6X14 W/LK WASHER 		0-50040-614-0 08 1 9205-9606 ● ●
73 BOLT; BRKT,HEADLAMP
M6X16 FLANGE 		0-28680-616-0 08 1 9607- ● ●
73 BOLT; BRKT,HEADLAMP
M10X20 W/LK WASHER 		9-01911-020-0 08 1 9001-9002 ● ●
73 BOLT; BRKT,HEADLAMP
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9003-9606 ● ●
73 BOLT; BRKT,HEADLAMP
M10X20 FLANGE 		0-28681-020-0 08 1 9607- ● ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-82219-015-0 04 1 9001- ● ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-82219-016-0 04 1 9001- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		9-03910-516-0 08 1 9001- ● ●
78 LENS ASM; FRT COMB 1-82215-009-0 01 1 9001- ● ●
78 LENS ASM; FRT COMB 1-82215-008-0 01 1 9001- ● ●
131 NUT; BRKT,HEADLAMP
M10 		9-09110-510-0 08 1 9308-9606 ● ●
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91150-210-0 08 1 9607- ● ●
140 NUT
M5 		9-99110-405-0 16 1 9001- ● ●
145 SCREW; FOG LAMP
M5X20 W/LK WASHER 		9-03910-520-0 08 1 9001-9407 ● ●
145 SCREW; FOG LAMP
M5X20 W/LK WASHER 		9-03910-520-0 08 1 9408- ●
145 SCREW; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5X20 W/LK WASHER 		9-03910-520-0 08 1 9408- ●
182 GASKET; HEADLAMP 1-82119-006-0 02 1 9001-9407 ● ●
182 GASKET; HEADLAMP 1-82119-006-0 02 1 9408- ●
182 GASKET; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-006-0 02 1 9408- ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-82219-017-0 08 1 9001- ● ●

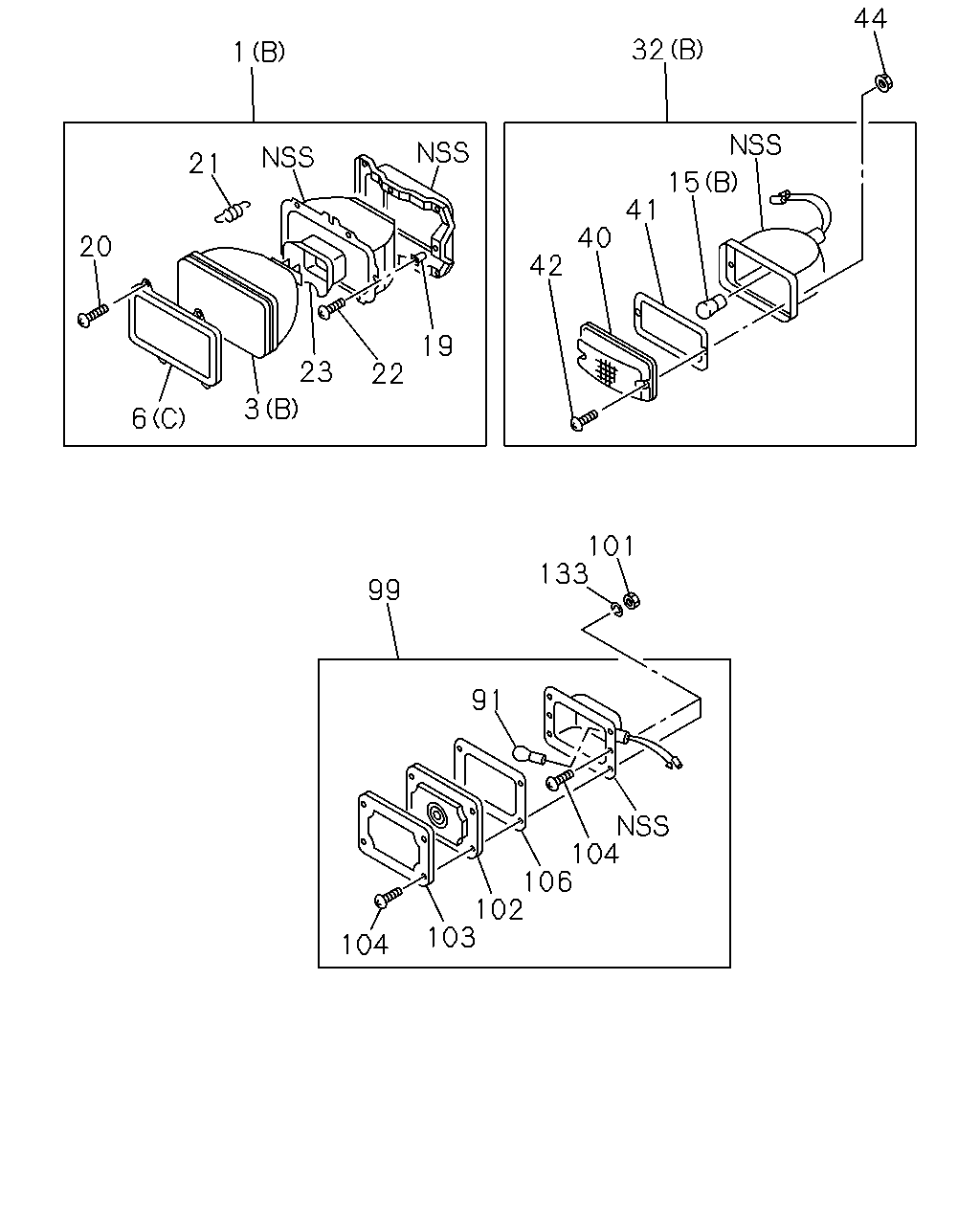

çizim 94832
44 32 1 21 15 41 40 20 42 19 23 22 3 6 101 133 99 91 104 106 102 103 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(A) 		1-82110-101-1 01 1 9001- ●
1 LAMP ASM; HEAD
(A) 		1-82110-100-1 01 1 9001- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 		1-82110-120-0 01 1 9001- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 		1-82110-119-0 01 1 9001- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75> (A) 		1-82110-099-0 01 1 9001-9407 ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82110-099-1 01 1 9408- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75> (A) 		1-82110-098-0 01 1 9001-9407 ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82110-098-1 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) INNER TYPE 1 24V 55W 		1-82110-251-3 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) OUTER TYPE 2 24V 50/65W 		1-82110-255-4 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) INNER TYPE 1 24V 55W 		1-82110-250-3 01 1 9408- ●
1 LAMP ASM; HEAD
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) OUTER TYPE 2 24V 50/65W 		1-82110-253-4 01 1 9408- ●
3 SEALED BEAM; HEADLAMP
(A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9001-9407 ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9001-9407 ●
3 SEALED BEAM; HEADLAMP
(A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A) TYPE-1 24V 40W 		1-82191-007-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
(A) TYPE-2 24V 60/40W 		1-82191-008-0 02 1 9001- ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (A)TYPE1 24V55/50W 		1-82191-012-0 02 1 9001- ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (A)TYPE2 24V55/50W 		1-82191-013-0 02 1 9001- ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (A)TYPE2 24V40/60W 		1-82191-009-0 02 1 9001-9407 ●
3 SEALED BEAM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (A)TYPE2 24V40/60W 		1-82191-009-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 55W 		1-82191-023-0 02 1 9408- ●
3 SEALED BEAM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 50/65W 		1-82191-024-0 02 1 9408- ●
6 RIM; HEADLAMP
(B) 		1-82117-004-0 04 1 9001-9407 ●
6 RIM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (B) 		1-82117-004-0 04 1 9001-9407 ●
6 RIM; HEADLAMP
(B) 		1-82117-004-0 04 1 9408- ●
6 RIM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82117-004-0 04 1 9408- ●
6 RIM; HEADLAMP
(A) 		9-82612-168-0 02 1 9001-9407 ● ●
6 RIM; HEADLAMP
(A) 		9-82612-168-0 02 1 9408- ●
6 RIM; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 		9-82612-168-0 02 1 9408- ●
6 RIM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (C) 24V 70W 		1-82114-018-0 02 1 9408- ●
6 RIM; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (C) 24V 75/70W 		1-82114-019-0 02 1 9408- ●
15 BULB; FOG LAMP
(A) 24V 35W 		1-82194-011-0 02 1 9001-9407 ● ●
15 BULB; FOG LAMP
(A) 24V 35W 		1-82194-011-0 02 1 9408- ●
15 BULB; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 35W 		1-82194-011-0 02 1 9408- ●
15 BULB; FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 35W 		1-82194-012-0 02 1 9408- ●
19 NUT; HEADLAMP
M6 		9-09110-406-0 08 1 9001-9606 ● ●
19 NUT; HEADLAMP
M6 FLANGE 		0-91150-106-0 08 1 9607- ● ●
19 NUT; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-056-0 08 1 9408- ●
20 SCREW; HEADLAMP
M4X6 		9-93490-406-0 12 1 9001-9407 ● ●
20 SCREW; HEADLAMP
M4X6 		9-93490-406-0 12 1 9408- ●
20 SCREW; HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M4X6 		9-93490-406-0 12 1 9408- ●
20 SCREW; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-104-0 16 1 9408-9704 ●
20 SCREW; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-023-0 16 1 9705- ●
21 SPRING; ADJ HEADLAMP 9-82615-114-0 04 1 9001-9407 ● ●
21 SPRING; ADJ HEADLAMP 9-82615-114-0 04 1 9408- ●
21 SPRING; ADJ HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		9-82615-114-0 04 1 9408- ●
21 SPRING; ADJ HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-021-0 04 1 9408-9704 ●
21 SPRING; ADJ HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-105-0 04 1 9705- ●
22 SCREW; ADJ,HEADLAMP 1-82119-005-0 08 1 9001-9407 ●
22 SCREW; ADJ,HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-005-0 08 1 9001-9407 ●
22 SCREW; ADJ,HEADLAMP 1-82119-005-0 08 1 9408- ●
22 SCREW; ADJ,HEADLAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>,AMBER HEADLAMPS<T75> 		1-82119-005-0 08 1 9408- ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		9-82615-124-0 08 1 9001- ●
22 SCREW; ADJ,HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-095-0 08 1 9408- ●
23 COVER; BULB,HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-013-0 04 1 9408- ●
32 LAMP ASM; FOG
(A) 		1-82110-082-1 02 1 9001-9407 ● ●
32 LAMP ASM; FOG
(A) 		1-82110-082-1 02 1 9408- ●
32 LAMP ASM; FOG
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 		1-82110-082-1 02 1 9408- ●
32 LAMP ASM; FOG
HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 		1-82110-146-5 02 1 9408- ●
40 LENS; FOG LAMP 1-82115-002-0 02 1 9001-9407 ● ●
40 LENS; FOG LAMP 1-82115-002-0 02 1 9408- ●
40 LENS; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82115-002-0 02 1 9408- ●
40 LENS; FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82115-005-0 02 1 9408- ●
41 GASKET; LENS,FOG LAMP 9-82611-734-0 02 1 9001-9407 ● ●
41 GASKET; LENS,FOG LAMP 9-82611-734-0 02 1 9408- ●
41 GASKET; LENS,FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		9-82611-734-0 02 1 9408- ●
41 GASKET; LENS,FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82216-013-0 02 1 9408- ●
42 SCREW; LENS,FOG LAMP
M4X6 		9-93490-406-0 06 1 9001-9407 ● ●
42 SCREW; LENS,FOG LAMP
M4X6 		9-93490-406-0 06 1 9408- ●
42 SCREW; LENS,FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M4X6 		9-93490-406-0 06 1 9408- ●
42 SCREW; LENS,FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82119-009-0 04 1 9408- ●
44 NUT; FOG LAMP
M5 		9-99110-405-0 08 1 9001-9407 ● ●
44 NUT; FOG LAMP
M5 		9-99110-405-0 08 1 9408- ●
44 NUT; FOG LAMP
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5 		9-99110-405-0 08 1 9408- ●
44 NUT; FOG LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> M6 FLANGE 		0-91150-106-0 04 1 9408- ●
91 BULB; SIDE TURN SIGNAL
HEAD LAMP RECTANGULAR ANGLE<TR4> 24V 25W 		9-82691-347-0 02 1 9408- ●
99 LAMP; SIDE FLASHER
HEAD LAMP RECTANGULAR ANGLE<TR4> 24V 25W 		1-82220-007-0 01 1 9408- ●
99 LAMP; SIDE FLASHER
HEAD LAMP RECTANGULAR ANGLE<TR4> 24V 25W 		1-82220-006-0 01 1 9408- ●
101 NUT; LAMP,SIDE FLASHER
HEAD LAMP RECTANGULAR ANGLE<TR4> M4 		9-99110-404-0 12 1 9408- ●
102 LENS; SIDE TURN SIGNAL
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82225-002-0 02 1 9408- ●
103 RIM; SIDE TURN SIGNAL
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82224-001-0 02 1 9408- ●
104 SCREW; SIDE TURN SIGNAL
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82229-004-0 12 1 9408- ●
106 GASKET; SIDE TURN SIGNAL
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82226-002-0 02 1 9408- ●
133 WASHER; PL,SIDE FLASHER LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> ID=4.3 		9-09160-504-0 12 1 9408- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
