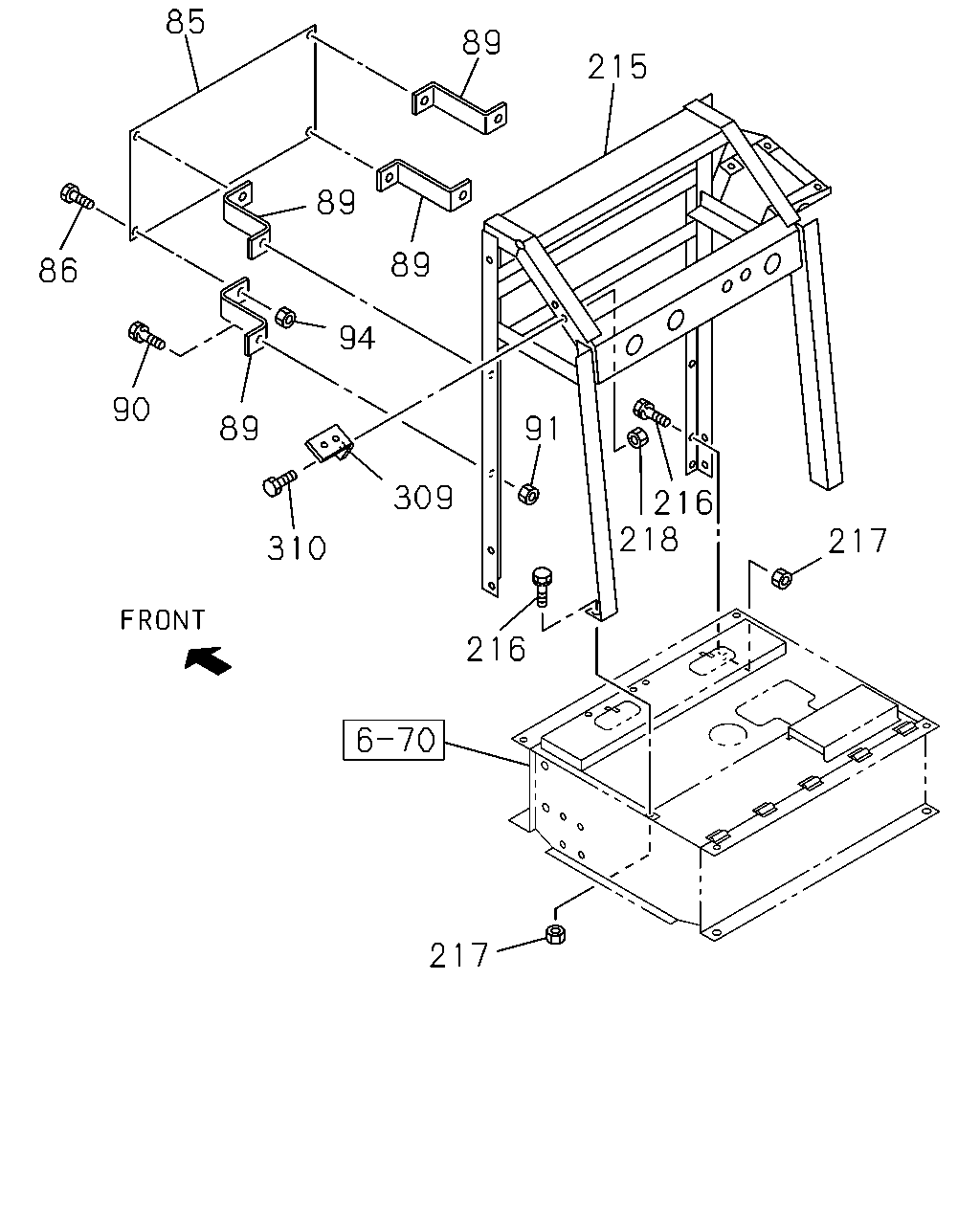

7-40 — INSTRUMENT PANEL AND BOX
(#2134) — 26 parça
Tümü
A - LVR5FB
B - LVR6FB
85
89
215
89
89
86
94
90
89
91
309
216
218
217
310
216
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
85
PANEL; ELEC
1-65600-348-1
01
1
9001-
●
●
86
BOLT; ELEC PNL
M8X20 W/LK WASHER
9-01900-820-0
04
1
9001-9204
●
●
86
BOLT; ELEC PNL
M8X20 W/LK WASHER
0-50040-820-0
04
1
9205-9606
●
●
86
BOLT; ELEC PNL
M8X20 FLANGE
0-28680-820-0
04
1
9607-
●
●
89
STAY; ELEC PANEL
1-33659-127-0
04
1
9001-
●
●
90
BOLT; STAY,ELEC PANEL
M8X20 W/LK WASHER
9-01900-820-0
04
1
9001-9204
●
●
90
BOLT; STAY,ELEC PANEL
M8X20 W/LK WASHER
0-50040-820-0
04
1
9205-9606
●
●
90
BOLT; STAY,ELEC PANEL
M8X20 FLANGE
0-28680-820-0
04
1
9607-
●
●
91
NUT; STAY,ELEC PANEL
M8
9-09110-408-0
04
1
9001-9606
●
●
91
NUT; STAY,ELEC PANEL
M8 FLANGE
0-91150-108-0
04
1
9607-
●
●
94
NUT; PANEL BRKT
M8
9-09110-408-0
04
1
9001-9606
●
●
94
NUT; PANEL BRKT
M8 FLANGE
0-91150-108-0
04
1
9607-
●
●
215
BOARD ASM; DASH
1-65600-232-6
01
1
9001-9204
●
215
BOARD ASM; DASH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-65600-232-6
01
1
9001-9204
●
215
BOARD ASM; DASH
1-65600-232-6
01
1
9205-
●
●
215
BOARD ASM; DASH
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
1-65600-231-7
01
1
9001-9204
●
216
BOLT; DASH BOARD
M10X20 W/LK WASHER
9-01911-020-0
08
1
9001-9002
●
●
216
BOLT; DASH BOARD
M10X20 W/LK WASHER
0-50041-020-0
08
1
9003-9606
●
●
216
BOLT; DASH BOARD
M10X20 FLANGE
0-28681-020-0
10
1
9607-
●
●
216
BOLT; DASH BOARD
M10X22
9-01911-022-0
02
1
9001-9002
●
●
216
BOLT; DASH BOARD
M10X22 W/LK WASHER
0-50041-022-0
02
1
9003-9606
●
●
217
NUT; DASH BOARD
M10
9-09110-510-0
10
1
9308-9606
●
●
217
NUT; DASH BOARD
M10 FLANGE
0-91150-210-0
10
1
9607-
●
●
218
NUT; SW PANEL
M8
9-09110-408-0
02
1
9001-9108
●
●
309
PANEL; SW,INST
1-65600-235-0
01
1
9001-9108
●
●
310
BOLT; SW PNL
M8X20 W/LK WASHER
9-01900-820-0
02
1
9001-9108
●
●
