Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11169 - FVZ SOUTH AFRICA
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

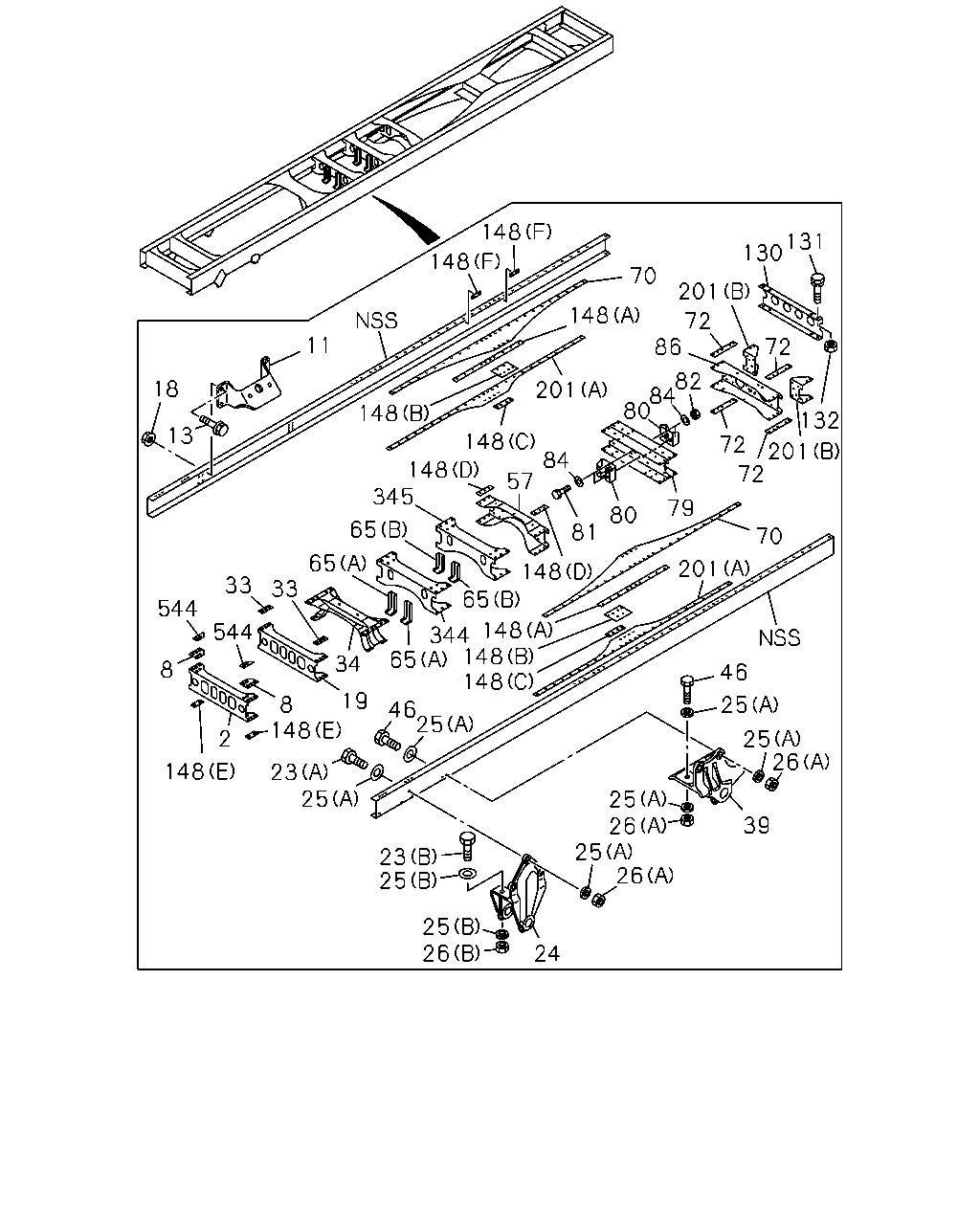

5-01 — FRAME AND OTHER PARTS
(#21337) — 48 parça
148
131
130
148
70
148
201
148
72
86
11
72
82
84
80
18
201
132
201
72
13
148
84
72
148
345
57
79
148
201
148
344
65
148
148
80
65
81
70
65
33
33
544
34
65
544
8
46
19
8
148
25
46
25
2
25
26
148
23
25
25
26
25
26
39
23
25
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1001-
8
GUSSET; 1ST C/MBR
SOU
8-97611-027-0
02
1
1001-
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1001-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE SOU
0-28661-235-0
08
1
1001-
18
NUT; BRKT,ENG MTG
M12 FLANGE SOU
0-91180-212-0
08
1
1001-
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1001-
23
BOLT; BRKT,SPR
(A) M14X50 SOU
0-20951-450-0
06
1
1001-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1001-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1001-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1001-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1001-
25
WASHER; PL,BRKT
(A) ID=15 SOU
8-98010-627-1
28
1
1001-
26
NUT; BRKT,SPR
(A) M14 SOU
0-91110-514-0
14
1
1001-
26
NUT; BRKT,SPR
(B) M16 SOU
0-91110-516-0
04
1
1001-
33
SPACER; 2ND C/MBR,UPR
SOU
8-97611-040-0
02
1
1001-
34
MEMBER; CROSS,3RD
SOU
8-97610-854-2
01
1
1001-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1001-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1001-
46
BOLT; BRKT FIX
M14X50 SOU
0-20951-450-0
08
1
1001-
57
MEMBER; CROSS,RR SUSP FRT
8-97612-103-1
01
1
1001-
65
BRACKET; CENTER BRG
ALLISON MD3560P A/T(Y3B) (B)
8-97612-486-0
02
1
1107-
65
BRACKET; CENTER BRG
ALLISON MD3560P A/T(Y3B) (A)
8-97614-136-0
02
1
1107-
65
BRACKET; CENTER BRG
(A)
8-97614-125-0
02
1
1001-1106
65
BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (A)
8-97614-125-0
02
1
1107-
65
BRACKET; CENTER BRG
(B)
8-97614-134-0
02
1
1001-1106
65
BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) (B)
8-97614-134-0
02
1
1107-
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1001-
72
SPACER; TRUNNION
8-97612-110-0
04
1
1001-
79
MEMBER; CROSS,TRUNNION ASM
8-97612-484-1
01
1
1001-
80
BRACKET; C/MBR
1-53363-068-0
02
1
1001-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1001-
82
NUT; BRKT
M14 SOU
0-91110-514-0
02
1
1001-
84
WASHER; PL,BRKT
ID=15 SOU
8-98010-627-1
04
1
1001-
86
MEMBER; CROSS,RR SUSP RR
8-97612-105-4
01
1
1001-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1001-
131
BOLT; END C/MBR
M12X30 W/LK WASHER SOU
0-50541-230-0
04
1
1001-
132
NUT; END C/MBR
M12 SOU
0-91110-512-0
04
1
1001-
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
1001-
148
SPACER; C/MBR
(D)
8-97612-109-0
02
1
1001-
148
SPACER; C/MBR
(F)
8-97612-111-0
04
1
1001-
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
1001-
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1001-
148
SPACER; C/MBR
(C)
8-97612-115-0
02
1
1001-
201
GUSSET; C/MBR
(B)
8-97612-108-2
02
1
1001-
201
GUSSET; C/MBR
(A)
8-97622-316-2
02
1
1001-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1001-
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1001-
544
PLATE; CAB FRT MTG
SOU
8-97615-598-0
02
1
1001-
