◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11169 - FVZ SOUTH AFRICA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#21320) — 561 parça

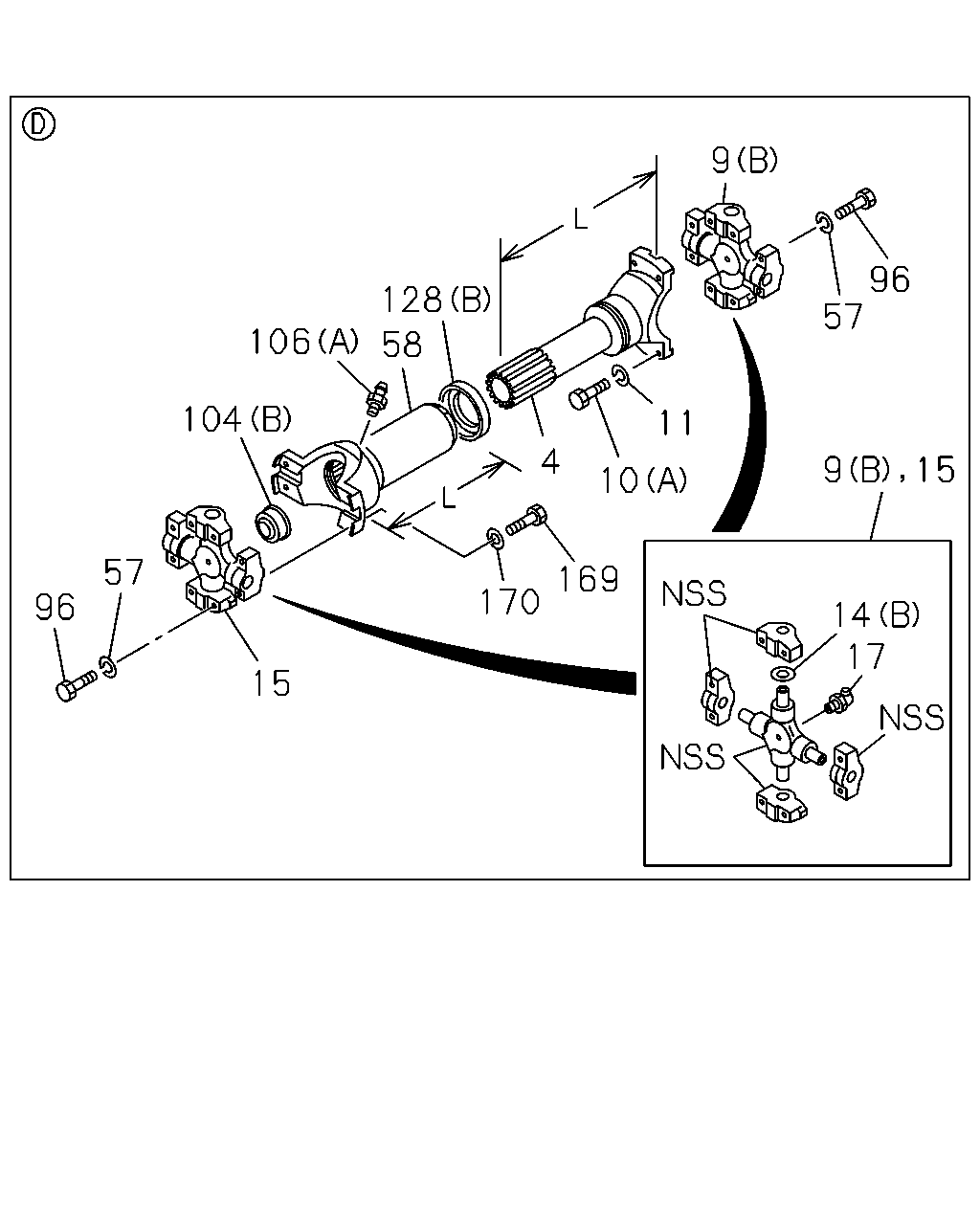

çizim 128306
9 96 57 128 106 58 104 11 4 9 15 10 57 169 170 96 14 17 15
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1107-1505
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND,END 		1-37300-110-0 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-111-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 2ND 		1-37300-111-0 01 1 1107-1505
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 24 1 1107-
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 08 1 1107-
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1001-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 SOU 		0-91510-612-0 04 1 1001-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 12 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1001-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1107-1505
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
57 WASHER; LK,YOKE
ID=12.2 SOU 		0-91510-612-0 08 1 1001-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1001-
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1001-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1001-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1107-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 1107-
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1001-1106
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1107-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1001-
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1001-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 SOU 		0-91510-612-0 04 1 1001-
çizim 128310
74 56 9 1 8 128 107 225 9 8 106 106 104 56 74 9 10 17 14 12 83 84 13
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=734 		8-98091-268-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=796 		1-37152-520-0 01 1 1107-
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 1107-
1 SHAFT; PROP
(B) L=915 		8-98091-469-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=915 		8-98091-469-1 01 1 1107-
1 SHAFT; PROP
(C) L=725 		8-98091-479-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 03 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 03 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1107-1505
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND,END 		1-37300-110-0 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-111-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 2ND 		1-37300-111-0 01 1 1107-1505
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 24 1 1107-
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 08 1 1107-
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1001-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1107-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1107-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1107-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 12 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1107-1505
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
56 NUT; YOKE
ALLISON MD3560P A/T(Y3B) M16 FLANGE 		1-09449-065-0 08 1 1107-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1001-1106
56 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 08 1 1107-
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) M16X48 		1-09000-383-0 04 1 1107-
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) M16X48 		1-09000-383-0 08 1 1107-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1001-1106
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 04 1 1107-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1001-1106
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 08 1 1107-
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1107-
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1107-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1001-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1107-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1107-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 1107-
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1001-1106
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1107-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1001-
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1107-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 1001-1106
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 1107-

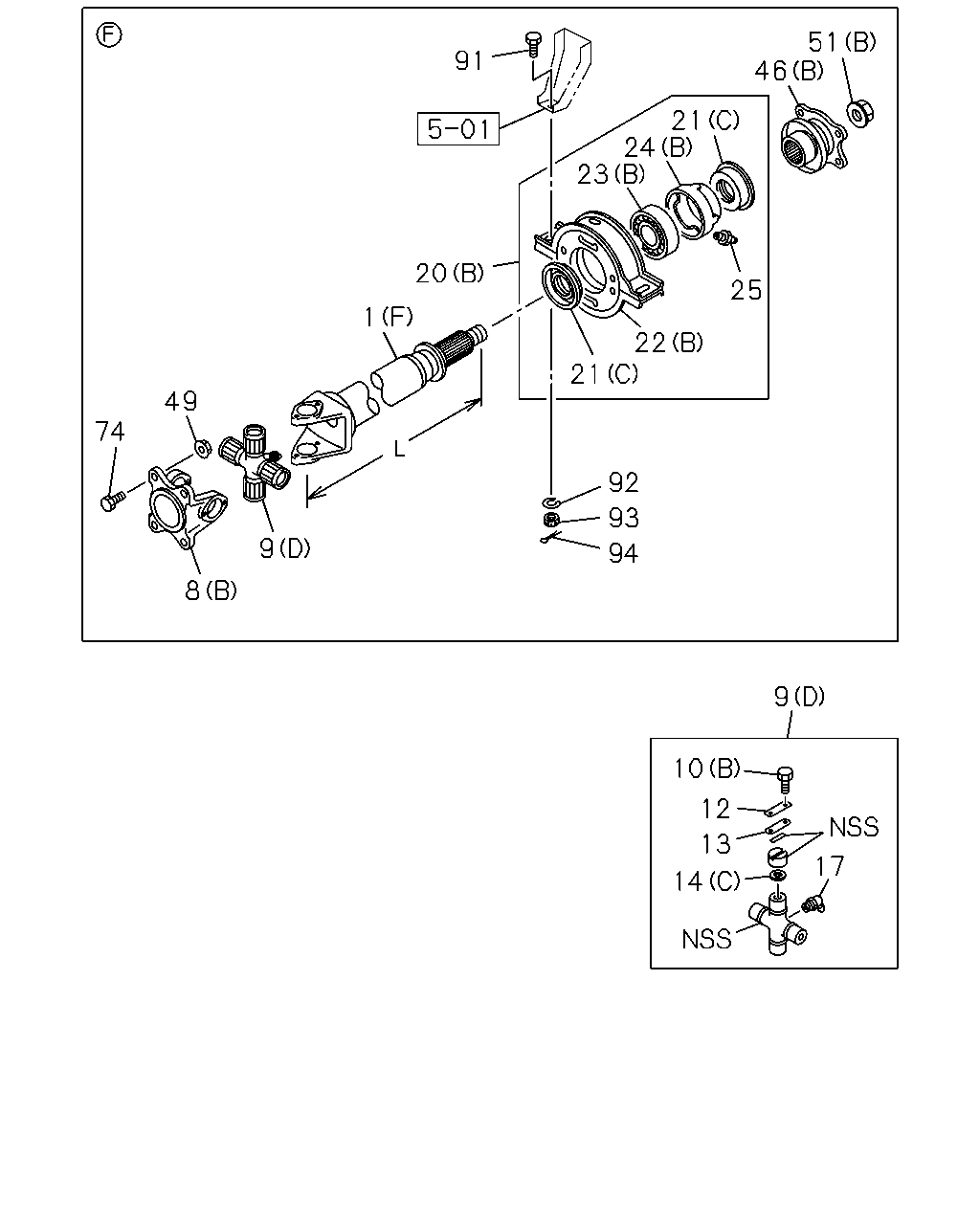

çizim 128314
51 46 91 21 24 23 20 25 1 22 21 49 74 92 93 9 94 8 9 10 12 13 17 14
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=734 		8-98091-268-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=796 		1-37152-520-0 01 1 1107-
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 1107-
1 SHAFT; PROP
(B) L=915 		8-98091-469-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=915 		8-98091-469-1 01 1 1107-
1 SHAFT; PROP
(C) L=725 		8-98091-479-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 03 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 03 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1107-1505
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND,END 		1-37300-110-0 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-111-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 2ND 		1-37300-111-0 01 1 1107-1505
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 24 1 1107-
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 08 1 1107-
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1001-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1107-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1107-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1107-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 12 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1107-1505
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
49 NUT; YOKE
ALLISON MD3560P A/T(Y3B) M16 FLANGE 		1-09449-065-0 04 1 1107-
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1001-1106
49 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 04 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) M16X48 		1-09000-383-0 04 1 1107-
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) M16X48 		1-09000-383-0 08 1 1107-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1001-1106
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 04 1 1107-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1001-1106
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 08 1 1107-
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1001-
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1001-
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1001-1204
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205-
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1001-

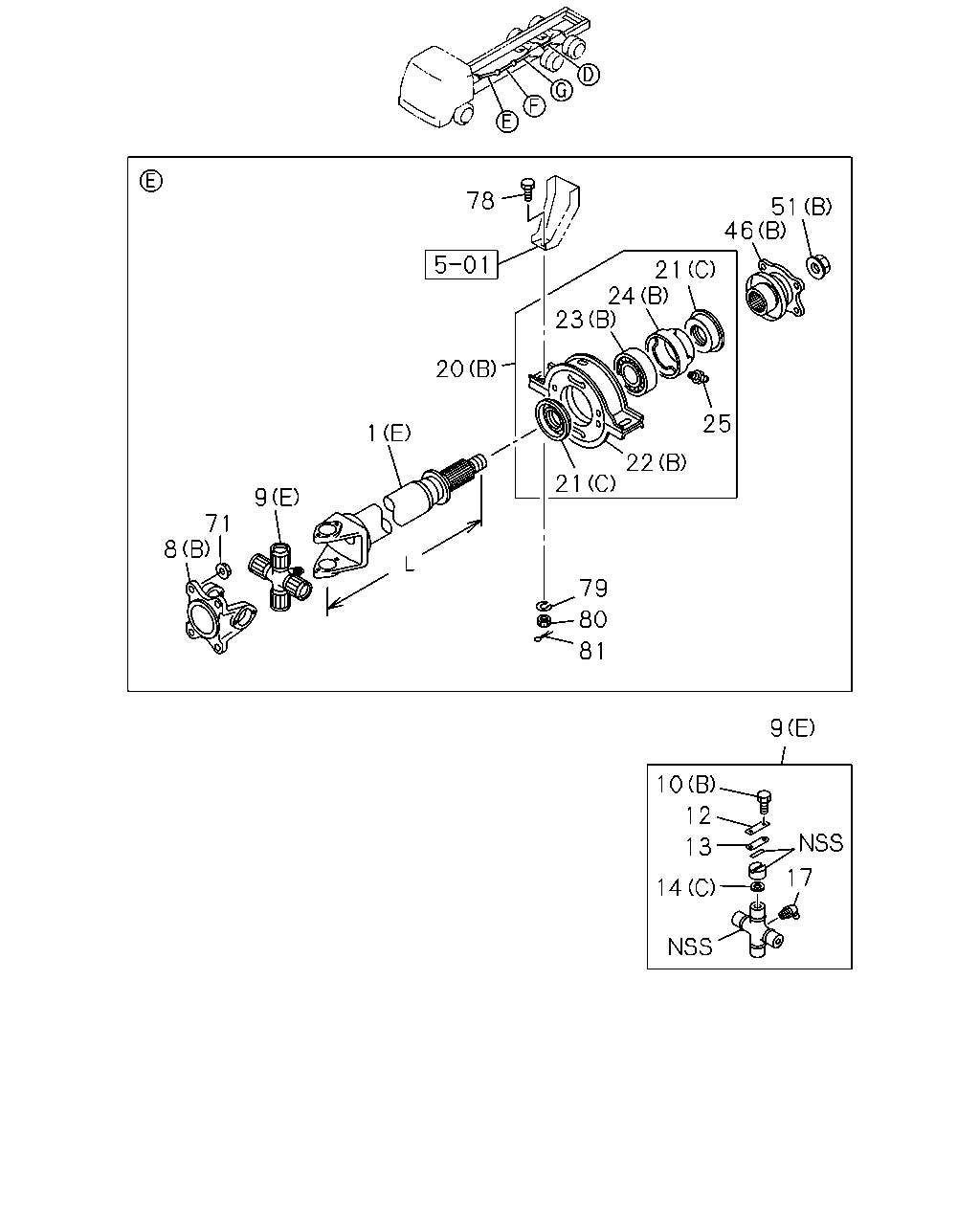

çizim 128472
78 51 46 21 24 23 20 25 1 22 21 9 71 8 79 80 81 9 10 12 13 17 14
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=734 		8-98091-268-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=796 		1-37152-520-0 01 1 1107-
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 1107-
1 SHAFT; PROP
(B) L=915 		8-98091-469-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=915 		8-98091-469-1 01 1 1107-
1 SHAFT; PROP
(C) L=725 		8-98091-479-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 03 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 03 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1107-1505
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND,END 		1-37300-110-0 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-111-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 2ND 		1-37300-111-0 01 1 1107-1505
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 24 1 1107-
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 SOU 		0-20951-020-0 08 1 1107-
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1001-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1107-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1107-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1107-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 12 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1107-1505
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
71 NUT; YOKE
ALLISON MD3560P A/T(Y3B) M16 FLANGE 		1-09449-065-0 04 1 1107-
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1001-1106
71 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 04 1 1107-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1001-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1001-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1001-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1001-

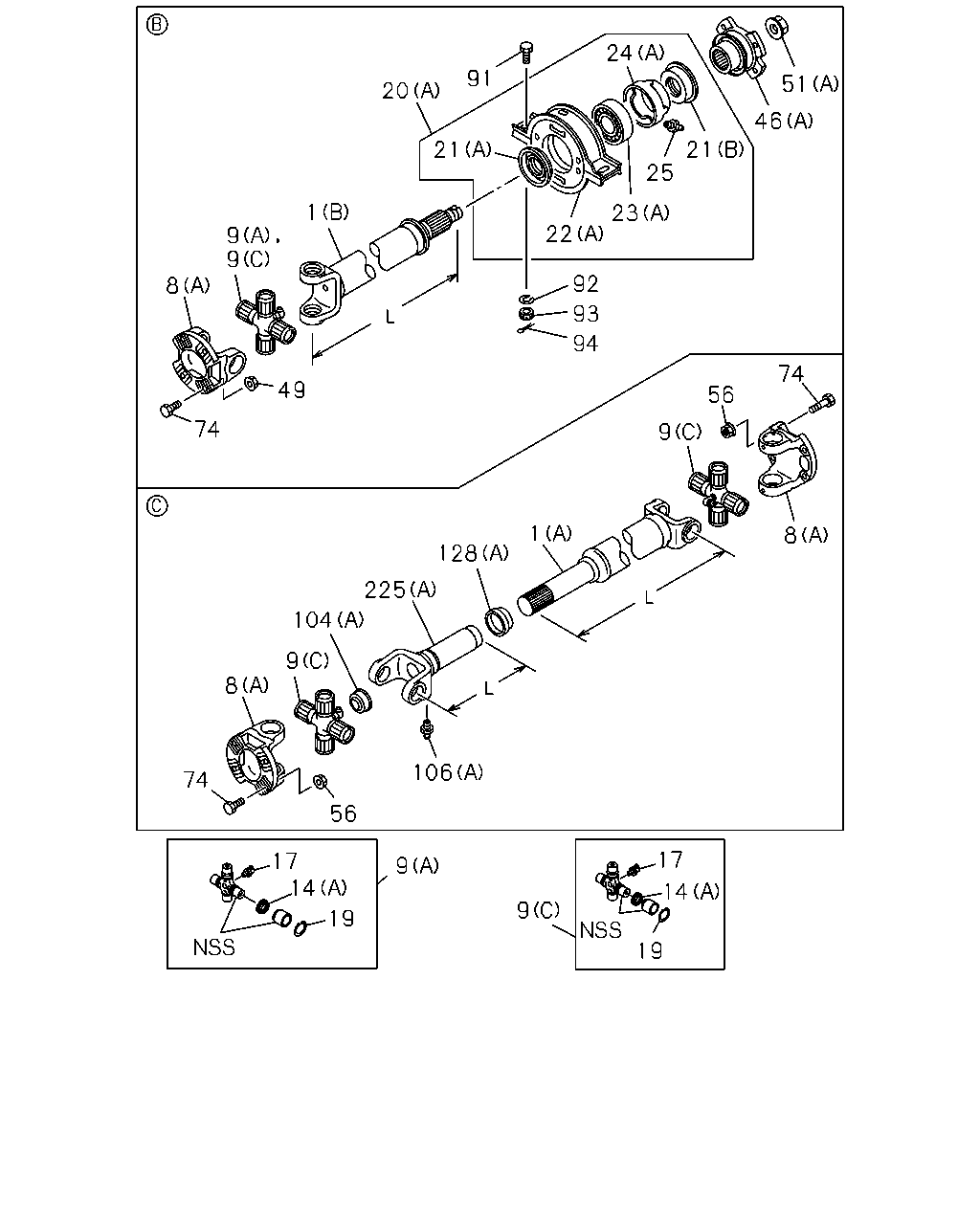

çizim 128475
20 91 24 51 46 21 25 23 22 92 93 94 1 9 8 49 74 21 74 56 9 8 1 128 225 104 9 8 74 56 106 9 17 14 19 9 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=734 		8-98091-268-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=796 		1-37152-520-0 01 1 1107-
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 1107-
1 SHAFT; PROP
(B) L=915 		8-98091-469-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=915 		8-98091-469-1 01 1 1107-
1 SHAFT; PROP
(C) L=725 		8-98091-479-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 03 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 03 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1107-1505
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND,END 		1-37300-110-0 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-111-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 2ND 		1-37300-111-0 01 1 1107-1505
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 12 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1107-1505
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1001-1106
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1107-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1001-1106
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
49 NUT; YOKE
ALLISON MD3560P A/T(Y3B) M16 FLANGE 		1-09449-065-0 04 1 1107-
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1001-1106
49 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 04 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
56 NUT; YOKE
ALLISON MD3560P A/T(Y3B) M16 FLANGE 		1-09449-065-0 08 1 1107-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1001-1106
56 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 08 1 1107-
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) M16X48 		1-09000-383-0 04 1 1107-
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) M16X48 		1-09000-383-0 08 1 1107-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1001-1106
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 04 1 1107-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1001-1106
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 08 1 1107-
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1001-
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1001-
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1001-1204
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205-
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1001-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1001-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1107-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 1107-
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1001-1106
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1107-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1001-
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1107-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 1001-1106
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 1107-

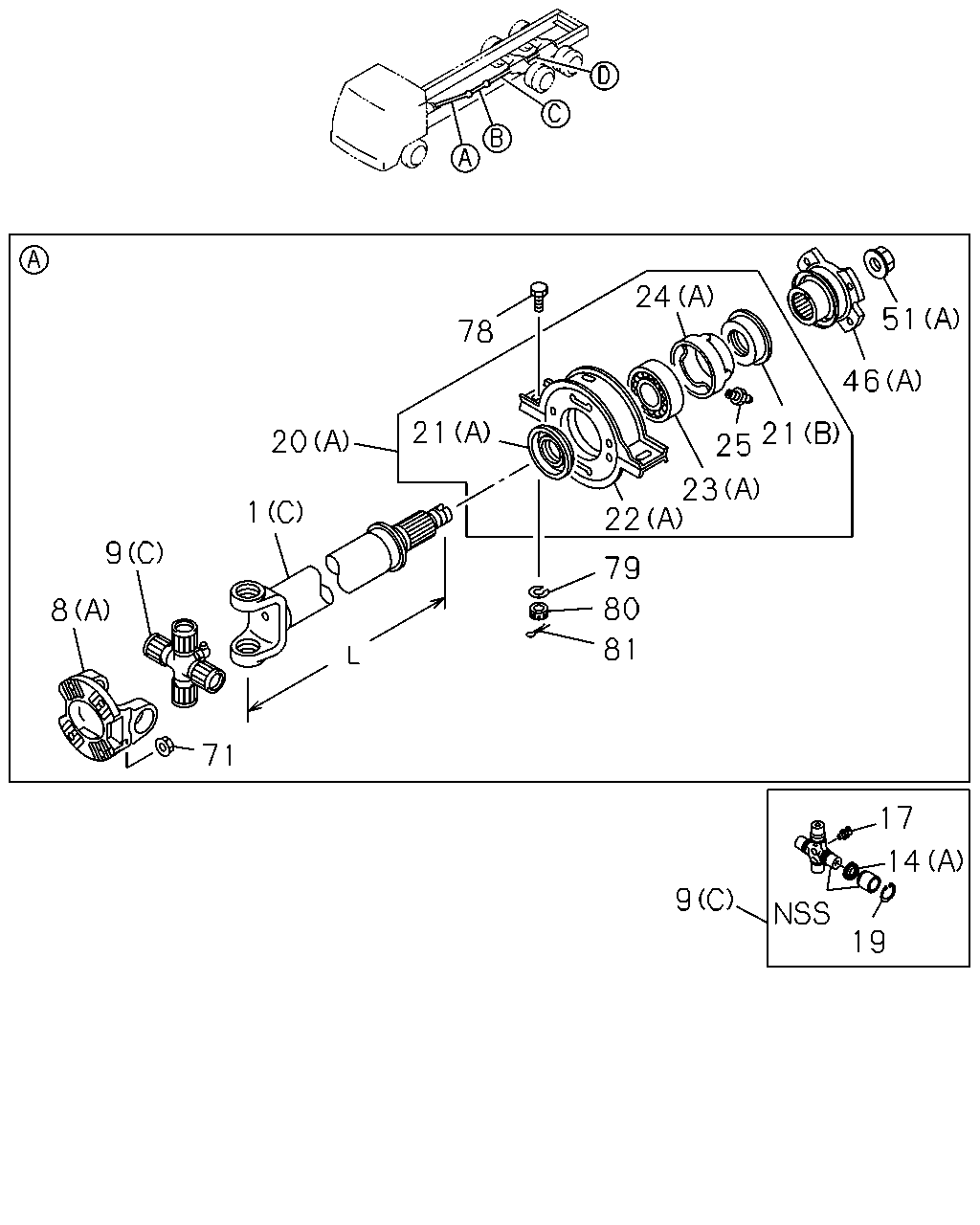

çizim 128476
24 51 78 46 21 21 25 20 23 1 22 9 79 80 8 81 71 17 14 9 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=734 		8-98091-268-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1107-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=796 		1-37152-520-0 01 1 1107-
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 1107-
1 SHAFT; PROP
(B) L=915 		8-98091-469-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=915 		8-98091-469-1 01 1 1107-
1 SHAFT; PROP
(C) L=725 		8-98091-479-1 01 1 1001-1106
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 03 1 1107-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 01 1 1107-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 1001-1106
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 03 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-094-1 AR 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1107-1505
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND,END 		1-37300-110-0 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-111-0 01 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 2ND 		1-37300-111-0 01 1 1107-1505
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 12 1 1107-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (C) 		9-37352-023-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1001-1106
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 12 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1107-1505
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1001-1106
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1107-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1505
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1001-1106
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1107-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1001-1106
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1001-1106
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1107-
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1001-1106
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1001-1106
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1001-1106
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1001-1106
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1107-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1001-1106
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1107-
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1001-1106
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1107-
71 NUT; YOKE
ALLISON MD3560P A/T(Y3B) M16 FLANGE 		1-09449-065-0 04 1 1107-
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1001-1106
71 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 04 1 1107-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1001-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1001-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1001-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
