7-20 — MIRROR AND MIRROR STAY (#2132) — 29 parça

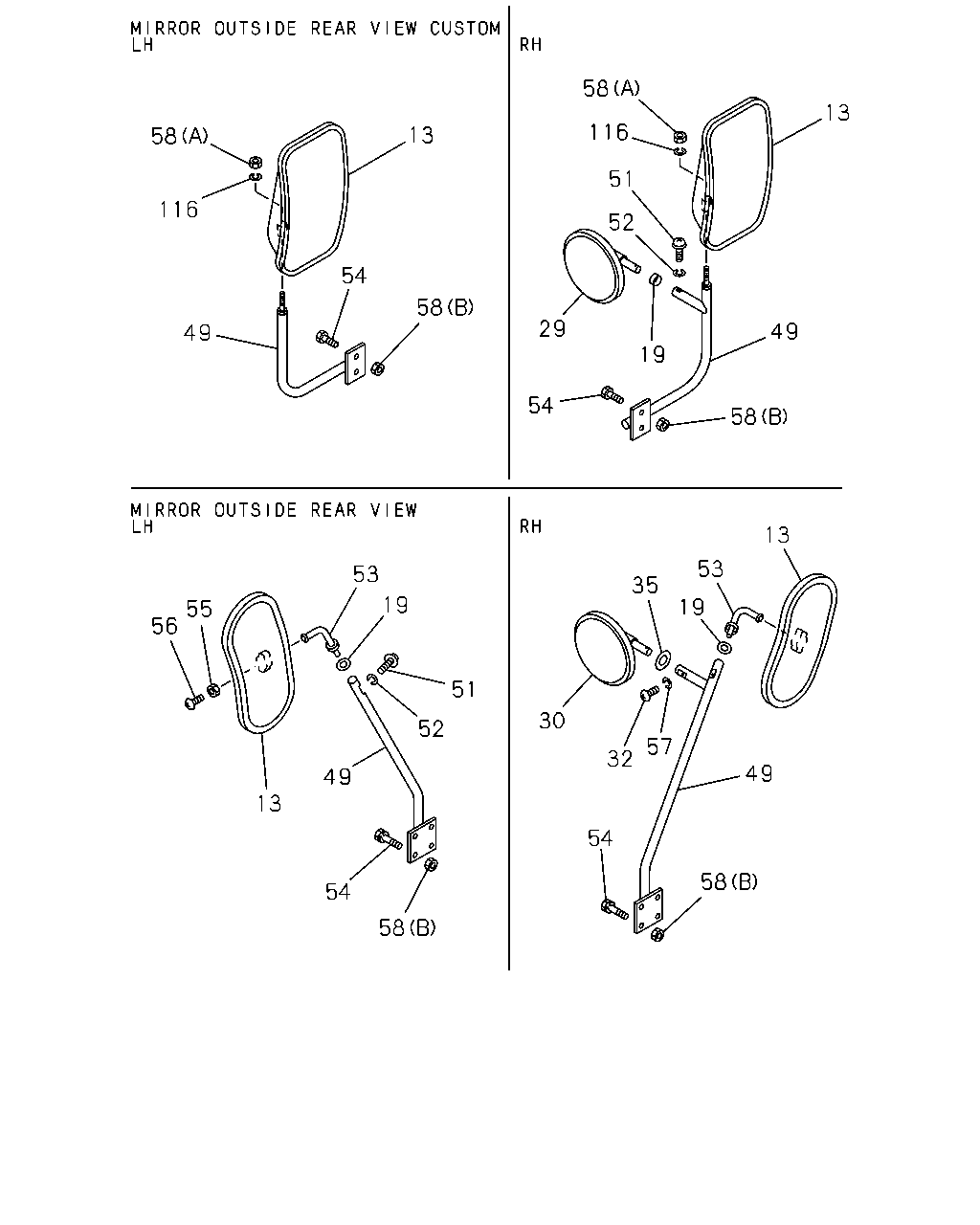

çizim 28009
58 13 116 13 58 51 116 52 54 58 29 49 49 19 54 58 13 53 53 35 19 19 55 56 51 30 52 57 32 49 49 13 54 58 54 58
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR OUTSIDE REAR VIEW<D37> 		9-61176-764-1 02 1 9001- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> 		1-73110-011-0 02 1 9001-9401 ● ●
19 GASKET; MIRROR
MIRROR OUTSIDE REAR VIEW<D37> 		9-61176-650-0 02 1 9001- ● ●
19 GASKET; MIRROR
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> 		9-61176-650-0 01 1 9001-9401 ● ●
29 MIRROR ASM; UNDER
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> 		9-61176-762-0 01 1 9001-9401 ● ●
30 MIRROR; UNDER
MIRROR OUTSIDE REAR VIEW<D37> 		9-61176-762-1 01 1 9001- ● ●
32 SCREW; UNDER MIRROR
MIRROR OUTSIDE REAR VIEW<D37> M6X12 		9-03490-612-0 01 1 9001- ● ●
35 GASKET; UNDER MIRROR
MIRROR OUTSIDE REAR VIEW<D37> 		9-61176-650-0 01 1 9001- ● ●
49 STAY; MIRROR SIDE
MIRROR OUTSIDE REAR VIEW<D37> 		9-68599-123-0 01 1 9001- ● ●
49 STAY; MIRROR SIDE
MIRROR OUTSIDE REAR VIEW<D37> 		9-68599-122-0 01 1 9001- ● ●
49 STAY; MIRROR SIDE
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> 		1-73110-013-0 01 1 9001-9401 ● ●
49 STAY; MIRROR SIDE
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> 		1-73110-012-0 01 1 9001-9401 ● ●
51 SCREW; MIRROR
MIRROR OUTSIDE REAR VIEW<D37> M6X12 		9-03490-612-0 02 1 9001- ● ●
51 SCREW; MIRROR
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> M6X12 		9-03490-612-0 01 1 9001-9401 ● ●
52 WASHER; LK,MIRROR
MIRROR OUTSIDE REAR VIEW<D37> ID=6.1 		9-09150-506-0 02 1 9001- ● ●
52 WASHER; LK,MIRROR
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> ID=6.1 		9-09150-506-0 01 1 9001-9401 ● ●
53 PIVOT; SIDE MIRROR
MIRROR OUTSIDE REAR VIEW<D37> 		9-61176-537-0 02 1 9001- ● ●
54 BOLT; STAY
M10X25 		9-01911-025-0 04 1 9001-9002 ● ●
54 BOLT; STAY
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9003-9401 ● ●
54 BOLT; STAY
MIRROR OUTSIDE REAR VIEW<D37> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9402-9606 ● ●
54 BOLT; STAY
MIRROR OUTSIDE REAR VIEW<D37> M10X25 FLANGE 		0-28681-025-0 04 1 9607- ● ●
55 NUT; SIDE MIRROR
MIRROR OUTSIDE REAR VIEW<D37> M3 		9-99110-403-0 04 1 9001- ● ●
56 SCREW; SIDE MIRROR
MIRROR OUTSIDE REAR VIEW<D37> M3X16 		9-93490-316-0 04 1 9001- ● ●
57 WASHER; LK,UNDER MIRROR
MIRROR OUTSIDE REAR VIEW<D37> ID=6.1 		9-09150-506-0 01 1 9001- ● ●
58 NUT; MIRROR STAY
(B) M10 		9-09110-510-0 04 1 9001-9401 ● ●
58 NUT; MIRROR STAY
MIRROR OUTSIDE REAR VIEW<D37> (B) M10 		9-09110-510-0 04 1 9402-9606 ● ●
58 NUT; MIRROR STAY
MIRROR OUTSIDE REAR VIEW<D37> (B) M10 FLANGE 		0-91150-210-0 04 1 9607- ● ●
58 NUT; MIRROR STAY
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> (A) M12 		9-99110-412-0 02 1 9001-9401 ● ●
116 WASHER; PL,STAY,MIRROR
MIRROR OUTSIDE REAR VIEW CUSTOM<D35> ID=12.5 		9-09160-512-0 02 1 9001-9401 ● ●
