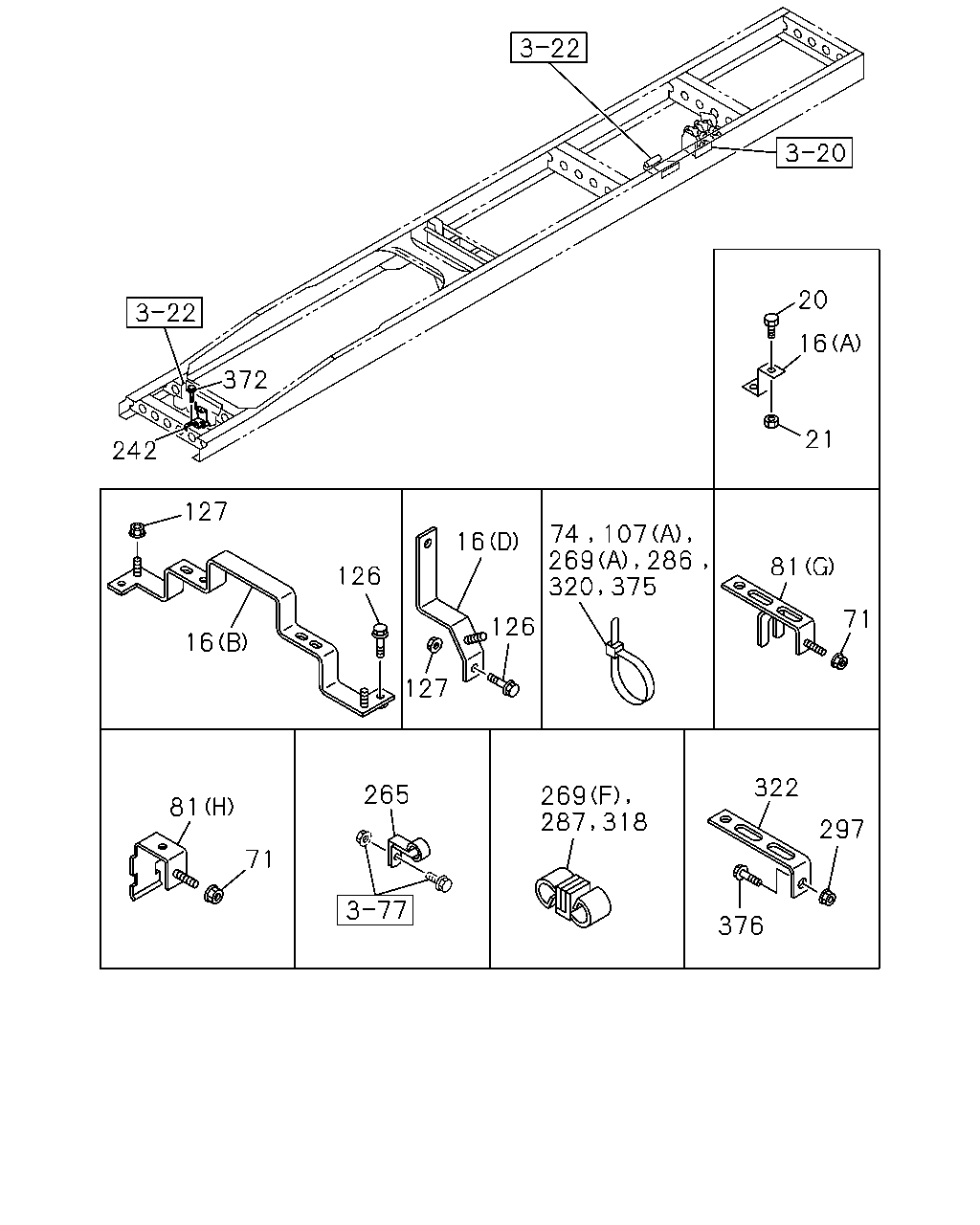

3-78 — FIXING PARTS; AIR PIPING (#21319) — 131 parça

34 16 16 22 126 16 126 133 20 81 20 269 21 71 269 126 269 269 126 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	1001-
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	1001-
16	BRACKET; PIPE CLIP (C)	1-47479-856-0	02	1	1001-
16	BRACKET; PIPE CLIP (E)	1-47479-857-0	01	1	1001-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	02	1	1001-
16	BRACKET; PIPE CLIP (F)	8-98137-090-0	01	1	1001-
20	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	1001-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1001-
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	03	1	1001-
22	BRACKET; CLIP L=225	1-47477-646-3	01	1	1001-
34	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
71	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1106-
71	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
71	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	08	1	1001-
81	BRACKET; CLIP (H)	8-98186-380-0	01	1	1106-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1001-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1001-
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1001-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1001-1509
81	BRACKET; CLIP ZF9S1110 M/T(Y5E) (E)	8-98129-212-0	04	1	1001-1012
81	BRACKET; CLIP ZF9S1110 M/T(Y5E) (G)	8-98177-873-0	04	1	1101-1106
81	BRACKET; CLIP (G)	8-98177-873-0	04	1	1107-
81	BRACKET; CLIP (F) L=65 B=25	8-98135-584-0	01	1	1001-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1001-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1001-
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	04	1	1001-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1001-
126	BOLT; CLIP BRKT M10X35 FLANGE SOU	0-28651-035-0	01	1	1001-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1001-
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1001-
133	BOLT; BRKT ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1001-1106
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1107-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (F) ID=12 & 15	1-09709-281-1	01	1	1012-1102
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (F) ID=12 & 15	1-09709-281-1	01	1	1103-
269	CLIP; BAND,NYLON TUBE VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1012-1102
269	CLIP; BAND,NYLON TUBE EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1103-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=20	0-95325-035-0	01	1	1001-
269	CLIP; BAND,NYLON TUBE (E) ID=11X2 H=35 L=20	1-09700-847-0	01	1	1001-
269	CLIP; BAND,NYLON TUBE (D) ID=39 H=40 L=32	1-09701-267-0	02	1	1001-
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	1001-
269	CLIP; BAND,NYLON TUBE (C) ID=39 L=33	8-98009-359-0	04	1	1001-

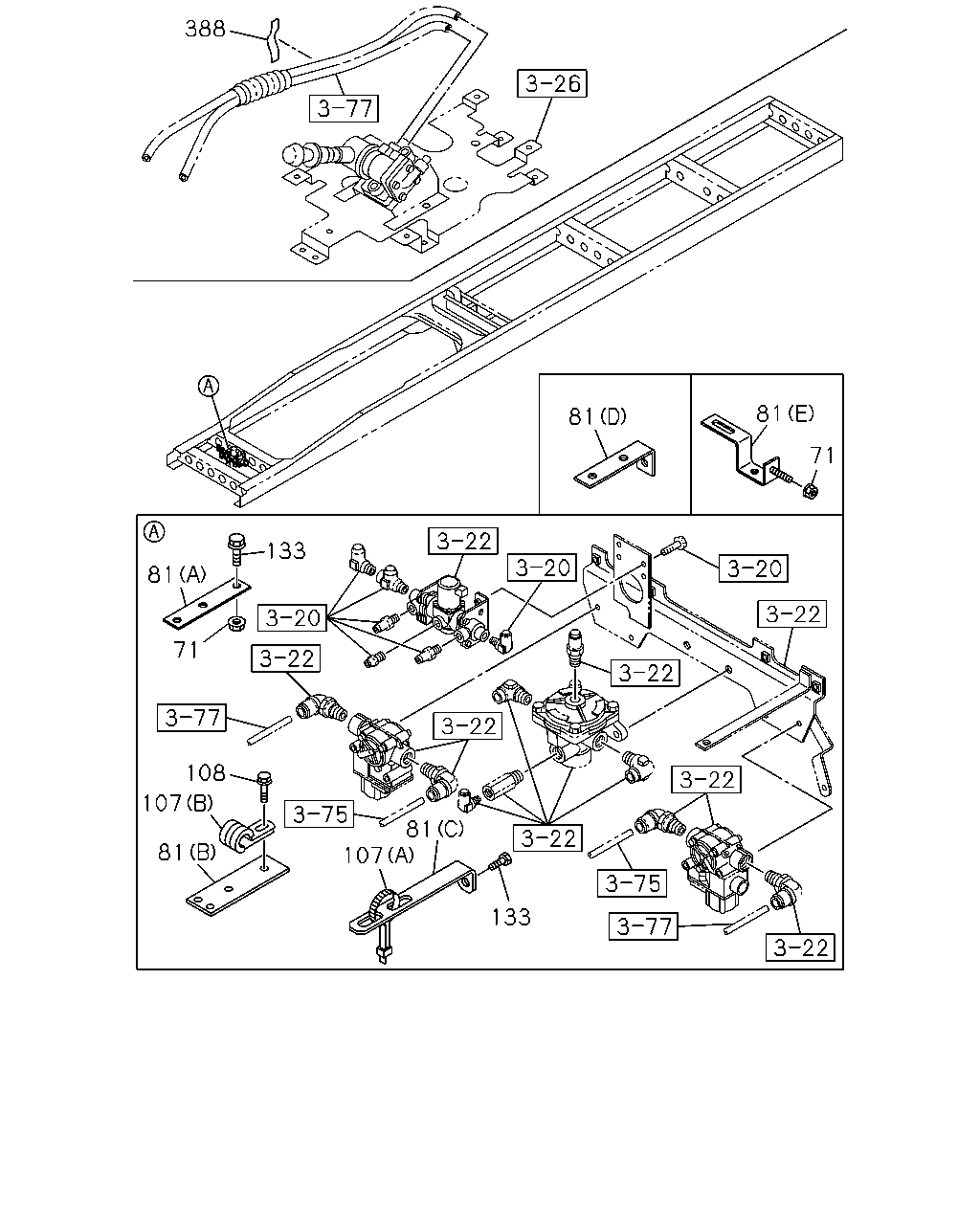

20 16 372 21 242 127 16 81 126 71 126 16 127 322 265 269 81 297 71 376 74 107 269 286 320 375 287 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	1001-
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	1001-
16	BRACKET; PIPE CLIP (C)	1-47479-856-0	02	1	1001-
16	BRACKET; PIPE CLIP (E)	1-47479-857-0	01	1	1001-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	02	1	1001-
16	BRACKET; PIPE CLIP (F)	8-98137-090-0	01	1	1001-
20	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	1001-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1001-
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	03	1	1001-
71	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1106-
71	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
71	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	08	1	1001-
74	CLIP; NYLON TUBE MANUAL TRANSMISSION<X9C> L=350	1-09707-183-0	08	1	1107-
74	CLIP; NYLON TUBE A/T<X9D> EXC. RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	06	1	1107-
74	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	1001-
74	CLIP; NYLON TUBE L=350	1-09707-183-0	03	1	1001-
74	CLIP; NYLON TUBE L=350	1-09707-183-0	08	1	1001-1106
74	CLIP; NYLON TUBE RIGID SEAT WO/ARM REST<TAZ> A/T<X9D> L=350	1-09707-183-0	05	1	1107-
81	BRACKET; CLIP (H)	8-98186-380-0	01	1	1106-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1001-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1001-
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1001-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1001-1509
81	BRACKET; CLIP ZF9S1110 M/T(Y5E) (E)	8-98129-212-0	04	1	1001-1012
81	BRACKET; CLIP ZF9S1110 M/T(Y5E) (G)	8-98177-873-0	04	1	1101-1106
81	BRACKET; CLIP (G)	8-98177-873-0	04	1	1107-
81	BRACKET; CLIP (F) L=65 B=25	8-98135-584-0	01	1	1001-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	45	1	1001-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1001-
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1001-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1001-
126	BOLT; CLIP BRKT M8X10 FLANGE	0-28050-810-0	02	1	1001-
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	04	1	1001-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1001-
126	BOLT; CLIP BRKT M10X35 FLANGE SOU	0-28651-035-0	01	1	1001-
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
127	NUT; CLIP BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-
242	BRACKET; PIPE CLIP	8-98106-046-0	01	1	1001-
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1001-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (F) ID=12 & 15	1-09709-281-1	01	1	1012-1102
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (F) ID=12 & 15	1-09709-281-1	01	1	1103-
269	CLIP; BAND,NYLON TUBE VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1012-1102
269	CLIP; BAND,NYLON TUBE EXC. AIR DRYER<PS7> (F) ID=15 & 15	1-09709-282-1	01	1	1103-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=20	0-95325-035-0	01	1	1001-
269	CLIP; BAND,NYLON TUBE (E) ID=11X2 H=35 L=20	1-09700-847-0	01	1	1001-
269	CLIP; BAND,NYLON TUBE (D) ID=39 H=40 L=32	1-09701-267-0	02	1	1001-
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	1001-
269	CLIP; BAND,NYLON TUBE (C) ID=39 L=33	8-98009-359-0	04	1	1001-
286	CLIP; NYLON TUBE VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1012-1102
286	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1103-
287	CLIP; AIR PIPE AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> ID=6.35 & 12	1-09709-275-1	01	1	1012-1012
287	CLIP; AIR PIPE VIN MODEL YEAR 2011<VZB> ID=6.35 & 6.35	1-09709-273-1	01	1	1012-1012
287	CLIP; AIR PIPE VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	1012-1012
297	NUT; BRKT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE SOU	0-91180-108-0	02	1	1001-
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	1001-
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1001-
320	CLIP; BAND,FLEX FIX L=250 SOU	5-09707-030-1	01	1	1001-
322	BRACKET; CLIP ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-47479-598-0	02	1	1001-
372	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	1001-1011
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1001-1011
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	1012-1102
375	CLIP; AIR PIPE EXC. VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1012-1102
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	1103-
376	BOLT; BRKT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	02	1	1001-

388 81 81 71 133 81 71 108 107 81 81 107 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1106-
71	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
71	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	08	1	1001-
81	BRACKET; CLIP (H)	8-98186-380-0	01	1	1106-
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	1001-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1001-
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1001-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1001-1509
81	BRACKET; CLIP ZF9S1110 M/T(Y5E) (E)	8-98129-212-0	04	1	1001-1012
81	BRACKET; CLIP ZF9S1110 M/T(Y5E) (G)	8-98177-873-0	04	1	1101-1106
81	BRACKET; CLIP (G)	8-98177-873-0	04	1	1107-
81	BRACKET; CLIP (F) L=65 B=25	8-98135-584-0	01	1	1001-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	45	1	1001-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1001-
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1001-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1001-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1001-
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1001-
133	BOLT; BRKT ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1001-1106
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1107-
388	SEAL 100X40 SOU	1-72498-022-1	03	1	1001-
