◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11169 - FVZ SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#21316) — 123 parça

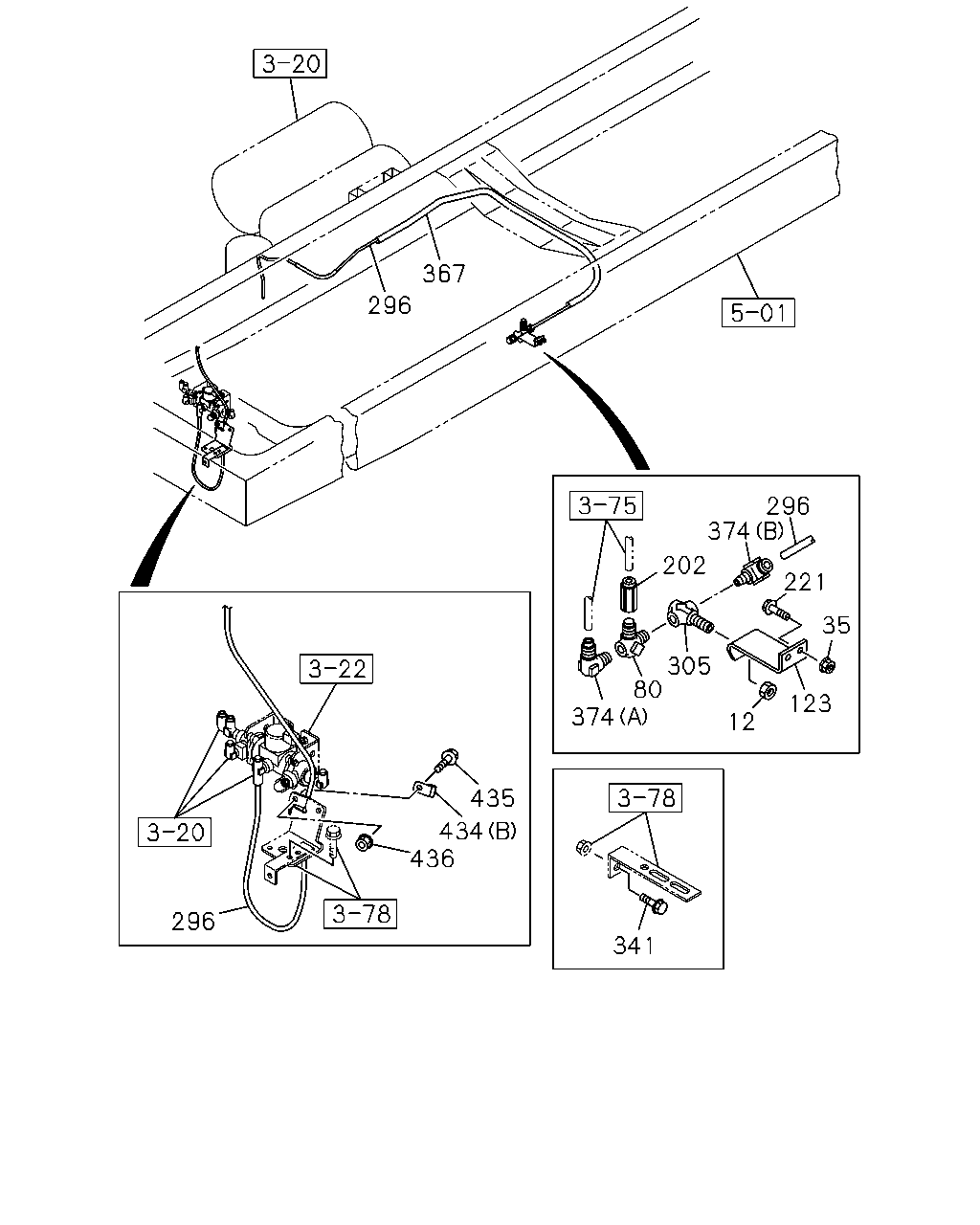

çizim 128291
367 296 296 374 202 221 35 305 80 374 123 12 435 434 436 296 341
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1001-1106
12 NUT; UNION
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1107-
12 NUT; UNION
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 		0-91111-512-0 01 1 1107-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1106
35 NUT; BRKT
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6> M8 FLANGE SOU 		0-91180-108-0 02 1 1107-
80 UNION; 3 WAY
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1001-1106
80 UNION; 3 WAY
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1001-1106
80 UNION; 3 WAY
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1107-
80 UNION; 3 WAY
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1107-
123 BRACKET; UNION
EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1001-1106
123 BRACKET; UNION
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1107-
123 BRACKET; UNION
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> 		8-98118-545-0 01 1 1107-
202 ADAPTER
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1001-1106
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1001-1106
202 ADAPTER
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1107-
202 ADAPTER
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1107-
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE SOU 		0-28650-835-0 02 1 1001-1106
221 BOLT; BRKT
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6> M8X35 FLANGE SOU 		0-28650-835-0 02 1 1107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1001-
305 UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1001-1106
305 UNION ASM; NYLON TUBE
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1107-
305 UNION ASM; NYLON TUBE
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1107-
341 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1001-
374 CONNECTOR
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-1106
374 CONNECTOR
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1107-
374 CONNECTOR
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1107-
374 CONNECTOR
EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-1106
374 CONNECTOR
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1107-
374 CONNECTOR
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (B) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1107-
434 CLIP
AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1001-
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1001-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1001-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1001-
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU 		0-91180-108-0 01 1 1001-

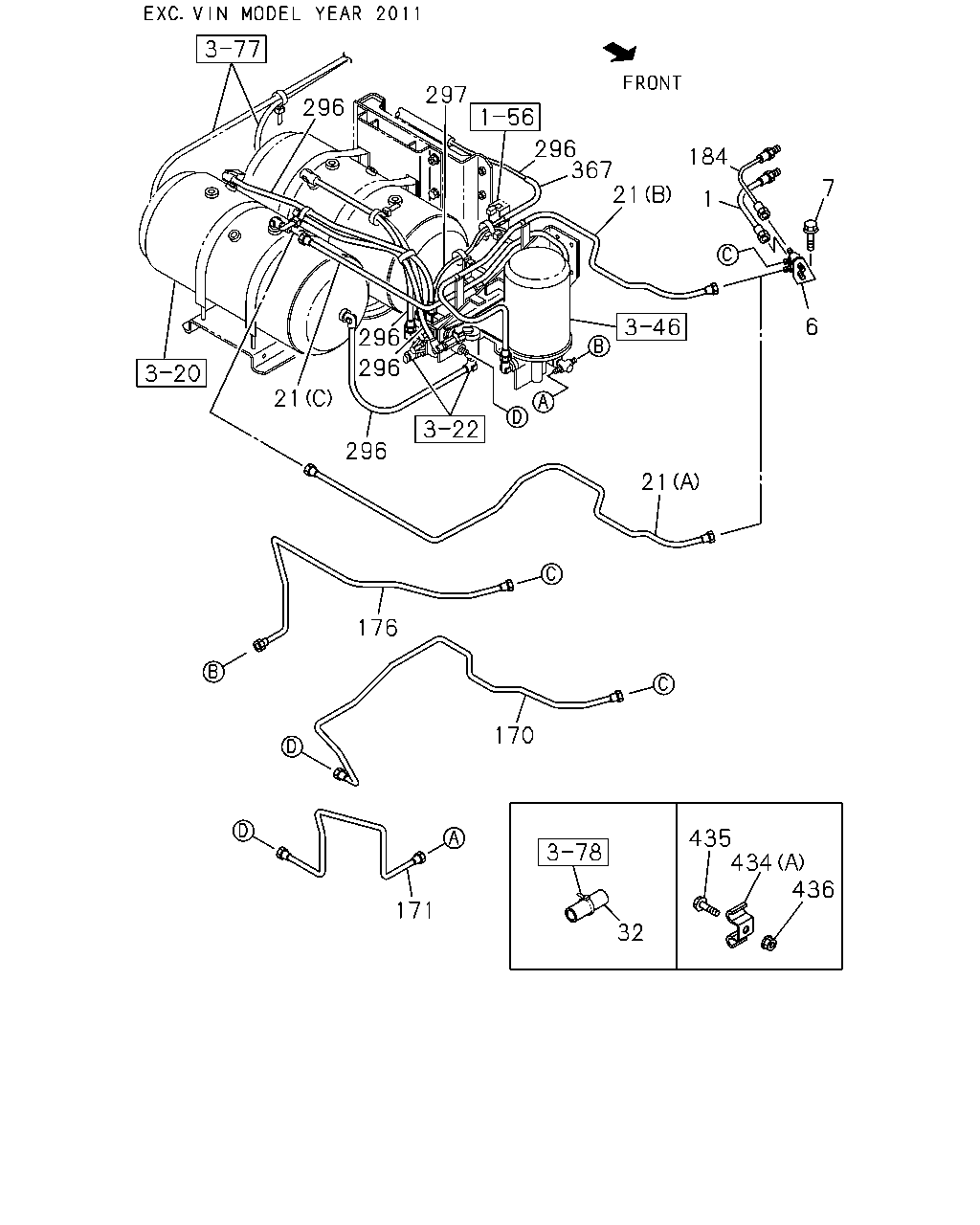

çizim 128463
297 296 296 367 21 184 7 1 6 296 296 21 296 21 176 170 435 434 436 171 32
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1001-
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1001-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D) 		8-98173-546-0 01 1 1012-1012
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D) 		8-98184-503-0 01 1 1012-1102
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (D) 		8-98184-503-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523 		8-98173-570-0 01 1 1012-1012
21 PIPE; AIR,UNION TO AIR DRYER
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526 		8-98184-504-0 01 1 1012-1102
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (E) L=1526 		8-98184-504-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (B) L=1540 		8-98117-033-0 01 1 1001-1009
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (B) L=1548 		8-98174-993-0 01 1 1010-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		8-98147-087-0 01 1 1001-1011
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (C) 		8-98147-087-0 01 1 1012-1102
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (A) L=1630 		8-98120-164-0 01 1 1001-1011
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (A) L=1630 		8-98120-164-0 01 1 1012-1102
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1001-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 1001-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1001-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1001-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1001-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1001-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1001-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1001-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1001-
434 CLIP
AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1001-
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1001-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1001-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1001-
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU 		0-91180-108-0 01 1 1001-

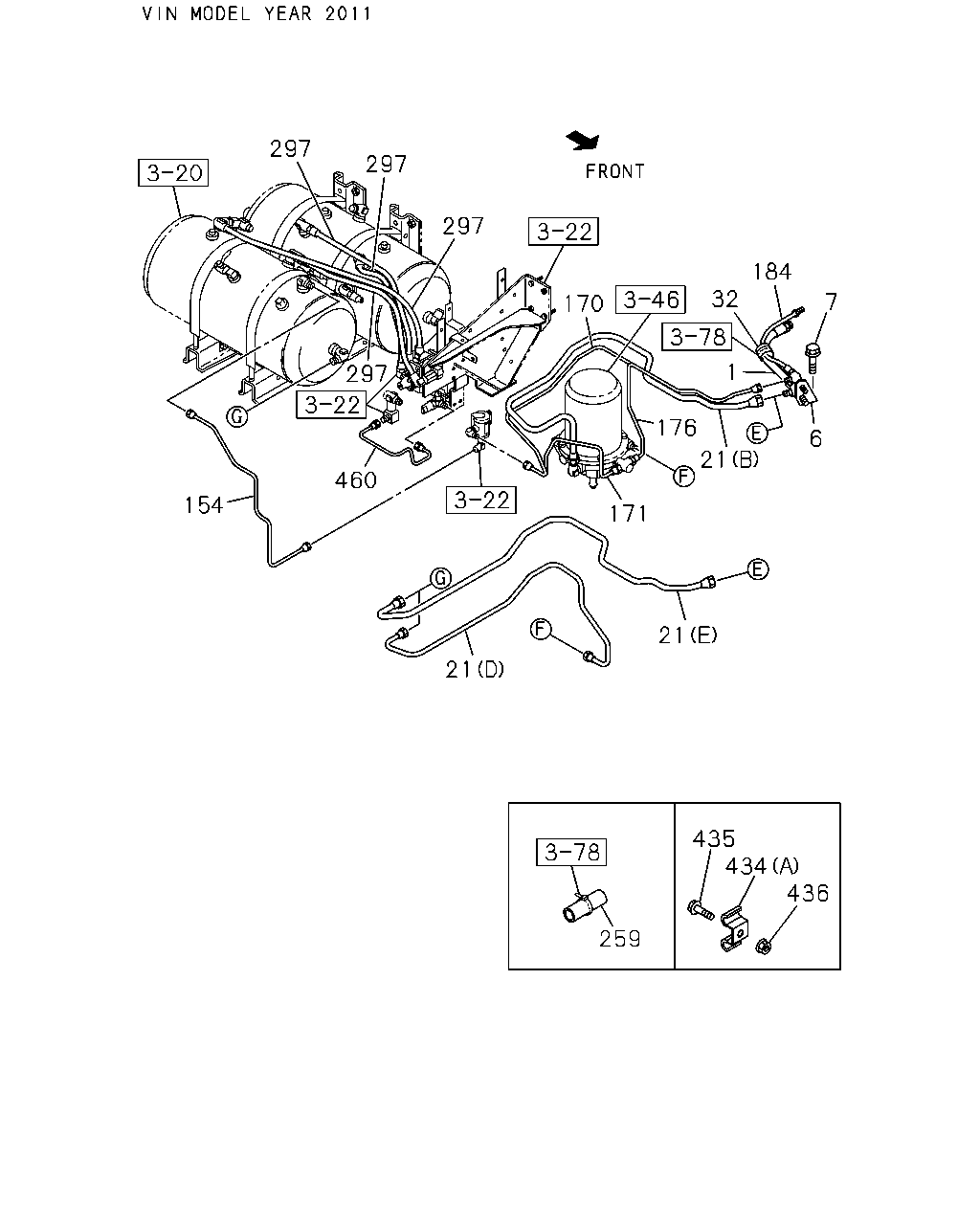

çizim 128469
297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1001-
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1001-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D) 		8-98173-546-0 01 1 1012-1012
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D) 		8-98184-503-0 01 1 1012-1102
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (D) 		8-98184-503-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523 		8-98173-570-0 01 1 1012-1012
21 PIPE; AIR,UNION TO AIR DRYER
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526 		8-98184-504-0 01 1 1012-1102
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (E) L=1526 		8-98184-504-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (B) L=1540 		8-98117-033-0 01 1 1001-1009
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (B) L=1548 		8-98174-993-0 01 1 1010-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (C) 		8-98147-087-0 01 1 1001-1011
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (C) 		8-98147-087-0 01 1 1012-1102
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (A) L=1630 		8-98120-164-0 01 1 1001-1011
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (A) L=1630 		8-98120-164-0 01 1 1012-1102
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1001-
154 PIPE; AIR,AIR TANK TO AIR GOV
VIN MODEL YEAR 2011<VZB> 		8-98173-547-0 01 1 1012-1012
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		8-98152-685-0 01 1 1001-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1001-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1001-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1001-
259 SLEEVE; RUBBER,NYLON TUBE
VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1012-1102
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1103-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1001-
434 CLIP
AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1001-
434 CLIP
EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1001-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1001-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1001-
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
460 PIPE; AIR,PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> 		8-98173-460-0 01 1 1012-1012
460 PIPE; AIR,PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> 		8-98184-394-0 01 1 1012-1102
460 PIPE; AIR,PROTECTION VALVE 8-98184-394-0 01 1 1103-
