3-40 — FRONT BRAKE POWER CHAMBER (#21312) — 30 parça

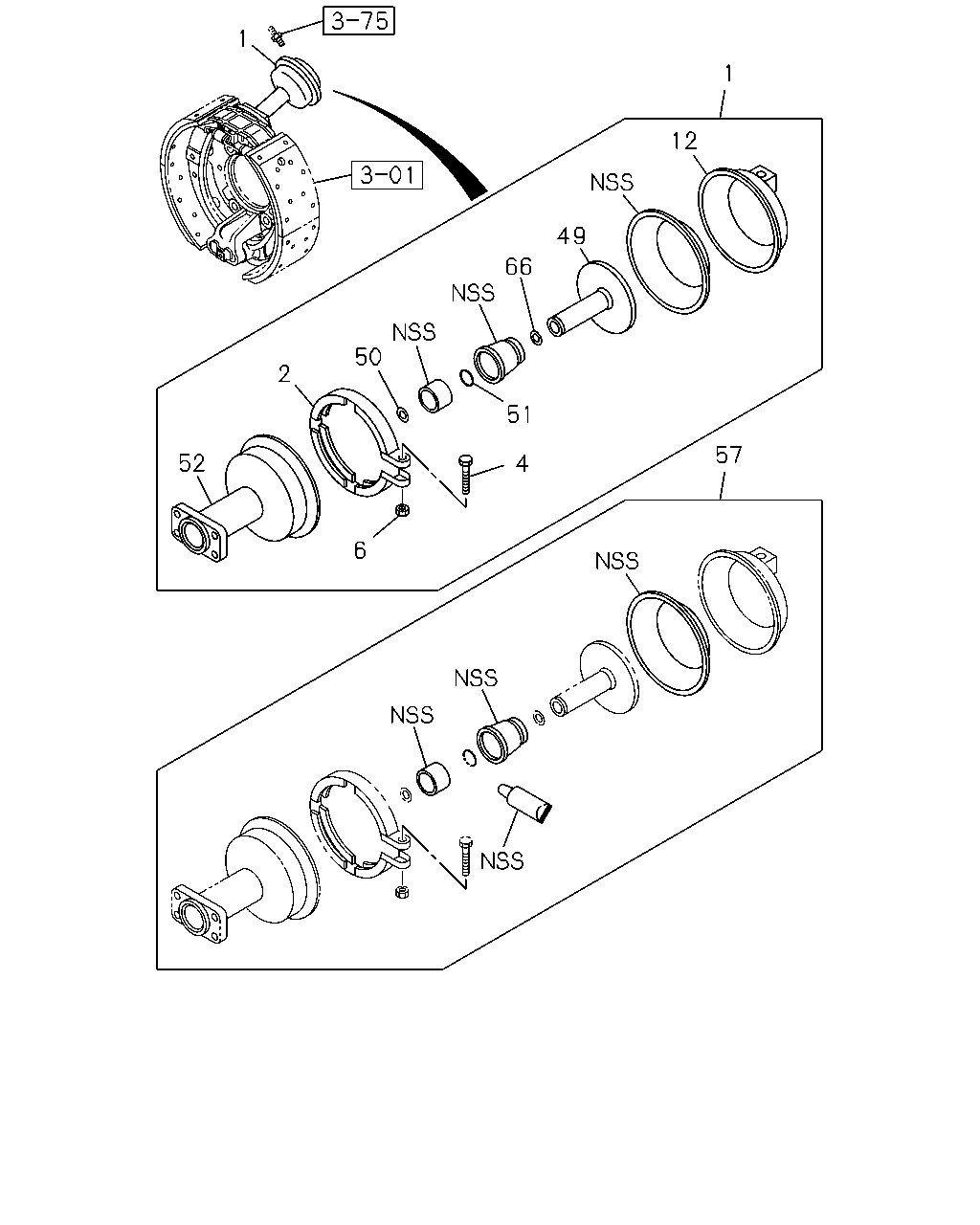

çizim 128282
1 1 12 49 66 50 2 51 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK 8-98145-677-2 02 1 1001-
2 RING; CLAMP,SPR CHAMBER 1-48269-148-0 02 1 1001-1005
2 RING; CLAMP,SPR CHAMBER 8-98167-056-0 02 1 1006-
4 BOLT; CLAMP RING 1-48269-146-0 04 1 1001-1005
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1006-
6 NUT; CLAMP RING 1-48269-147-0 04 1 1001-1005
6 NUT; CLAMP RING 1-48269-147-0 02 1 1006-
12 COVER ASM; LWR,SPR CHAMBER 1-48251-102-0 02 1 1001-
49 ROD; PUSH,SPR CHAMBER 8-98146-968-1 02 1 1001-
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1001-
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1001-
52 HOUSING; SPR CHAMBER 1-48251-152-2 02 1 1001-1403
52 HOUSING; SPR CHAMBER 8-98248-792-0 02 1 1404-
57 REPAIR KIT; SPR CHAMBER 8-98146-977-0 02 1 1001-
66 SHIM 8-98146-965-0 AR 1 1001-

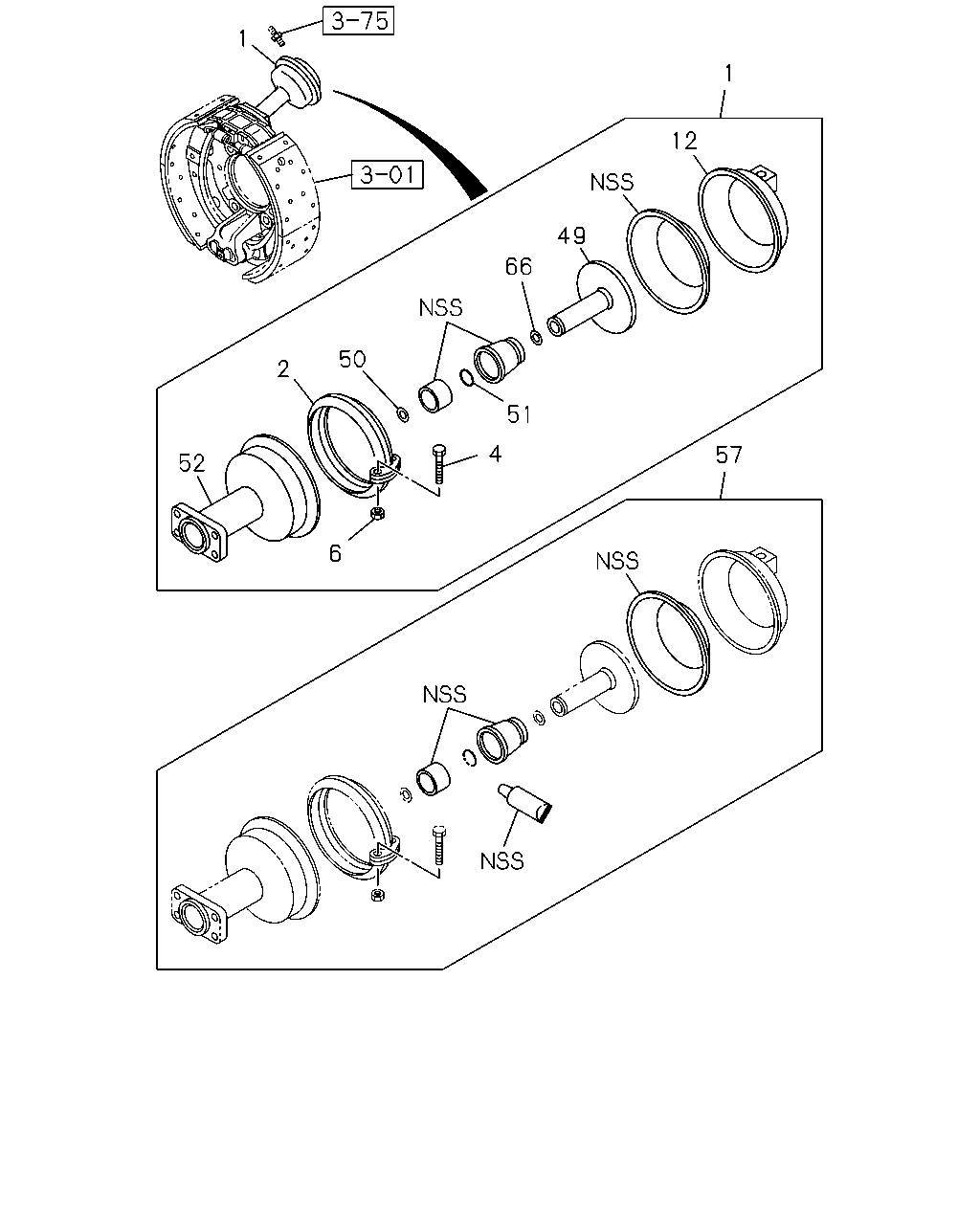

çizim 128467
1 1 12 49 66 50 2 51 4 57 52 6
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK 8-98145-677-2 02 1 1001-
2 RING; CLAMP,SPR CHAMBER 1-48269-148-0 02 1 1001-1005
2 RING; CLAMP,SPR CHAMBER 8-98167-056-0 02 1 1006-
4 BOLT; CLAMP RING 1-48269-146-0 04 1 1001-1005
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1006-
6 NUT; CLAMP RING 1-48269-147-0 04 1 1001-1005
6 NUT; CLAMP RING 1-48269-147-0 02 1 1006-
12 COVER ASM; LWR,SPR CHAMBER 1-48251-102-0 02 1 1001-
49 ROD; PUSH,SPR CHAMBER 8-98146-968-1 02 1 1001-
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1001-
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1001-
52 HOUSING; SPR CHAMBER 1-48251-152-2 02 1 1001-1403
52 HOUSING; SPR CHAMBER 8-98248-792-0 02 1 1404-
57 REPAIR KIT; SPR CHAMBER 8-98146-977-0 02 1 1001-
66 SHIM 8-98146-965-0 AR 1 1001-
