Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#21308) — 349 parça

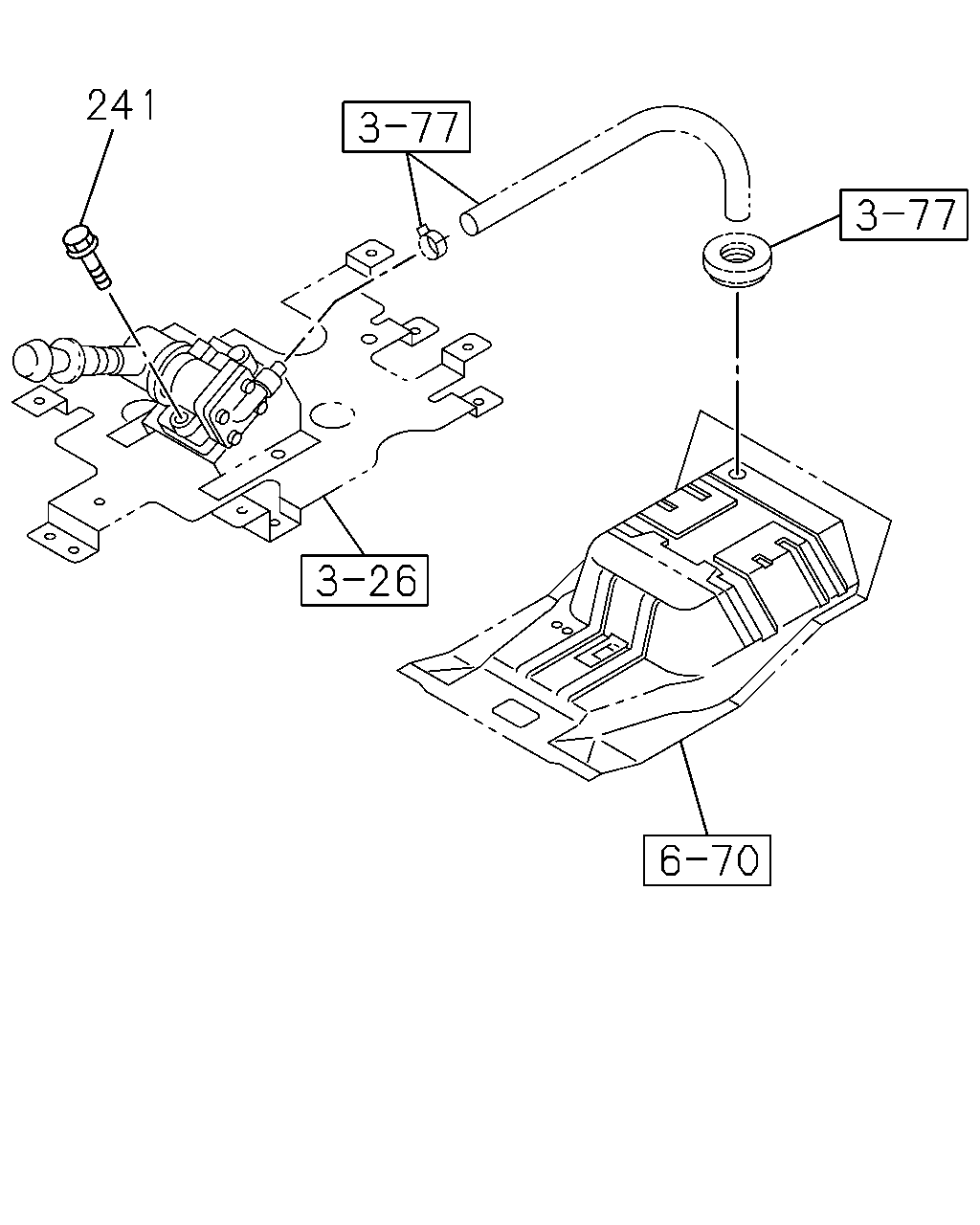

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X70 FLANGE SOU	0-28050-870-0	02	1	1001-

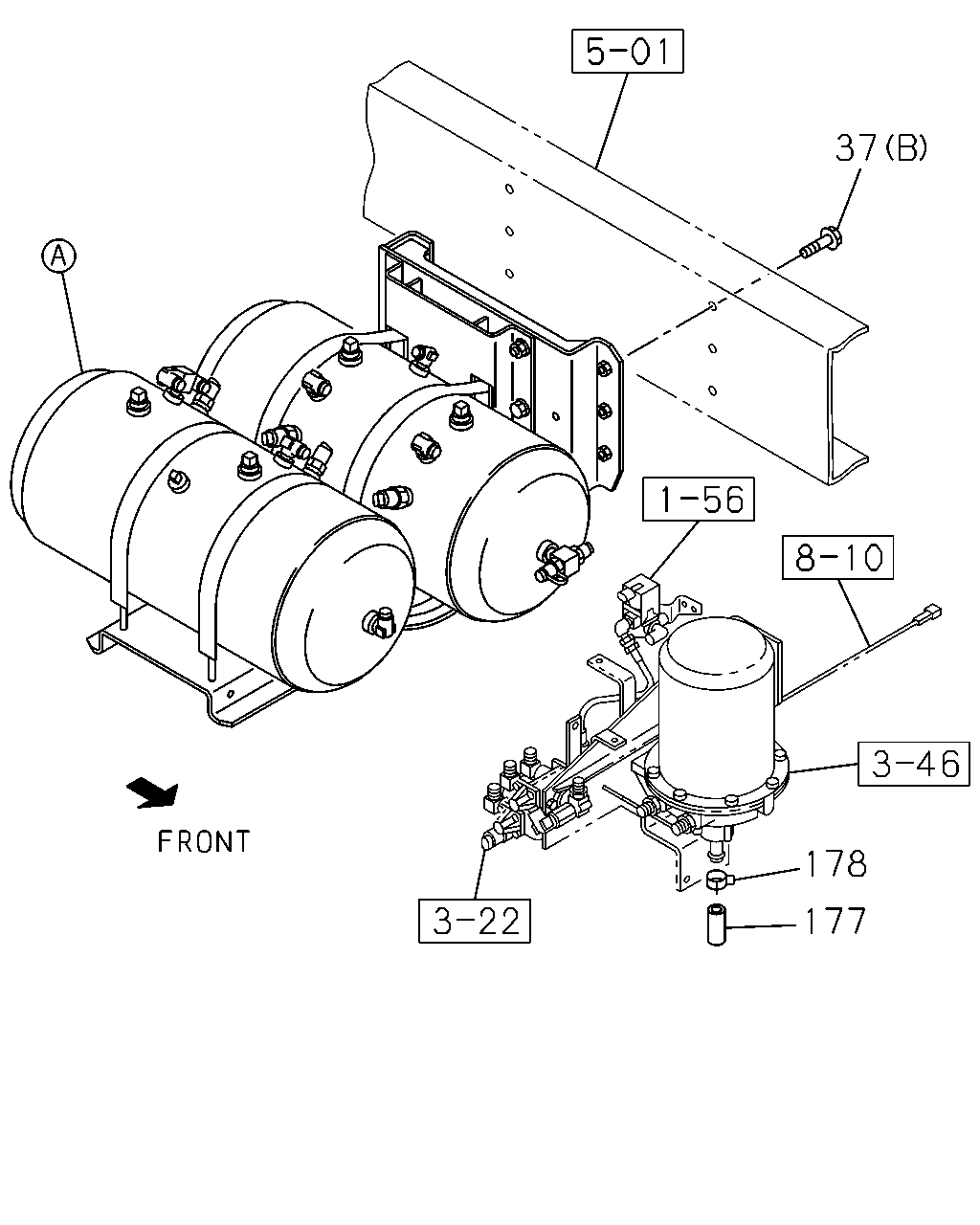

37 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE SOU	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1001-
37	BOLT; AIR TANK (B) M12X40 FLANGE SOU	0-28651-240-0	06	1	1001-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE SOU	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK (B) M12X40 FLANGE SOU	0-28651-240-0	08	1	1103-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	1001-

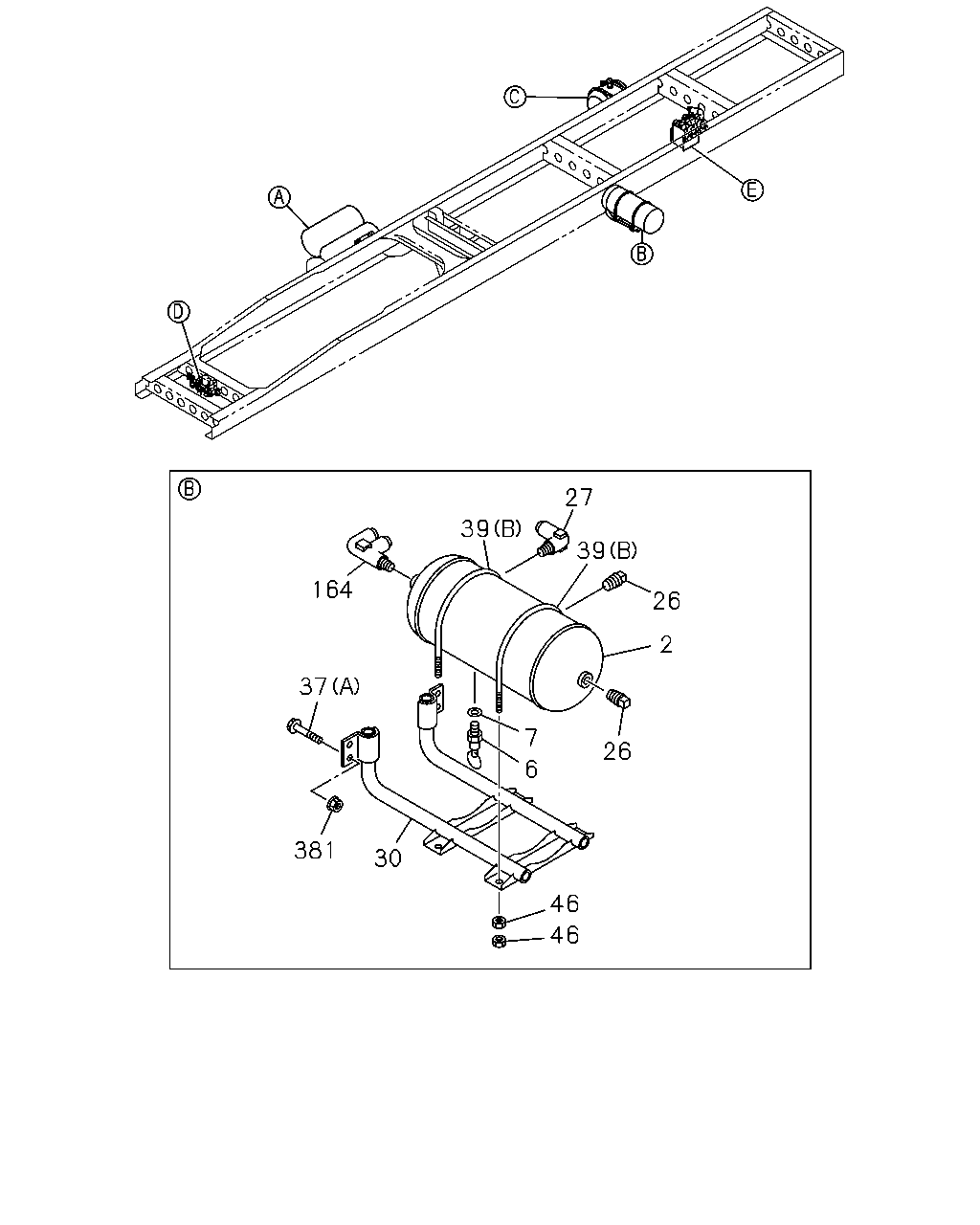

27 39 39 164 26 2 37 7 26 6 381 30 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR SOU	8-98112-216-0	01	1	1001-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1001-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1107-
6	COCK; DRAIN,AIR TANK MANUAL TRANSMISSION<X9C>	1-48312-015-0	01	1	1107-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1001-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1107-
7	GASKET; DRAIN COCK MANUAL TRANSMISSION<X9C> ID=14	1-09630-145-0	01	1	1107-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1001-
27	UNION; ELBOW,AIR TANK DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1001-
30	BRACKET; AIR TANK,SUB	8-98128-349-0	01	1	1001-1006
30	BRACKET; AIR TANK,SUB	8-98163-992-0	01	1	1007-
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE SOU	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1001-
37	BOLT; AIR TANK (B) M12X40 FLANGE SOU	0-28651-240-0	06	1	1001-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE SOU	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK (B) M12X40 FLANGE SOU	0-28651-240-0	08	1	1103-
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1001-
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-1	02	1	1001-1106
39	U-BOLT; AIR TANK MANUAL TRANSMISSION<X9C> (A) L=210	1-48317-458-1	02	1	1107-
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-1106
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-1106
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1107-
46	NUT; U-BOLT MANUAL TRANSMISSION<X9C> M8 SOU	0-91110-508-0	08	1	1107-
164	CONNECTOR; SUB AIR TANK DIN12X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-026-0	01	1	1001-
381	NUT; SUB TANK M14 SOU	0-91110-514-0	04	1	1001-

366 28 80 10 366 366 38 8 38 41 366 9 126 104 104 185 126 9 45 45 366 7 8 1 6 42 80 28 369 366 366 10 9 126 38 3 366 8 3 366 126 9 45 45 1 7 366 6

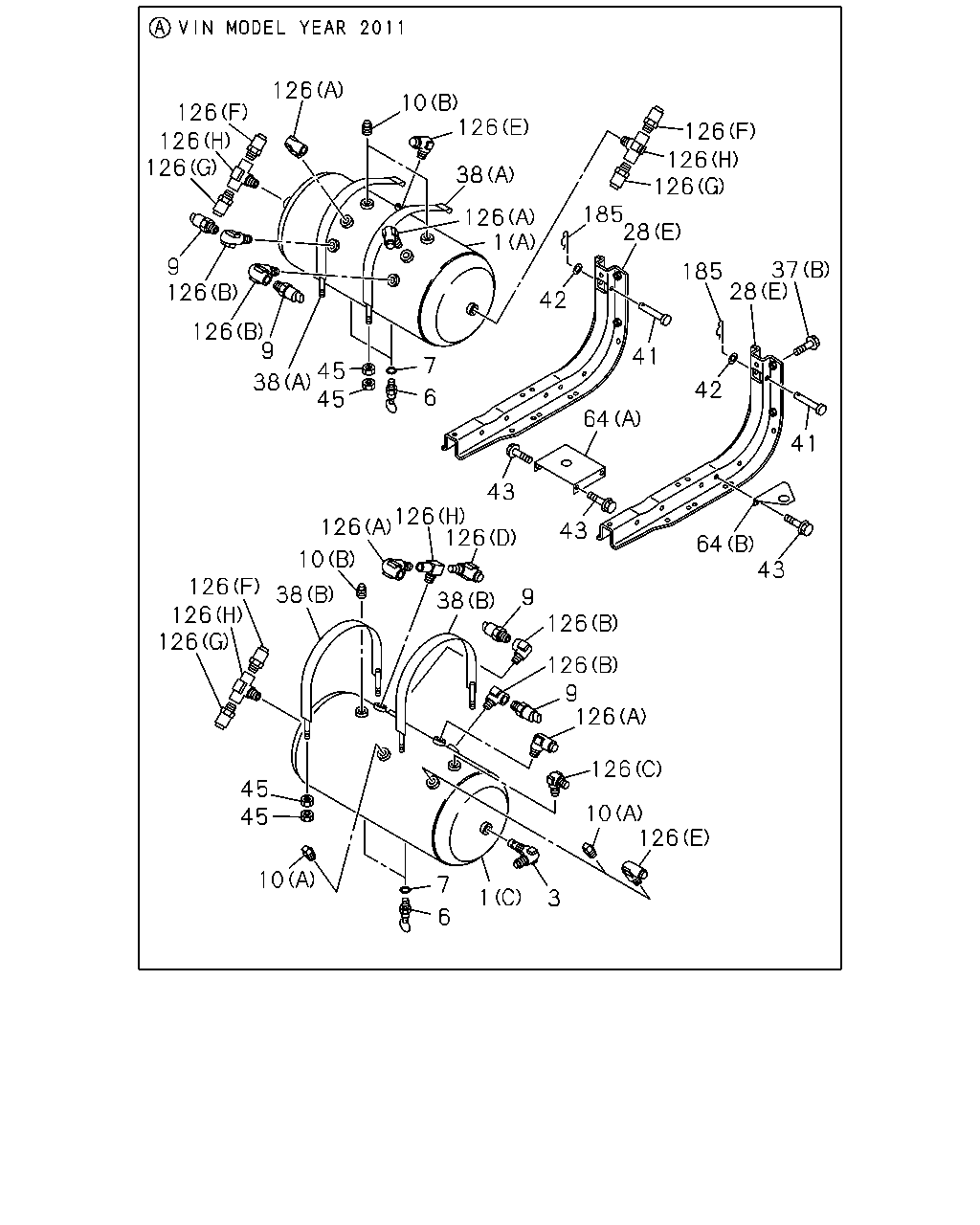

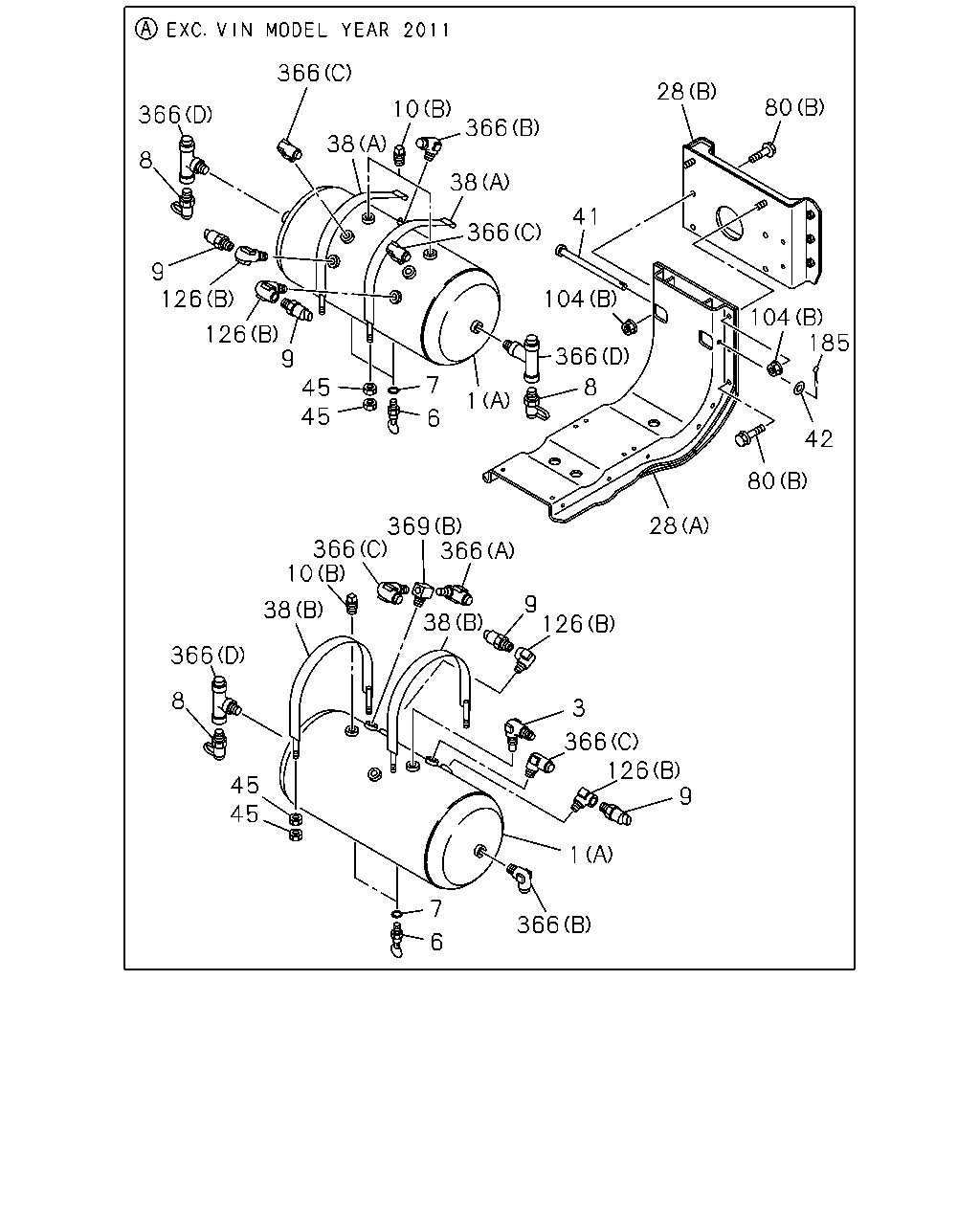

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	02	1	1001-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR (B) SOU	8-98081-870-1	01	1	1001-1106
1	TANK ASM; AIR MANUAL TRANSMISSION<X9C> (B) SOU	8-98081-870-1	01	1	1107-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW SOU	1-48410-412-0	01	1	1001-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW SOU	1-48410-134-3	01	1	1001-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1001-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1107-
6	COCK; DRAIN,AIR TANK MANUAL TRANSMISSION<X9C>	1-48312-015-0	01	1	1107-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1001-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1107-
7	GASKET; DRAIN COCK MANUAL TRANSMISSION<X9C> ID=14	1-09630-145-0	01	1	1107-
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1001-1011
8	CONNECTOR; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5 SOU	8-97609-249-0	04	1	1001-
10	PLUG; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1103-1106
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1107-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1001-1011
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1103-1106
10	PLUG; AIR TANK MANUAL TRANSMISSION<X9C> (A) PT3/8	9-09204-517-0	01	1	1107-
10	PLUG; AIR TANK (B) PT3/4 SOU	9-09204-526-0	03	1	1001-
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (E)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (E)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A) SOU	8-98048-199-0	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B) SOU	8-98048-200-2	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) SOU	8-98048-200-2	01	1	1012-1102
28	BRACKET; AIR TANK (D) SOU	8-98092-756-1	01	1	1001-1106
28	BRACKET; AIR TANK MANUAL TRANSMISSION<X9C> (D) SOU	8-98092-756-1	01	1	1107-
28	BRACKET; AIR TANK (C) SOU	8-98092-757-0	01	1	1001-1106
28	BRACKET; AIR TANK MANUAL TRANSMISSION<X9C> (C) SOU	8-98092-757-0	01	1	1107-
38	BAND; AIR TANK (A) SOU	1-48317-108-2	02	1	1001-
38	BAND; AIR TANK (B) SOU	1-48317-109-2	02	1	1001-
41	PIN; BAND FIX VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1102
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1103-
41	PIN; BAND FIX	1-09744-068-0	01	1	1001-1011
41	PIN; BAND FIX EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-1102
42	WASHER; PL VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	02	1	1012-1102
42	WASHER; PL ID=10.5 SOU	0-91614-510-0	02	1	1103-
42	WASHER; PL ID=10.5	9-09164-510-0	01	1	1001-1011
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	01	1	1102-1102
45	NUT; AIR TANK,MAIN M8 SOU	0-91110-508-0	12	1	1001-
80	BOLT; BRKT (A) M10X25 FLANGE SOU	0-28651-025-0	04	1	1004-1106
80	BOLT; BRKT MANUAL TRANSMISSION<X9C> (A) M10X25 FLANGE SOU	0-28651-025-0	04	1	1107-
80	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-1003
80	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-1003
80	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1004-1106
80	BOLT; BRKT MANUAL TRANSMISSION<X9C> (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1107-
80	BOLT; BRKT (B) M12X35 FLANGE SOU	0-28651-235-0	04	1	1001-1011
80	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (B) M12X35 FLANGE SOU	0-28651-235-0	04	1	1012-1102
104	NUT; BRKT (A) M10 SOU	0-91110-510-0	04	1	1001-1106
104	NUT; BRKT MANUAL TRANSMISSION<X9C> (A) M10 SOU	0-91110-510-0	04	1	1107-
104	NUT; BRKT (B) M12 FLANGE SOU	0-91180-212-0	02	1	1001-1011
104	NUT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (B) M12 FLANGE SOU	0-91180-212-0	02	1	1012-1102
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW SOU	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1012-1102
126	CONNECTOR; ELBOW (F) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
126	CONNECTOR; ELBOW (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1103-
126	CONNECTOR; ELBOW (B) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	04	1	1001-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1001-
185	PIN; SNAP EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	1001-1011
185	PIN; SNAP VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1103-
366	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
366	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
366	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
366	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 & RC1/4 3WAY	1-09660-988-1	03	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R3/8 & RC1/4 3WAY	1-09660-988-1	03	1	1012-1102
369	CONNECTOR; 3WAY (B) PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1001-1011
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1012-1101
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	01	1	1102-1102
369	CONNECTOR; 3WAY (A) PT3/8 3WAY SOU	1-09661-300-0	02	1	1001-1111
369	CONNECTOR; 3WAY (A) DIN9 & RC3/8 ELBOW SOU	8-98203-578-0	02	1	1112-1410
369	CONNECTOR; 3WAY (A) PT3/8 3WAY SOU	1-09661-300-0	02	1	1411-

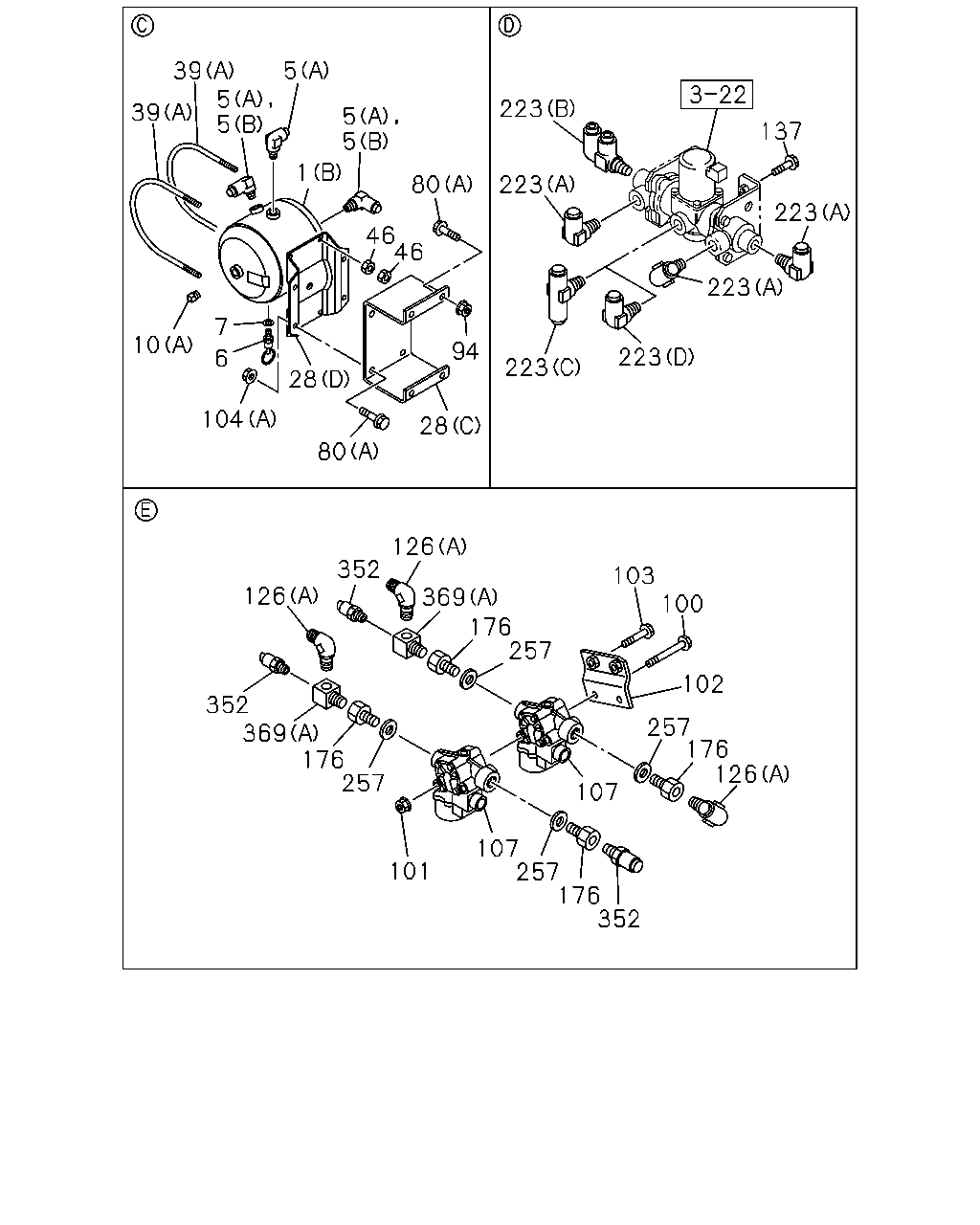

126 10 126 126 126 126 126 126 126 38 185 28 126 1 9 126 185 37 28 42 126 9 41 7 45 45 38 42 6 64 41 43 126 126 126 43 64 43 10 126 38 9 38 126 126 126 126 9 126 126 45 45 10 126 10 7 1 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	02	1	1001-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR (B) SOU	8-98081-870-1	01	1	1001-1106
1	TANK ASM; AIR MANUAL TRANSMISSION<X9C> (B) SOU	8-98081-870-1	01	1	1107-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW SOU	1-48410-412-0	01	1	1001-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW SOU	1-48410-134-3	01	1	1001-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1001-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1107-
6	COCK; DRAIN,AIR TANK MANUAL TRANSMISSION<X9C>	1-48312-015-0	01	1	1107-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1001-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1107-
7	GASKET; DRAIN COCK MANUAL TRANSMISSION<X9C> ID=14	1-09630-145-0	01	1	1107-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5 SOU	8-97609-249-0	04	1	1001-
10	PLUG; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1103-1106
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1107-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1001-1011
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1103-1106
10	PLUG; AIR TANK MANUAL TRANSMISSION<X9C> (A) PT3/8	9-09204-517-0	01	1	1107-
10	PLUG; AIR TANK (B) PT3/4 SOU	9-09204-526-0	03	1	1001-
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (E)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (E)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A) SOU	8-98048-199-0	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B) SOU	8-98048-200-2	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) SOU	8-98048-200-2	01	1	1012-1102
28	BRACKET; AIR TANK (D) SOU	8-98092-756-1	01	1	1001-1106
28	BRACKET; AIR TANK MANUAL TRANSMISSION<X9C> (D) SOU	8-98092-756-1	01	1	1107-
28	BRACKET; AIR TANK (C) SOU	8-98092-757-0	01	1	1001-1106
28	BRACKET; AIR TANK MANUAL TRANSMISSION<X9C> (C) SOU	8-98092-757-0	01	1	1107-
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE SOU	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1001-
37	BOLT; AIR TANK (B) M12X40 FLANGE SOU	0-28651-240-0	06	1	1001-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> (B) M12X40 FLANGE SOU	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK (B) M12X40 FLANGE SOU	0-28651-240-0	08	1	1103-
38	BAND; AIR TANK (A) SOU	1-48317-108-2	02	1	1001-
38	BAND; AIR TANK (B) SOU	1-48317-109-2	02	1	1001-
41	PIN; BAND FIX VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1102
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1103-
41	PIN; BAND FIX	1-09744-068-0	01	1	1001-1011
41	PIN; BAND FIX EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-1102
42	WASHER; PL VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	02	1	1012-1102
42	WASHER; PL ID=10.5 SOU	0-91614-510-0	02	1	1103-
42	WASHER; PL ID=10.5	9-09164-510-0	01	1	1001-1011
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	01	1	1102-1102
43	BOLT; STAY,AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> M8X25 FLANGE SOU	0-28650-825-0	06	1	1012-1102
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE SOU	0-28650-825-0	06	1	1103-
45	NUT; AIR TANK,MAIN M8 SOU	0-91110-508-0	12	1	1001-
64	STAY; AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> (A)	1-48317-607-0	01	1	1012-1102
64	STAY; AIR TANK,MAIN (A)	1-48317-607-0	01	1	1103-
64	STAY; AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> (B)	1-48317-691-0	01	1	1012-1102
64	STAY; AIR TANK,MAIN (B)	1-48317-691-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW SOU	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1012-1102
126	CONNECTOR; ELBOW (F) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
126	CONNECTOR; ELBOW (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1103-
126	CONNECTOR; ELBOW (B) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	04	1	1001-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1001-
185	PIN; SNAP EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	1001-1011
185	PIN; SNAP VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1103-

5 39 5 5 223 39 5 5 137 1 80 223 223 46 46 223 7 10 94 223 6 223 28 104 28 80 126 352 103 100 126 369 176 257 102 352 369 176 257 257 176 126 107 107 257 176 352 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	02	1	1001-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR (B) SOU	8-98081-870-1	01	1	1001-1106
1	TANK ASM; AIR MANUAL TRANSMISSION<X9C> (B) SOU	8-98081-870-1	01	1	1107-
5	UNION; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1001-1011
5	UNION; AIR TANK VIN MODEL YEAR 2011<VZB> (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	03	1	1012-1102
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	03	1	1103-1106
5	UNION; AIR TANK MANUAL TRANSMISSION<X9C> (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	03	1	1107-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1001-1011
5	UNION; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1012-1102
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1001-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-1106
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1107-
6	COCK; DRAIN,AIR TANK MANUAL TRANSMISSION<X9C>	1-48312-015-0	01	1	1107-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1001-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-1106
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1107-
7	GASKET; DRAIN COCK MANUAL TRANSMISSION<X9C> ID=14	1-09630-145-0	01	1	1107-
10	PLUG; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1103-1106
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1107-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1001-1011
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1103-1106
10	PLUG; AIR TANK MANUAL TRANSMISSION<X9C> (A) PT3/8	9-09204-517-0	01	1	1107-
10	PLUG; AIR TANK (B) PT3/4 SOU	9-09204-526-0	03	1	1001-
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (E)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (E)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A) SOU	8-98048-199-0	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B) SOU	8-98048-200-2	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) SOU	8-98048-200-2	01	1	1012-1102
28	BRACKET; AIR TANK (D) SOU	8-98092-756-1	01	1	1001-1106
28	BRACKET; AIR TANK MANUAL TRANSMISSION<X9C> (D) SOU	8-98092-756-1	01	1	1107-
28	BRACKET; AIR TANK (C) SOU	8-98092-757-0	01	1	1001-1106
28	BRACKET; AIR TANK MANUAL TRANSMISSION<X9C> (C) SOU	8-98092-757-0	01	1	1107-
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1001-
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-1	02	1	1001-1106
39	U-BOLT; AIR TANK MANUAL TRANSMISSION<X9C> (A) L=210	1-48317-458-1	02	1	1107-
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-1106
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-1106
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1107-
46	NUT; U-BOLT MANUAL TRANSMISSION<X9C> M8 SOU	0-91110-508-0	08	1	1107-
80	BOLT; BRKT (A) M10X25 FLANGE SOU	0-28651-025-0	04	1	1004-1106
80	BOLT; BRKT MANUAL TRANSMISSION<X9C> (A) M10X25 FLANGE SOU	0-28651-025-0	04	1	1107-
80	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-1003
80	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-1003
80	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1004-1106
80	BOLT; BRKT MANUAL TRANSMISSION<X9C> (A) M10X35 FLANGE SOU	0-28651-035-0	04	1	1107-
80	BOLT; BRKT (B) M12X35 FLANGE SOU	0-28651-235-0	04	1	1001-1011
80	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (B) M12X35 FLANGE SOU	0-28651-235-0	04	1	1012-1102
94	NUT; BRKT FIX M10 FLANGE SOU	0-91180-210-0	04	1	1001-1106
94	NUT; BRKT FIX MANUAL TRANSMISSION<X9C> M10 FLANGE SOU	0-91180-210-0	04	1	1107-
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	1001-
101	NUT; MODULATOR M8 FLANGE SOU	0-91180-108-0	02	1	1001-
102	BRACKET; MODULATOR	8-98034-539-2	01	1	1001-1410
102	BRACKET; MODULATOR	8-98273-170-0	01	1	1411-
103	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1001-
104	NUT; BRKT (A) M10 SOU	0-91110-510-0	04	1	1001-1106
104	NUT; BRKT MANUAL TRANSMISSION<X9C> (A) M10 SOU	0-91110-510-0	04	1	1107-
104	NUT; BRKT (B) M12 FLANGE SOU	0-91180-212-0	02	1	1001-1011
104	NUT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (B) M12 FLANGE SOU	0-91180-212-0	02	1	1012-1102
107	MODULATOR; RR SOU	1-48240-115-0	02	1	1001-1410
107	MODULATOR; RR SOU	8-98215-454-0	02	1	1411-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW SOU	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1012-1102
126	CONNECTOR; ELBOW (F) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
126	CONNECTOR; ELBOW (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1103-
126	CONNECTOR; ELBOW (B) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	04	1	1001-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1001-
137	BOLT; BRKT H.S.A SYSTEM<6EP> M8X25 FLANGE SOU	0-28650-825-0	04	1	1001-
176	ADAPTER INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1001-
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	03	1	1001-
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-025-0	01	1	1001-
223	UNION H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1001-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) SOU	1-09661-073-0	01	1	1001-
257	GASKET; PLUG ID=22.5 SOU	9-09571-422-0	04	1	1001-
352	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1001-
369	CONNECTOR; 3WAY (B) PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1001-1011
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1012-1101
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	01	1	1102-1102
369	CONNECTOR; 3WAY (A) PT3/8 3WAY SOU	1-09661-300-0	02	1	1001-1111
369	CONNECTOR; 3WAY (A) DIN9 & RC3/8 ELBOW SOU	8-98203-578-0	02	1	1112-1410
369	CONNECTOR; 3WAY (A) PT3/8 3WAY SOU	1-09661-300-0	02	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
