◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11169 - FVZ SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#21302) — 37 parça

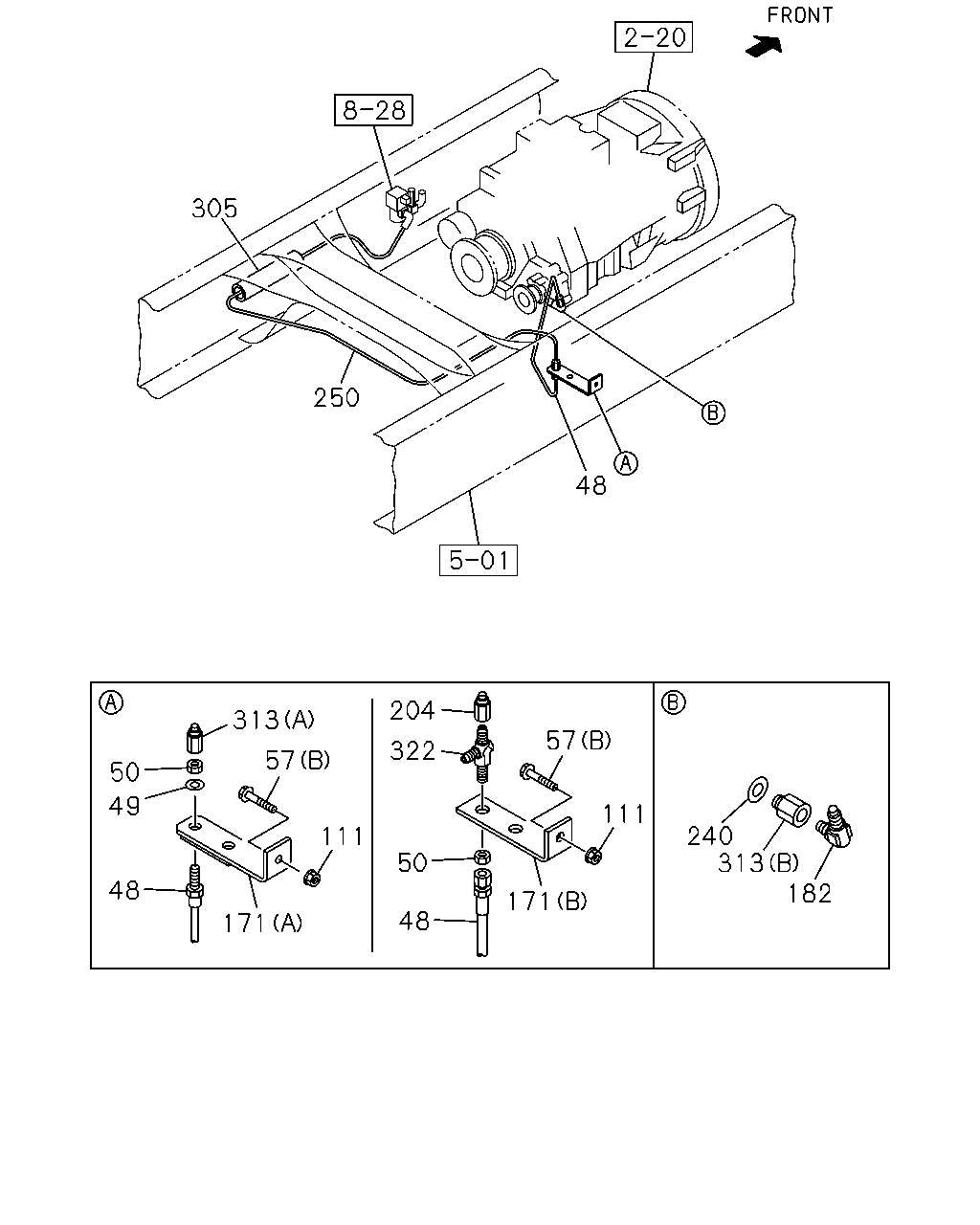

çizim 128430
305 250 48 204 313 57 322 57 50 49 111 240 313 182 111 50 48 171 48 171
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> L=320 		1-09363-625-0 01 1 1012-1102
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=320 		1-09363-625-0 01 1 1103-
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1001-1011
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> L=230 		1-09363-666-0 01 1 1012-1102
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		9-09150-512-0 01 1 1001-1011
50 NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> M12 		0-91111-512-0 01 1 1012-1102
50 NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 		0-91111-512-0 01 1 1103-
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1001-1011
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> M12 		9-09840-280-0 01 1 1012-1102
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-134-0 01 1 1107-
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> (B) 		8-98172-810-0 01 1 1012-1102
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) 		8-98172-810-0 01 1 1103-
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 1001-1011
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98100-228-0 01 1 1012-1102
182 CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-
204 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
204 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1103-
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 1001-1312
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1001-
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1001-
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1001-1011
313 ADAPTER
PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-1102
313 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) PT1/4 		1-09654-396-0 01 1 1001-
322 UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> M12 2WAY SOU 		1-09654-059-2 01 1 1012-1102
322 UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 2WAY SOU 		1-09654-059-2 01 1 1103-

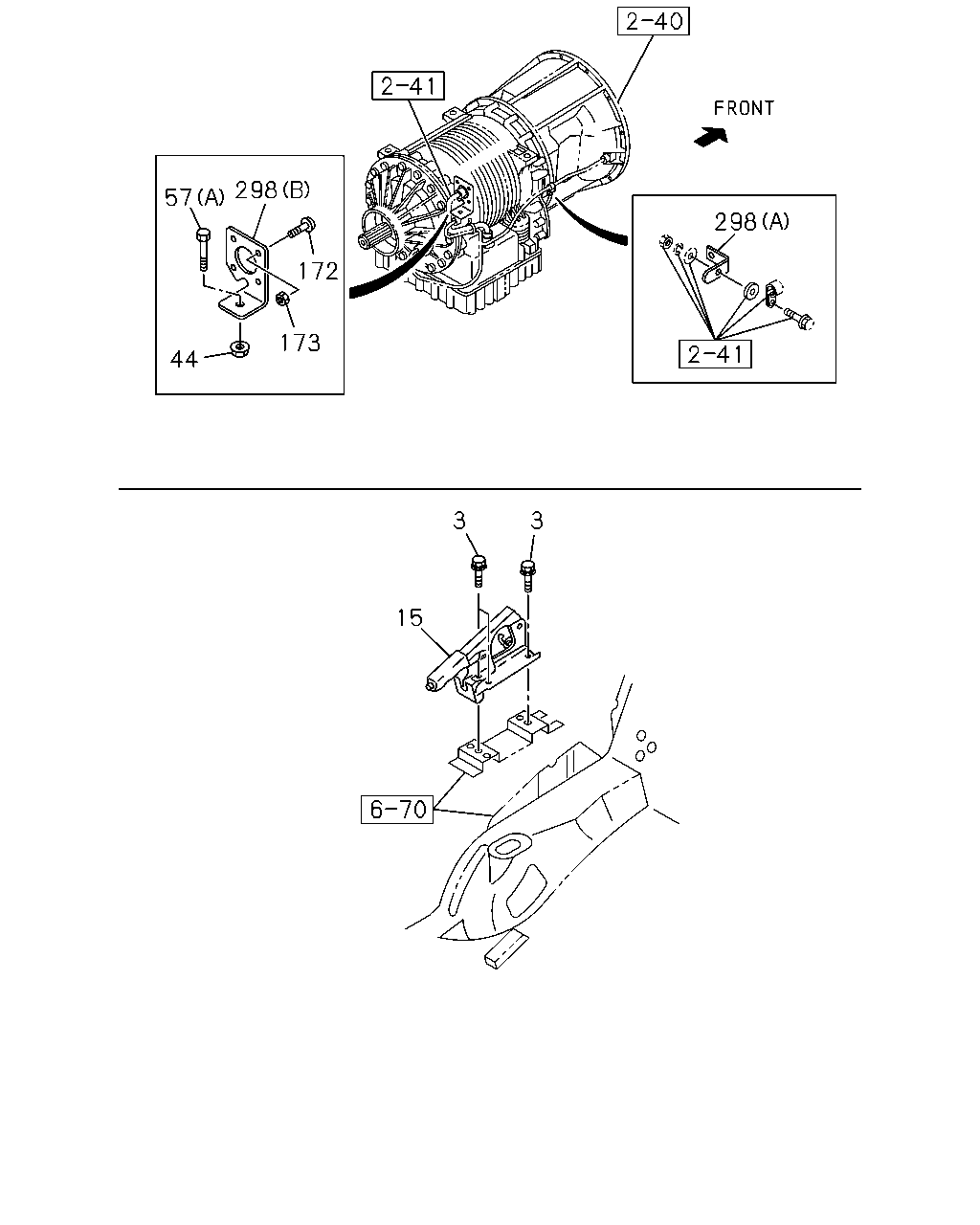

çizim 128436
298 57 298 172 173 44 3 3 15
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER SOU 		8-94279-207-0 03 1 1001-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> SOU 		1-79996-092-0 01 1 1001-
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) 		1-34119-135-0 01 1 1107-
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-134-0 01 1 1107-
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
172 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M4X16 		9-03494-416-0 04 1 1107-
173 NUT; BRKT
ALLISON MD3560P A/T(Y3B) M4 FLANGE 		8-97368-853-0 04 1 1107-
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-088-0 01 1 1107-
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		1-34119-133-0 01 1 1107-
