◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#2130) — 19 parça

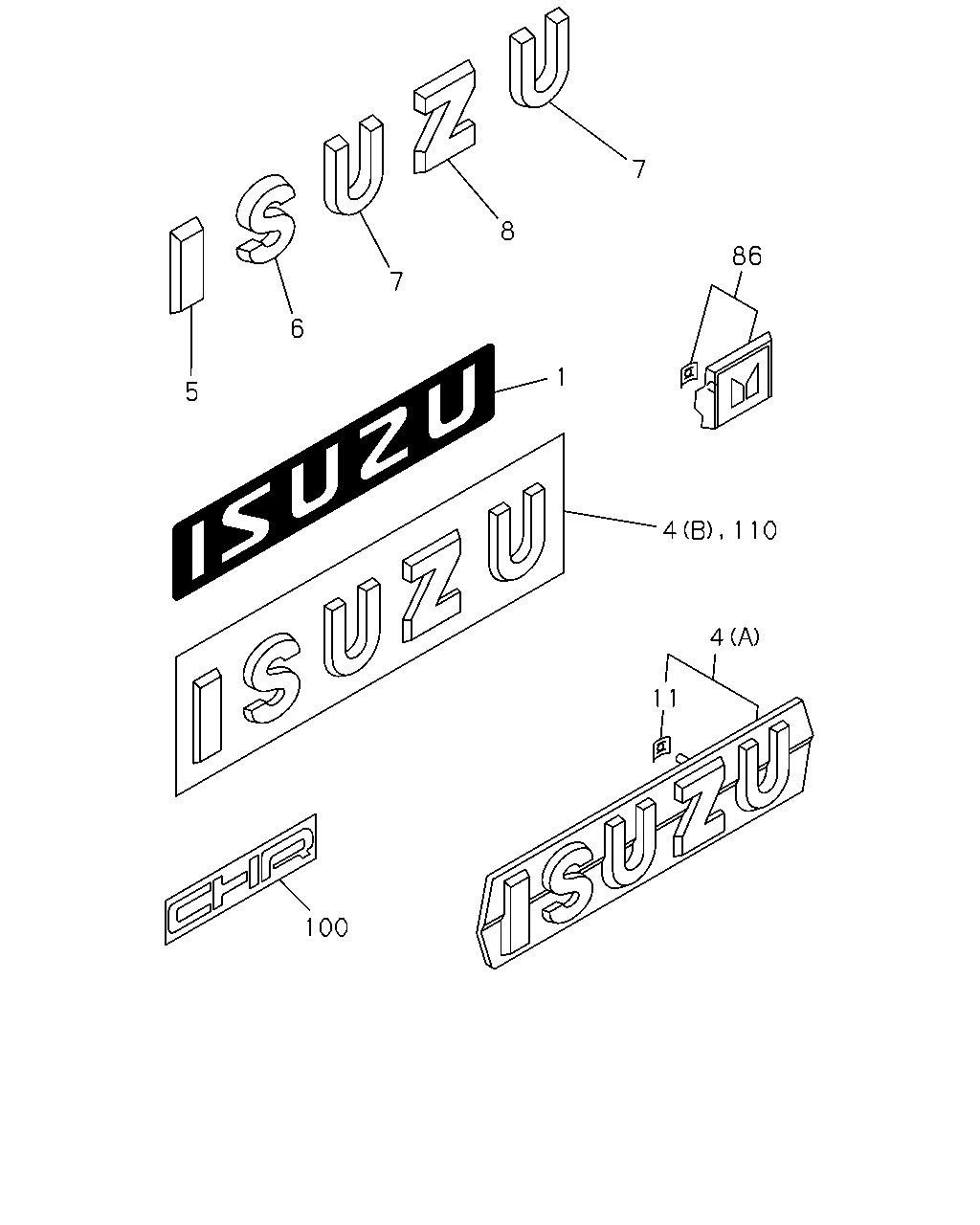

çizim 28478
7 8 86 7 6 1 5 4 110 4 11 100
BalonParca AdiParca NoAdetTipApplied Date A B
1 MARK; ISUZU
PHILIPPINE EQUIPMENT(WE3) 		1-76210-582-0 02 1 9406- ●
4 EMBLEM; RAD GRILLE
LETTER MARK "ISUZU" LARGE SIZE<WU7> (B) 		1-76230-072-0 02 1 9001- ● ●
4 EMBLEM; RAD GRILLE
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> (A) 		1-76230-023-0 02 1 9001-9405 ● ●
4 EMBLEM; RAD GRILLE
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> (A) 		1-76230-023-0 02 1 9406- ●
4 EMBLEM; RAD GRILLE
EXC. PHILIPPINE EQUIPMENT(WE3),LETTER MARK "ISUZU"LARGE SIZE<WU7> (A) 		1-76230-023-0 02 1 9406- ●
5 MARK; "I"
LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76231-024-0 02 1 9001- ● ●
6 MARK; "S"
LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76231-025-0 02 1 9001- ● ●
7 MARK; "U"
LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76231-026-0 04 1 9001- ● ●
8 MARK; "Z"
LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76231-027-0 02 1 9001- ● ●
11 RETAINER; EMBLEM
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76290-014-0 08 1 9001-9405 ● ●
11 RETAINER; EMBLEM
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76290-014-0 08 1 9406- ●
11 RETAINER; EMBLEM
EXC. PHILIPPINE EQUIPMENT(WE3),LETTER MARK "ISUZU"LARGE SIZE<WU7> 		1-76290-014-0 08 1 9406- ●
86 EMBLEM; SYMBOL,BODY FRT
LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76210-083-0 02 1 9001- ● ●
86 EMBLEM; SYMBOL,BODY FRT
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76210-048-1 02 1 9001-9405 ● ●
86 EMBLEM; SYMBOL,BODY FRT
EXC. LETTER MARK "ISUZU" LARGE SIZE<WU7> 		1-76210-048-1 02 1 9406- ●
86 EMBLEM; SYMBOL,BODY FRT
EXC. PHILIPPINE EQUIPMENT(WE3),LETTER MARK "ISUZU"LARGE SIZE<WU7> 		1-76210-048-1 02 1 9406- ●
86 EMBLEM; SYMBOL,BODY FRT
PHILIPPINE EQUIPMENT(WE3) 		1-76210-634-0 01 1 9406- ●
100 EMBLEM; PET NAME
COLOMBIA EQUIPMENT(WJ2) 		1-76210-339-0 01 1 9001- ●
110 EMBLEM; "ISUZU",RR BODY
PHILIPPINE EQUIPMENT(WE3) 		1-76210-580-1 01 1 9406- ●
