2-53 — TRANSMISSION OIL COOLER SYSTEM (#21299) — 36 parça

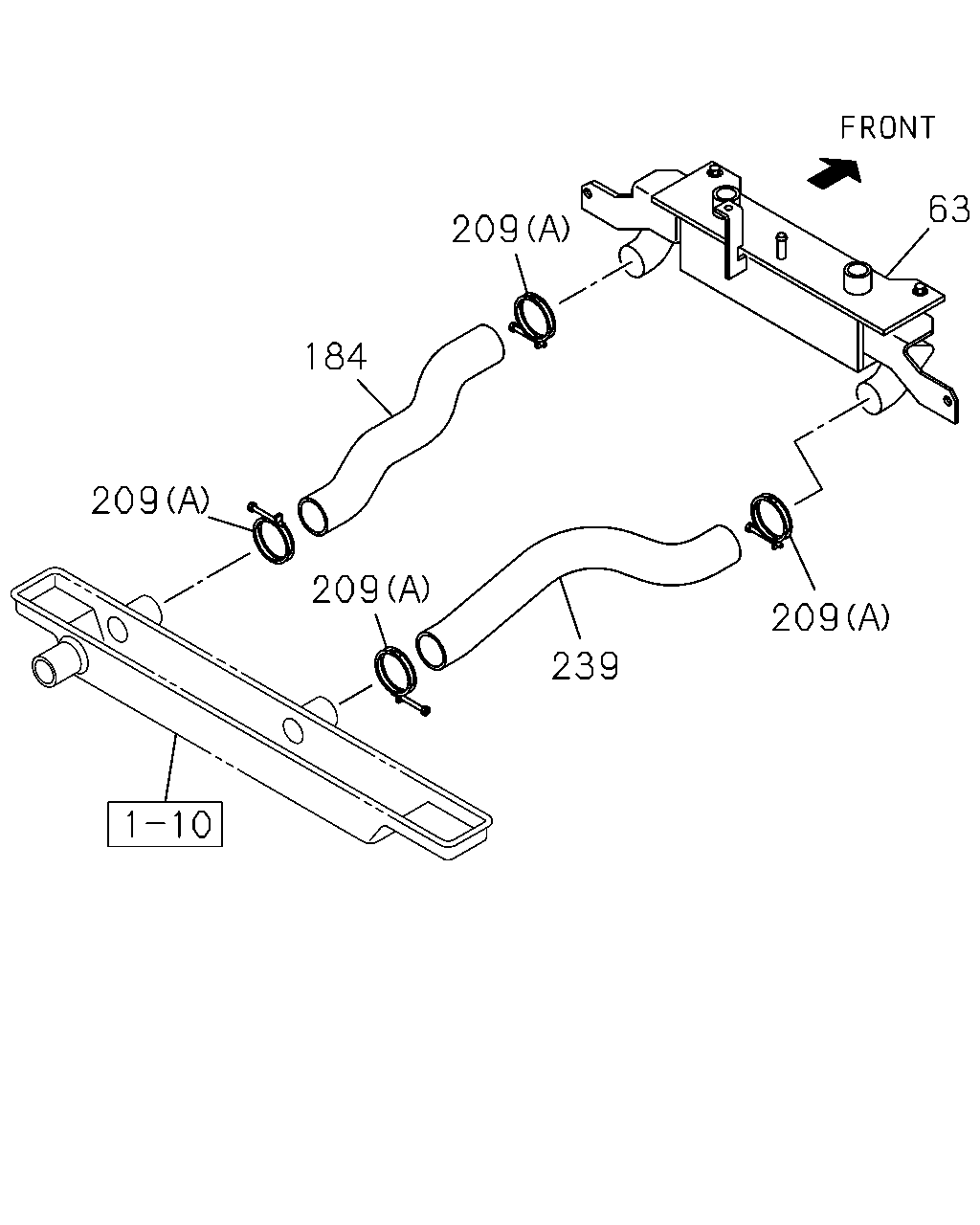

63 209 184 209 209 209 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	1107-
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D>	8-98025-696-1	01	1	1107-
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	1107-
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (B) ID=26 L=26	1-09701-236-0	02	1	1107-
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	1107-

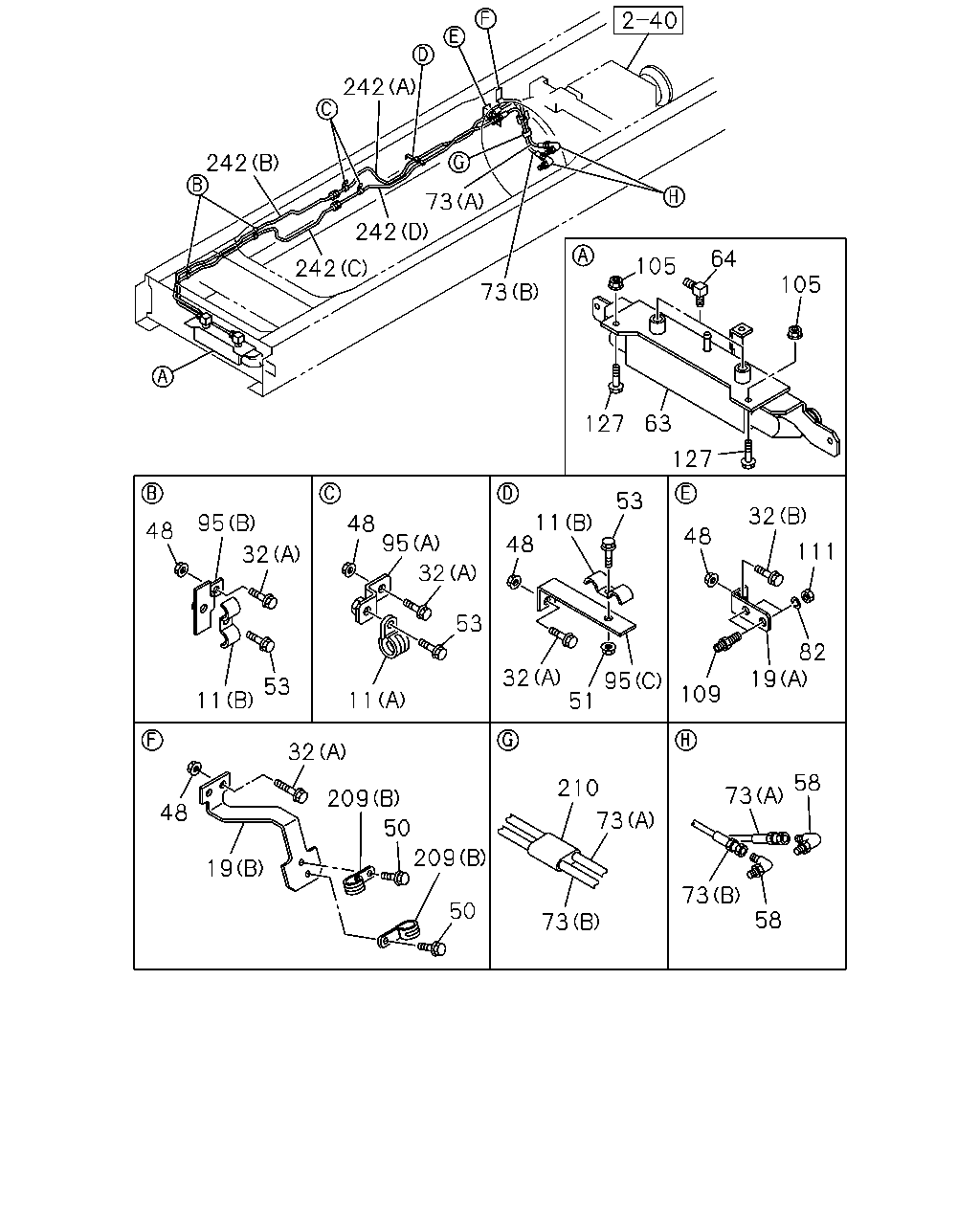

242 242 73 242 64 105 242 105 73 63 127 127 53 32 11 48 95 48 95 48 48 111 32 32 53 82 32 51 19 95 53 109 11 11 32 58 210 73 209 48 73 50 209 19 73 50 58 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (A) ID=19 L=20	0-95235-836-0	02	1	1107-
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	03	1	1107-
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98190-007-0	01	1	1107-
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (B)	8-98190-151-0	01	1	1107-
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	07	1	1107-
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (B) M8X35 FLANGE SOU	0-28650-835-0	02	1	1107-
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE SOU	0-91180-108-0	09	1	1107-
50	BOLT; CLIP ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	02	1	1107-
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE SOU	0-91180-108-0	02	1	1107-
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	1107-
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B)	8-98144-617-0	02	1	1107-
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	1107-
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B)	9-09903-722-0	02	1	1107-
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (A)	8-98144-618-0	01	1	1107-
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (B)	8-98144-619-0	01	1	1107-
82	WASHER; LK,UNION ALLISON MD3560P A/T(Y3B) ID=30.5	9-09150-530-0	02	1	1107-
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	1-47478-140-0	01	1	1107-1407
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	8-98269-434-0	01	1	1408-
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (A)	1-47479-255-0	02	1	1107-
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (B)	8-98089-351-0	02	1	1107-
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE SOU	0-91180-108-0	04	1	1107-
109	UNION ALLISON MD3560P A/T(Y3B) M30 & M30 STRAIGHT SOU	1-09664-191-0	02	1	1107-
111	NUT; UNION ALLISON MD3560P A/T(Y3B) M30	9-09840-252-1	02	1	1107-
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	1107-
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	1107-
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (B) ID=26 L=26	1-09701-236-0	02	1	1107-
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	01	1	1107-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98097-574-0	01	1	1107-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98113-105-0	01	1	1107-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98190-140-0	01	1	1107-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98190-142-0	01	1	1107-
