2-05 — CLUTCH PIPING (#21284) — 56 parça

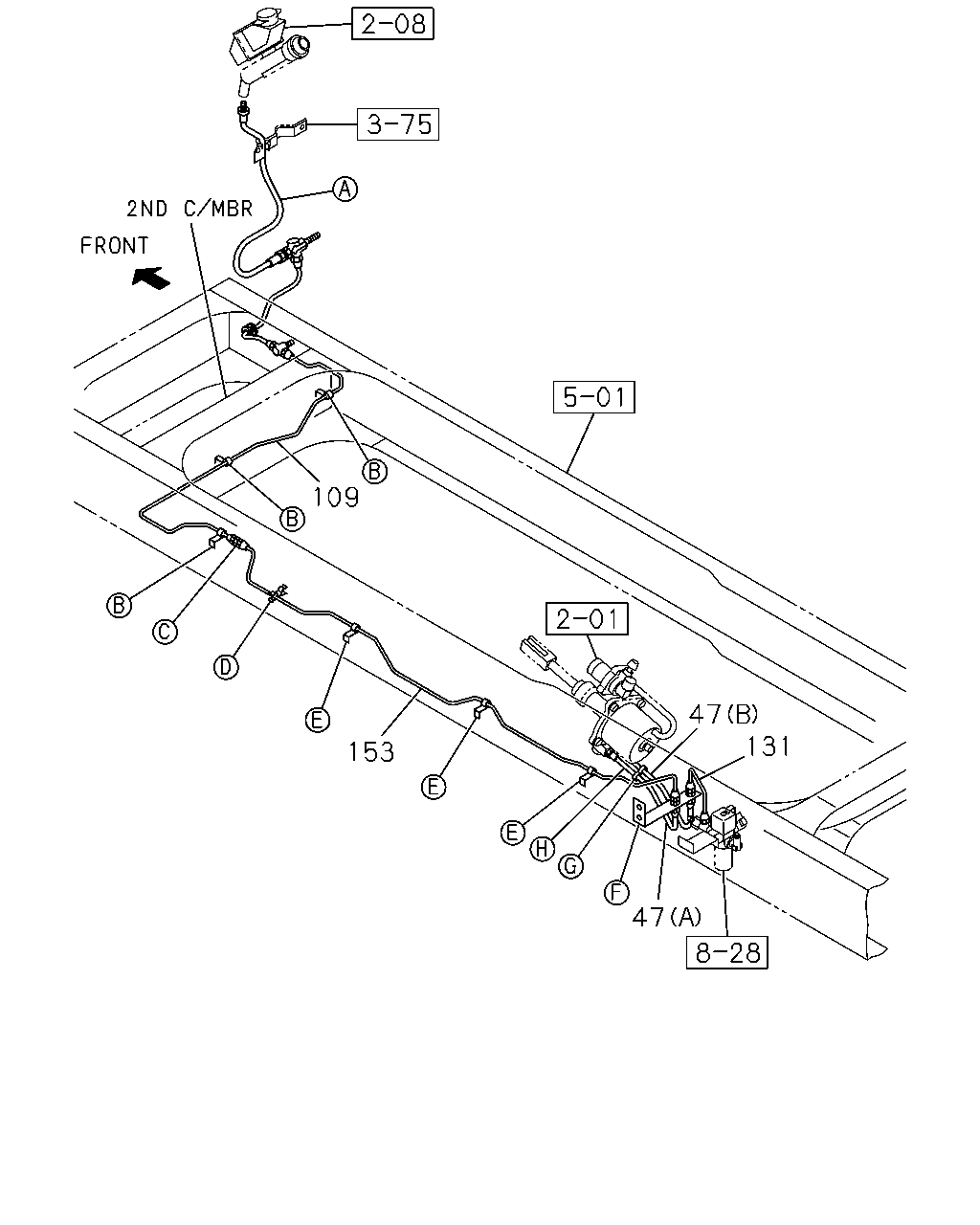

çizim 128391
109 47 131 153 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1001-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1001-
109 PIPE; AIR,UNION TO UNION
ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1001-
153 PIPE ASM; CLU,UNION TO FLEX
ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1001-

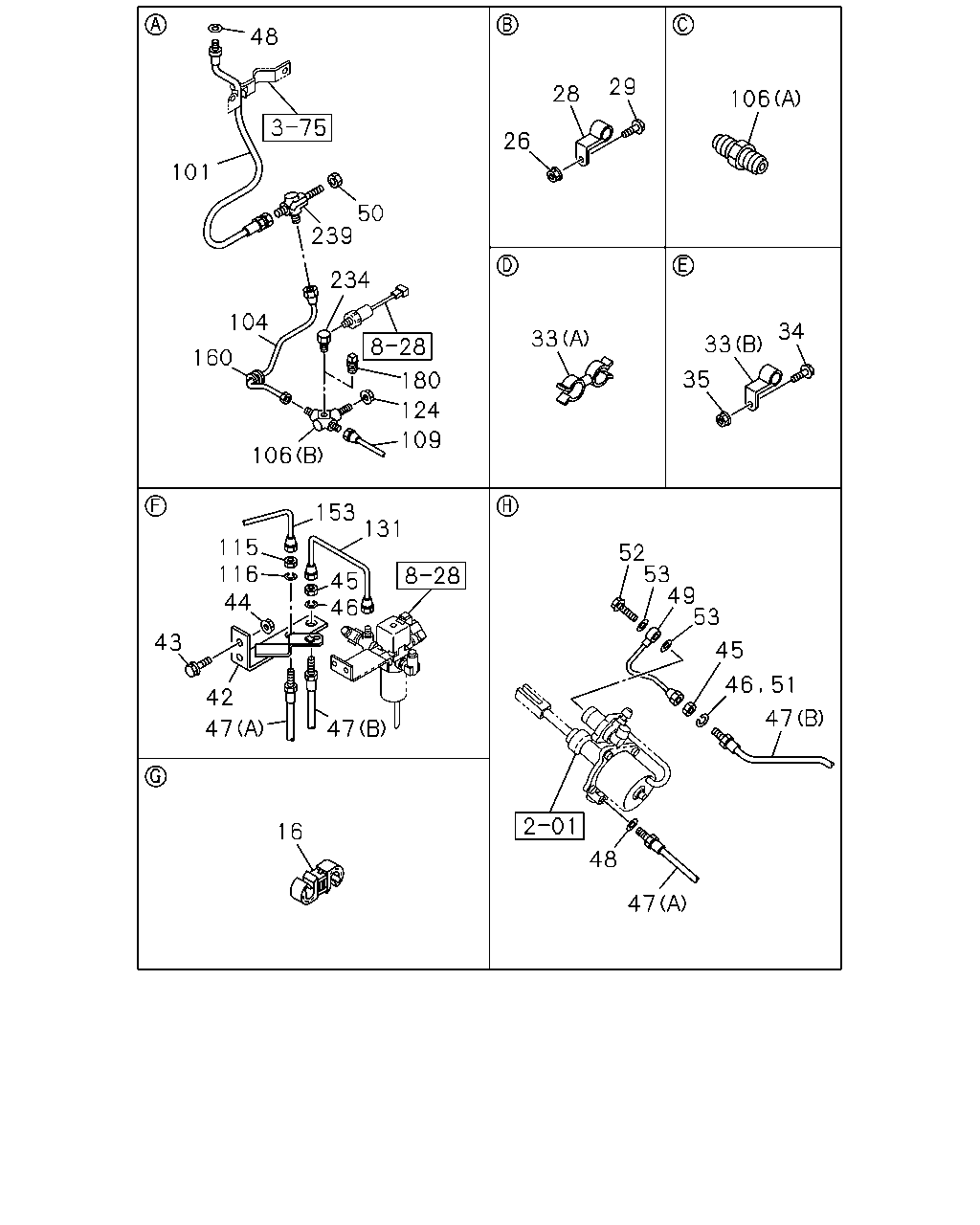

çizim 128402
48 29 28 106 26 101 50 239 234 104 34 33 33 160 35 180 124 109 106 153 131 115 116 44 52 53 49 53 45 46 43 45 42 47 47 47 16 48 47 46 51
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1001-1106
16 CLIP; FLEX HOSE
MANUAL TRANSMISSION<X9C> ID=10 & 12 		1-09709-278-1 01 1 1107-
26 NUT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
28 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) ID=8 H=20 L=20 		1-09700-604-0 03 1 1001-
29 BOLT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
29 BOLT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
33 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1001-
33 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10 		8-94176-792-0 01 1 1001-
34 BOLT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 03 1 1001-
35 NUT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) 		8-98099-521-1 01 1 1001-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1001-1106
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
MANUAL TRANSMISSION<X9C> M8X30 FLANGE 		0-28650-830-0 02 1 1107-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1106
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
MANUAL TRANSMISSION<X9C> M8 FLANGE SOU 		0-91180-108-0 02 1 1107-
45 NUT; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) M12 		9-09840-280-0 02 1 1001-
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=12.2 SOU 		0-91510-512-0 02 1 1001-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 02 1 1010-1011
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1001-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1001-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1001-1106
48 GASKET; FLEX HOSE,CLU CONT
MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0 		9-09571-410-0 02 1 1107-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) L=232 		1-49124-795-0 01 1 1001-1106
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) 15" CLUTCH(RE9) L=232 		1-49124-795-0 01 1 1107-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1001-1106
50 NUT; UNION
EXC. A/T<X9D> M12 		0-91111-512-0 01 1 1107-
51 WASHER; LK
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 01 1 1012-
52 BOLT; EYE,AIR PIPE
ZF9S1110 M/T(Y5E) M14X27 FLANGE 		1-09675-086-0 01 1 1001-
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 SOU 		1-09630-085-0 02 1 1001-1312
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1001-1106
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
MANUAL TRANSMISSION<X9C> L=440 		8-98072-346-0 01 1 1107-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1001-
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1001-
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1001-
109 PIPE; AIR,UNION TO UNION
ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1001-
115 NUT; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) M14 SOU 		0-91111-514-0 01 1 1001-
116 WASHER; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=14.2 SOU 		0-91510-814-0 01 1 1001-1011
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1001-1106
124 NUT; PIPE UNION
MANUAL TRANSMISSION<X9C> M12 		0-91111-512-0 01 1 1107-
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1001-
153 PIPE ASM; CLU,UNION TO FLEX
ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1001-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1001-1106
160 GROMMET; OIL PIPE
MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1107-
180 PLUG; PIPE
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1001-
234 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1001-
239 UNION; CLU HOSE
ZF9S1110 M/T(Y5E) 		8-98107-850-0 01 1 1001-
