◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11169 - FVZ SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#21283) — 37 parça

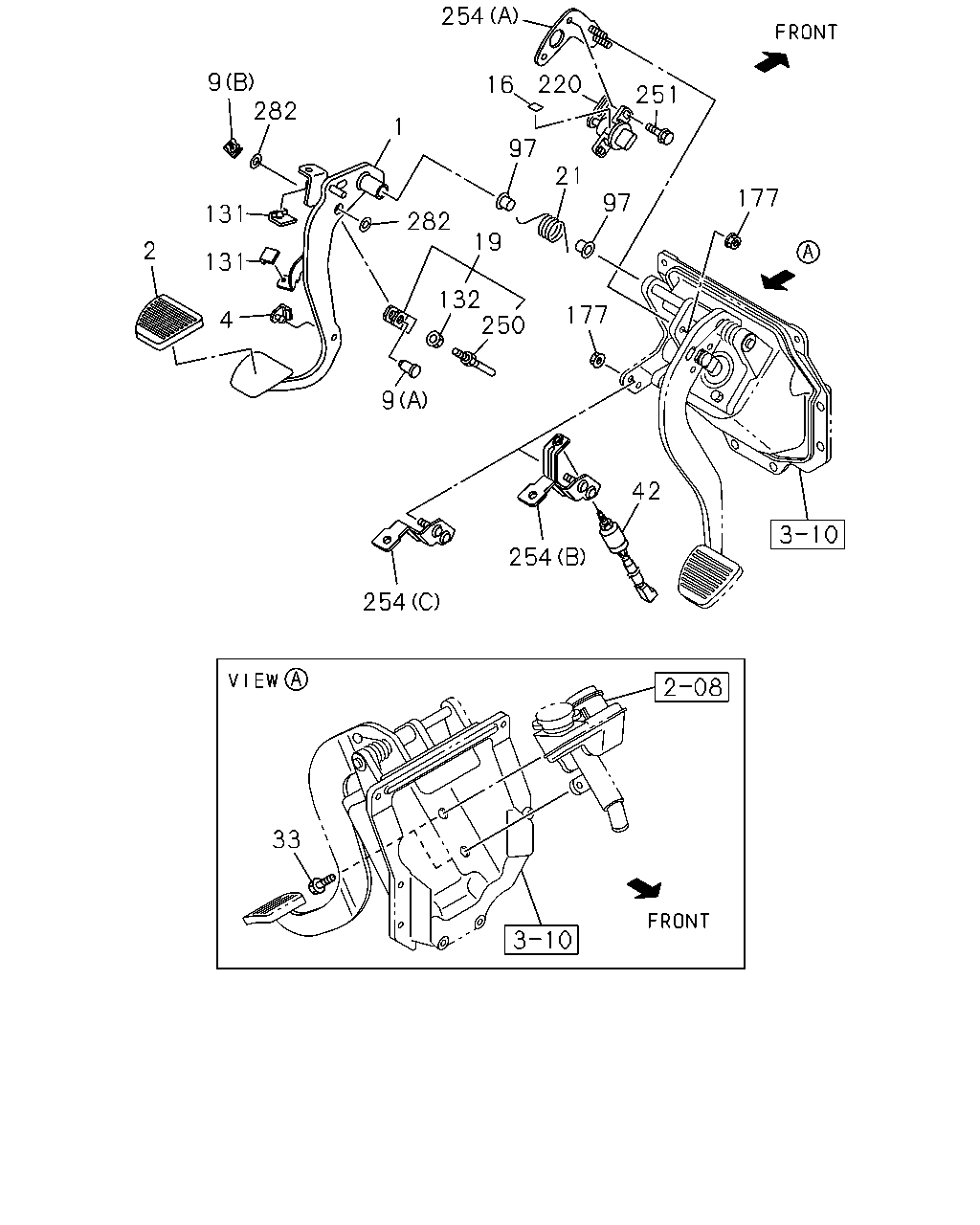

çizim 128397
254 9 282 220 16 251 1 97 21 177 97 131 282 19 2 131 132 250 177 4 9 42 254 254 33
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98057-123-0 01 1 1001-
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-97613-941-1 01 1 1001-
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98057-122-0 01 1 1001-
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98021-375-1 01 1 1001-
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1001-1106
2 COVER; CLU PEDAL
ZF9S1110 M/T(Y5E) 		8-98056-865-0 01 1 1107-
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1001-1106
4 STOPPER; CLU PEDAL
ZF9S1110 M/T(Y5E) 		8-98079-251-0 01 1 1107-
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 1001-1007
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008-1106
9 PIN; CLU PEDAL
ZF9S1110 M/T(Y5E) (A) 		8-98147-657-0 01 1 1107-
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1001-1106
9 PIN; CLU PEDAL
ZF9S1110 M/T(Y5E) (B) 		8-98007-161-0 01 1 1107-
16 SEAL; CLU PEDAL
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 30X30 		8-98142-344-0 01 1 1204-
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1001-1106
19 ROD ASM; PUSH,CLU
ZF9S1110 M/T(Y5E) 		8-98021-406-1 01 1 1107-
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1001-1106
21 SPRING; RETURN,CLU PEDAL
ZF9S1110 M/T(Y5E) 		8-98021-560-0 01 1 1107-
33 BOLT; CLU M/CYL TO BRKT
ZF9S1110 M/T(Y5E) M12X20 FLANGE 		0-28051-220-0 02 1 1001-
42 SWITCH; CLU
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97620-841-0 01 1 1001-
97 BUSHING; CLU PEDAL SHAFT
SOU 		8-94238-596-0 02 1 1001-1106
97 BUSHING; CLU PEDAL SHAFT
ZF9S1110 M/T(Y5E) SOU 		8-94238-596-0 02 1 1107-
131 STOPPER; CLU SW
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SOU 		8-97302-305-0 02 1 1001-
131 STOPPER; CLU SW
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		8-97302-305-0 01 1 1001-
132 NUT; LK,PUSH ROD
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1106
132 NUT; LK,PUSH ROD
ZF9S1110 M/T(Y5E) M8 FLANGE SOU 		0-91180-108-0 01 1 1107-
177 NUT; BRKT
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
177 NUT; BRKT
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 04 1 1001-
220 SENSOR; CLUTCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1001-
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1001-1106
250 ROD; PUSH,CLU
ZF9S1110 M/T(Y5E) 		8-97615-589-0 01 1 1107-
251 BOLT; SENSOR
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M6X16 SOU 		0-52000-616-0 02 1 1001-
254 BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98057-131-1 01 1 1001-
254 BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98021-377-1 01 1 1001-
254 BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1001-
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1001-1106
282 SPACER; CLU PEDAL
ZF9S1110 M/T(Y5E) 		8-98070-329-0 02 1 1107-
