◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#2128) — 23 parça

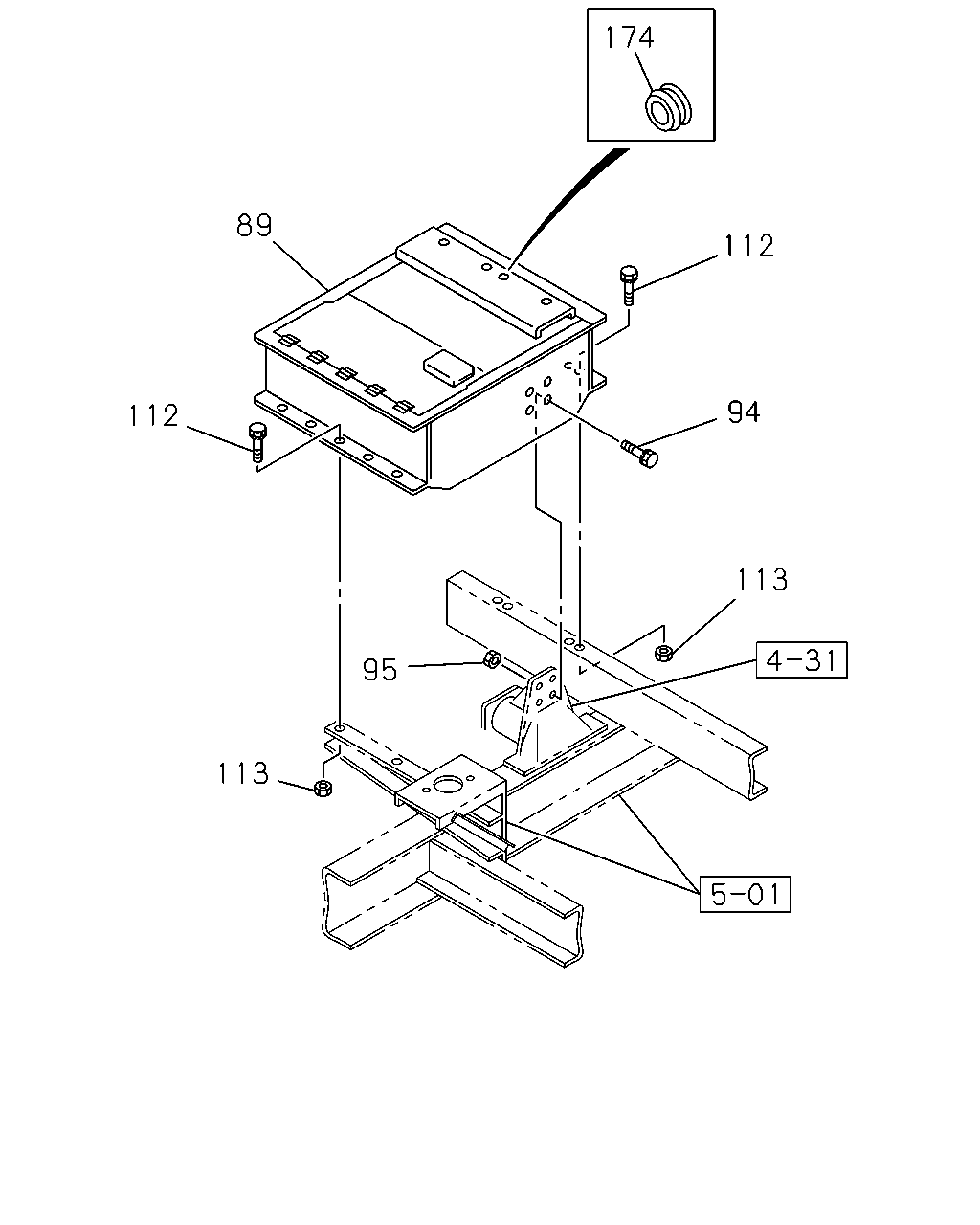

çizim 93796
174 89 112 94 112 113 95 113
BalonParca AdiParca NoAdetTipApplied Date A B
89 BOARD ASM; PEDAL 1-65600-240-9 01 1 9001-9204 ●
89 BOARD ASM; PEDAL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-65600-240-9 01 1 9001-9204 ●
89 BOARD ASM; PEDAL 1-65600-240-9 01 1 9205- ●
89 BOARD ASM; PEDAL
M/T<X9C> 		1-65600-240-9 01 1 9205- ●
89 BOARD ASM; PEDAL
A/T<X9D> 		1-65600-257-7 01 1 9001- ●
94 BOLT; BRKT,PEDAL BOARD
M12X35 		9-01911-235-0 04 1 9001-9005 ● ●
94 BOLT; BRKT,PEDAL BOARD
M12X35 W/LK WASHER 		0-50041-235-0 04 1 9006-9606 ● ●
94 BOLT; BRKT,PEDAL BOARD
M12X35 FLANGE 		0-28681-235-0 04 1 9607-9905 ● ●
94 BOLT; BRKT,PEDAL BOARD
M12X40 FLANGE 		0-28681-240-0 04 1 9906- ● ●
95 NUT; BRKT,PEDAL BOARD
M12 		9-99110-412-0 04 1 9001-9307 ● ●
95 NUT; BRKT,PEDAL BOARD
M12 		9-99110-512-0 04 1 9308-9606 ● ●
95 NUT; BRKT,PEDAL BOARD
M12 FLANGE 		0-91150-212-0 04 1 9607- ● ●
112 BOLT; PEDAL BOARD
M12X25 		9-01911-225-0 06 1 9001-9005 ● ●
112 BOLT; PEDAL BOARD
M12X25 W/LK WASHER 		0-50041-225-0 06 1 9006-9606 ● ●
112 BOLT; PEDAL BOARD
M12X25 FLANGE 		0-28681-225-0 06 1 9607-9905 ● ●
112 BOLT; PEDAL BOARD
M12X35 FLANGE 		0-28681-235-0 06 1 9906- ● ●
113 NUT; PEDAL BOARD
M12 		9-99110-412-0 06 1 9001-9307 ● ●
113 NUT; PEDAL BOARD
M12 		9-99110-512-0 06 1 9308-9606 ● ●
113 NUT; PEDAL BOARD
M12 FLANGE 		0-91150-212-0 06 1 9607- ● ●
174 GROMMET; AIR PIPE
WO/HOLE 		9-09575-396-0 01 1 9001-9204 ●
174 GROMMET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WO/HOLE 		9-09575-396-0 01 1 9001-9204 ●
174 GROMMET; AIR PIPE
WO/HOLE 		9-09575-396-0 01 1 9205- ● ●
174 GROMMET; AIR PIPE
W/HOLE 		9-09575-420-0 01 1 9001- ● ●
