◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11414 - FRR RHD EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#21277) — 130 parça

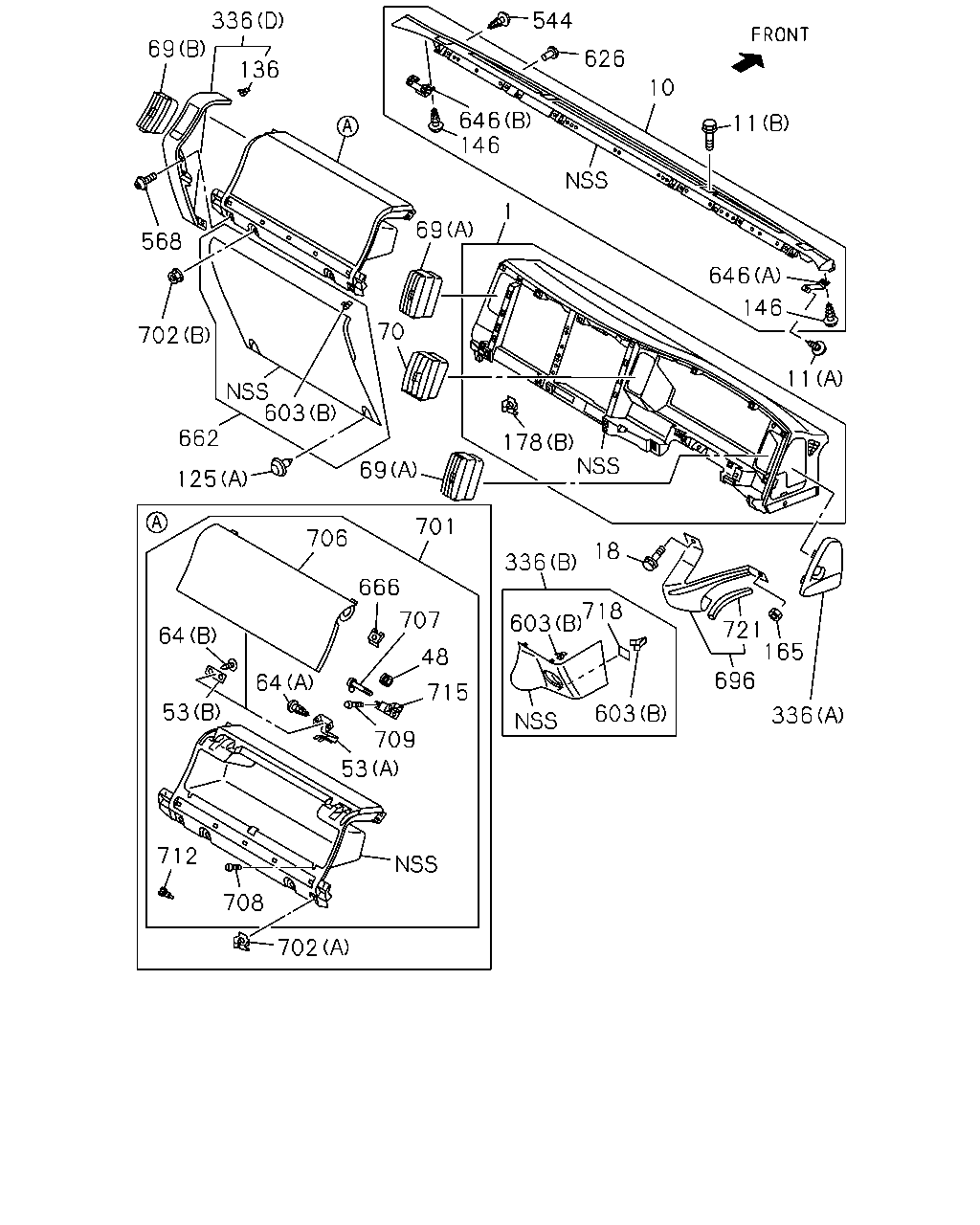

çizim 108619
336 136 69 568 702 603 662 125 69 706 701 666 707 48 715 603 336 18 718 603 721 165 696 336 178 646 146 11 11 626 10 544 646 146 1 69 70 64 64 53 53 709 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1105-
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1105-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1105-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1105-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1105-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1105-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1105-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1105-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1105-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1105-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1105-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1105-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1105-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1105-
136 CLIP; INST COVER 8-98076-254-0 02 1 1105-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1105-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1105-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1105-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1105-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1105-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1105-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1105-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1105-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1105-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1105-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1105-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1105-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1105-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1105-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1105-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1105-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1105-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1105-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1105-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1105-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1105-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1105-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1105-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1105-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1105-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1105-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1105-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1105-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1105-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1105-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1105-

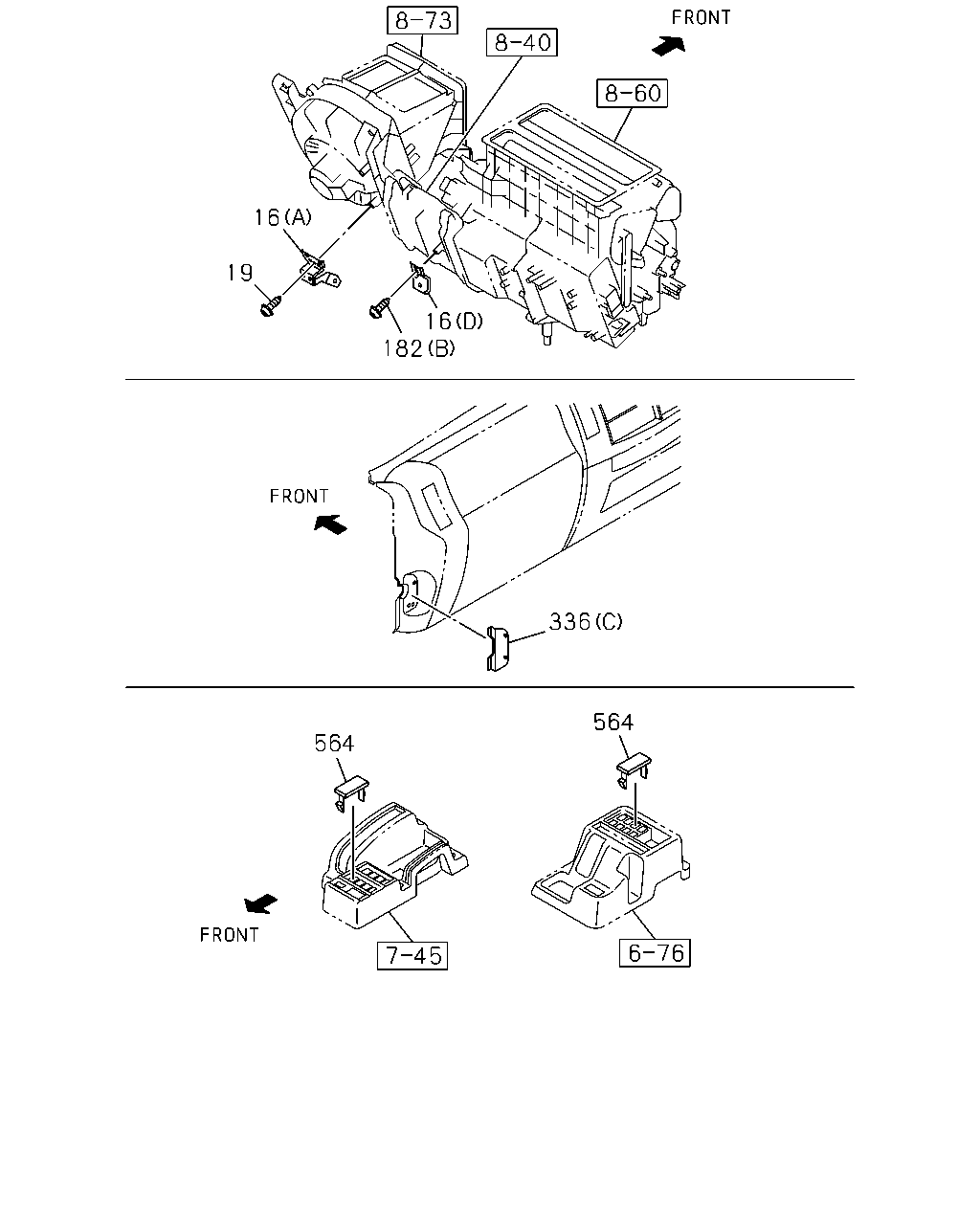

çizim 108621
16 19 16 182 336 564 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1105-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1105-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1105-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1105-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1105-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1105-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1105-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1105-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1105-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1105-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1105-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1105-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1105-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1105-
564 COVER; SW 8-97043-732-1 06 1 1105-

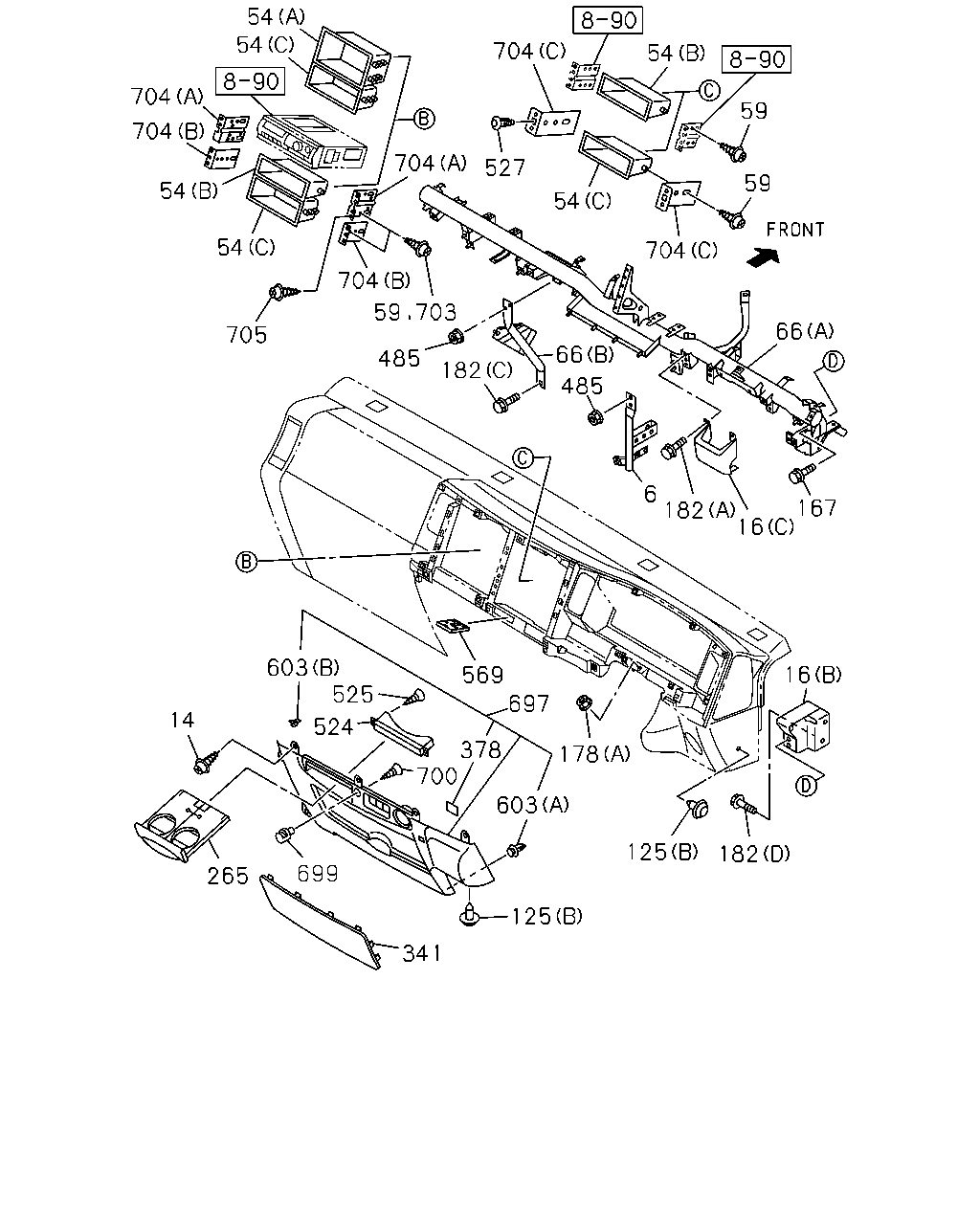

çizim 108641
54 54 704 704 54 54 705 704 59 703 485 182 66 485 54 527 704 704 54 59 59 704 66 167 16 182 6 16 182 125 178 697 569 603 125 341 699 265 14 603 525 524 378 700
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1105-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1105-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1105-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1105-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1105-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1105-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1105-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1105-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1105-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1105-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1105-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1105-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1105-1209
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1105-1209
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1105-1209
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1105-
66 REINFORCEMENT; INST PANEL
(A) 		8-98009-970-9 01 1 1105-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98170-401-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-605-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1105-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1105-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1105-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1105-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1105-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1105-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1105-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1105-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1105-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1105-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1105-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1105-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1105-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1105-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1105-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1105-
569 HOLDER; CARD 8-97410-276-1 01 1 1105-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1105-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1105-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1105-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1105-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1105-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1105-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1105-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1105-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1105-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1105-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1105-1209
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1105-
