7-20 — MIRROR AND MIRROR STAY (#21275) — 134 parça

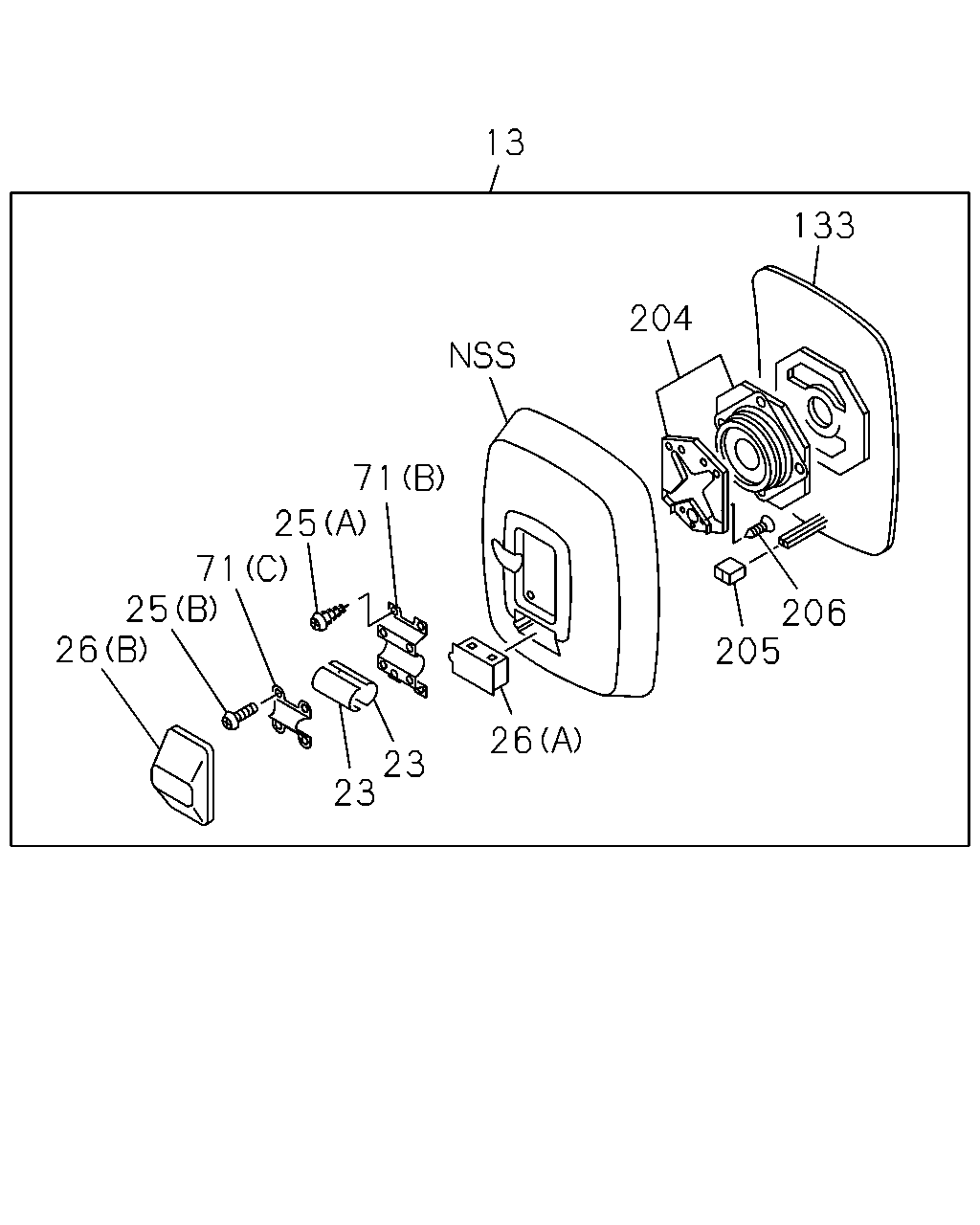

13 133 204 71 25 71 25 26 206 205 26 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-101-2	01	1	1105-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-100-2	01	1	1105-
23	WASHER; OUTSIDE MIRROR	1-71797-883-0	04	1	1105-
25	SCREW; OUTSIDE MIRROR (A) M5X14	1-71797-881-0	08	1	1105-
25	SCREW; OUTSIDE MIRROR (B) M6X10	1-71797-882-0	08	1	1105-
26	COVER; OUTSIDE MIRROR (B)	1-71797-879-0	02	1	1105-
26	COVER; OUTSIDE MIRROR (A)	1-71797-880-0	02	1	1105-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-877-0	02	1	1105-
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-878-0	02	1	1105-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-022-1	01	1	1105-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-021-0	01	1	1105-
71	BRACKET; OUTSIDE MIRROR (A)	8-98040-543-1	01	1	1105-
133	LENS; MIRROR,OUTSIDE	1-71797-953-0	01	1	1105-
133	LENS; MIRROR,OUTSIDE	1-71797-952-1	01	1	1105-
204	MOTOR KIT; MIRROR	1-71707-144-0	02	1	1105-
205	CONNECTOR KIT; MIRROR	1-71797-955-0	02	1	1105-
206	SCREW; MOTOR,MIRROR	8-98134-316-0	04	1	1105-

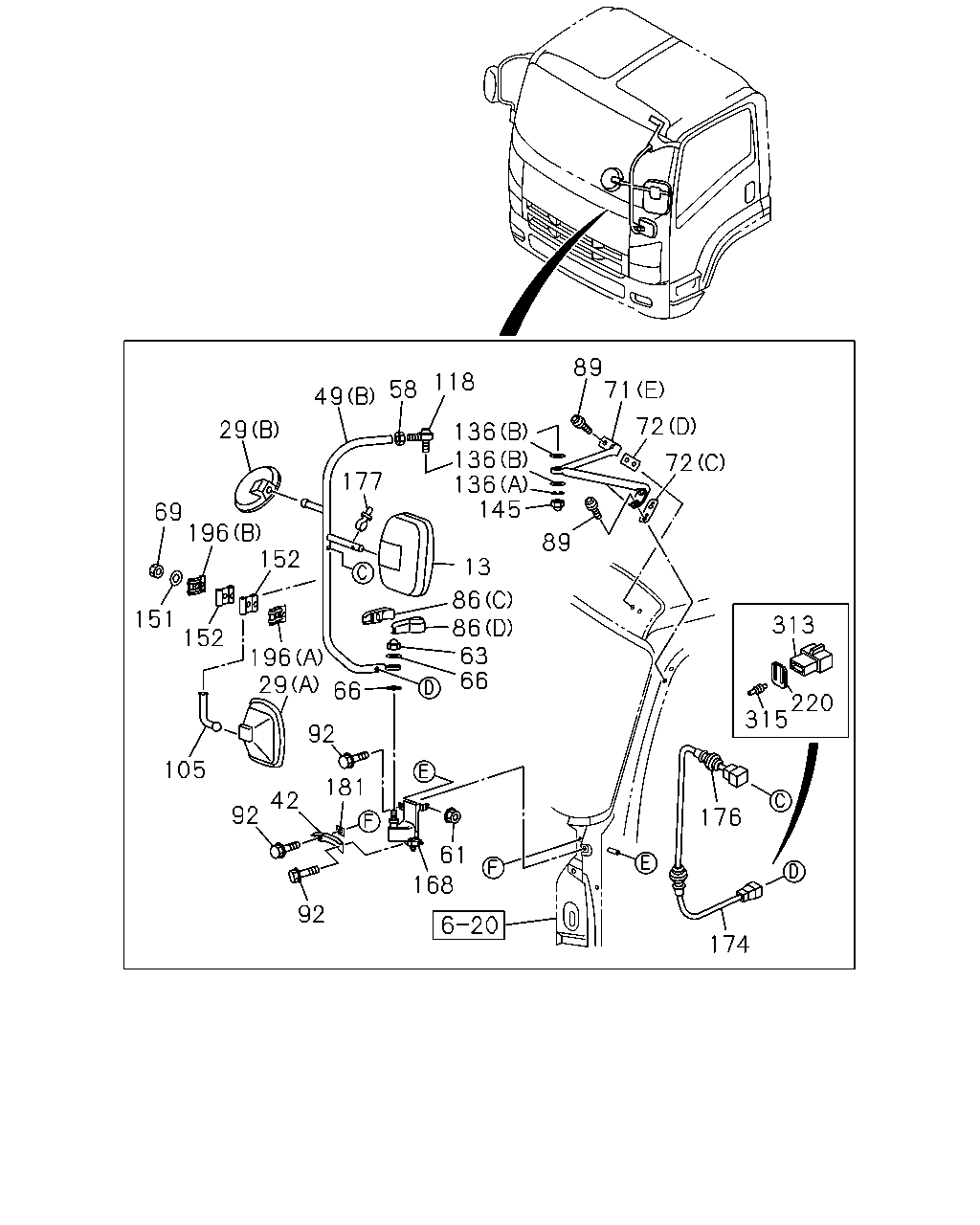

89 71 118 58 49 72 29 136 136 136 145 72 177 69 196 152 89 13 86 86 63 66 151 313 152 196 29 66 220 315 92 105 181 42 92 176 61 168 92 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-101-2	01	1	1105-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-100-2	01	1	1105-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1105-
29	MIRROR ASM; UNDER (A)	1-71798-422-0	01	1	1105-
42	ATTACHMENT; OUTSIDE MIRROR	8-98070-643-0	01	1	1105-
49	STAY; MIRROR SIDE (B)	8-98083-831-1	01	1	1105-1402
49	STAY; MIRROR SIDE (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE (A)	8-98091-456-0	01	1	1105-1502
49	STAY; MIRROR SIDE (A)	8-98305-584-0	01	1	1503-
58	NUT; MIRROR STAY M12	8-98061-883-0	01	1	1105-
61	NUT; STAY,OUTSIDE MIRROR M8 FLANGE	0-91180-108-0	01	1	1105-
63	NUT; STAY M14 CAP NUT	8-98041-311-1	01	1	1105-
66	WASHER; PL ID=14.5 OD=30	9-09851-946-0	02	1	1105-
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1105-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-877-0	02	1	1105-
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-878-0	02	1	1105-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-022-1	01	1	1105-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-021-0	01	1	1105-
71	BRACKET; OUTSIDE MIRROR (A)	8-98040-543-1	01	1	1105-
72	SHEET (C)	8-98040-535-0	01	1	1105-
72	SHEET (D)	8-98040-537-1	01	1	1105-
72	SHEET (A)	8-98040-351-0	01	1	1105-
72	SHEET (B)	8-98040-353-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-652-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (E)	8-98040-542-2	01	1	1105-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1105-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	04	1	1105-
105	STAY; SUB UNDER MIRROR	8-98041-571-2	01	1	1105-1402
105	STAY; SUB UNDER MIRROR	8-98257-761-0	01	1	1403-
118	JOINT ASM; BALL	1-71798-356-2	01	1	1105-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1105-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1105-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1105-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1105-
151	WASHER; PL,MIRROR ID=10.5 T=2.0	1-09985-183-0	01	1	1105-
152	SHEET; MIRROR STAY	1-71798-445-1	02	1	1105-
168	POWER UNIT; MIRROR STAY	8-97612-287-2	01	1	1105-
174	HARNESS; MIRROR	8-98047-367-0	01	1	1105-1402
174	HARNESS; MIRROR	8-98258-260-0	01	1	1403-
174	HARNESS; MIRROR	8-98047-368-2	01	1	1105-
176	GROMMET; HARNESS	1-82699-906-0	01	1	1105-
176	GROMMET; HARNESS	1-82699-906-0	01	1	1105-
177	CLIP; HARNESS L=140	5-09707-031-1	01	1	1105-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1105-
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1105-
196	HOLDER; STAY (A)	1-71798-442-2	01	1	1105-
196	HOLDER; STAY (B)	1-71798-444-2	01	1	1105-
220	HOLDER; CONNECTOR	8-94447-536-0	01	1	1105-
220	HOLDER; CONNECTOR	8-94447-536-0	01	1	1105-
313	CONNECTOR; MIRROR	8-94447-532-0	01	1	1105-
313	CONNECTOR; MIRROR	8-94447-532-0	01	1	1105-
315	RUBBER ASM; CONNECTOR	1-82691-026-0	01	1	1105-
315	RUBBER ASM; CONNECTOR	1-82691-026-0	01	1	1105-

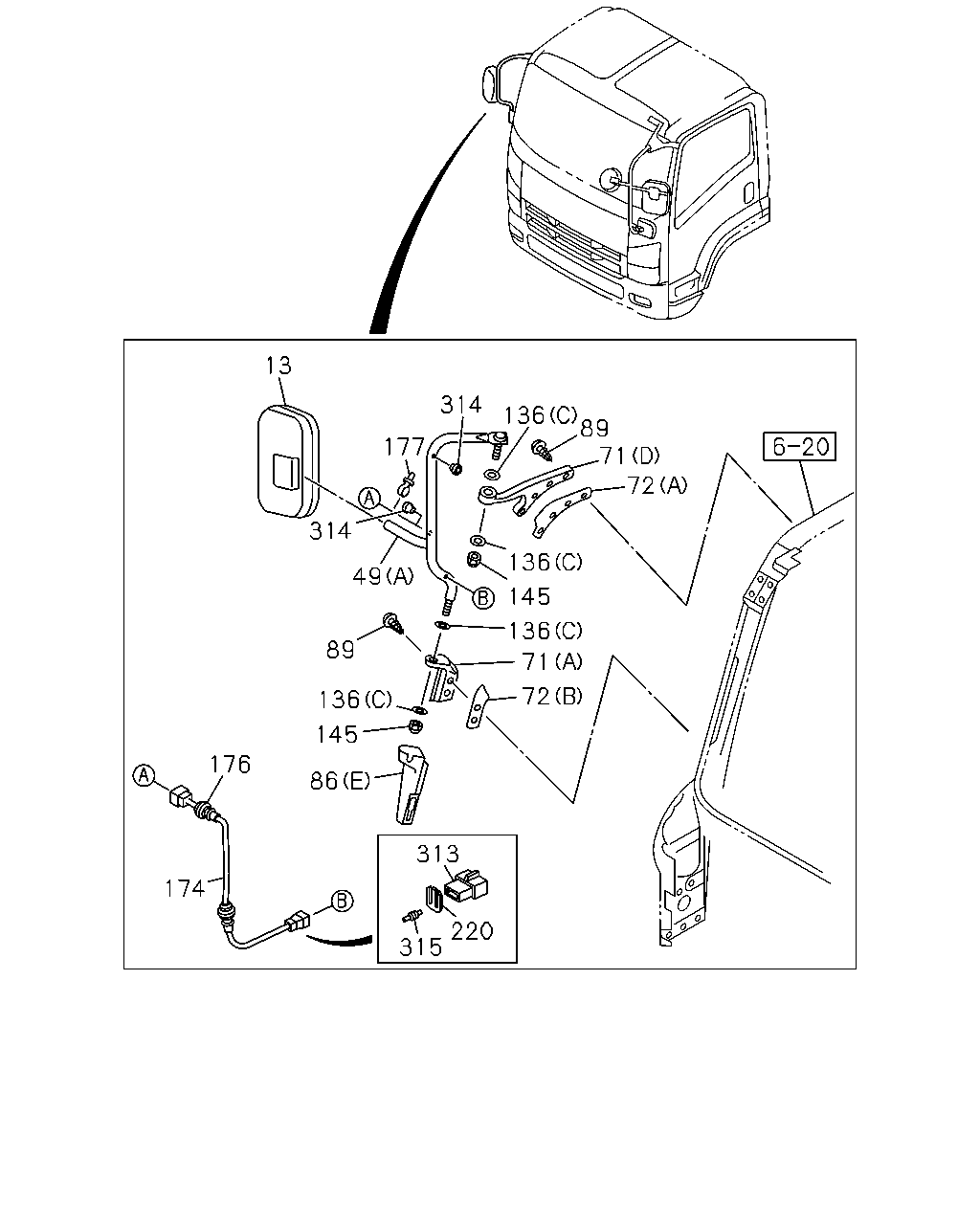

13 314 136 89 71 177 72 314 136 49 145 136 89 71 72 136 145 176 86 313 174 220 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-101-2	01	1	1105-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-100-2	01	1	1105-
49	STAY; MIRROR SIDE (B)	8-98083-831-1	01	1	1105-1402
49	STAY; MIRROR SIDE (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE (A)	8-98091-456-0	01	1	1105-1502
49	STAY; MIRROR SIDE (A)	8-98305-584-0	01	1	1503-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-877-0	02	1	1105-
71	BRACKET; OUTSIDE MIRROR (C)	1-71797-878-0	02	1	1105-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-022-1	01	1	1105-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-021-0	01	1	1105-
71	BRACKET; OUTSIDE MIRROR (A)	8-98040-543-1	01	1	1105-
72	SHEET (C)	8-98040-535-0	01	1	1105-
72	SHEET (D)	8-98040-537-1	01	1	1105-
72	SHEET (A)	8-98040-351-0	01	1	1105-
72	SHEET (B)	8-98040-353-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-652-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (E)	8-98040-542-2	01	1	1105-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1105-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1105-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1105-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1105-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1105-
174	HARNESS; MIRROR	8-98047-367-0	01	1	1105-1402
174	HARNESS; MIRROR	8-98258-260-0	01	1	1403-
174	HARNESS; MIRROR	8-98047-368-2	01	1	1105-
176	GROMMET; HARNESS	1-82699-906-0	01	1	1105-
176	GROMMET; HARNESS	1-82699-906-0	01	1	1105-
177	CLIP; HARNESS L=140	5-09707-031-1	01	1	1105-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1105-
220	HOLDER; CONNECTOR	8-94447-536-0	01	1	1105-
220	HOLDER; CONNECTOR	8-94447-536-0	01	1	1105-
313	CONNECTOR; MIRROR	8-94447-532-0	01	1	1105-
313	CONNECTOR; MIRROR	8-94447-532-0	01	1	1105-
314	BUFFER; STOPPER	8-94314-317-0	01	1	1105-
315	RUBBER ASM; CONNECTOR	1-82691-026-0	01	1	1105-
315	RUBBER ASM; CONNECTOR	1-82691-026-0	01	1	1105-

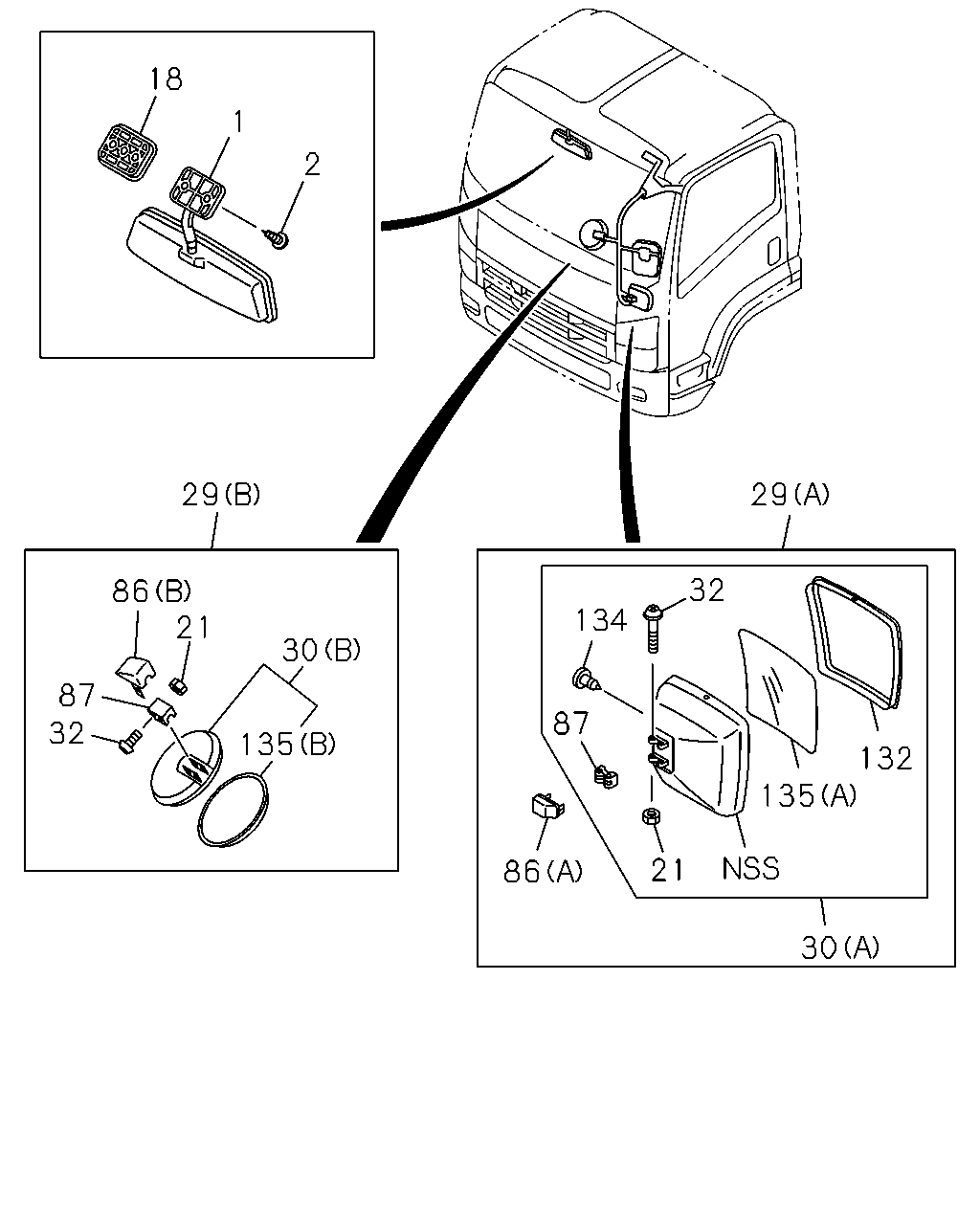

18 1 2 29 29 32 86 21 134 30 87 32 87 135 132 135 21 86 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31> DARK GRAY	8-98097-534-1	01	1	1105-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X26	8-98033-674-0	02	1	1105-
18	CLIP; MIRROR RR VIEW MIRROR<D31> DARK GRAY	8-97408-241-0	01	1	1105-
21	NUT; MIRROR M5	1-09984-124-0	02	1	1105-
21	NUT; MIRROR M5	1-09984-124-0	02	1	1105-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1105-
29	MIRROR ASM; UNDER (A)	1-71798-422-0	01	1	1105-
30	MIRROR; UNDER (B)	1-71798-591-1	01	1	1105-
30	MIRROR; UNDER (A)	1-71798-592-1	01	1	1105-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1105-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-652-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1105-
86	COVER; STAY,OUTSIDE MIRROR (E)	8-98040-542-2	01	1	1105-
87	SPACER	1-71737-646-2	01	1	1105-
87	SPACER	1-71737-646-2	01	1	1105-
132	RING; MIRROR	1-71737-935-0	01	1	1105-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	1105-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	1105-
135	LENS; MIRROR,SIDE UNDER (B)	1-71798-838-0	01	1	1105-
