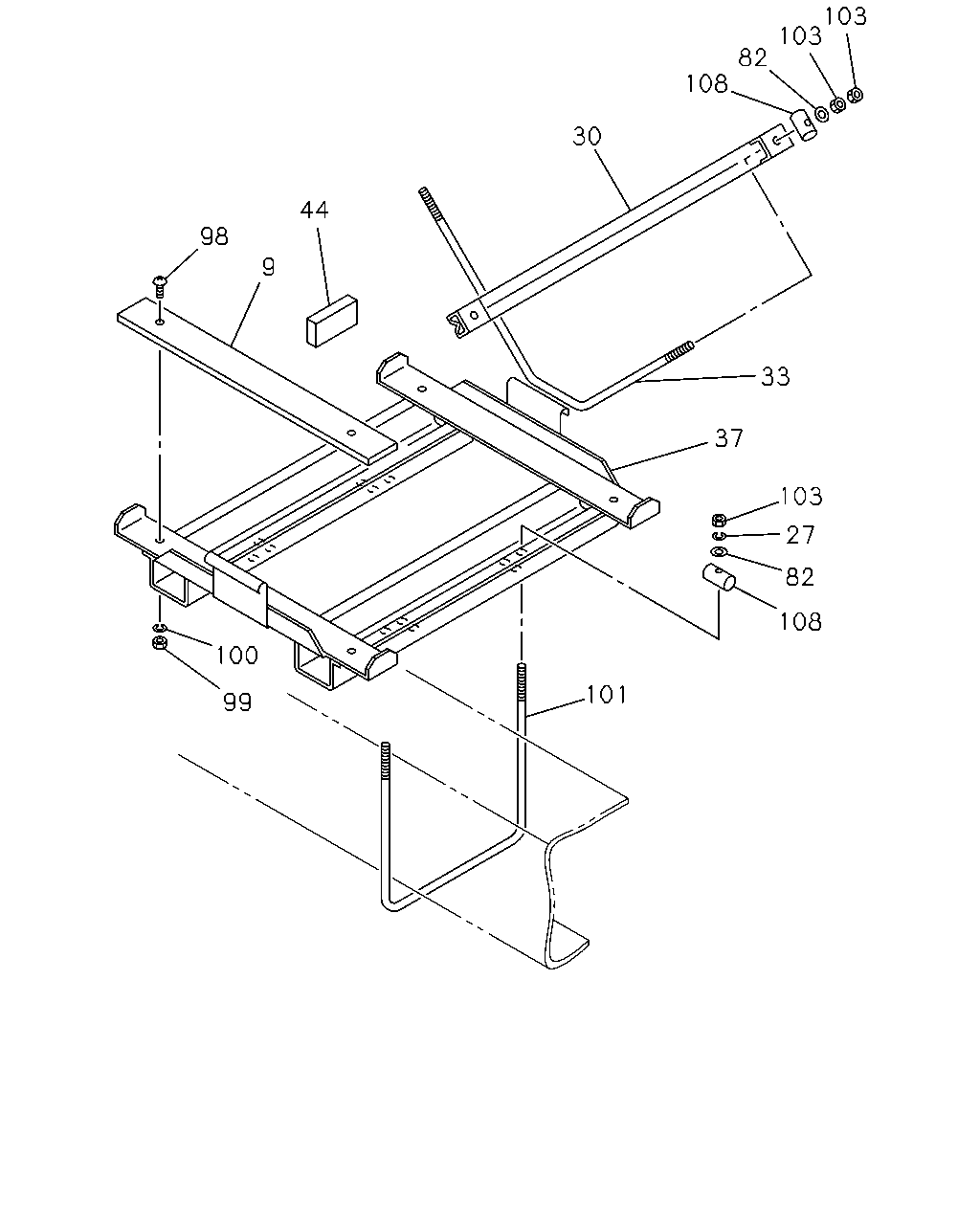

5-20 — BATTERY CARRIER
(#2125) — 19 parça
Tümü
A - LVR5FB
B - LVR6FB
103
103
82
108
30
44
98
9
33
37
103
27
82
108
100
101
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
SEAT; BATTERY
9-53613-535-0
02
1
9001-
●
●
27
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
04
1
9001-
●
●
30
PLATE; BATTERY
9-53616-119-0
02
1
9001-
●
●
33
BOLT; PLATE TO BRKT
BATTERY 190H52 N200<TP1>
1-53616-074-0
02
1
9001-
●
●
33
BOLT; PLATE TO BRKT
EXC. BATTERY 190H52 N200<TP1>
9-53616-214-1
02
1
9001-
●
●
37
BRACKET; BATTERY
BATTERY 190H52 N200<TP1>
1-53613-175-2
01
1
9001-
●
●
37
BRACKET; BATTERY
EXC. BATTERY 190H52 N200<TP1>
9-53613-534-0
01
1
9001-
●
●
44
SPACER; BATTERY
BATTERY 190H52 N200<TP1>
1-53619-010-0
01
1
9001-
●
●
82
WASHER; PL CENTER PEACE
BATTERY 190H52 N200<TP1> ID=10.5
9-09164-510-0
08
1
9001-
●
●
82
WASHER; PL CENTER PEACE
EXC. BATTERY 190H52 N200<TP1> ID=10.5
9-09164-510-0
04
1
9001-
●
●
98
SCREW; SEAT
M6X25 CK-HEAD
9-03090-625-0
04
1
9001-
●
●
99
NUT; SEAT
M6
9-09110-406-0
04
1
9001-9606
●
●
99
NUT; SEAT
M6 FLANGE
0-91150-106-0
04
1
9607-
●
●
100
WASHER; LK SEAT
ID=6.1
9-09150-506-0
04
1
9001-9606
●
●
101
BOLT; CLIP BATTERY BRKT
9-53616-131-0
02
1
9001-9203
●
●
101
BOLT; CLIP BATTERY BRKT
1-53616-075-3
02
1
9204-
●
●
103
NUT; BATTERY BRKT
M10
9-09110-510-0
12
1
9308-
●
●
108
PEACE; CENTER
BATTERY 190H52 N200<TP1>
9-53619-037-0
08
1
9001-
●
●
108
PEACE; CENTER
EXC. BATTERY 190H52 N200<TP1>
9-53619-037-0
04
1
9001-
●
●
