Isuzu WW
▶
TRUCKS
▶
CHR
▶
10648 - CHR/CJR/CQR
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#2124) — 36 parça
Tümü
A - WHEEL BASE 5800MM
B - WHEEL BASE 6600MM
C - WHEEL BASE 6800MM
◀

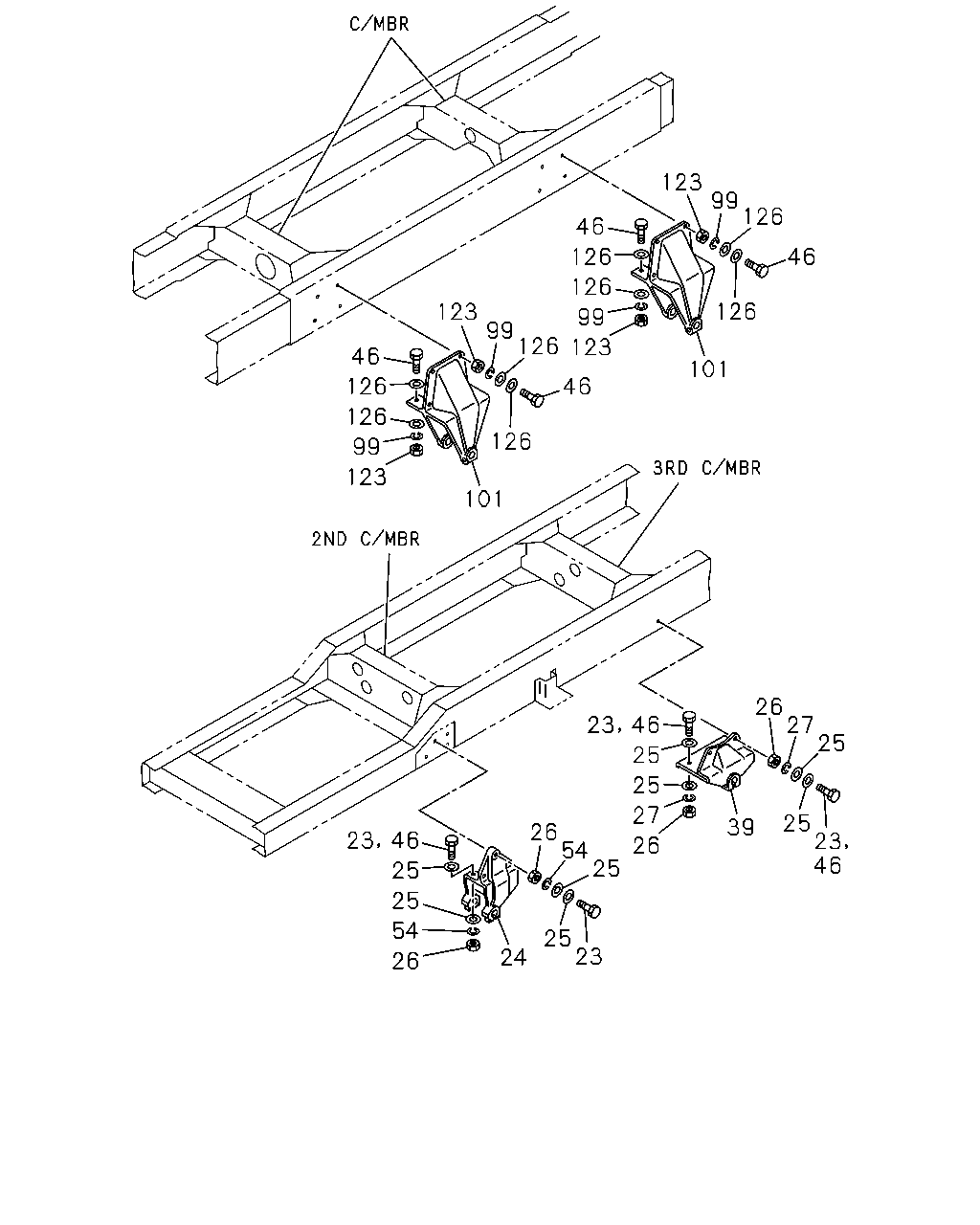

[501A] BRACKET;LEAF SPRING (19 parça)

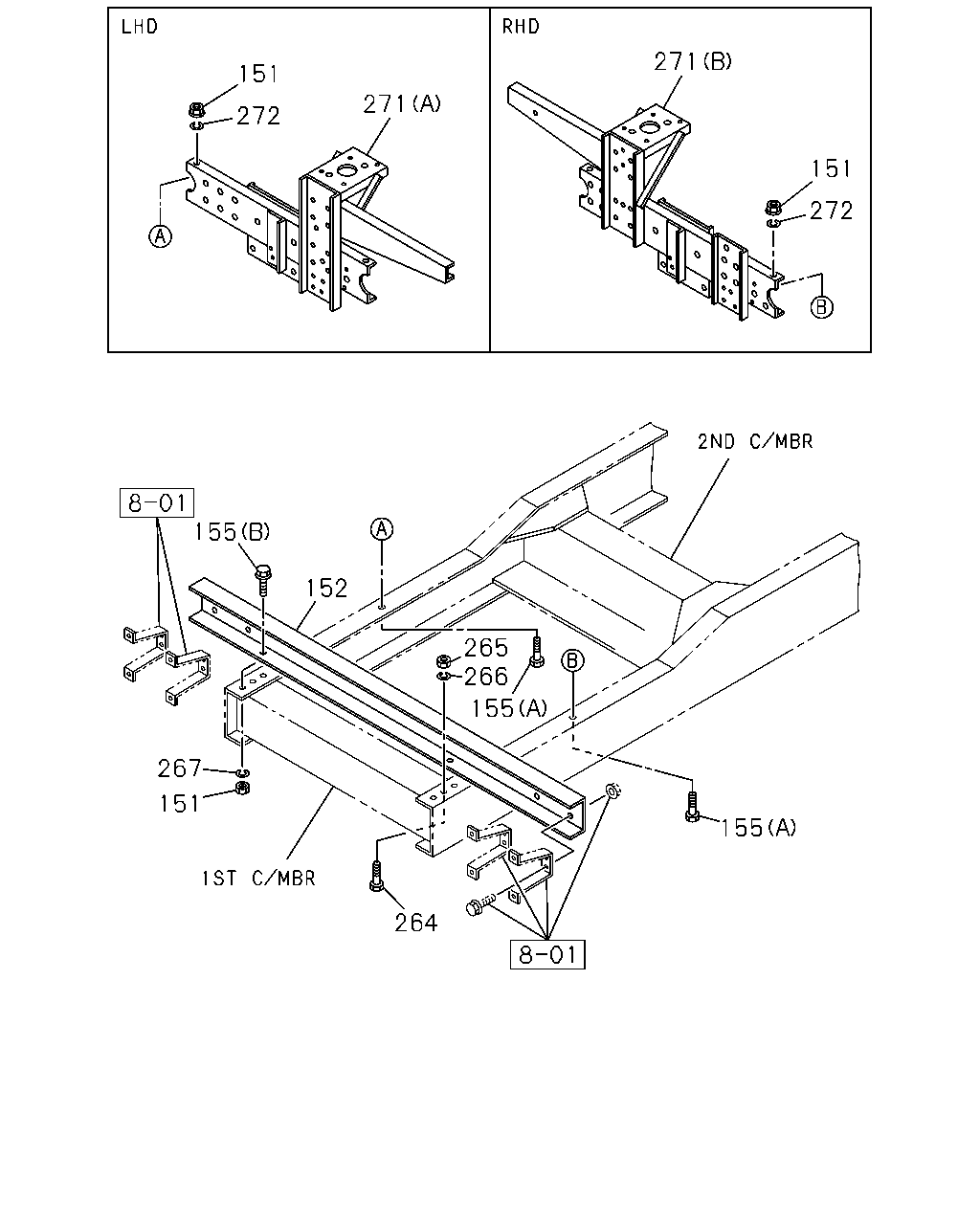

[501A] OUTRIGGER (17 parça)
▶
123
99
126
46
126
46
126
126
123
99
126
99
123
46
101
126
46
126
126
99
123
101
26
27
25
23
25
25
27
25
23
46
39
26
54
25
23
26
25
25
54
25
23
24
26
46
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
23
BOLT; BRKT,SPR
M16X55
9-91066-655-0
02
1
9001-
●
●
●
23
BOLT; BRKT,SPR
M16X70
9-91066-670-0
02
1
9001-
●
●
●
23
BOLT; BRKT,SPR
M16X45
9-92061-645-0
06
1
9001-9107
●
●
●
23
BOLT; BRKT,SPR
M16X50
9-92061-650-0
06
1
9108-
●
●
●
24
BRACKET; FRT SPR,FRT
1-53351-131-0
01
1
9001-
●
●
●
24
BRACKET; FRT SPR,FRT
1-53351-130-0
01
1
9001-
●
●
●
25
WASHER; PL,BRKT
ID=17 OD=30
9-09851-935-0
36
1
9001-
●
●
●
26
NUT; BRKT,SPR
M16
9-99110-516-0
18
1
9001-
●
●
●
27
WASHER; LK,BRKT,FRT SPR
ID=16.2
9-09150-616-0
10
1
9001-9107
●
●
●
39
BRACKET; FRT SPR,RR
1-53352-075-2
02
1
9001-
●
●
●
46
BOLT; BRKT FIX
M16X55
9-91066-655-0
04
1
9001-
●
●
●
46
BOLT; BRKT FIX
M16X45
9-92061-645-0
06
1
9108-
●
●
●
46
BOLT; BRKT FIX
M16X50
9-92061-650-0
02
1
9108-
●
●
●
46
BOLT; BRKT FIX
M16X50
9-92061-650-0
18
1
9001-
●
●
●
54
WASHER; LK,BRKT,FWD FRT SPR
ID=16.2
9-09150-616-0
08
1
9001-9107
●
●
●
99
WASHER; LK,BRKT
ID=16.2
9-09150-616-0
24
1
9001-
●
●
●
101
BRACKET; RR SPR,FRT
1-53354-040-0
04
1
9001-
●
●
●
123
NUT
M16
9-99110-516-0
24
1
9001-
●
●
●
126
WASHER; PL,BRKT
ID=17 OD=30
9-09851-935-0
48
1
9001-
●
●
●
271
151
271
272
151
272
155
152
265
266
155
267
151
155
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
151
NUT; OUTRIGGER
M12
9-99110-512-0
06
1
9001-9606
●
●
●
151
NUT; OUTRIGGER
M12 FLANGE
0-91150-212-0
06
1
9607-
●
●
●
152
OUTRIGGER
1-53456-121-5
01
1
9001-
●
●
●
155
BOLT; OUTRIGGER
(A) M12X28
9-92061-228-0
04
1
9001-9606
●
●
●
155
BOLT; OUTRIGGER
(A) M12X30 FLANGE
0-28691-230-0
04
1
9607-
●
●
●
155
BOLT; OUTRIGGER
(B) M12X35
9-92061-235-0
02
1
9001-9606
●
●
●
155
BOLT; OUTRIGGER
(B) M12X35 FLANGE
0-28691-235-0
02
1
9607-
●
●
●
264
BOLT; FRT C/MBR
M14X35
9-92051-435-0
01
1
9001-9005
●
●
●
264
BOLT; FRT C/MBR
M14X35
0-20801-435-0
01
1
9006-
●
●
●
265
NUT; FRT C/MBR
M14
9-99110-414-0
01
1
9001-
●
●
●
266
WASHER; LK,C/MBR
ID=14.2
9-09150-614-0
01
1
9001-
●
●
●
267
WASHER; LK,OUTRIGGER
ID=12.2
9-09150-612-0
02
1
9001-9606
●
●
●
271
OUTRIGGER; BRK PEDAL
A/T<X9D> (A)
1-53456-137-3
01
1
9001-
●
●
271
OUTRIGGER; BRK PEDAL
RIGHT HAND DRIVE(LVR5FB) (B)
1-53456-125-4
01
1
9001-
●
●
271
OUTRIGGER; BRK PEDAL
LEFT HAND DRIVE(LVR6FB) M/T<X9C> (A)
1-53456-120-5
01
1
9001-
●
●
271
OUTRIGGER; BRK PEDAL
M/T<X9C> (A)
1-53456-120-5
01
1
9001-
●
272
WASHER; LK,OUTRIGGER
ID=12.2
9-09150-612-0
04
1
9001-9606
●
●
●
