4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#21237) — 54 parça

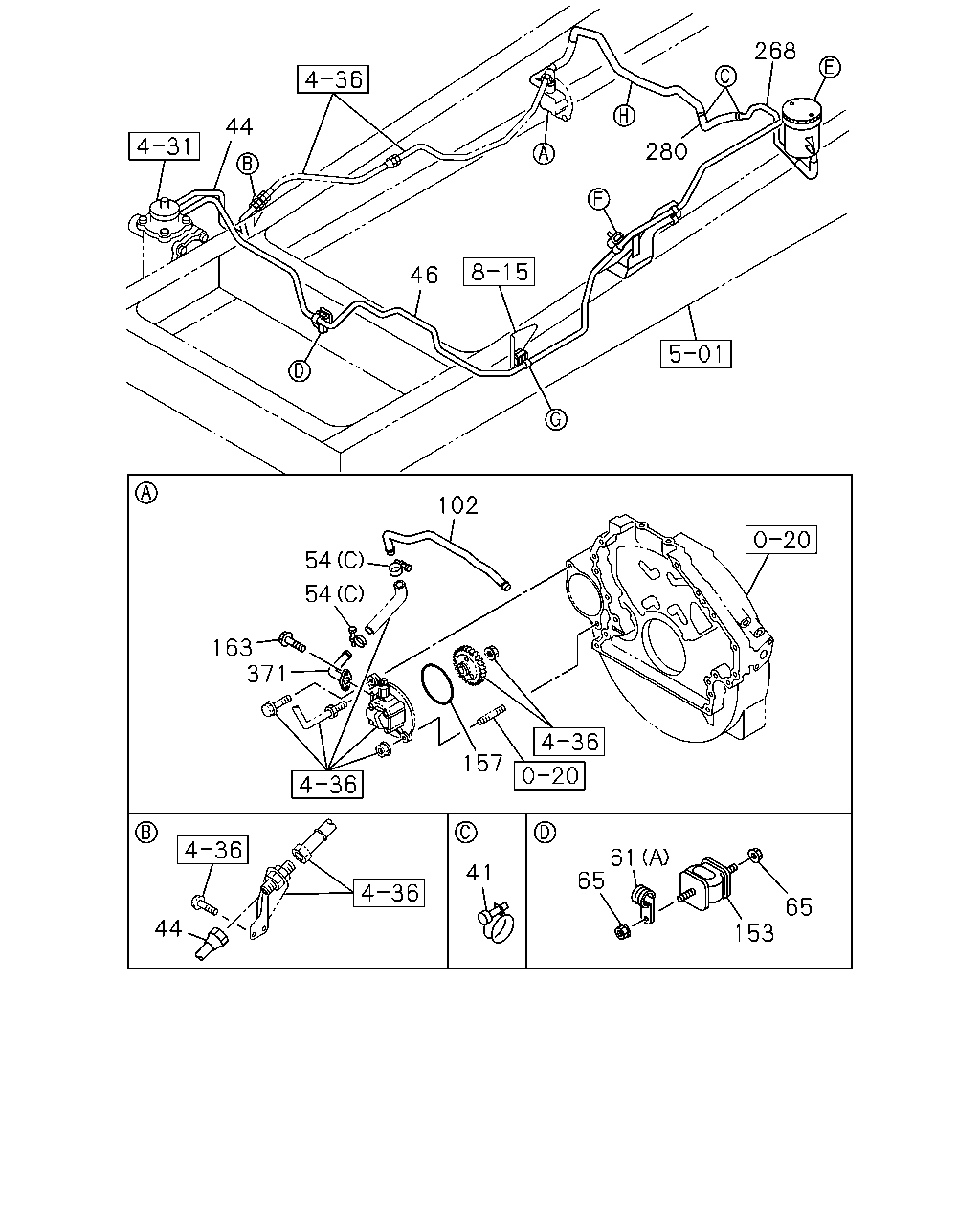

çizim 108552
268 44 280 46 102 54 54 163 371 157 61 65 41 65 44 153
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1105-
44 PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V90A(K44) 		8-98079-094-0 01 1 1105-
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. GENERATOR 24V90A(K44) 		8-98077-661-0 01 1 1105-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=2493 		8-98126-594-0 01 1 1105-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1105-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 02 1 1105-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1105-
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 03 1 1105-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 1105-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1105-
102 PIPE; SUCTION,P/S 8-98057-017-4 01 1 1105-
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 03 1 1105-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		8-97386-295-0 01 1 1105-
163 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1105-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98077-739-2 01 1 1105-
280 HOSE; P/S OIL PUMP,INL 8-98053-040-1 01 1 1105-
371 PIPE; OIL,INLET 8-98072-089-1 01 1 1105-

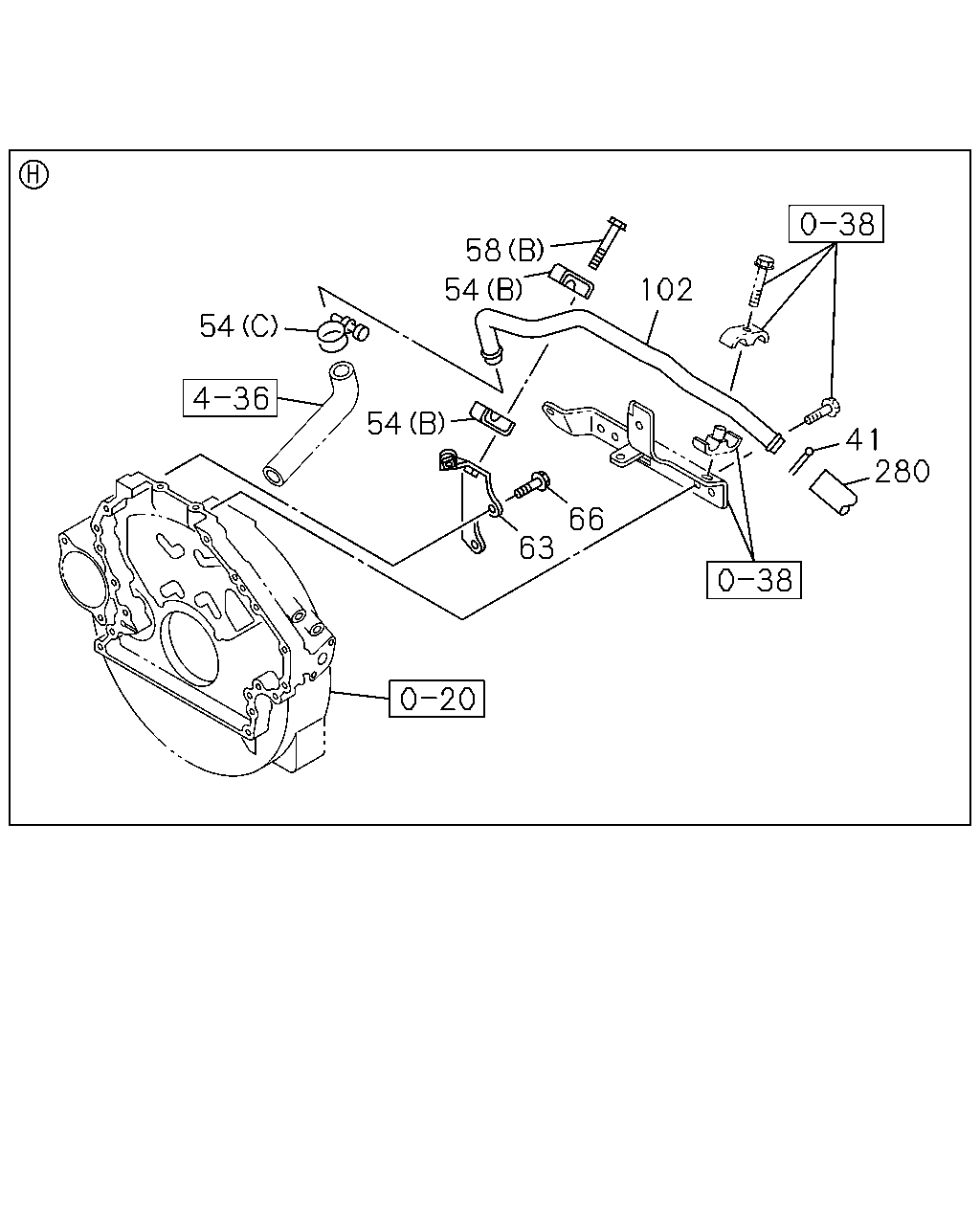

çizim 108555
58 102 54 54 54 41 280 66 63
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1105-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1105-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 02 1 1105-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1105-
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1105-
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1105-
63 BRACKET; CLIP,P/S 8-98075-954-0 01 1 1105-
66 BOLT; BRKT,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1105-
102 PIPE; SUCTION,P/S 8-98057-017-4 01 1 1105-
280 HOSE; P/S OIL PUMP,INL 8-98053-040-1 01 1 1105-

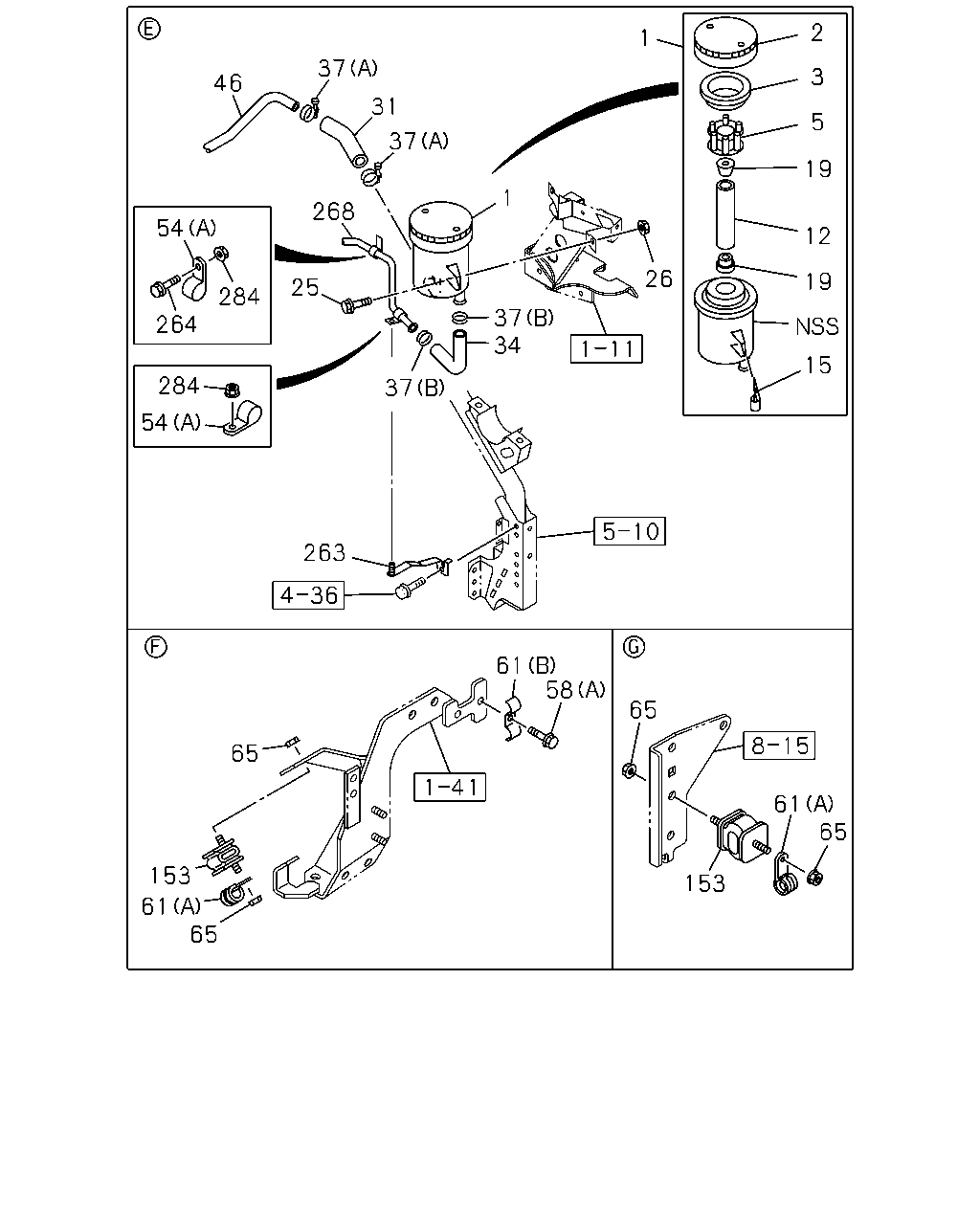

çizim 108556
2 1 37 3 46 31 5 37 19 1 268 54 12 26 19 25 284 37 34 264 15 284 37 54 263 61 58 65 65 61 65 153 153 61 65
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1105-
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1105-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 1105-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 1105-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 1105-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 1105-
19 SEAT; OIL TANK 1-21249-004-0 02 1 1105-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1105-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1105-
31 HOSE; P/S OIL TANK,INL 8-98131-108-0 01 1 1105-
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 1105-
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 1105-
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 1105-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=2493 		8-98126-594-0 01 1 1105-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1105-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 02 1 1105-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1105-
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1105-
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1105-
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 03 1 1105-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 1105-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1105-
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 03 1 1105-
263 BRACKET; P/S PIPE 8-98130-274-0 01 1 1105-
264 BOLT; PIPE BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1105-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98077-739-2 01 1 1105-
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 02 1 1105-
