Isuzu WW
▶
TRUCKS
▶
FRR
▶
11414 - FRR RHD EURO5 SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

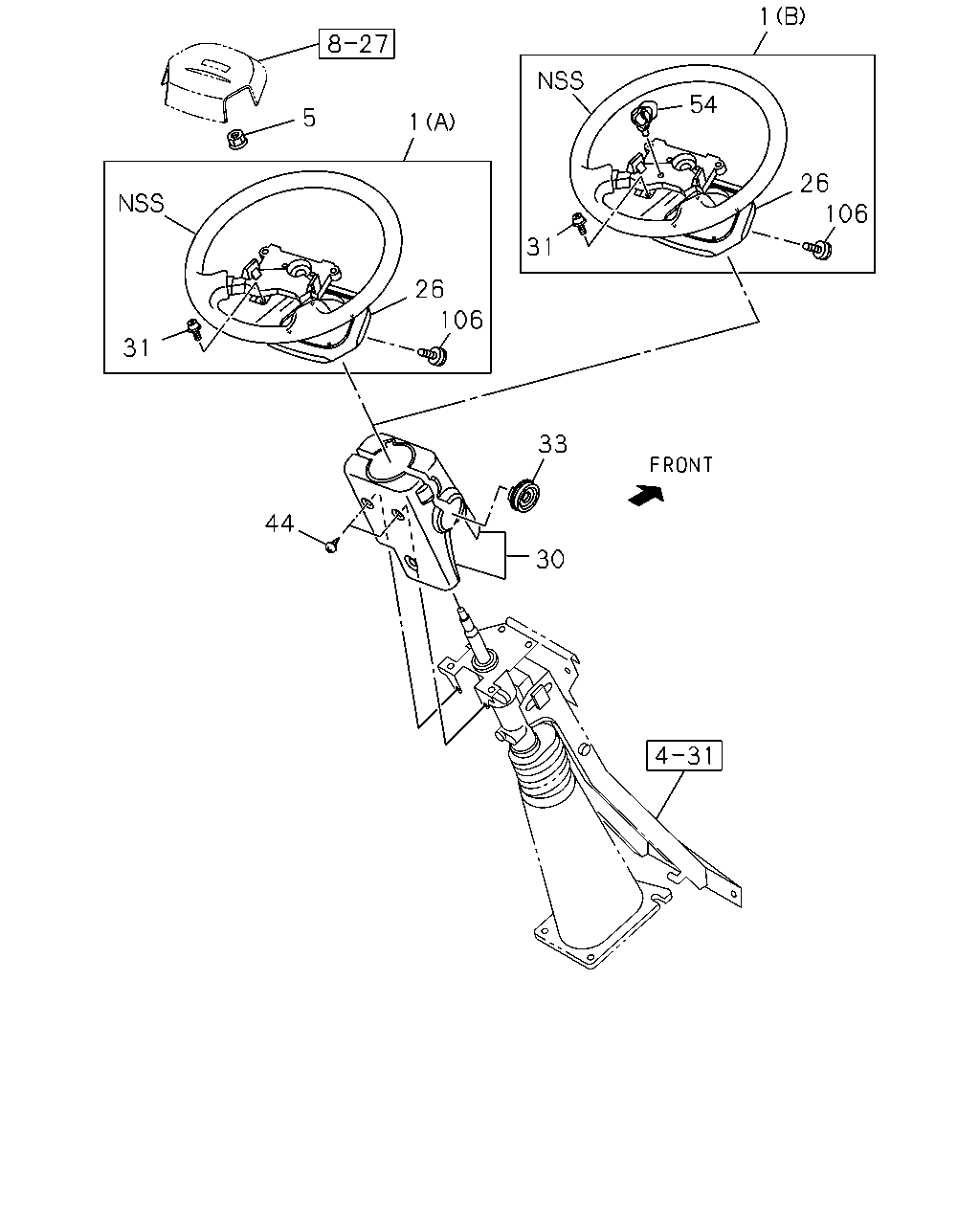

4-30 — STEERING WHEEL AND COWL
(#21234) — 12 parça
26
54
106
31
5
26
31
106
33
30
44
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
WHEEL; STRG
(A) DARK GRAY
8-97407-720-0
01
1
1105-1210
1
WHEEL; STRG
(B) DARK GRAY
8-97423-998-0
01
1
1211-
5
NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1105-
26
COVER; STRG WHEEL,LWR
DARK GRAY
8-97405-841-0
01
1
1105-1210
26
COVER; STRG WHEEL,LWR
DARK GRAY
8-97421-978-0
01
1
1211-
30
COWL; STEERING
DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY
8-97411-503-1
01
1
1105-
30
COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DARK GRAY
8-97405-356-5
01
1
1105-
31
SCREW; BOSS TO COVER
M4X12
8-97167-588-0
04
1
1105-
33
COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1105-
44
SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1105-
54
CLIP; HARNESS
8-98165-703-0
01
1
1211-
106
BOLT; TORX
8-98231-397-0
02
1
1105-
