◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#2123) — 56 parça

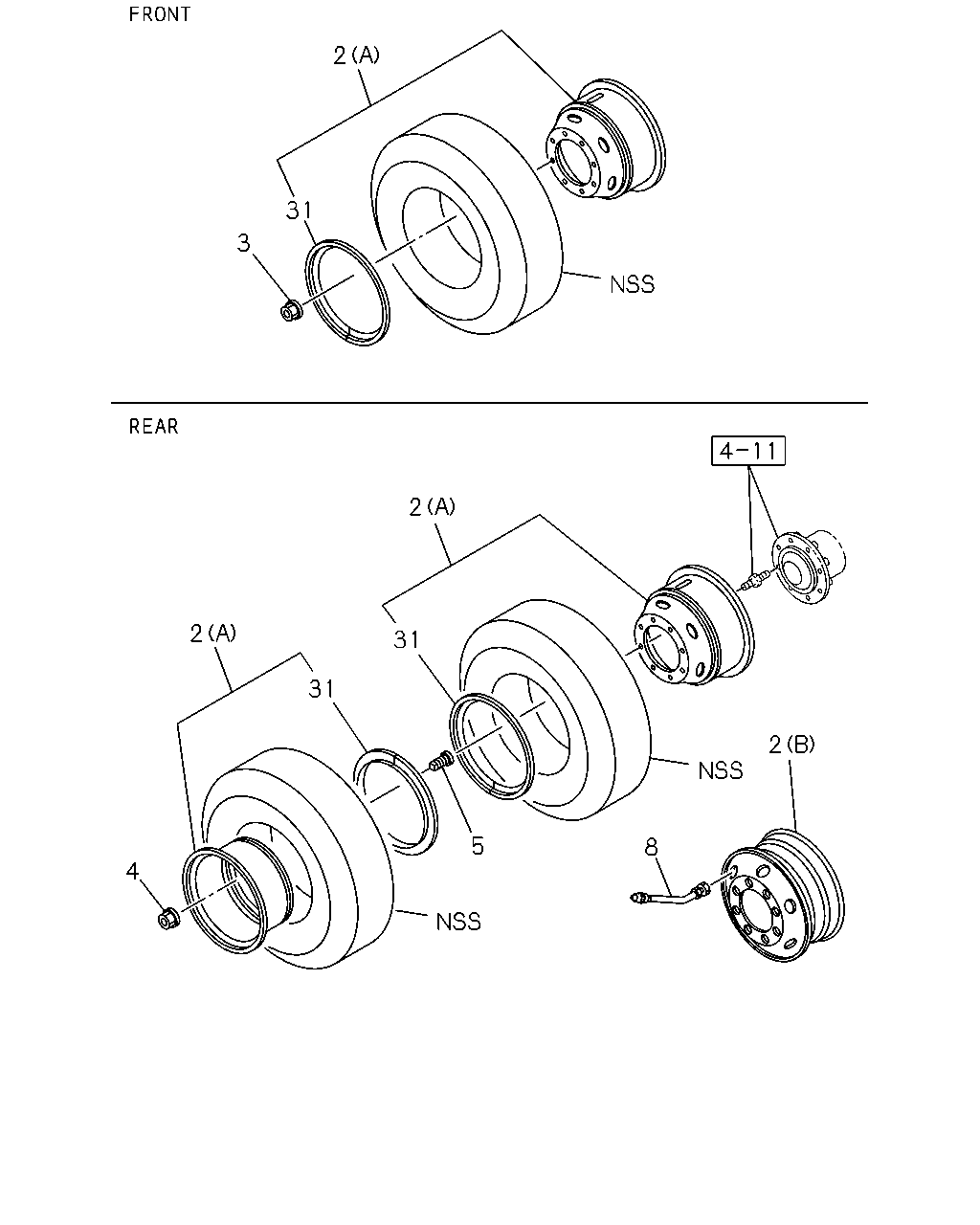

çizim 94817
2 31 3 2 2 31 31 2 5 8 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 10STUD 7.50VX20(Q64) (A) 		1-42350-131-3 01 1 9001-9402 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 10STUD 7.50VX20(Q64) (A) 		1-42350-478-0 01 1 9403- ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-334-0 06 1 9305-9312 ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-470-1 06 1 9401- ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (B) 		1-42350-334-0 01 1 9305-9312 ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (B) 		1-42350-470-1 01 1 9401- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-136-1 06 1 9001-9406 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-495-0 06 1 9407- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-136-1 01 1 9001-9406 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-495-0 01 1 9407- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.50VX20(Q64) (A) 		1-42350-137-1 06 1 9001-9406 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.50VX20(Q64) (A) 		1-42350-496-0 06 1 9407- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.50VX20(Q64) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-137-1 01 1 9001-9406 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.50VX20(Q64) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-496-0 01 1 9407- ● ●
2 WHEEL; DISC
WHEEL 8.25X22.5 165-13(QM6) (B) 		1-42350-414-1 06 1 9305- ● ●
2 WHEEL; DISC
WHEEL 8.25X22.5 165-13(QM6) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (B) 		1-42350-414-1 01 1 9305- ● ●
2 WHEEL; DISC
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58), WHEEL8STUD 7.50VX20 165-13(Q62),WHEEL 10STUD 7.50VX20(Q64) (A) 		1-42350-131-3 06 1 9001-9402 ● ●
2 WHEEL; DISC
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58), WHEEL8STUD 7.50VX20 165-13(Q62),WHEEL 10STUD 7.50VX20(Q64) (A) 		1-42350-478-0 06 1 9403- ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-42350-134-2 06 1 9001-9204 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-42350-420-0 06 1 9205-0105 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-42350-362-0 06 1 0106- ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-134-2 01 1 9001-9204 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-420-0 01 1 9205-0105 ● ●
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13(Q62) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> (A) 		1-42350-362-0 01 1 0106- ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42334-031-0 10 1 9001-9110 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42334-040-0 10 1 9111-9202 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-031-0 10 1 9001-9110 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-040-0 10 1 9111-9202 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-040-0 20 1 9203-9304 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-040-0 20 1 9305-9704 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-047-0 20 1 9705-9807 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 RH THREAD 		1-42333-048-1 20 1 9808- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20 LH THREAD 		1-42334-021-0 08 1 9001-9304 ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20 LH THREAD 		1-42334-021-0 08 1 9305- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20 RH THREAD 		1-42333-021-0 08 1 9001-9304 ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20 RH THREAD 		1-42333-021-0 08 1 9305- ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42334-031-0 10 1 9001-9110 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42334-040-0 10 1 9111-9202 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-031-0 10 1 9001-9110 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-040-0 10 1 9111-9202 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-040-0 20 1 9203-9304 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-040-0 20 1 9305-9704 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-42333-047-0 20 1 9705-9807 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 RH THREAD 		1-42333-048-1 20 1 9808- ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M30 LH THREAD 		1-42334-023-0 08 1 9001-9304 ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M30 LH THREAD 		1-42334-023-0 08 1 9305- ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M30 		1-42333-023-0 08 1 9001-9304 ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M30 		1-42333-023-0 08 1 9305- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9001- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9001- ● ●
8 VALVE; TIRE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42370-020-3 01 1 9305- ● ●
8 VALVE; TIRE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5165-13(QM8) 		1-42370-020-3 06 1 9305- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) ,WHEEL 10STUD 7.50VX20(Q64) 		1-42355-003-1 01 1 9001- ● ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.50VX20(Q64) 		1-42355-003-1 06 1 9001- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 10STUD 7.50VX20(Q64) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42355-004-1 01 1 9001- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 10STUD 7.50VX20(Q64) 		1-42355-004-1 06 1 9001- ● ●
