Isuzu WW
▶
TRUCKS
▶
FRR
▶
11414 - FRR RHD EURO5 SPACECAB
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#21228) — 37 parça
◀
[378A] NO.2 (10 parça)
[378A] NO.3 (8 parça)
[378A] NO.1 (19 parça)
▶

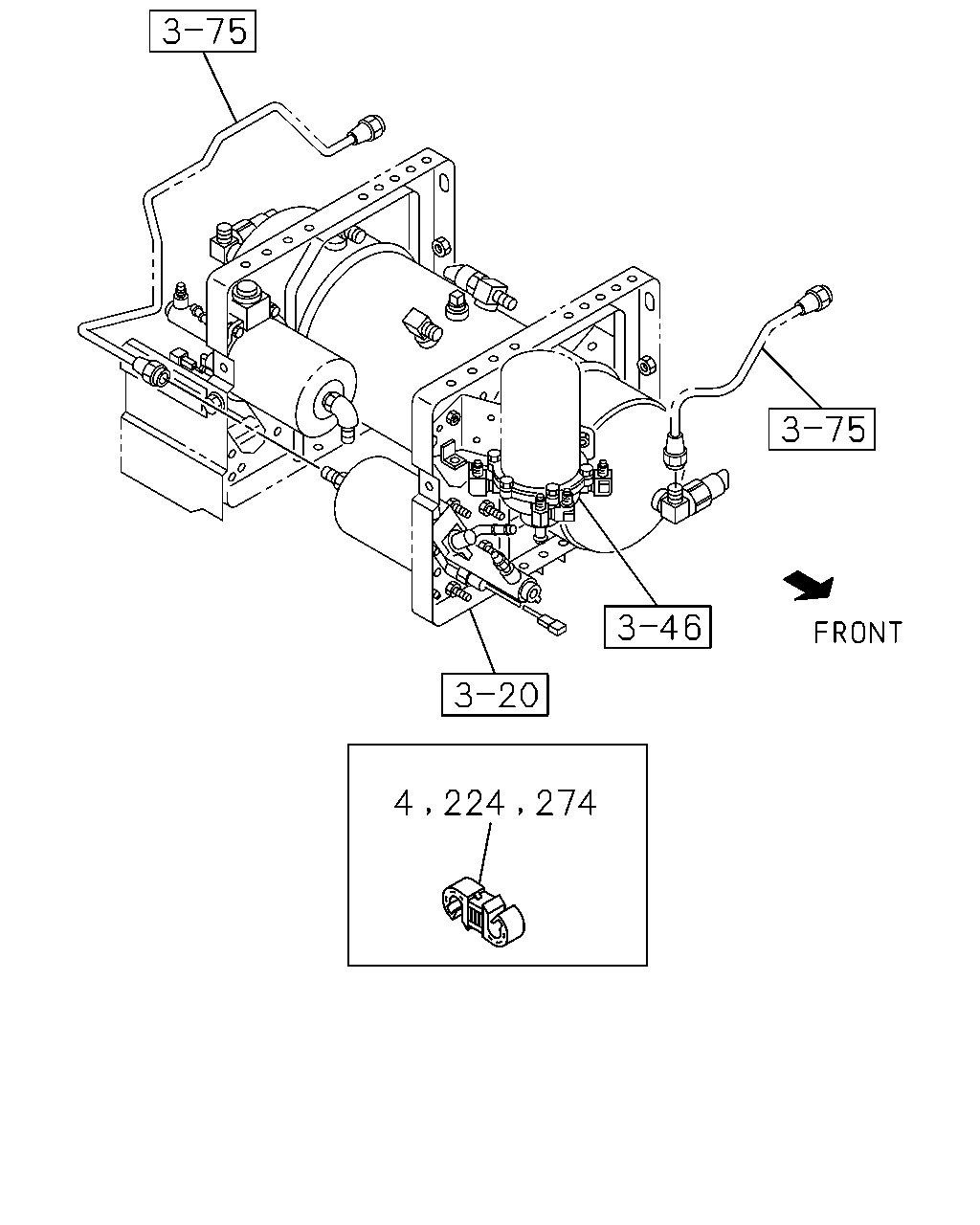

4
224
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
1105-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0
1-09709-274-1
02
1
1105-
224
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10
1-09709-277-1
01
1
1105-
224
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
1105-
224
CLIP; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0
1-09709-274-1
01
1
1105-
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
02
1
1105-
274
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
01
1
1105-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
03
1
1105-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
05
1
1105-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0
1-09709-305-0
01
1
1105-

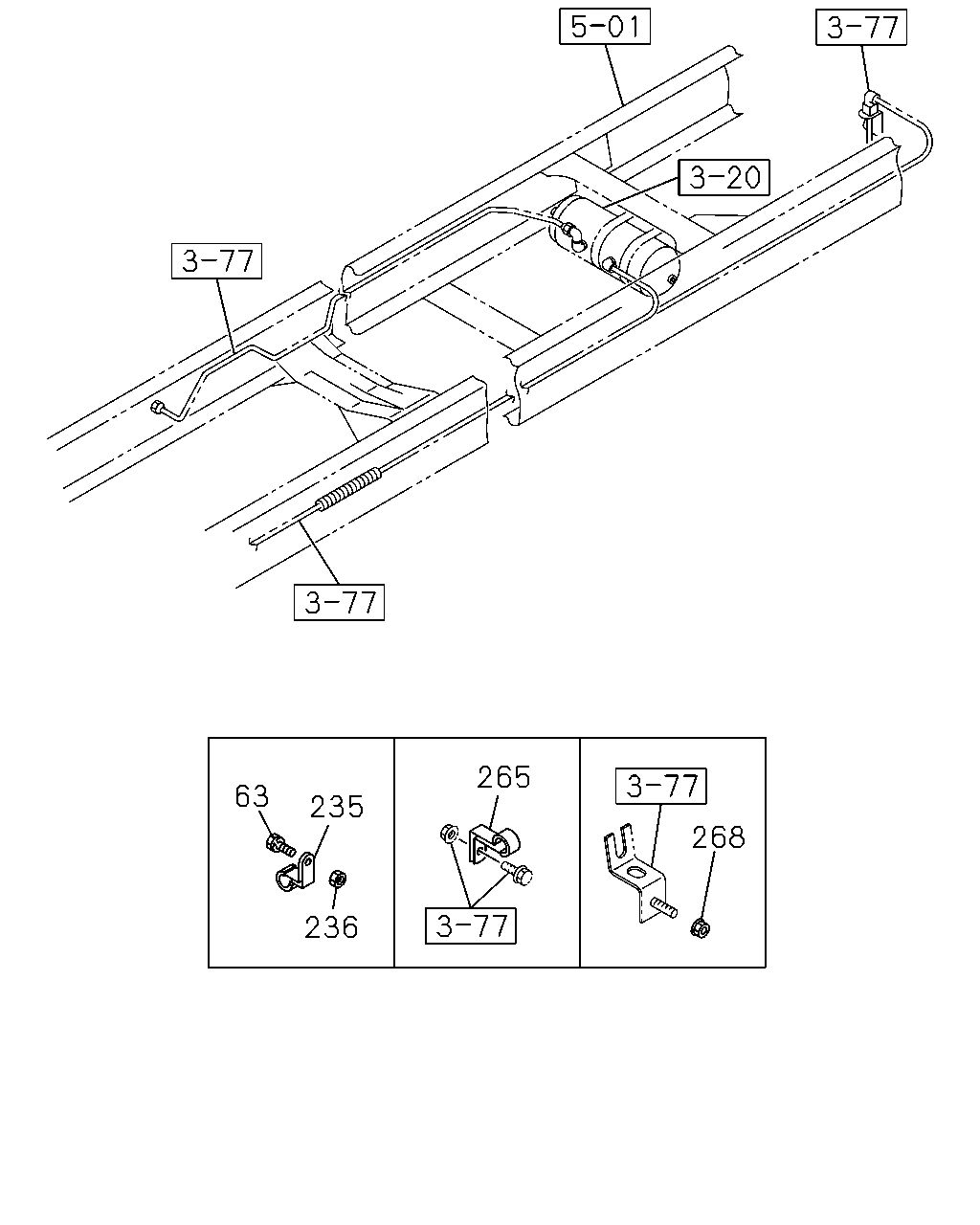

265
63
235
268
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
63
BOLT; CLIP
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
03
1
1105-
63
BOLT; CLIP
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
05
1
1105-
235
CLIP; AIR PIPE
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20
8-98033-780-0
03
1
1105-
235
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20
8-98033-780-0
05
1
1105-
236
NUT; CLIP
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
03
1
1105-
236
NUT; CLIP
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
05
1
1105-
265
CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26
8-94176-806-0
01
1
1105-
268
NUT; CLIP BRKT
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
01
1
1105-

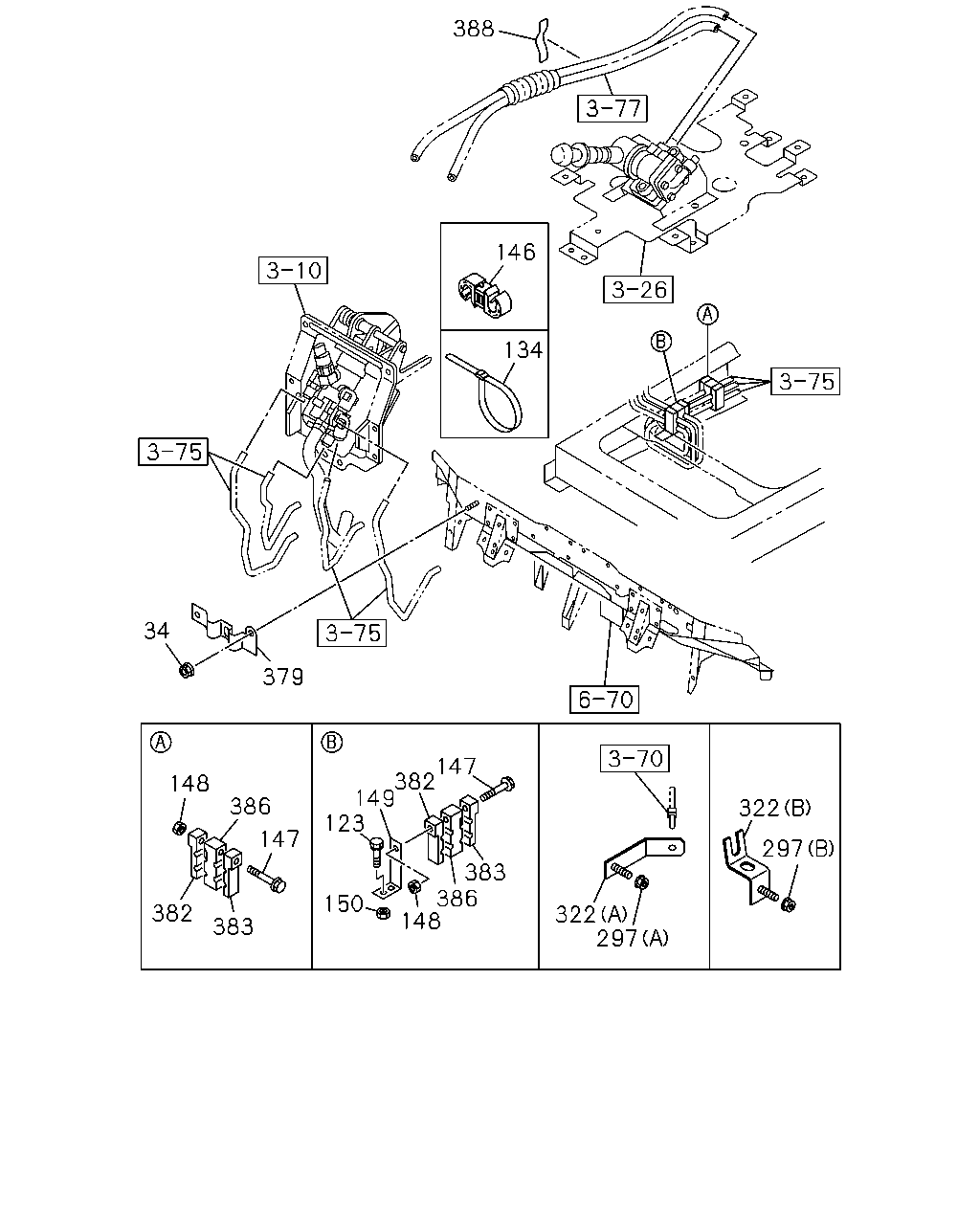

388
146
134
34
379
147
382
149
123
148
386
322
147
297
383
386
148
150
382
322
297
383
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1105-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
02
1
1105-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1105-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
1105-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
03
1
1105-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
1105-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1105-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1105-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1105-
297
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1105-
297
NUT; BRKT
WHEEL BASE 4600MM(46W) (B) M10 FLANGE
0-91180-210-0
01
1
1105-
322
BRACKET; CLIP
(A)
1-47479-936-1
02
1
1105-
322
BRACKET; CLIP
WHEEL BASE 4600MM(46W) (B)
8-98096-272-0
01
1
1105-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1105-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
03
1
1105-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
03
1
1105-
386
CLIP; CENTER
ID=10
1-09709-242-0
03
1
1105-
388
SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40
1-72498-022-1
03
1
1105-
