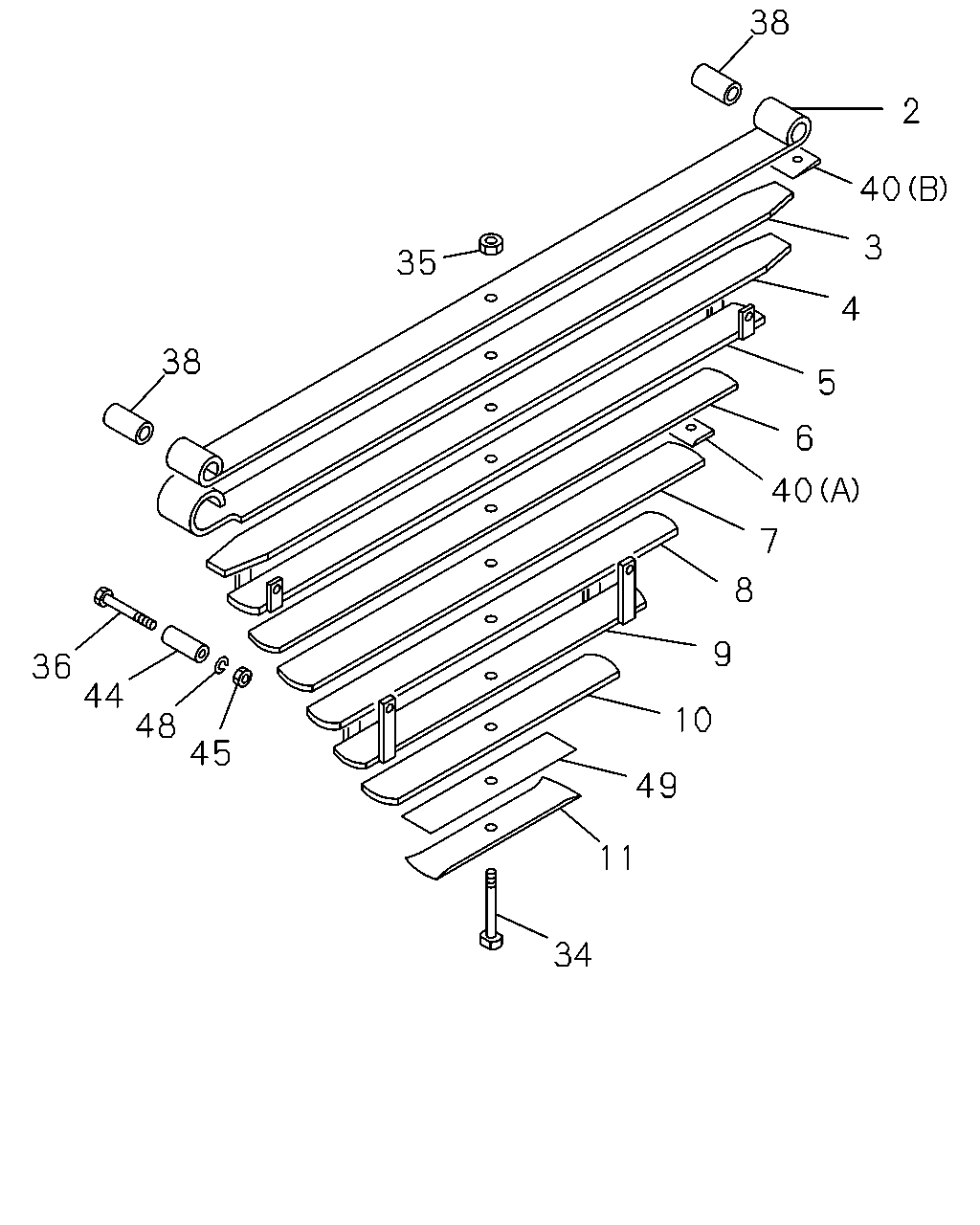

4-65 — REAR LEAF SPRING (#2122) — 70 parça

38 2 40 3 35 4 38 5 6 40 7 8 9 36 44 48 45 10 49 11 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-590-1	1-51311-146-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51310-591-1	1-51311-591-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51410-103-0	1-51411-103-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-590-1	1-51312-146-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51310-591-1	1-51312-591-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51410-103-0	1-51412-103-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-590-1	1-51313-163-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51310-591-1	1-51313-592-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51410-103-0	1-51413-103-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-590-1	1-51313-163-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51310-591-1	1-51314-592-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51410-103-0	1-51414-103-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51310-591-1	1-51315-592-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51410-103-0	1-51415-103-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-590-1	9-51313-609-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-590-1	1-51316-590-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51310-591-1	1-51316-592-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51410-103-0	1-51416-103-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-590-1	1-51317-590-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51310-591-1	1-51317-592-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51410-103-0	1-51417-103-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-590-1	1-51318-590-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51410-103-0	1-51418-103-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: C = 1-51410-103-0	1-51419-103-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-590-1	9-51317-609-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 1-51410-103-0	1-51421-103-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: A = 1-51310-590-1	1-51356-155-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 1-51310-591-1	9-51156-189-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 1-51410-103-0	9-51356-161-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-590-1, B = 1-51310-591-1	9-99110-112-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: C = 1-51410-103-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-09800-759-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	1-51351-024-1	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: C = 1-51410-103-0	1-51159-024-0	08	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: C = 1-51410-103-0	1-51159-029-0	08	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-51353-004-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-09110-010-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-09150-010-0	04	1	-
49	SPRING; LEAF,INTER,RR SPR T=4.5 ASM PART: C = 1-51410-103-0	1-51377-356-0	01	1	-

38 2 3 35 4 38 5 6 45 48 7 44 8 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-590-1	1-51311-146-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51310-591-1	1-51311-591-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51410-103-0	1-51411-103-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-590-1	1-51312-146-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51310-591-1	1-51312-591-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51410-103-0	1-51412-103-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-590-1	1-51313-163-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51310-591-1	1-51313-592-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51410-103-0	1-51413-103-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-590-1	1-51313-163-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51310-591-1	1-51314-592-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51410-103-0	1-51414-103-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51310-591-1	1-51315-592-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51410-103-0	1-51415-103-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-590-1	9-51313-609-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-590-1	1-51316-590-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51310-591-1	1-51316-592-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51410-103-0	1-51416-103-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-590-1	1-51317-590-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51310-591-1	1-51317-592-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51410-103-0	1-51417-103-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: A = 1-51310-590-1	1-51356-155-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 1-51310-591-1	9-51156-189-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 1-51410-103-0	9-51356-161-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-590-1, B = 1-51310-591-1	9-99110-112-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: C = 1-51410-103-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-09800-759-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	1-51351-024-1	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-51353-004-0	04	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-09110-010-0	04	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: A = 1-51310-590-1, B = 1-51310-591-1, C = 1-51410-103-0	9-09150-010-0	04	1	-
