4-61 — SHOCK ABSORBER; REAR SUSPENSION (#2121) — 10 parça

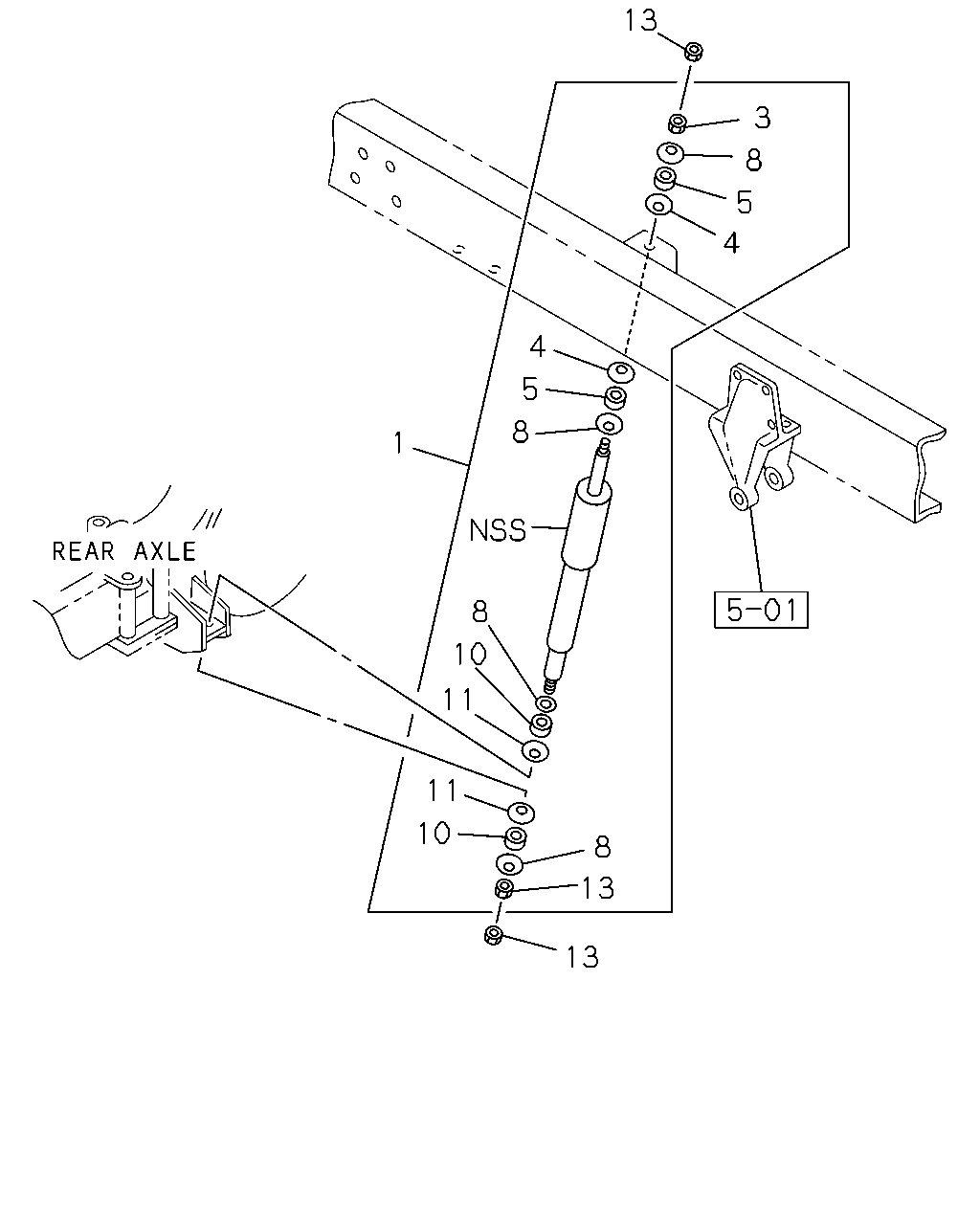

çizim 94854
13 3 8 5 4 4 5 8 1 8 10 11 11 10 8 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
AXLE RATIO 2 SPEED<W9Y> 		1-51630-159-2 02 1 9001- ● ●
1 ABSORBER ASM; SHOCK,RR
SINGLE SPEED-AXLE RATIO<W9Z> 		9-51630-388-1 02 1 9001- ● ●
3 NUT; S/ABS
M18 		9-99111-418-0 02 1 9001- ● ●
4 WASHER; CENTER,S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 04 1 9001- ● ●
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-043-0 04 1 9001- ● ●
8 WASHER; S/ABS
AXLE RATIO 2 SPEED<W9Y> ID=20.5 OD=74 T=6 		9-51631-044-0 08 1 9001- ● ●
8 WASHER; S/ABS
SINGLE SPEED-AXLE RATIO<W9Z> ID=20.5 OD=74 T=6 		9-51631-044-0 06 1 9001- ● ●
10 BUSHING; RUBBER,S/ABS 9-51631-043-0 04 1 9001- ● ●
11 WASHER; CENTER,LWR,RR S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 04 1 9001- ● ●
13 NUT; LWR,RR S/ABS
M18 		9-99111-418-0 06 1 9001- ● ●
