Isuzu WW
▶
TRUCKS
▶
FTS
▶
11358 - FTS(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

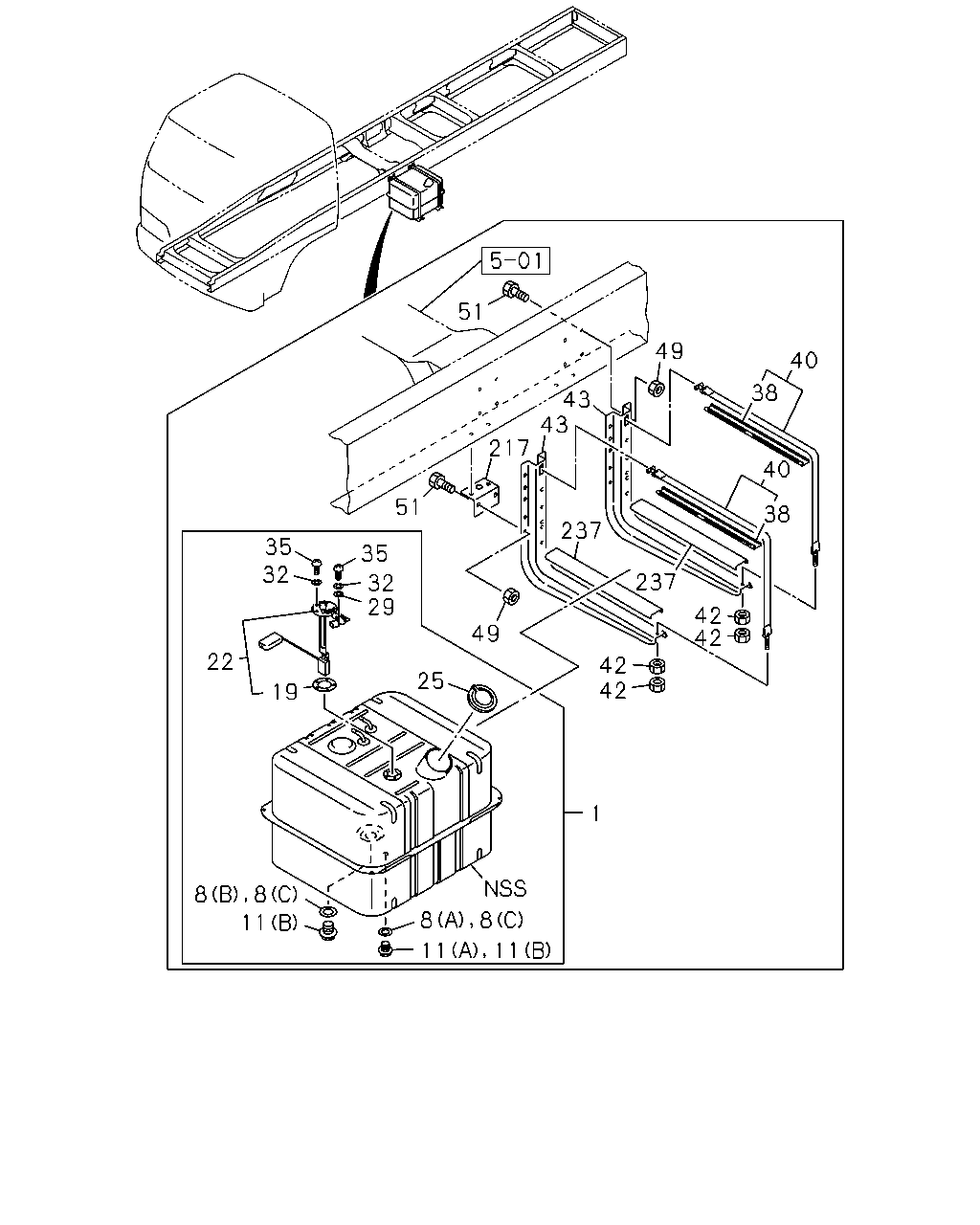

1-40 — FUEL TANK
(#21206) — 36 parça
51
43
43
49
40
38
217
40
51
38
237
35
32
35
237
32
29
42
42
49
22
42
42
25
19
1
8
8
11
1
11
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
720X610X496 200L
1-22401-120-1
01
1
0010-0112
1
TANK; FUEL
720X610X496 200L
1-22401-192-2
01
1
0201-1505
1
TANK; FUEL
720X610X496 200L
8-98299-274-0
01
1
1506-
8
GASKET; DRAIN PLUG,FUEL TANK
(A) T=1.60
1-22416-001-0
01
1
0010-0112
8
GASKET; DRAIN PLUG,FUEL TANK
(B) T=2.0
9-09923-030-0
01
1
0010-0106
8
GASKET; DRAIN PLUG,FUEL TANK
(C) ID=14.2 OD=23.0
9-09572-014-0
01
1
0107-0112
8
GASKET; DRAIN PLUG,FUEL TANK
(C) ID=14.2 OD=23.0
9-09572-014-0
02
1
0201-
11
PLUG; DRAIN,FUEL TANK
(B) M36
1-09604-052-0
01
1
0010-0106
11
PLUG; DRAIN,FUEL TANK
(B) M14X14
9-09862-156-0
01
1
0107-0112
11
PLUG; DRAIN,FUEL TANK
(B) M14X14
9-09862-156-0
02
1
0201-
11
PLUG; DRAIN,FUEL TANK
(A) M18X12
1-09604-081-0
01
1
0010-0112
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0010-
22
UNIT; FUEL TANK
1-83141-124-0
01
1
0010-1505
22
UNIT; FUEL TANK
8-98296-671-0
01
1
1506-
25
CAP; FILLER,FUEL TANK
1-22440-067-0
01
1
0010-0109
25
CAP; FILLER,FUEL TANK
1-22440-069-0
01
1
0110-0112
25
CAP; FILLER,FUEL TANK
1-22440-067-0
01
1
0201-0309
25
CAP; FILLER,FUEL TANK
1-22440-070-0
01
1
0310-0404
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
0405-
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
9-09160-505-0
01
1
0010-0605
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0606-
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
9-09150-505-0
05
1
0010-0603
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
0-91510-505-0
05
1
0604-
35
SCREW; FUEL TANK UNIT
M5X10
9-93497-510-0
05
1
0010-0604
35
SCREW; FUEL TANK UNIT
M5X10
0-34218-510-0
05
1
0605-
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
0010-
40
BELT; SUPPORT,FUEL TANK
L=1030
1-22550-204-2
02
1
0010-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0010-0512
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
1-53461-279-4
02
1
0010-
49
NUT; BRKT
M12 FLANGE
0-91150-212-0
16
1
0010-0602
49
NUT; BRKT
M12 FLANGE
0-91180-212-0
16
1
0603-
51
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28681-235-0
16
1
0010-0512
51
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28651-235-0
16
1
0601-
217
BRACKET; FUEL TANK,LOW
1-53461-283-2
02
1
0010-
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
0010-
