◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#212) — 220 parça

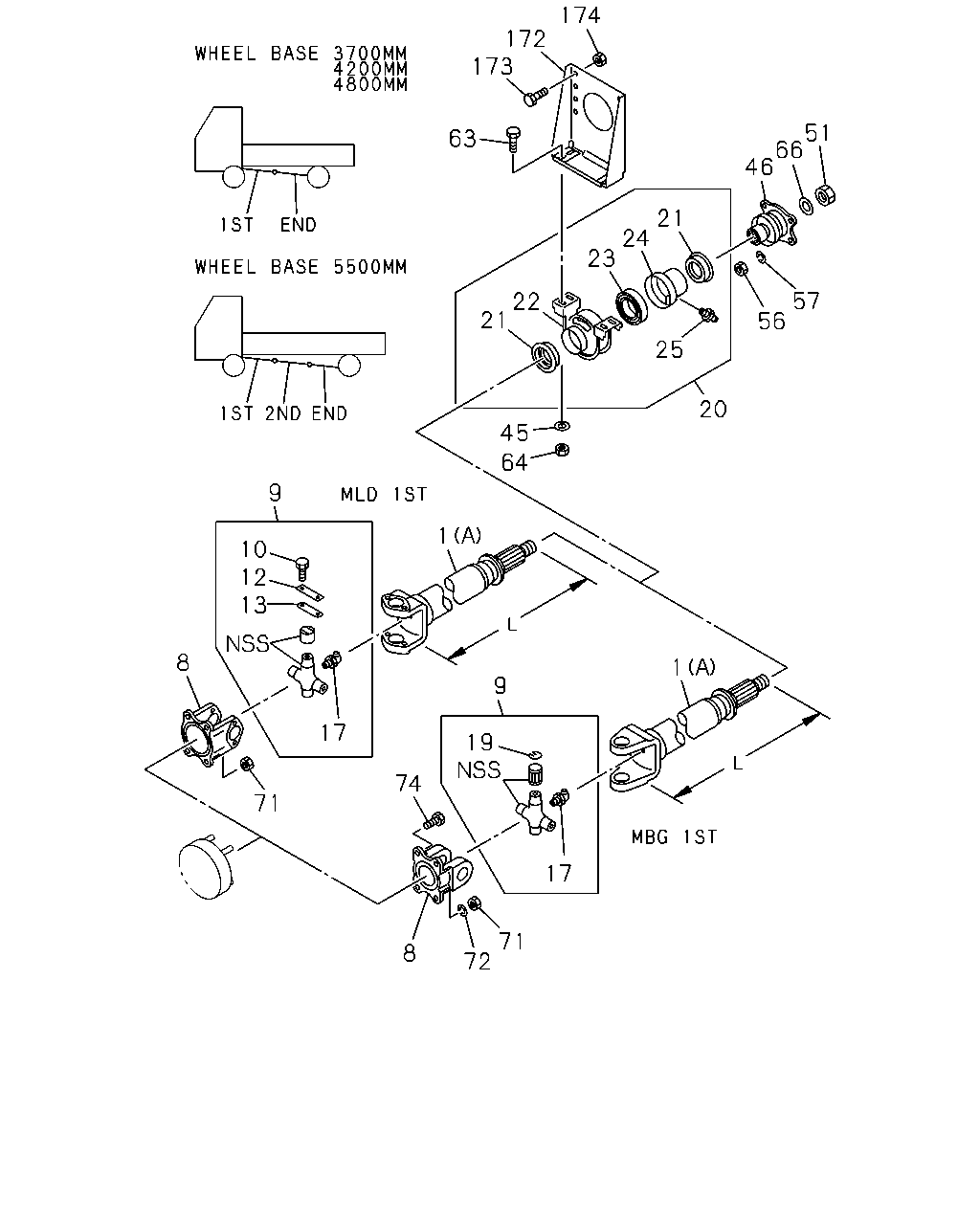

çizim 27177
174 172 173 51 66 46 63 21 24 23 57 56 22 21 25 20 45 64 9 1 10 12 13 8 1 9 17 19 74 71 17 71 72 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=926 		1-37123-634-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z) (C) END L=911 		1-37123-509-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> P46 PROP SHAFT(C4Z) (C) END L=896 		1-37123-685-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) END L=963 		1-37117-479-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=706 		1-37151-221-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=606 		1-37151-222-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=569 		1-37117-105-2 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=569 		1-37117-704-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> (A) 1ST L=786 		1-37151-437-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=1166 		1-37123-391-2 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z) (C) END L=1156 		1-37123-630-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> P46 PROP SHAFT(C4Z) (C) END L=1136 		1-37123-631-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) END L=1202 		1-37122-628-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=926 		1-37117-496-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=826 		1-37116-353-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=889 		1-37151-242-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=789 		1-37117-096-2 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> (A) 1ST L=766 		1-37151-252-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=1261 		1-37123-633-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z) (C) END L=1251 		1-37123-426-2 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=1251 		1-37123-426-2 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> P46 PROP SHAFT(C4Z) (C) END L=1216 		1-37123-465-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=1441 		1-37117-502-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=1341 		1-37117-338-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=1404 		1-37117-709-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=1299 		1-37151-240-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> (A) 1ST L=1281 		1-37151-251-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) END L=1292 		1-37122-756-0 01 1 9212- ● ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (B) 2ND L=1089 		1-37116-356-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=991 		1-37117-504-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=891 		1-37117-505-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) 2ND L=1084 		1-37123-383-2 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=954 		1-37151-246-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=854 		1-37151-247-0 01 1 9212- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> 1ST 		1-37211-041-0 01 1 9212- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) END 		1-37211-037-3 02 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) 1ST,2ND 		1-37211-037-3 01 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) 1ST,2ND 		1-37211-037-3 01 1 9212- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 		1-37211-056-2 02 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W>,MBG6 M/T<X9X> 1ST,2ND 		1-37211-056-2 01 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST,2ND 		1-37211-056-2 01 1 9212- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> MLD 1ST 		1-37300-071-0 AR 1 9212- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) 		1-37300-058-0 AR 1 9212- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) MBG 1ST & 2ND,END 		1-37300-069-0 AR 1 9212- ● ● ● ●
10 BOLT; UJT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> M8X20 		9-09802-702-0 AR 1 9212- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> 		1-37356-004-0 AR 1 9212- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> 		1-37355-002-1 AR 1 9212- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> 1ST PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 9212- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
END PT1/8 ELBOW 		9-09031-210-0 AR 1 9212- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MBG5 M/T<X9W>,MBG6 M/T<X9X> 1ST,2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 9212- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P30 PROP SHAFT(B2F) 1ST,2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=1.95 		1-09587-014-0 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.00 		1-09587-015-2 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.05 		1-09587-016-1 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) T=1.95 		1-09587-086-0 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) T=2.00 		1-09587-087-2 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) T=2.05 		1-09587-088-1 AR 1 9212- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9212- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9212- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9212- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9212- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9212- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9212- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9212- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9212- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9212- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9212- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9212- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9212- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9212- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 9212- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 9212- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9212- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9212- ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9212- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9212- ●
56 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 08 1 9212- ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 08 1 9212- ● ● ● ●
57 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 08 1 9212- ● ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 08 1 9212- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9212-9403 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9212-9403 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9212- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9212- ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9212- ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9212- ●
71 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 04 1 9212- ● ● ● ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W>,MBG6 M/T<X9X> M14 		9-99110-514-0 04 1 9212- ● ● ● ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> M16 FLANGE 		1-09449-065-0 04 1 9212- ● ● ● ●
72 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 04 1 9212- ● ● ● ●
72 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W>,MBG6 M/T<X9X> ID=14.2 		9-09150-614-0 04 1 9212- ● ● ● ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 9212- ● ● ● ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 9212- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9212- ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9212- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W>,MBG6 M/T<X9X> M14X40 		1-09000-187-0 04 1 9212- ● ● ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-105-0 01 1 9212- ● ●
172 BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-103-0 01 1 9212- ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-067-1 01 1 9212- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-104-0 01 1 9212- ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9212- ● ● ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9212- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9212- ● ● ●

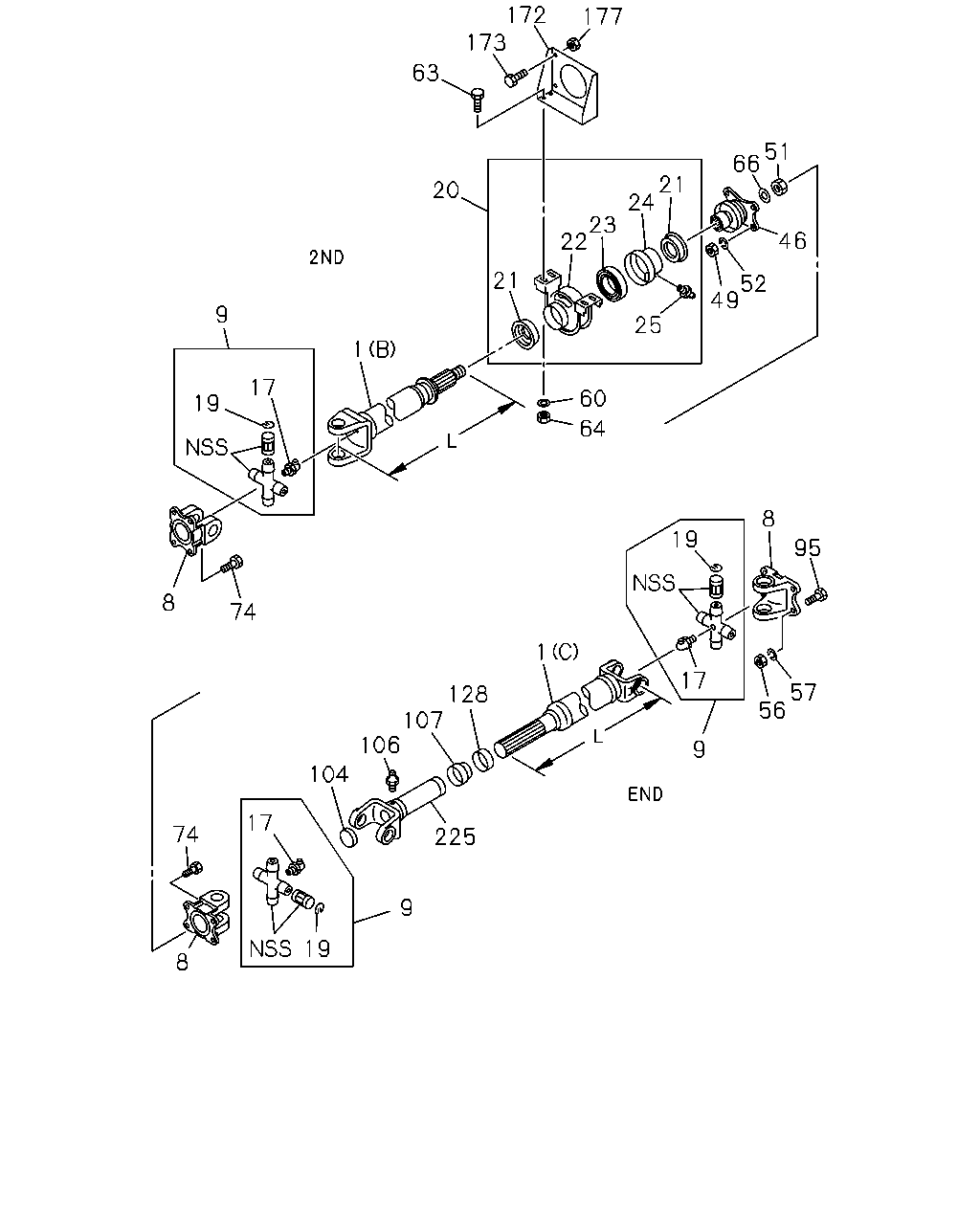

çizim 28281
172 173 177 63 51 66 21 24 20 23 22 46 21 52 49 9 25 1 17 60 19 64 8 19 95 8 74 1 17 57 56 128 107 106 9 104 17 74 225 9 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=926 		1-37123-634-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z) (C) END L=911 		1-37123-509-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> P46 PROP SHAFT(C4Z) (C) END L=896 		1-37123-685-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) END L=963 		1-37117-479-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=706 		1-37151-221-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=606 		1-37151-222-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=569 		1-37117-105-2 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=569 		1-37117-704-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> (A) 1ST L=786 		1-37151-437-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=1166 		1-37123-391-2 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z) (C) END L=1156 		1-37123-630-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> P46 PROP SHAFT(C4Z) (C) END L=1136 		1-37123-631-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) END L=1202 		1-37122-628-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=926 		1-37117-496-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=826 		1-37116-353-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=889 		1-37151-242-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=789 		1-37117-096-2 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> (A) 1ST L=766 		1-37151-252-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=1261 		1-37123-633-0 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z) (C) END L=1251 		1-37123-426-2 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 13.5"<B3Z> P46 PROP SHAFT(C4Z) (C) END L=1251 		1-37123-426-2 01 1 9212- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> P46 PROP SHAFT(C4Z) (C) END L=1216 		1-37123-465-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=1441 		1-37117-502-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=1341 		1-37117-338-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=1404 		1-37117-709-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=1299 		1-37151-240-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> (A) 1ST L=1281 		1-37151-251-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) END L=1292 		1-37122-756-0 01 1 9212- ● ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (B) 2ND L=1089 		1-37116-356-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG5 M/T<X9W> (A) 1ST L=991 		1-37117-504-0 01 1 9212- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) MBG6 M/T<X9X> (A) 1ST L=891 		1-37117-505-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) 2ND L=1084 		1-37123-383-2 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W> (A) 1ST L=954 		1-37151-246-0 01 1 9212- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) MBG6 M/T<X9X> (A) 1ST L=854 		1-37151-247-0 01 1 9212- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> 1ST 		1-37211-041-0 01 1 9212- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) END 		1-37211-037-3 02 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) 1ST,2ND 		1-37211-037-3 01 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) 1ST,2ND 		1-37211-037-3 01 1 9212- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 		1-37211-056-2 02 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W>,MBG6 M/T<X9X> 1ST,2ND 		1-37211-056-2 01 1 9212- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST,2ND 		1-37211-056-2 01 1 9212- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> MLD 1ST 		1-37300-071-0 AR 1 9212- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) 		1-37300-058-0 AR 1 9212- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) MBG 1ST & 2ND,END 		1-37300-069-0 AR 1 9212- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) MLD6 M/T<X9Y> 1ST PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 9212- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
END PT1/8 ELBOW 		9-09031-210-0 AR 1 9212- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MBG5 M/T<X9W>,MBG6 M/T<X9X> 1ST,2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 9212- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P30 PROP SHAFT(B2F) 1ST,2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=1.95 		1-09587-014-0 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.00 		1-09587-015-2 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.05 		1-09587-016-1 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) T=1.95 		1-09587-086-0 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) T=2.00 		1-09587-087-2 AR 1 9212- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) T=2.05 		1-09587-088-1 AR 1 9212- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9212- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9212- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9212- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9212- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9212- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9212- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9212- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9212- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9212- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9212- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9212- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9212- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 9212- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 9212- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9212- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9212- ●
49 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 04 1 9212- ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9212- ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9212- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9212- ●
52 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 04 1 9212- ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9212- ●
56 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 08 1 9212- ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 08 1 9212- ● ● ● ●
57 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 08 1 9212- ● ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 08 1 9212- ● ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9212- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9212-9403 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9212-9403 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 FLANGE 		0-28681-030-0 04 1 9404-9410 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9411- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9212- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9212- ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9212- ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9212- ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 9212- ● ● ● ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 9212- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9212- ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9212- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) MBG5 M/T<X9W>,MBG6 M/T<X9X> M14X40 		1-09000-187-0 04 1 9212- ● ● ● ●
95 BOLT; YOKE,FINAL
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 9212- ● ● ● ●
95 BOLT; YOKE,FINAL
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9212- ● ● ● ●
104 PLUG; SLEEVE YOKE
P30 PROP SHAFT(B2F) 		1-09600-014-0 01 1 9212- ● ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9212- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9212- ● ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9212- ● ● ● ●
128 SEAL; SLEEVE
P30 PROP SHAFT(B2F) 		1-37247-001-1 01 1 9212- ● ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9212- ● ● ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-105-0 01 1 9212- ● ●
172 BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-103-0 01 1 9212- ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-067-1 01 1 9212- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-104-0 01 1 9212- ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9212- ● ● ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9212- ●
177 NUT
M10 		9-09110-510-0 04 1 9308- ●
225 YOKE; SLEEVE,PROP SHAFT
P30 PROP SHAFT(B2F) 		1-37245-177-1 01 1 9212- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37241-079-1 01 1 9212- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
