0-84 — FEED PUMP; INJECTION PUMP (#21198) — 19 parça

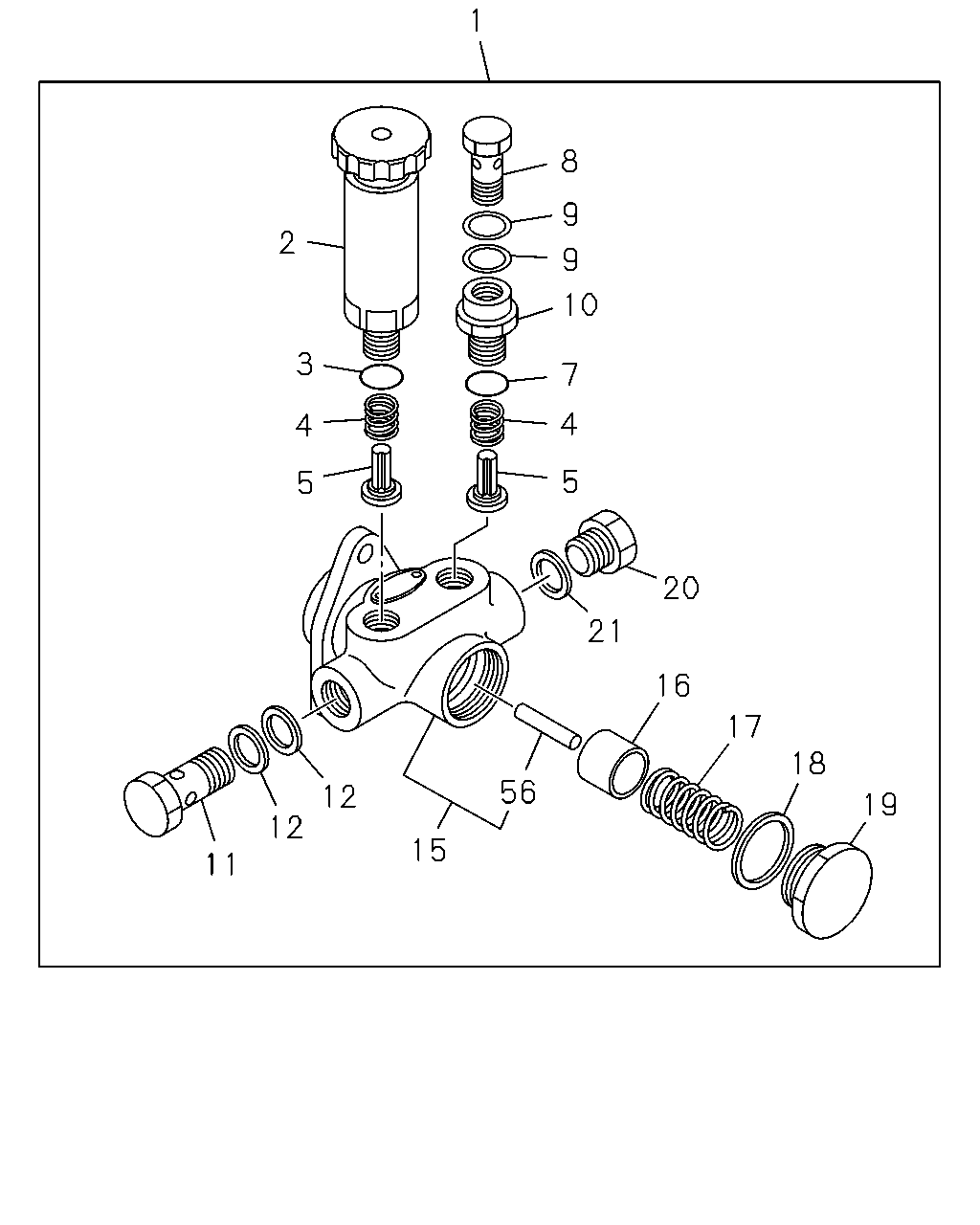

çizim 65246
1 8 9 2 9 10 3 7 4 4 5 5 20 21 16 17 18 56 12 19 12 15 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94390-081-1 		1-15750-148-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15755-002-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-19623-016-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15759-011-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 8-94390-081-1 		1-09630-085-0 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15759-003-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15759-029-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 8-94390-081-1 		1-09630-085-0 02 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		8-97115-989-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15752-001-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		9-81351-302-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15759-042-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15759-004-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-081-1 		1-15759-007-0 01 1 -
56 PUSH ROD
ASM PART: A = 8-94390-081-1 		8-97115-990-0 01 1 -
