Isuzu WW
▶
TRUCKS
▶
FTS
▶
11358 - FTS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

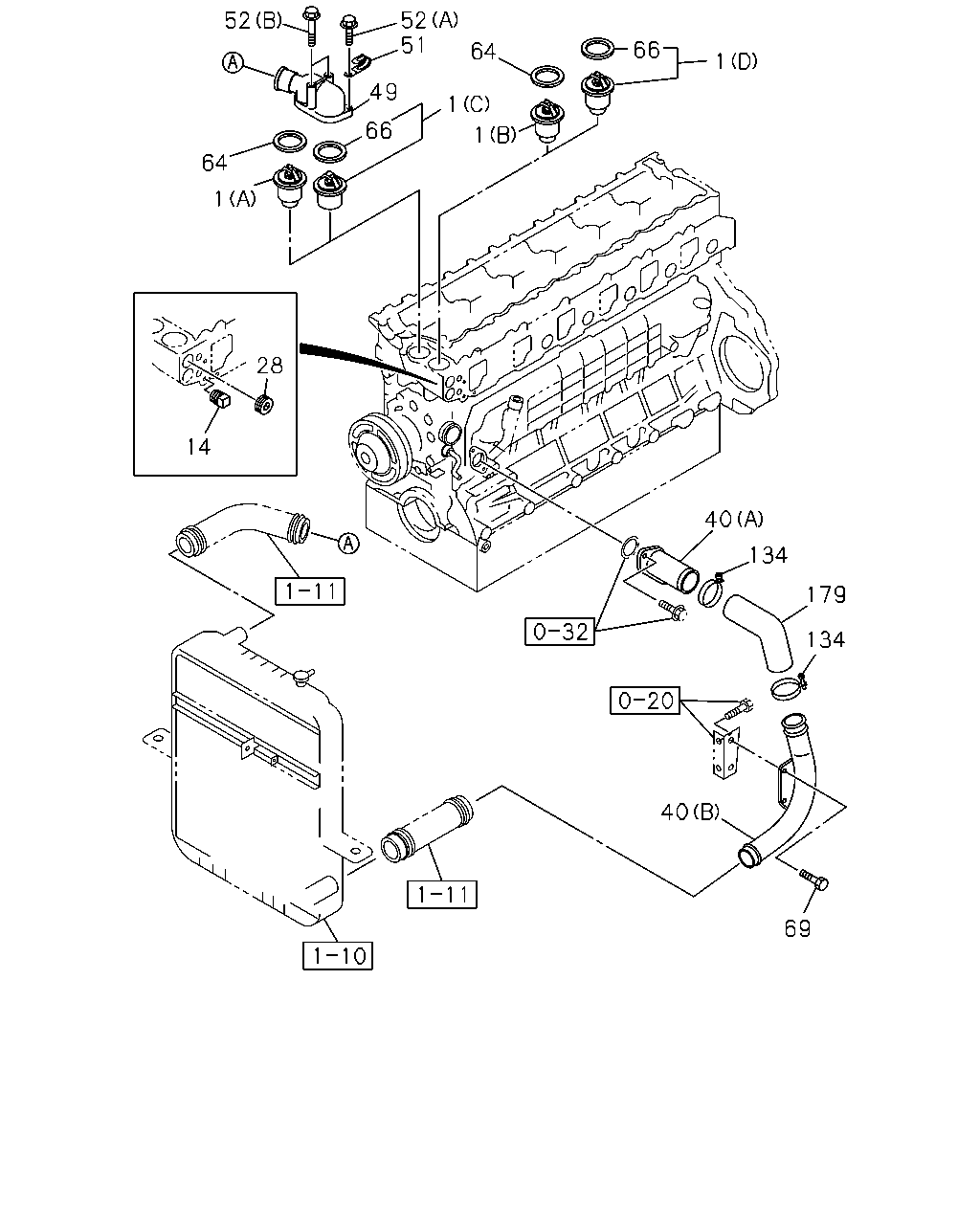

0-31 — THERMOSTAT AND HOUSING
(#21180) — 25 parça
52
51
52
66
64
1
49
1
66
1
64
1
28
14
40
134
179
134
40
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
(B) 82 CELSIUS
8-94392-817-0
01
1
0010-0105
1
THERMOSTAT
(D) 82 CELSIUS
8-97602-037-0
01
1
0106-0112
1
THERMOSTAT
(D) 82 CELSIUS
8-97602-393-1
01
1
0201-1501
1
THERMOSTAT
(D) 82 CELSIUS
8-98295-921-0
01
1
1502-
1
THERMOSTAT
(A) 82 CELSIUS
8-94397-310-0
01
1
0010-0105
1
THERMOSTAT
(C) 82 CELSIUS
8-97602-048-3
01
1
0106-
14
PLUG; SW
PT3/8
8-94397-338-0
01
1
0010-
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
0010-
40
DUCT; WATER,SUCTION
(A)
8-94391-091-1
01
1
0010-
40
DUCT; WATER,SUCTION
(B)
8-94394-404-1
01
1
0010-
49
PIPE; WATER OUTLET
8-94399-499-1
01
1
0010-0105
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0106-
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-94225-185-0
01
1
0010-0801
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-97367-985-1
01
1
0802-
52
BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE
0-28080-880-0
02
1
0010-0512
52
BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE
0-28050-880-0
02
1
0601-
52
BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE
0-28680-825-0
02
1
0010-0512
52
BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE
0-28650-825-0
02
1
0601-
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94370-480-0
02
1
0010-0105
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0106-1501
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28680-820-0
02
1
0010-0512
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28650-820-0
02
1
0601-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
02
1
0010-
179
HOSE; RUBBER,WATER DUCT
8-94394-535-2
01
1
0010-
