4-50 — FRONT SUSPENSION (#2118) — 92 parça

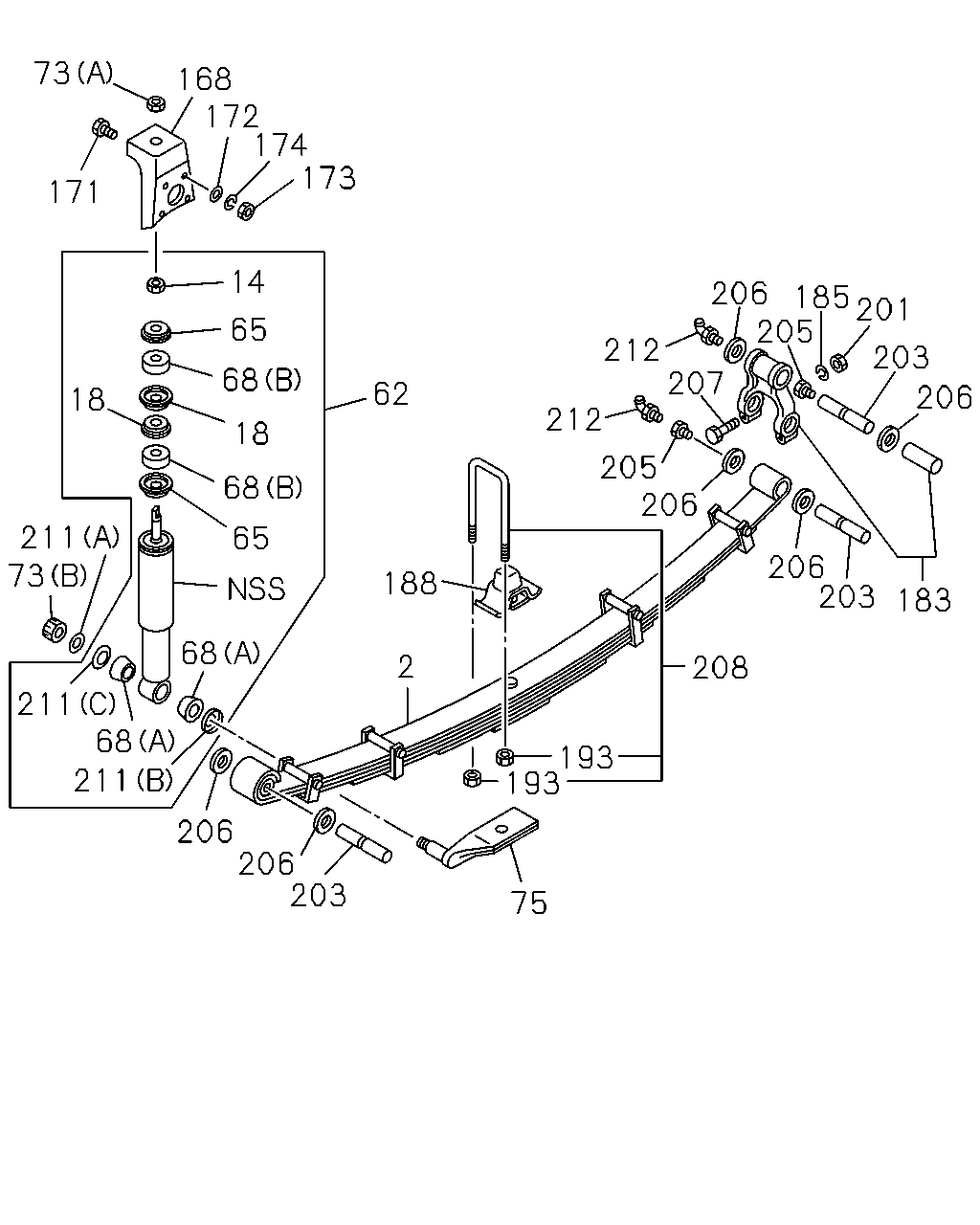

çizim 27351
73 168 172 174 173 171 14 206 185 201 205 212 207 65 203 68 62 206 18 212 18 205 206 68 211 73 65 206 203 188 183 211 68 211 68 2 208 193 193 206 206 203 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. FRONT STABILIZER SHAFT<F59> 		1-51110-581-0 02 1 9001-9412 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. WITH SILENT LINER LEAF SPRING<C1N>,FRONT STABILIZER SHAFT<F59> 		1-51110-581-0 02 1 9501- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) 		1-51110-580-0 02 1 9001-9412 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N>,FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),FRT & RR SUSPENSIONHEAVY DUTY VAR2(F41) 		1-51110-580-0 02 1 9501- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) FRONT STABILIZER SHAFT<F59> 		1-51130-445-0 02 1 9501-9509 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) FRONT STABILIZER SHAFT<F59> 		1-51130-445-0 02 1 9510- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) FRONT STABILIZER SHAFT<F59> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-796-0 02 1 9001-9012 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) FRONT STABILIZER SHAFT<F59> EXC. WITH SILENT LINER LEAF SPRING<C1N> 		1-51110-796-0 02 1 9101-9509 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) FRONT STABILIZER SHAFT<F59> EXC. WITH SILENT LINER LEAF SPRING<C1N> 		1-51110-796-0 02 1 9510- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6RA1 TC ENG(15L) FRONT STABILIZER SHAFT<F59> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-804-0 02 1 9001-9012 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) FRONT STABILIZER SHAFT<F59> EXC. WITH SILENT LINER LEAF SPRING<C1N> 		1-51110-804-0 02 1 9101-9509 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) FRONT STABILIZER SHAFT<F59> EXC. WITH SILENT LINER LEAF SPRING<C1N> 		1-51110-804-0 02 1 9510- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9001- ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9001- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-053-3 02 1 9001-9704 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-627-0 02 1 9705-9708 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-647-0 02 1 9709- ● ●
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 9001- ● ●
68 BUSHING; S/ABS
(A) LOWER 		9-51631-026-0 04 1 9001- ● ●
68 BUSHING; S/ABS
(B) UPPER 		9-51631-039-0 04 1 9001- ● ●
73 NUT; BRKT,SHOCK
(A) M14 		9-99111-414-0 02 1 9001- ● ●
73 NUT; BRKT,SHOCK
(B) M20 		9-99110-420-0 02 1 9001- ● ●
75 BRACKET; FRT S/ABS 1-51681-553-0 01 1 9001-9704 ● ●
75 BRACKET; FRT S/ABS 1-51681-552-0 01 1 9001-9704 ● ●
75 BRACKET; FRT S/ABS 1-51681-604-0 01 1 9705- ● ●
75 BRACKET; FRT S/ABS 1-51681-603-0 01 1 9705- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-130-1 02 1 9001- ● ●
171 BOLT; S/ABS BRKT
M14X60 		9-91066-460-0 08 1 9001-9107 ● ●
171 BOLT; S/ABS BRKT
M14X60 		0-20801-460-0 08 1 9108- ● ●
172 WASHER; PL,S/ABS BRKT
ID=15 		9-09651-069-0 08 1 9001-9107 ● ●
173 NUT; S/ABS
M14 		9-99110-514-0 08 1 9001-9107 ● ●
174 WASHER; LK,S/ABS
ID=14.2 		9-09150-614-0 08 1 9001- ● ●
183 SHACKLE; FRT SUSP 1-51162-032-0 02 1 9001- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9001-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 9-51172-067-1 02 1 9001- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9001- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9001-9606 ● ●
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9001- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9001- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9001- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9006-9606 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609- ● ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-026-2 04 1 9001-9012 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) L=190 		1-87870-026-2 04 1 9101-9501 ● ●
208 U-BOLT SET; FRT SPRING
EXC. WITH SILENT LINER LEAF SPRING<C1N>,FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) L=190 		1-87870-026-2 04 1 9502- ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) L=210 		1-87870-309-0 04 1 9101-9401 ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) L=210 		1-87870-309-0 04 1 9402-9501 ●
208 U-BOLT SET; FRT SPRING
WITH SILENT LINER LEAF SPRING<C1N> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) FRONT STABILIZER SHAFT<F59> L=210 		1-87870-309-0 04 1 9502-9509 ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) L=210 		1-87870-309-0 04 1 9502-9509 ●
208 U-BOLT SET; FRT SPRING
WITH SILENT LINER LEAF SPRING<C1N> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) FRONT STABILIZER SHAFT<F59> L=210 		1-87870-309-0 04 1 9510- ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR2(F41) L=210 		1-87870-309-0 04 1 9510- ● ●
211 WASHER; BRKT,SHOCK
(A) 		9-09160-520-0 02 1 9001- ● ●
211 WASHER; BRKT,SHOCK
(B) INNER 		9-51631-027-0 02 1 9001- ● ●
211 WASHER; BRKT,SHOCK
(C) OUTER 		9-51631-028-0 02 1 9001- ● ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5? 		9-09031-110-0 06 1 9001- ● ●

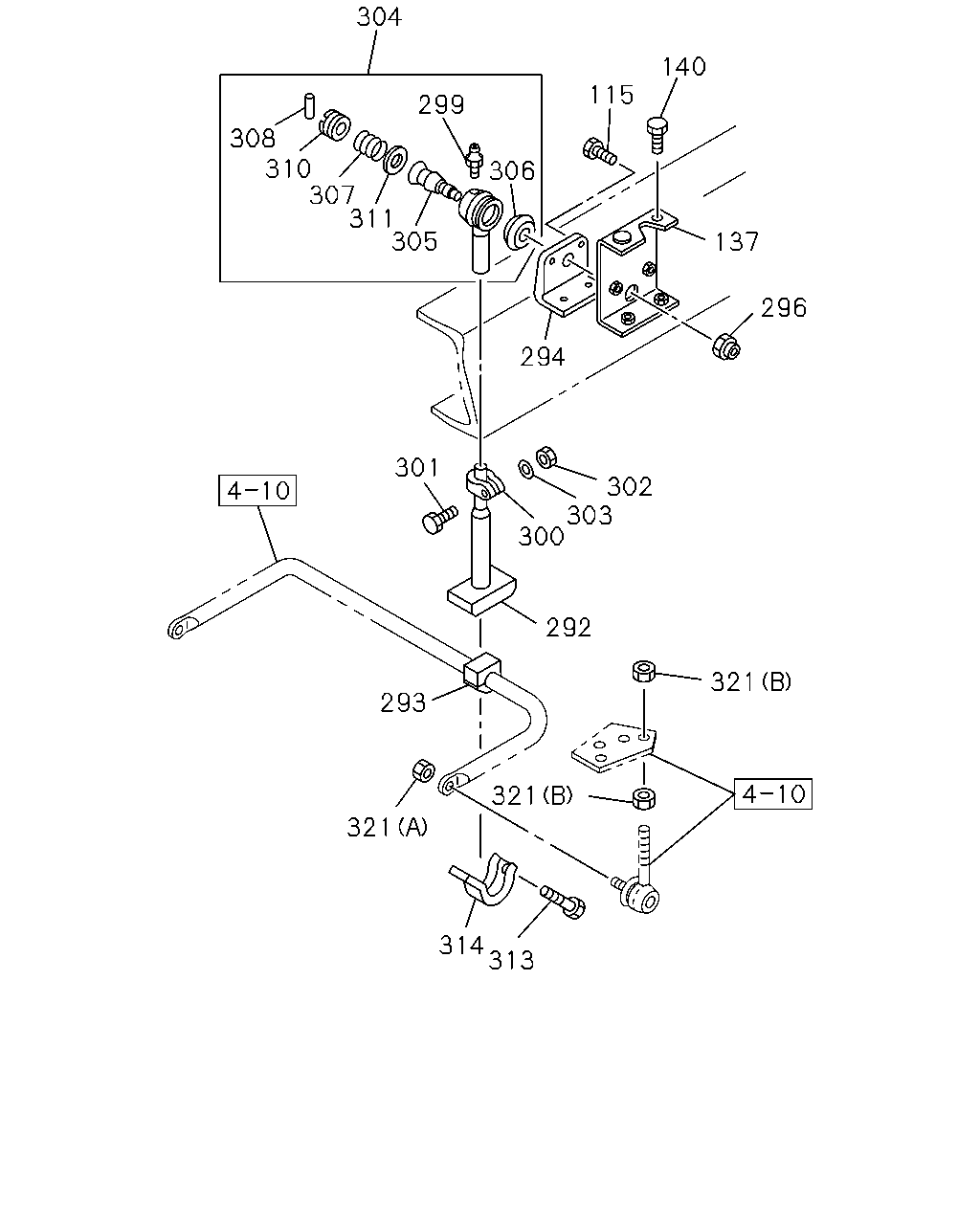

çizim 94975
304 140 115 299 308 310 307 311 305 306 137 296 294 301 302 303 300 292 321 293 321 321 314 313
BalonParca AdiParca NoAdetTipApplied Date A B
115 BOLT; SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> M12X35 		9-01911-235-0 04 1 9001-9005 ● ●
115 BOLT; SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9006-9606 ● ●
115 BOLT; SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> M12X35 FLANGE 		0-28681-235-0 04 1 9607- ● ●
115 BOLT; SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> M12X45 		9-01911-245-0 04 1 9001-9005 ● ●
115 BOLT; SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> M12X45 W/LK WASHER 		0-50041-245-0 04 1 9006-9606 ● ●
115 BOLT; SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> M12X40 FLANGE 		0-28681-240-0 04 1 9607- ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-030-0 01 1 9001- ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-031-0 01 1 9001- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M12X35 		9-01911-235-0 04 1 9001-9005 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9006-9606 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M12X35 FLANGE 		0-28681-235-0 04 1 9607- ● ●
292 SUPPORT; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51773-045-1 02 1 9001- ● ●
293 BUSHING; SUPPORT,STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51789-017-0 02 1 9001- ● ●
294 BRACKET; SUPPORT,STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51781-037-2 02 1 9001- ● ●
296 NUT; SUPPORT,STABILIZER
FRONT STABILIZER SHAFT<F59> M16 		1-09449-014-0 02 1 9001- ● ●
299 NIPPLE; GREASE,SUPPORT
FRONT STABILIZER SHAFT<F59> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9001- ● ●
300 CLAMP; ROD END,SUPPORT
FRONT STABILIZER SHAFT<F59> 		1-43159-002-3 02 1 9001- ● ●
301 BOLT; CLAMP,ROD END
FRONT STABILIZER SHAFT<F59> M12X47 		9-09801-294-0 02 1 9001- ● ●
302 NUT; CLAMP,ROD END
FRONT STABILIZER SHAFT<F59> M12 		9-99110-512-0 02 1 9001- ● ●
303 WASHER; LK,CLAMP,ROD END
FRONT STABILIZER SHAFT<F59> ID=12.2 		9-09150-612-0 02 1 9001-9210 ● ●
303 WASHER; LK,CLAMP,ROD END
FRONT STABILIZER SHAFT<F59> ID=12.2 		9-09150-812-0 02 1 9211- ● ●
304 ROD END ASM; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-43150-468-0 02 1 9001- ● ●
305 JOINT; BALL,ROD END
FRONT STABILIZER SHAFT<F59> 		1-87090-211-0 02 1 9001- ● ●
306 BOOT; ROD END,SUPPORT
FRONT STABILIZER SHAFT<F59> D=18.5,29 		1-43159-036-0 02 1 9001- ● ●
307 SPRING; ROD END,SUPPORT
FRONT STABILIZER SHAFT<F59> 		1-09580-080-0 02 1 9001- ● ●
308 PIN; SPLIT
FRONT STABILIZER SHAFT<F59> OD=2.8 L=55 		9-08113-055-0 02 1 9001- ● ●
310 PLUG; ROD END,SUPPORT
FRONT STABILIZER SHAFT<F59> 		1-44375-001-0 02 1 9001- ● ●
311 SEAT; JOINT BALL
FRONT STABILIZER SHAFT<F59> 		1-44373-002-0 02 1 9001- ● ●
313 BOLT; RET,SUPPORT
FRONT STABILIZER SHAFT<F59> M10X25 		8-94463-351-0 08 1 9001- ● ●
314 RETAINER; SUPPORT
FRONT STABILIZER SHAFT<F59> 		1-51789-015-2 02 1 9001- ● ●
321 NUT; ROD END,SUPPORT
FRONT STABILIZER SHAFT<F59> (A) M16 		1-09449-014-0 02 1 9001- ● ●
321 NUT; ROD END,SUPPORT
FRONT STABILIZER SHAFT<F59> (B) M20 		9-99110-520-0 02 1 9001- ● ●
321 NUT; ROD END,SUPPORT
FRONT STABILIZER SHAFT<F59> (B) M20 		9-09840-318-0 02 1 9001- ● ●
