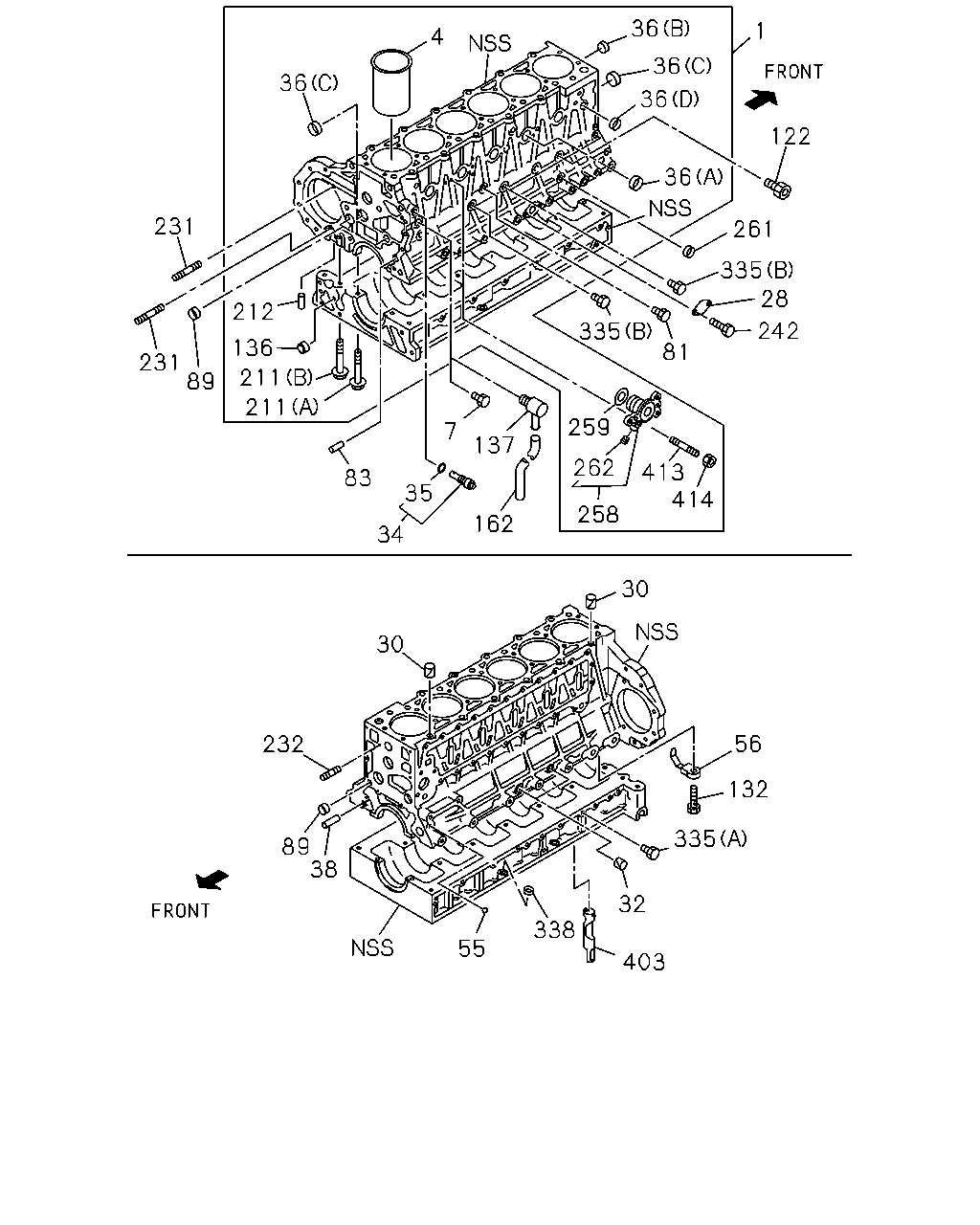

0-12 — CYLINDER BLOCK (#21170) — 89 parça

36 1 4 36 36 36 122 36 231 261 212 335 28 242 335 136 81 231 211 89 259 211 7 137 262 413 414 83 35 258 162 34 30 30 56 232 132 335 89 38 32 338 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0010-0504
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0010-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0010-
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-
28	COVER; OIL PORT	1-11219-163-0	01	1	0010-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0010-
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0010-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0010-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0010-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0010-1012
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	10	1	1101-
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0010-
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0010-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0010-0502
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0010-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0010-
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	0010-
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0010-0703
81	PLUG; WATER JACKET M14X16.5	8-97329-617-0	01	1	0704-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0010-0306
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0010-0908
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0010-
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0010-0704
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0010-0812
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0010-1012
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0010-0206
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-1012
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0010-0905
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0010-
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0010-0306
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0010-0301
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0010-0604
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0010-0512
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0505-0507
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0505-0507
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0010-0307
262	PLUG; ADAPTER	1-13163-002-0	01	1	0505-0507
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0010-0703
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0010-0501
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0010-0607
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-
403	GUIDE; GALLERY	8-94395-351-1	01	1	0010-
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0505-0507
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0505-0507

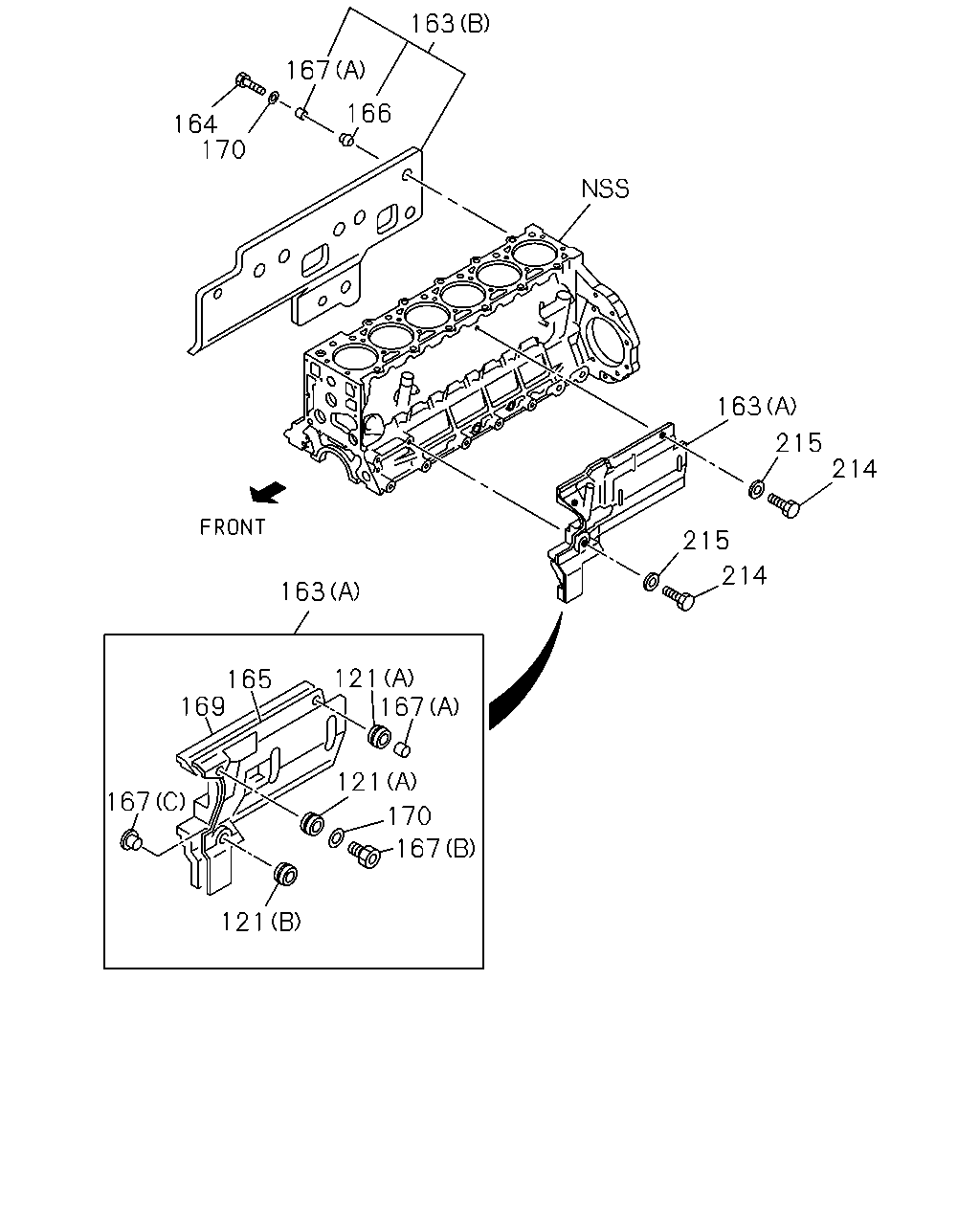

163 167 166 164 170 163 215 214 215 214 163 121 167 165 169 121 167 170 167 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	02	1	0010-
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	0010-
163	COVER ASM; C/BL SKIRT (A)	8-94390-172-0	01	1	0010-
163	COVER ASM; C/BL SKIRT (B)	8-94395-894-0	01	1	0010-
164	BOLT; COVER BLOCK SKIRT M8X25 FLANGE	0-28680-825-0	04	1	0010-0512
164	BOLT; COVER BLOCK SKIRT M8X25 FLANGE	0-28650-825-0	04	1	0601-
165	COVER; C/BL SKIRT	8-94395-694-1	01	1	0010-
166	MOUNT; COVER BLOCK SKIRT OD=22	8-94140-428-1	04	1	0010-
167	TUBE; DIST,SIDE COVER (A) OD=13 T=9.5	8-94140-427-1	05	1	0010-
167	TUBE; DIST,SIDE COVER (B) M10	8-94393-791-2	01	1	0010-
167	TUBE; DIST,SIDE COVER (C) OD=32 W/FLANGE	8-94397-356-1	01	1	0010-
169	INSULATOR; SIDE COVER	8-94390-173-0	01	1	0010-
170	WASHER; COVER ID=8.4 OD=22	9-09160-708-0	04	1	0010-0605
170	WASHER; COVER ID=8.4 OD=22	0-91610-708-0	04	1	0606-
170	WASHER; COVER ID=14 OD=22	9-47515-014-0	01	1	0010-
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	0010-0512
214	BOLT; NOISE COVER M10X25 FLANGE	0-28151-025-0	02	1	0601-
215	WASHER; PL,NOISE COVER ID=10.5 OD=22	9-09164-610-0	01	1	0010-0605
215	WASHER; PL,NOISE COVER ID=10.5 OD=22	0-91614-610-0	01	1	0606-
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	9-09164-810-0	01	1	0010-0605
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	01	1	0606-

343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	0010-
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	0010-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0010-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0010-
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0010-
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0010-0512
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	0601-
