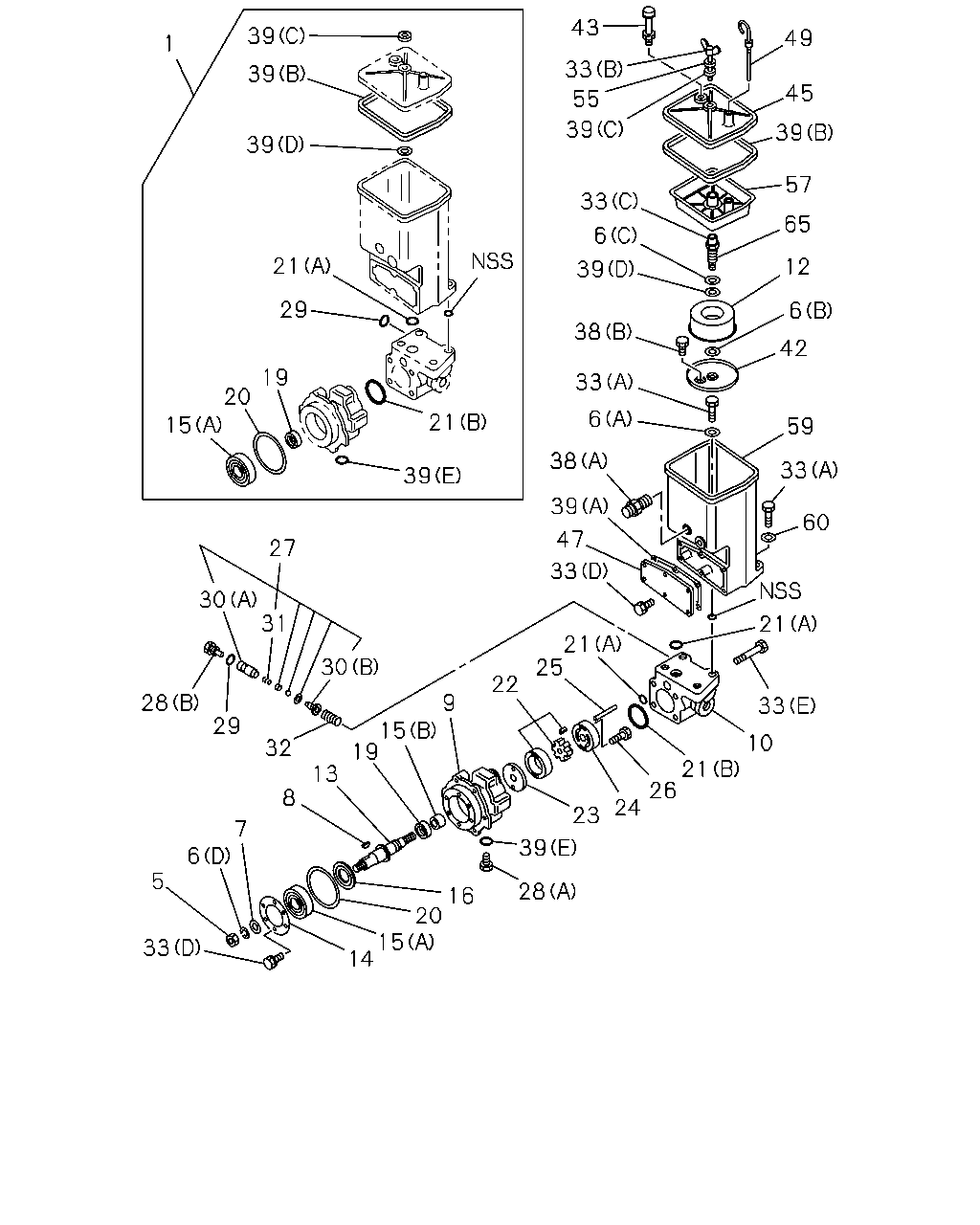

4-42 — POWER STEERING OIL PUMP (#2117) — 55 parça

43 39 49 1 33 39 45 55 39 39 39 57 33 65 6 21 12 39 29 6 38 42 19 33 20 6 1 15 59 38 33 39 39 60 47 27 33 30 31 21 21 25 30 22 28 9 15 19 33 29 10 21 26 24 32 13 8 23 7 6 39 5 28 16 20 15 14 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-205-2	1-87520-141-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-205-2	1-19519-003-0	01	1	-
6	WASHER; PL,OIL PUMP (D) ASM PART: A = 1-19500-205-2	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP (A) ASM PART: A = 1-19500-205-2	9-88510-395-0	02	1	-
6	WASHER; PL,OIL PUMP (B) ASM PART: A = 1-19500-205-2	9-88510-396-0	01	1	-
6	WASHER; PL,OIL PUMP (C) ASM PART: A = 1-19500-205-2	9-88510-398-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 1-19500-205-2	1-19519-002-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-205-2	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-205-2	1-19511-024-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-205-2	1-19511-025-0	01	1	-
12	FILTER; OIL PUMP ASM PART: A = 1-19500-205-2	1-19519-009-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-205-2	1-19521-010-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-205-2	9-19519-109-0	01	1	-
15	BEARING; BALL,OIL PUMP (A) ASM PART: A = 1-19500-205-2	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP (B) ASM PART: A = 1-19500-205-2	9-00096-207-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-205-2	9-19519-110-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-205-2	1-19519-252-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=96.4 ASM PART: A = 1-19500-205-2	1-09623-178-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-205-2	1-19519-100-0	02	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-205-2	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-205-2	1-19519-087-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-205-2	1-19519-234-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-205-2	1-19519-233-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-205-2	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-205-2	1-19519-076-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-205-2	1-19519-089-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (A) ASM PART: A = 1-19500-205-2	1-19519-017-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (B) ASM PART: A = 1-19500-205-2	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-205-2	9-88510-248-0	01	1	-
30	VALVE; OIL PUMP (A) ASM PART: A = 1-19500-205-2	9-19519-025-0	01	1	-
30	VALVE; OIL PUMP (B) ASM PART: A = 1-19500-205-2	9-19519-102-0	01	1	-
31	SPRING; INNER,OIL PUMP ASM PART: A = 1-19500-205-2	1-19519-078-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-205-2	9-19529-013-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 1-19500-205-2	1-19519-015-0	04	1	-
33	BOLT; COVER (B) ASM PART: A = 1-19500-205-2	1-19519-019-0	01	1	-
33	BOLT; COVER (C) ASM PART: A = 1-19500-205-2	1-19519-042-0	01	1	-
33	BOLT; COVER (D) ASM PART: A = 1-19500-205-2	1-19519-082-0	12	1	-
33	BOLT; COVER (E) ASM PART: A = 1-19500-205-2	1-19519-242-0	04	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-205-2	1-09660-032-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-205-2	9-19519-049-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-205-2	1-19519-007-0	01	1	-
39	GASKET; OIL PUMP (E) ASM PART: A = 1-19500-205-2	1-19519-014-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-205-2	1-19519-018-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-205-2	1-19519-054-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: A = 1-19500-205-2	9-19519-051-0	01	1	-
42	BAFFLE; OIL TANK ASM PART: A = 1-19500-205-2	1-19519-008-0	01	1	-
43	BREATHER; AIR,OIL TANK ASM PART: A = 1-19500-205-2	1-19519-012-0	01	1	-
45	CAP; OIL TANK ASM PART: A = 1-19500-205-2	1-19519-011-0	01	1	-
47	COVER; OIL TANK ASM PART: A = 1-19500-205-2	1-19514-001-0	01	1	-
49	GAUGE; LEVEL,OIL TANK ASM PART: A = 1-19500-205-2	1-19519-013-0	01	1	-
55	RETAINER; GASKET,OIL TANK ASM PART: A = 1-19500-205-2	9-19519-059-0	01	1	-
57	STRAINER; OIL,OIL TANK ASM PART: A = 1-19500-205-2	1-19519-010-0	01	1	-
59	TANK ASM; OIL PUMP ASM PART: A = 1-19500-205-2	1-19519-045-0	01	1	-
60	WASHER; LK,OIL PUMP ASM PART: A = 1-19500-205-2	9-19519-047-0	04	1	-
65	SPRING; OIL FILTER ASM PART: A = 1-19500-205-2	9-19519-052-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
