Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

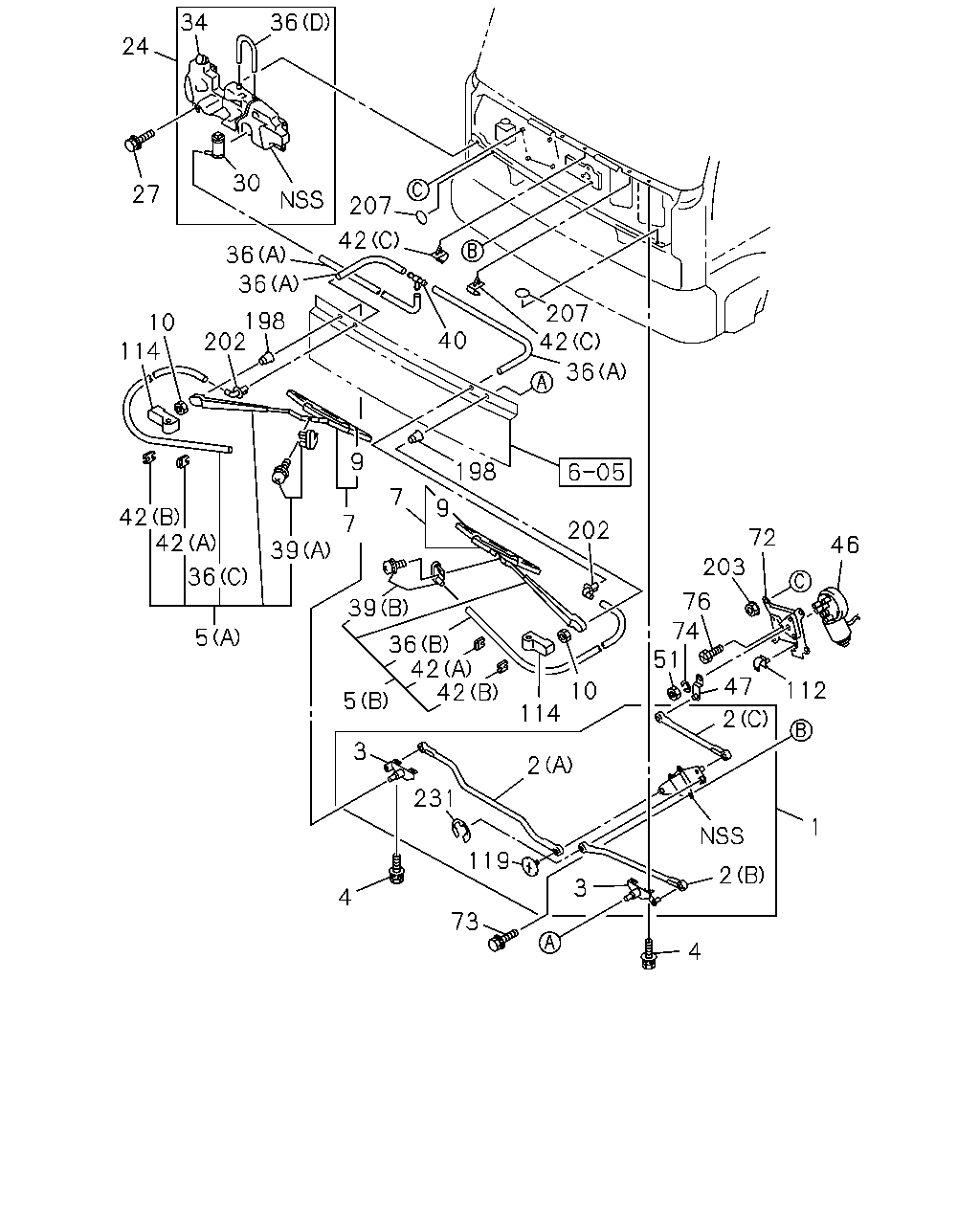

8-80 — WINDSHIELD WIPER AND WASHER
(#21163) — 44 parça
36
34
24
27
30
36
202
198
36
207
42
207
42
40
36
198
202
9
7
9
39
36
42
42
114
10
7
39
36
42
42
114
10
51
76
72
46
203
1
112
47
2
4
3
2
119
231
3
5
4
73
74
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINK ASM; FRT WIPER
1-83312-137-3
01
1
0403-
2
LINK; FRT WIPER
(B)
1-83312-142-2
01
1
0403-
2
LINK; FRT WIPER
(A)
1-83312-143-2
01
1
0403-
2
LINK; FRT WIPER
(C)
1-86810-066-2
01
1
0403-
3
PIVOT ASM; FRT WIPER
1-86810-067-2
02
1
0403-
4
BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER MAL
8-94279-208-0
04
1
0403-0904
4
BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER MAL
8-98059-720-0
04
1
0905-
5
ARM; WIPER
(B)
1-83315-087-0
01
1
0403-
5
ARM; WIPER
(A)
1-83315-089-0
01
1
0403-
7
BLADE; WIPER
1-83315-046-2
01
1
0403-
7
BLADE; WIPER
1-83315-045-2
01
1
0403-
7
BLADE; WIPER
BEST VALUE PARTS
5-87610-035-0
02
1
0403-
9
RUBBER; FRT WIPER BLADE
L=550
1-83355-014-0
02
1
0403-
10
NUT; WIPER ARM TO WIPER PIVOT
M10
1-09984-120-0
02
1
0403-
24
TANK ASM; WASHER
MAL
1-86815-013-7
01
1
0403-
27
BOLT; WASHER TANK
M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0403-
30
MOTOR ASM; FRT WASHER TANK
MAL
1-86815-016-1
01
1
0403-
34
CAP; WASHER TANK
MAL
1-86815-018-0
01
1
0403-
36
HOSE; WASHER
(D) L=260 MAL
1-86815-019-0
01
1
0403-
36
HOSE; WASHER
(A) SERVICED BY L=10000 MAL
8-94389-303-0
01
1
0403-
36
HOSE; WASHER
(B) L=660
1-86810-037-0
01
1
0403-
36
HOSE; WASHER
(C) L=670
1-86810-147-0
01
1
0403-
39
NOZZLE; WINDSHIELD WASHER
(B)
1-83315-086-0
01
1
0403-
39
NOZZLE; WINDSHIELD WASHER
(A)
1-83315-085-0
01
1
0403-
40
JOINT; WASHER HOSE
3WAY MAL
1-83338-005-0
01
1
0403-
42
CLIP; WASHER HOSE
(C)
1-09987-247-0
05
1
0403-
42
CLIP; WASHER HOSE
(A)
1-86810-044-0
02
1
0403-
42
CLIP; WASHER HOSE
(B)
1-86810-045-0
02
1
0403-
46
MOTOR ASM; FRT WINDSHIELD WIPER
MAL
1-86810-059-2
01
1
0403-
47
ARM; CRANK,WIPER MOTOR
MAL
1-86810-060-0
01
1
0403-
51
NUT; WIPER MOTOR LINK
M8 MAL
1-83319-012-0
01
1
0403-
72
BRACKET; WIPER MOTOR
MAL
1-86810-056-0
01
1
0403-
73
BOLT
M8X24.5 W/LK&PL WASHER MAL
8-94279-208-0
03
1
0403-0904
73
BOLT
M8X24.5 W/LK&PL WASHER MAL
8-98059-720-0
03
1
0905-
74
WASHER; ARM TO MOTOR
ID=8.4 OD=22 MAL
1-83319-011-0
01
1
0403-
76
SCREW; BRKT TO WIPER MOTOR
MAL
1-83319-043-0
03
1
0403-
112
CLIP; HARNESS,WIPER MOTOR
MAL
1-86810-061-0
01
1
0403-
114
COVER; FRT WIPER ARM
1-86810-144-0
02
1
0403-
119
STOPPER; WIPER LINK
1-86810-074-0
02
1
0403-0805
198
COVER; PIVOT,WIPER
1-86810-016-3
02
1
0403-
202
GROMMET; WIPER
1-86815-003-2
02
1
0403-
203
NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE MAL
1-09985-340-0
04
1
0403-
207
SEAL; HOLE
OD=25 BLACK MAL
1-76798-019-0
02
1
0403-
231
RING; STOPPER
8-98120-195-0
02
1
0806-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
