8-60 — HEATER UNIT; FRONT (#21161) — 32 parça

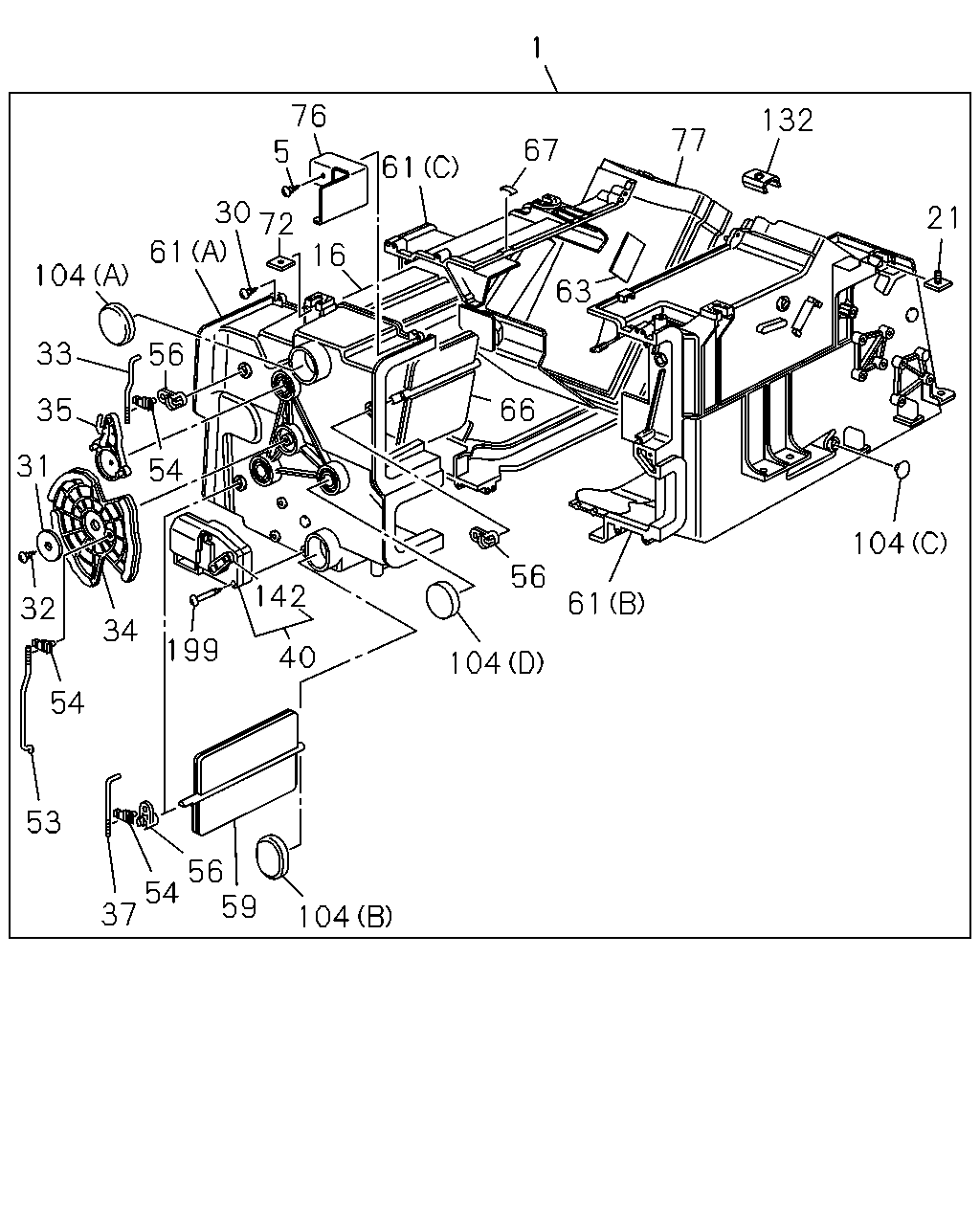

çizim 102733
1 76 5 132 77 67 61 30 72 21 61 16 104 63 33 56 66 35 31 54 104 56 142 61 32 34 199 40 104 54 53 56 54 59 37 104
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-139-3 01 1 0403-
5 SCREW; BRKT
M4X16 MAL 		8-94324-850-0 01 1 0403-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0403-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0403-
30 SCREW; HTR UNIT
M4X16 MAL 		8-94324-850-0 11 1 0403-
31 WASHER; HTR UNIT
MAL 		8-94129-950-0 01 1 0403-
32 SCREW; HTR UNIT
M5X20 MAL 		9-09829-324-1 02 1 0403-
33 ROD; SHUTTER LEVER 1-83579-619-0 01 1 0403-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0403-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 02 1 0403-
37 ROD; LEVER 1-83579-620-1 01 1 0403-
40 ACTUATOR; HTR UNIT 1-83579-649-1 01 1 0403-
53 ROD; SHUTTER LEVER 1-83579-622-0 01 1 0403-
54 CLIP; SHUTTER LEVER 8-94248-794-0 03 1 0403-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 02 1 0403-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0403-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0403-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0403-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0403-
63 LINING; HTR UNIT 1-83578-033-0 01 1 0403-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0403-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0403-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0403-
76 BRACKET; HTR UNIT 1-83573-194-0 01 1 0403-
77 COVER; HTR CASE
MAL 		8-97102-661-0 01 1 0403-
104 CAP; CASE,HTR UNIT
(A) 		1-83579-617-0 01 1 0403-
104 CAP; CASE,HTR UNIT
(B) 		1-83579-618-0 01 1 0403-
104 CAP; CASE,HTR UNIT
(C) MAL 		8-94328-657-0 04 1 0403-
104 CAP; CASE,HTR UNIT
(D) MAL 		8-94387-703-0 01 1 0403-
132 BRACKET; HTR CORE 1-83573-195-0 01 1 0403-
142 LEVER; ACTUATOR 1-83564-345-1 01 1 0403-
199 SCREW; ACTUATOR 8-94348-809-0 02 1 0403-
