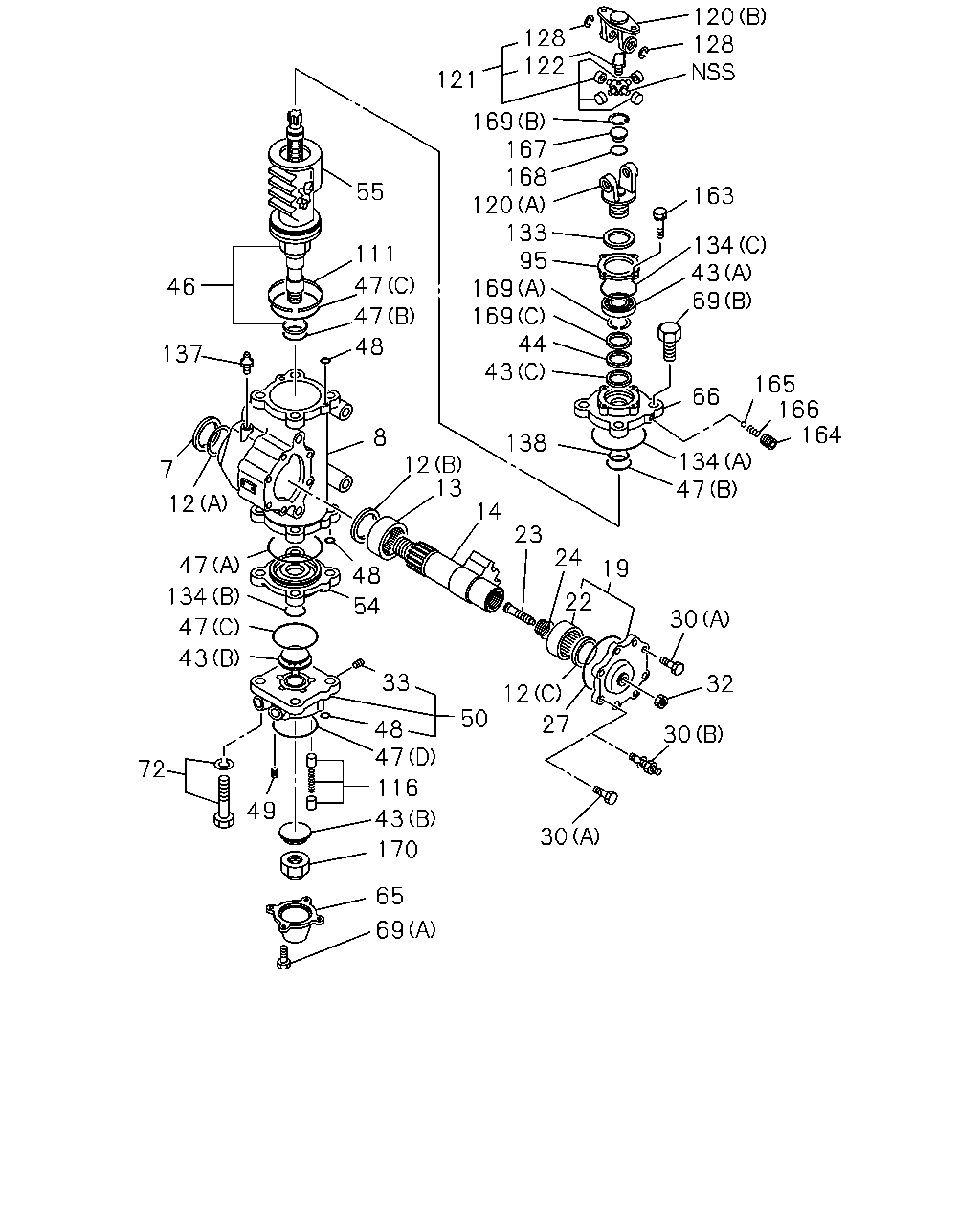

4-40 — STEERING UNIT (#2116) — 130 parça

120 128 128 122 121 169 167 168 120 133 95 169 169 44 43 55 163 134 43 69 111 47 46 47 48 137 165 166 164 66 8 138 134 47 12 13 7 12 14 23 24 47 19 48 134 22 54 30 47 43 33 32 12 50 27 48 47 30 72 116 49 43 30 170 65 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44269-006-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: B = 1-44000-583-0	1-44241-077-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: A = 1-44000-582-0	1-44241-078-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: D = 1-44000-685-0	1-44241-079-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: C = 1-44000-684-0	1-44541-027-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-044-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44262-004-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44519-069-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09811-185-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44321-017-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44261-026-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09811-184-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-223-0	01	1	-
30	BOLT; COVER STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-19519-120-0	05	1	-
30	BOLT; COVER STRG UNIT (A) ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-19519-120-0	08	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-19519-121-0	03	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44269-007-0	01	1	-
33	PLUG; DRAIN,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44519-071-0	02	1	-
43	BEARING; WORM SHAFT,STRG UNIT (C) ASM PART: C = 1-44000-684-0	1-09811-052-0	01	1	-
43	BEARING; WORM SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-19519-062-0	01	1	-
43	BEARING; WORM SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-88510-196-0	02	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44252-002-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44259-025-0	01	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: D = 1-44000-685-0	1-44259-020-0	03	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-44259-020-0	02	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-045-0	01	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-222-0	02	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: D = 1-44000-685-0	1-09623-222-0	03	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-83315-087-0	02	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-88510-173-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-221-0	04	1	-
49	VALVE ASM; P/S UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-44563-001-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44560-035-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44560-043-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44251-049-0	01	1	-
55	WORM & BALL NUT ASM; STRG UNIT ASM PART: A = 1-44000-582-0, C = 1-44000-684-0	1-44130-157-0	01	1	-
55	WORM & BALL NUT ASM; STRG UNIT ASM PART: B = 1-44000-583-0, D = 1-44000-685-0	1-44130-158-0	01	1	-
65	COVER; FRT,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44562-012-0	01	1	-
66	COVER; REAR STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44250-003-0	01	1	-
66	COVER; REAR STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44251-053-0	01	1	-
69	BOLT; COVER FIX STRG UNIT (B) ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-19519-122-0	04	1	-
69	BOLT; COVER FIX STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-19519-124-0	04	1	-
69	BOLT; COVER FIX STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44279-017-0	04	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-19519-123-0	04	1	-
95	HOLDER; SEAL ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44139-016-0	01	1	-
95	HOLDER; SEAL ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44569-087-0	01	1	-
111	RING; BACKUP ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44259-019-0	01	1	-
116	SPRING; BOX,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44139-022-0	05	1	-
116	SPRING; BOX,STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44569-107-0	05	1	-
120	YOKE; WORM SHAFT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44135-049-0	01	1	-
120	YOKE; WORM SHAFT (A) ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44135-066-0	01	1	-
120	YOKE; WORM SHAFT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-44135-006-0	01	1	-
121	SPIDER ASM; YOKE,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44135-030-1	01	1	-
121	SPIDER ASM; YOKE,STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44135-073-1	01	1	-
122	NIPPLE; GREASE,STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-09380-003-0	01	1	-
122	NIPPLE; GREASE,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44519-081-0	01	1	-
128	RING; SPIDER,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, D = 1-44000-685-0	9-09950-110-0	04	1	-
133	SEAL; DUST,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44269-010-0	01	1	-
134	GASKET; COVER,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-045-0	01	1	-
134	GASKET; COVER,STRG UNIT (A) ASM PART: D = 1-44000-685-0	1-09623-045-0	02	1	-
134	GASKET; COVER,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-222-0	01	1	-
134	GASKET; COVER,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44519-082-0	01	1	-
137	PLUG; BREATHER STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	9-83331-704-0	02	1	-
137	PLUG; BREATHER STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	9-83331-704-0	01	1	-
138	RING; SEAL,RR COVER ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-44259-020-0	01	1	-
163	BOLT; HOLDER ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44519-022-0	04	1	-
163	BOLT; HOLDER ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44519-023-0	04	1	-
164	SCREW; RR COVER ASM PART: C = 1-44000-684-0	9-88510-159-0	01	1	-
165	BALL; RR COVER ASM PART: C = 1-44000-684-0	9-44569-139-0	01	1	-
166	SPRING; RR COVER ASM PART: C = 1-44000-684-0	9-88510-158-0	01	1	-
167	PLATE; COVER ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44139-016-0	01	1	-
167	PLATE; COVER ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44259-041-0	01	1	-
168	GASKET; YOKE ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-046-0	01	1	-
169	RING; RET,YOKE (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-19519-061-0	01	1	-
169	RING; RET,YOKE (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44139-010-0	01	1	-
169	RING; RET,YOKE (C) ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44259-026-0	01	1	-
170	NUT; WARM SHAFT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44569-085-0	01	1	-

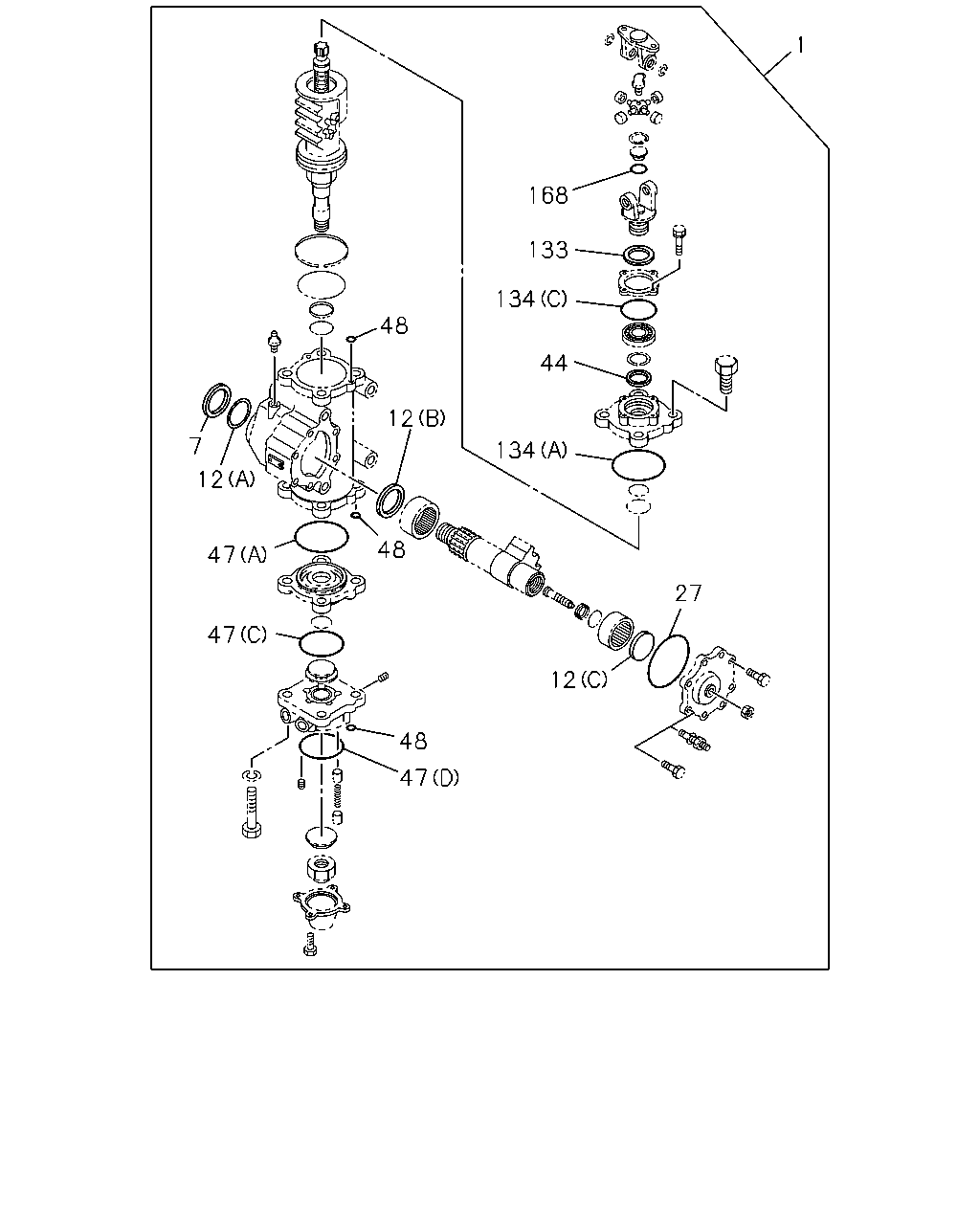

1 168 133 134 48 44 12 7 134 12 48 47 27 47 12 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-87520-135-0	01	1	-
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 1-44000-684-0	1-87520-211-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44269-006-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-044-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44262-004-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44519-069-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-223-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44252-002-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44259-025-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-045-0	01	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-222-0	02	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: D = 1-44000-685-0	1-09623-222-0	03	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-83315-087-0	02	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-88510-173-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-221-0	04	1	-
133	SEAL; DUST,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44269-010-0	01	1	-
134	GASKET; COVER,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-045-0	01	1	-
134	GASKET; COVER,STRG UNIT (A) ASM PART: D = 1-44000-685-0	1-09623-045-0	02	1	-
134	GASKET; COVER,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-222-0	01	1	-
134	GASKET; COVER,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44519-082-0	01	1	-
168	GASKET; YOKE ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-046-0	01	1	-

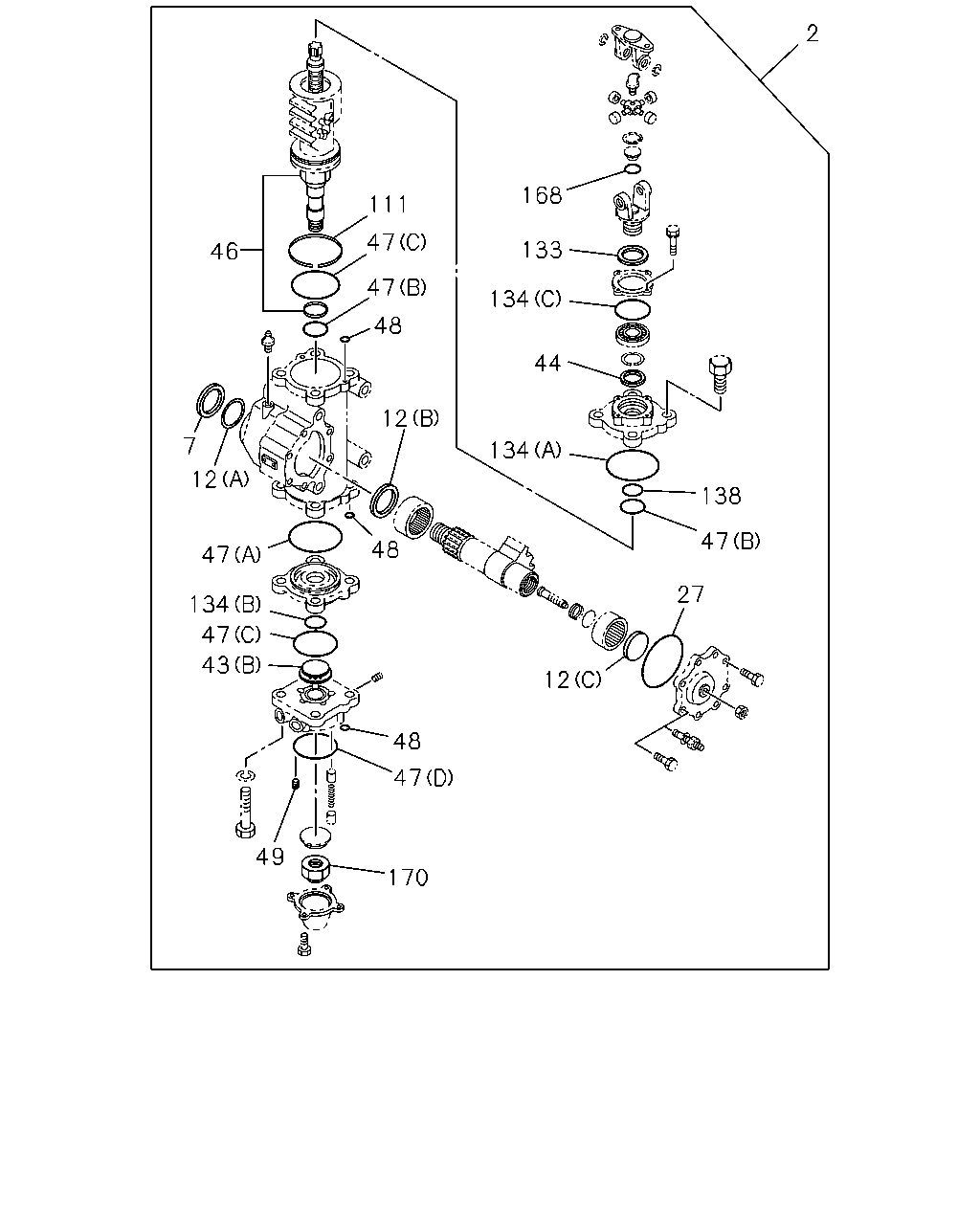

2 168 111 47 133 46 47 134 48 44 12 7 134 12 138 47 48 47 27 134 47 43 12 48 47 49 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-87520-136-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-87520-212-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44269-006-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-044-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44262-004-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44519-069-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-223-0	01	1	-
43	BEARING; WORM SHAFT,STRG UNIT (C) ASM PART: C = 1-44000-684-0	1-09811-052-0	01	1	-
43	BEARING; WORM SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-19519-062-0	01	1	-
43	BEARING; WORM SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-88510-196-0	02	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0	1-44252-002-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: C = 1-44000-684-0, D = 1-44000-685-0	1-44259-025-0	01	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: D = 1-44000-685-0	1-44259-020-0	03	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-44259-020-0	02	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-045-0	01	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-222-0	02	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: D = 1-44000-685-0	1-09623-222-0	03	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-83315-087-0	02	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-88510-173-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-221-0	04	1	-
49	VALVE ASM; P/S UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	9-44563-001-0	01	1	-
111	RING; BACKUP ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44259-019-0	01	1	-
133	SEAL; DUST,STRG UNIT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44269-010-0	01	1	-
134	GASKET; COVER,STRG UNIT (A) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-045-0	01	1	-
134	GASKET; COVER,STRG UNIT (A) ASM PART: D = 1-44000-685-0	1-09623-045-0	02	1	-
134	GASKET; COVER,STRG UNIT (B) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-09623-222-0	01	1	-
134	GASKET; COVER,STRG UNIT (C) ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44519-082-0	01	1	-
138	RING; SEAL,RR COVER ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0	1-44259-020-0	01	1	-
168	GASKET; YOKE ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-09623-046-0	01	1	-
170	NUT; WARM SHAFT ASM PART: A = 1-44000-582-0, B = 1-44000-583-0, C = 1-44000-684-0, D = 1-44000-685-0	1-44569-085-0	01	1	-
