Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#21158) — 26 parça
◀
[840A] NO.1 (14 parça)
[840A] NO.2 (7 parça)
[840A] NO.3 (5 parça)
▶

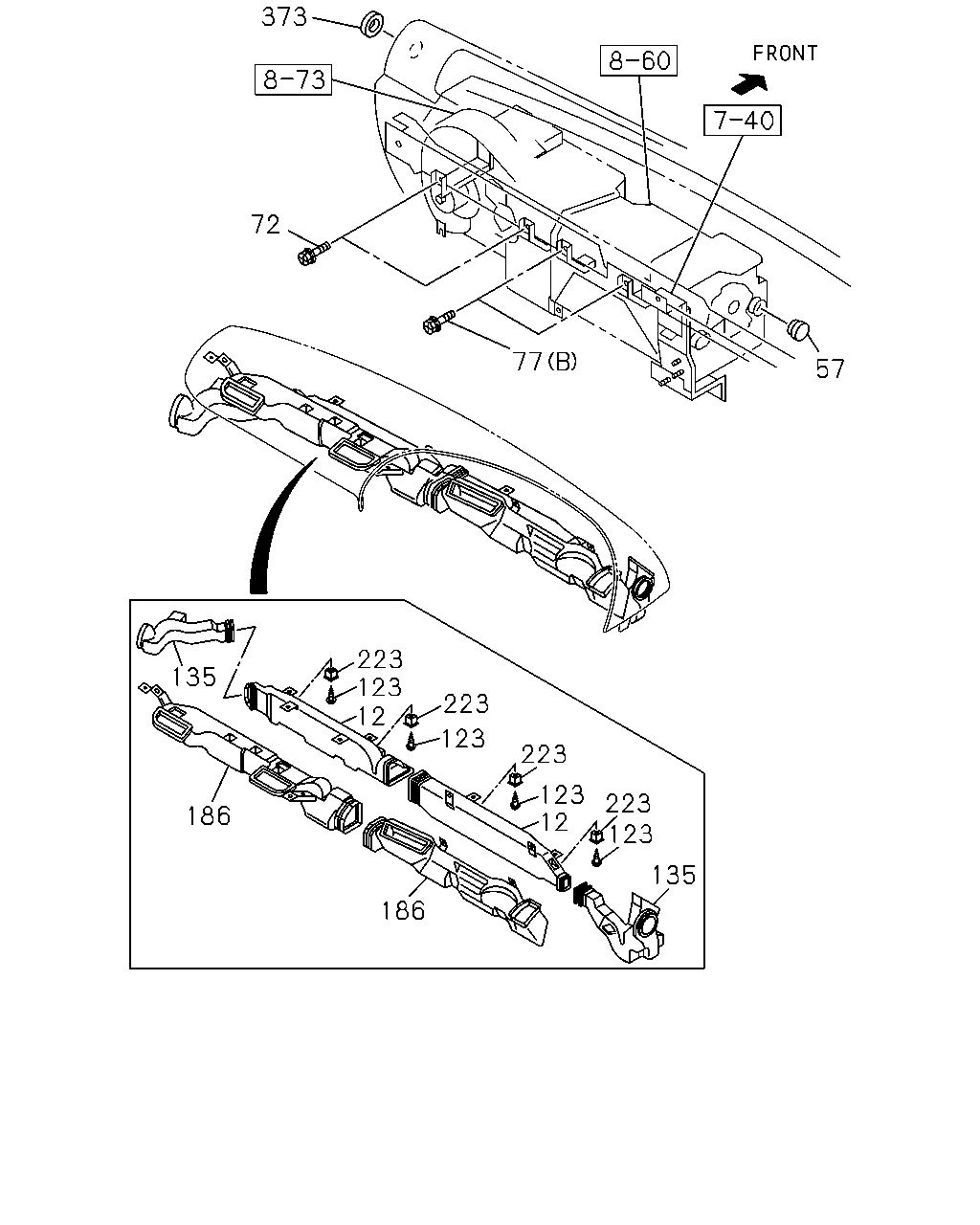

373
72
77
57
223
123
12
135
223
123
223
123
12
223
123
186
135
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
1-76378-321-6
01
1
0403-
12
NOZZLE; DEFROSTER
1-76377-172-7
01
1
0403-
57
COVER; INL DUCT
1-83579-617-0
01
1
0403-
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER MAL
8-94279-201-0
02
1
0403-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0403-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER MAL
8-94279-201-0
02
1
0403-
123
SCREW; DUCT
M5X14 MAL
8-94279-325-0
08
1
0403-
135
HOSE; DEFROSTER
1-76378-253-4
01
1
0403-
135
HOSE; DEFROSTER
1-76378-252-7
01
1
0403-
186
DUCT; VENTILATOR
1-76378-418-0
01
1
0403-
186
DUCT; VENTILATOR
1-76377-173-6
01
1
0403-0710
186
DUCT; VENTILATOR
1-76377-246-0
01
1
0711-
223
GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL
8-94279-084-2
04
1
0403-
373
RUBBER; JOINT
1-76378-291-0
02
1
0403-

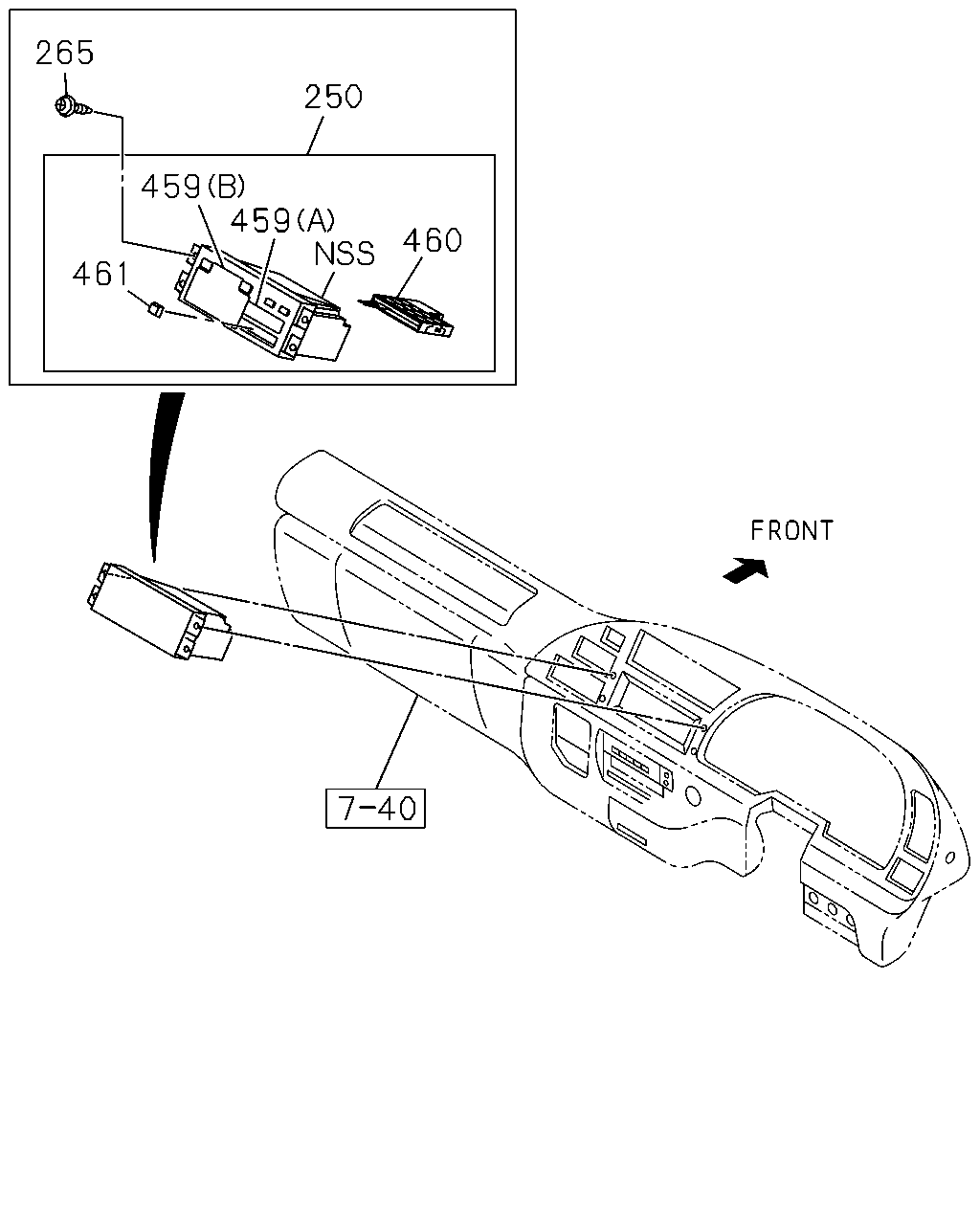

265
250
459
459
460
461
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
CONTROL ASM; A/C
1-83543-034-1
01
1
0403-
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74110-620-0
01
1
0403-0604
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
01
1
0605-
459
PANEL; CONTROL ASM,A/C
(A)
1-83549-013-0
01
1
0403-
459
PANEL; CONTROL ASM,A/C
(B)
1-83549-017-0
01
1
0403-
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0403-
461
KNOB; CONTROL ASM,A/C
1-83549-016-0
01
1
0403-

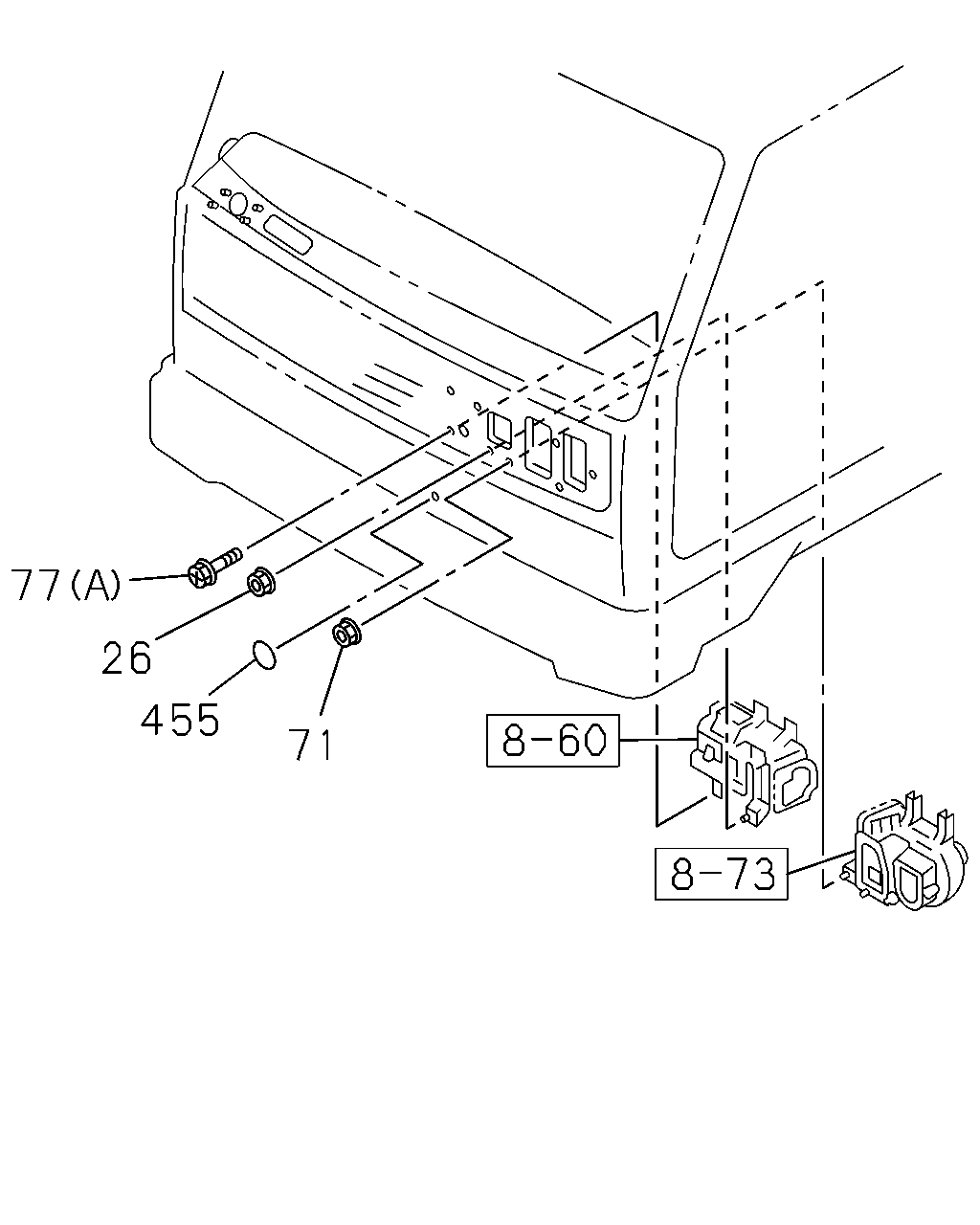

77
26
455
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0403-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0403-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0403-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER MAL
8-94279-201-0
02
1
0403-
455
SEAL; CLIP HOLE
OD=25 BLACK MAL
1-76798-019-0
01
1
0403-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
