8-15 — FIXING PARTS; WIRING HARNESS (#21152) — 182 parça

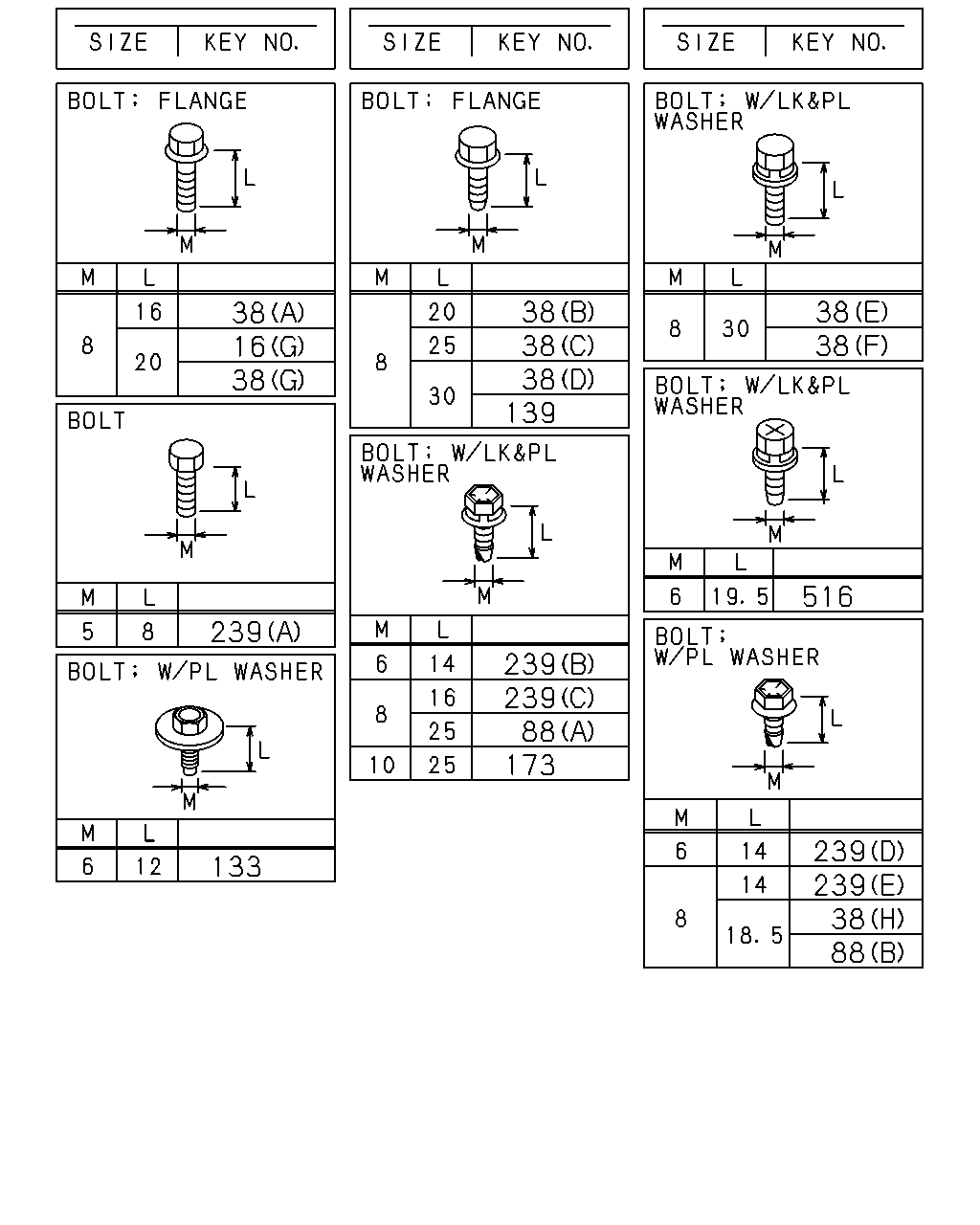

çizim 71405
38 38 38 139 38 38 38 16 38 516 239 239 239 88 173 239 239 38 88 133
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=23 L=32 		1-09700-346-0 01 1 0403-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0403-
16 CLIP; HARNESS
(K) ID=24 L=32 		1-09700-766-1 01 1 0403-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0403-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0403-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0403-
16 CLIP; HARNESS
(E) ID=24 L=40 		1-09701-139-0 01 1 0403-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0403-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0403-
16 CLIP; HARNESS
(L) L=175 MAL 		8-97110-167-0 02 1 0403-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0403-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0403-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0403-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE MAL 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0403-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE MAL 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE MAL 		0-28080-820-0 02 1 0403-0512
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE MAL 		0-28050-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28680-820-0 02 1 0403-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28680-820-0 02 1 0403-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28680-825-0 01 1 0403-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28680-825-0 03 1 0403-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0403-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0403-1201
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0403-1201
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0403-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0403-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0403-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0403-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0403-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0403-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0403-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0403-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0403-
çizim 71424
81 121 206 223 228 235 395 418 16 48 217 305 510 224 513 530 178 178 178 514 16 171 503 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=23 L=32 		1-09700-346-0 01 1 0403-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0403-
16 CLIP; HARNESS
(K) ID=24 L=32 		1-09700-766-1 01 1 0403-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0403-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0403-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0403-
16 CLIP; HARNESS
(E) ID=24 L=40 		1-09701-139-0 01 1 0403-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0403-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0403-
16 CLIP; HARNESS
(L) L=175 MAL 		8-97110-167-0 02 1 0403-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0403-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0403-
48 CLIP; FRAME HARNESS
(F) ID=23 L=32 		1-09700-346-0 01 1 0403-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0403-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 03 1 0403-
48 CLIP; FRAME HARNESS
(E) ID=15 L=65 		1-09700-466-0 02 1 0403-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0403-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 04 1 0403-
48 CLIP; FRAME HARNESS
(G) ID=24 H=40 L=24 		1-09701-243-1 01 1 0403-
48 CLIP; FRAME HARNESS
(G) ID=24 H=40 L=24 		1-09701-243-1 02 1 0403-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 01 1 0403-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0403-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0403-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 0403-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 21 1 0403-
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0403-
81 CLIP; HARNESS
L=140 MAL 		5-09707-031-1 02 1 0403-
121 CLIP; FACIA HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0403-
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0403-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0403-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0403-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0403-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0403-
178 GROMMET; HARNESS
(B) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0403-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0403-
206 CLIP; FUEL TANK HARNESS
L=140 MAL 		5-09707-031-1 02 1 0403-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0403-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0403-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0403-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 0403-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0403-
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 04 1 0403-
224 SLEEVE; RUBBER,HARNESS
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0403-
228 CLIP; COOLER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0403-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=140 MAL 		5-09707-031-1 01 1 0403-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0403-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 02 1 0403-
395 CLIP; WIPER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0403-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 MAL 		5-09707-031-1 01 1 0703-
503 CONNECTOR 1-82690-668-0 01 1 0403-
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 0403-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0403-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0403-0906
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 05 1 0403-
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) L=50 		8-94270-377-1 01 1 0907-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0403-
çizim 71438
64 524 219 294 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0403-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0403-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0403-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0403-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0403-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0403-0602
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0403-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
219 NUT
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0403-0602
294 NUT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0403-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0403-0602
524 NUT; HARNESS
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-
çizim 102702
53 59 335 154
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS 1-47476-812-1 01 1 0403-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0403-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0403-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0403-

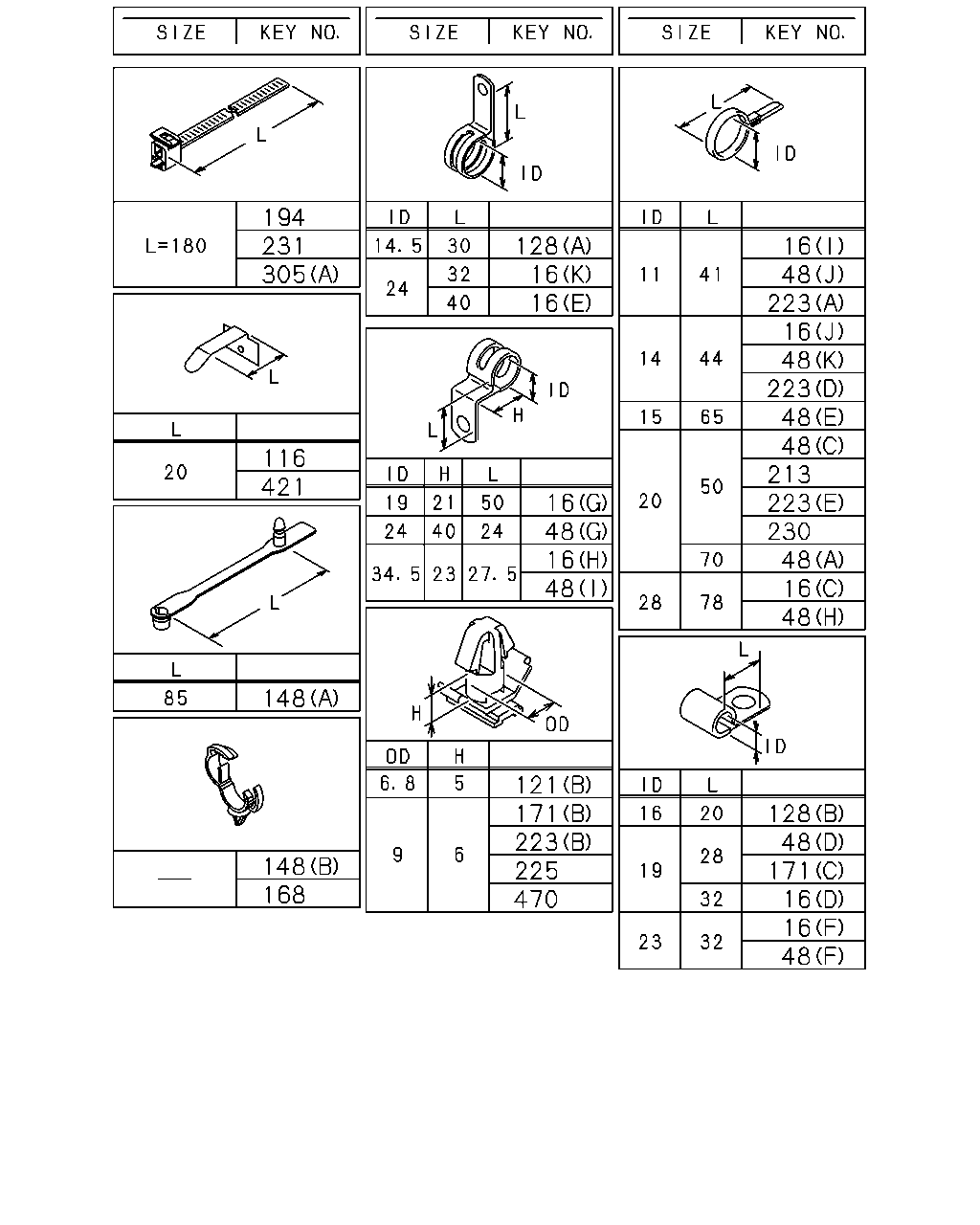

çizim 102703
194 231 305 128 16 16 16 48 223 16 48 223 48 48 213 223 230 48 16 48 116 421 16 48 16 48 148 121 171 223 225 470 128 48 171 16 16 48 148 168
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=23 L=32 		1-09700-346-0 01 1 0403-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0403-
16 CLIP; HARNESS
(K) ID=24 L=32 		1-09700-766-1 01 1 0403-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0403-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0403-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0403-
16 CLIP; HARNESS
(E) ID=24 L=40 		1-09701-139-0 01 1 0403-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0403-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0403-
16 CLIP; HARNESS
(L) L=175 MAL 		8-97110-167-0 02 1 0403-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0403-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0403-
48 CLIP; FRAME HARNESS
(F) ID=23 L=32 		1-09700-346-0 01 1 0403-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0403-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 03 1 0403-
48 CLIP; FRAME HARNESS
(E) ID=15 L=65 		1-09700-466-0 02 1 0403-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0403-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 04 1 0403-
48 CLIP; FRAME HARNESS
(G) ID=24 H=40 L=24 		1-09701-243-1 01 1 0403-
48 CLIP; FRAME HARNESS
(G) ID=24 H=40 L=24 		1-09701-243-1 02 1 0403-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 01 1 0403-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0403-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0403-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 0403-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 21 1 0403-
48 CLIP; FRAME HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0403-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0403-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0403-
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0403-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0403-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0403-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0403-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 MAL 		8-97069-515-0 01 1 0403-
168 CLIP; DASH HARNESS
ID=6 & 10-13 MAL 		8-97069-515-0 05 1 0403-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0403-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0403-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0403-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0403-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0403-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0403-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0403-
223 CLIP; AIR TANK HARNESS
(C) L=140 MAL 		5-09707-031-1 01 1 0403-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0403-
223 CLIP; AIR TANK HARNESS
(E) ID=20 L=50 		9-09917-430-0 04 1 0403-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> OD=9 H=6 		1-09709-178-0 01 1 0403-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0403-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0403-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0403-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 02 1 0403-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0403-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
