4-36 — POWER STEERING CONTROL; ENGINE SIDE (#2115) — 16 parça

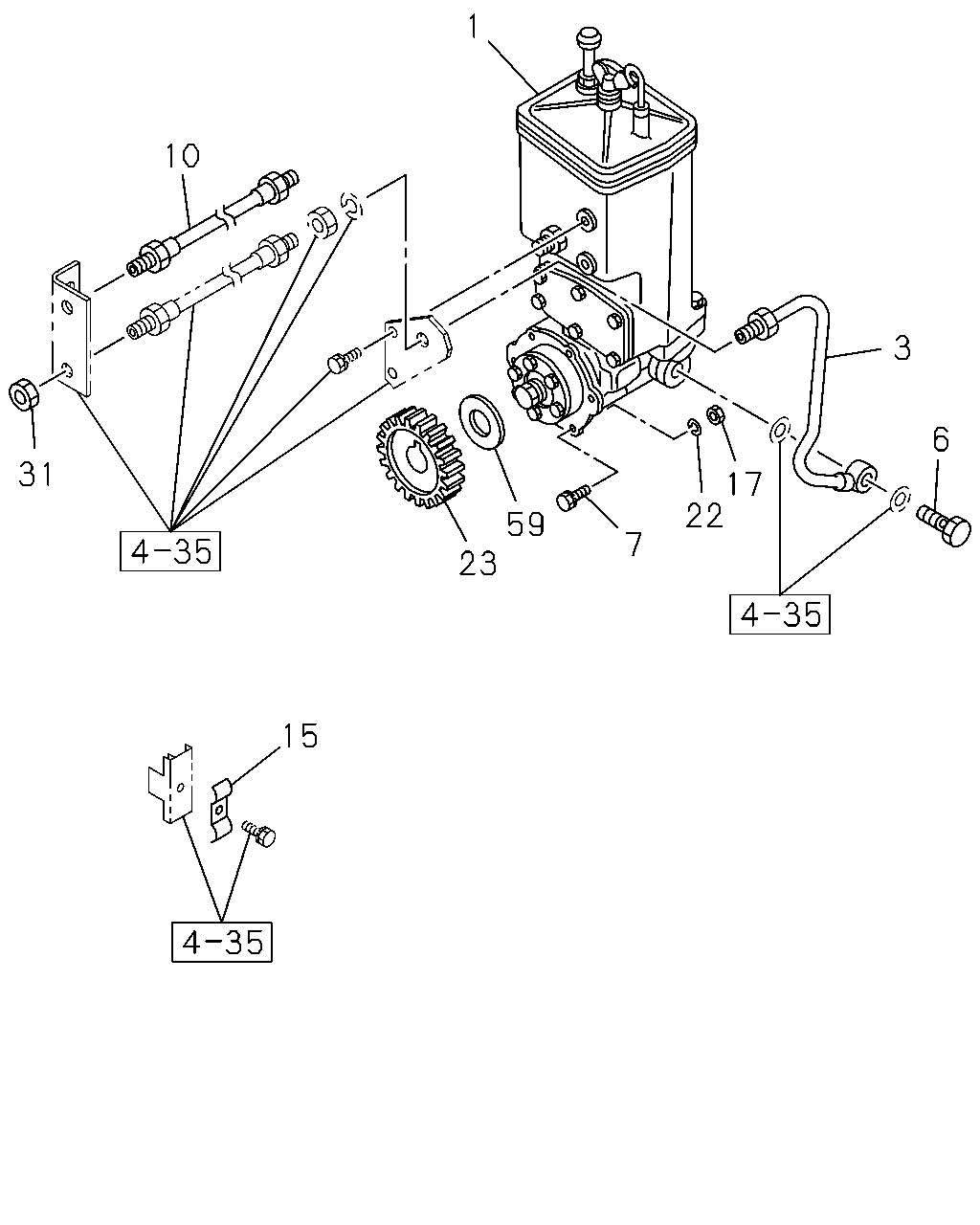

çizim 93808
1 10 3 6 31 17 22 59 23 7 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-205-2 01 1 9001- ● ●
3 PIPE; OIL,CHARGE,P/S
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) 		1-21111-732-0 01 1 9001-9301 ● ●
3 PIPE; OIL,CHARGE,P/S 1-21111-732-0 01 1 9302- ● ●
3 PIPE; OIL,CHARGE,P/S
6RA1 TC ENG(15L) 		1-21112-876-0 01 1 9001-9301 ●
6 BOLT; EYE,P/S PIPE
M16X30 FLANGE 		1-09675-095-1 01 1 9001- ● ●
7 BOLT; OIL PUMP,P/S
6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L) M8 		9-09110-408-0 05 1 9001- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=450 		1-09364-069-1 01 1 9001- ● ●
15 CLIP; OIL PIPE SUCTION
ID=13 & 13 L=16 & 16 		1-09700-072-0 02 1 9001- ●
17 NUT; POWER STRG PUMP
6QA1 STD ENG(L24) M8 		9-09110-408-0 05 1 9001-9304 ● ●
17 NUT; POWER STRG PUMP
6QA1 STD ENG(L24) M8 		9-09110-408-0 05 1 9305- ● ●
17 NUT; POWER STRG PUMP
6RB1 STD ENG(07L) M/T<X9C> M8 		9-09110-408-0 05 1 9305- ●
22 WASHER; LK,OIL PUMP,P/S
ID=8.2 		9-09150-508-0 05 1 9001-9705 ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=8.2 		9-09150-508-0 05 1 9706- ● ●
23 GEAR; OIL PUMP 1-19581-006-3 01 1 9001- ● ●
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 9001- ● ●
59 SPACER; GEAR,OIL PUMP 1-19589-004-0 01 1 9001- ● ●
