Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

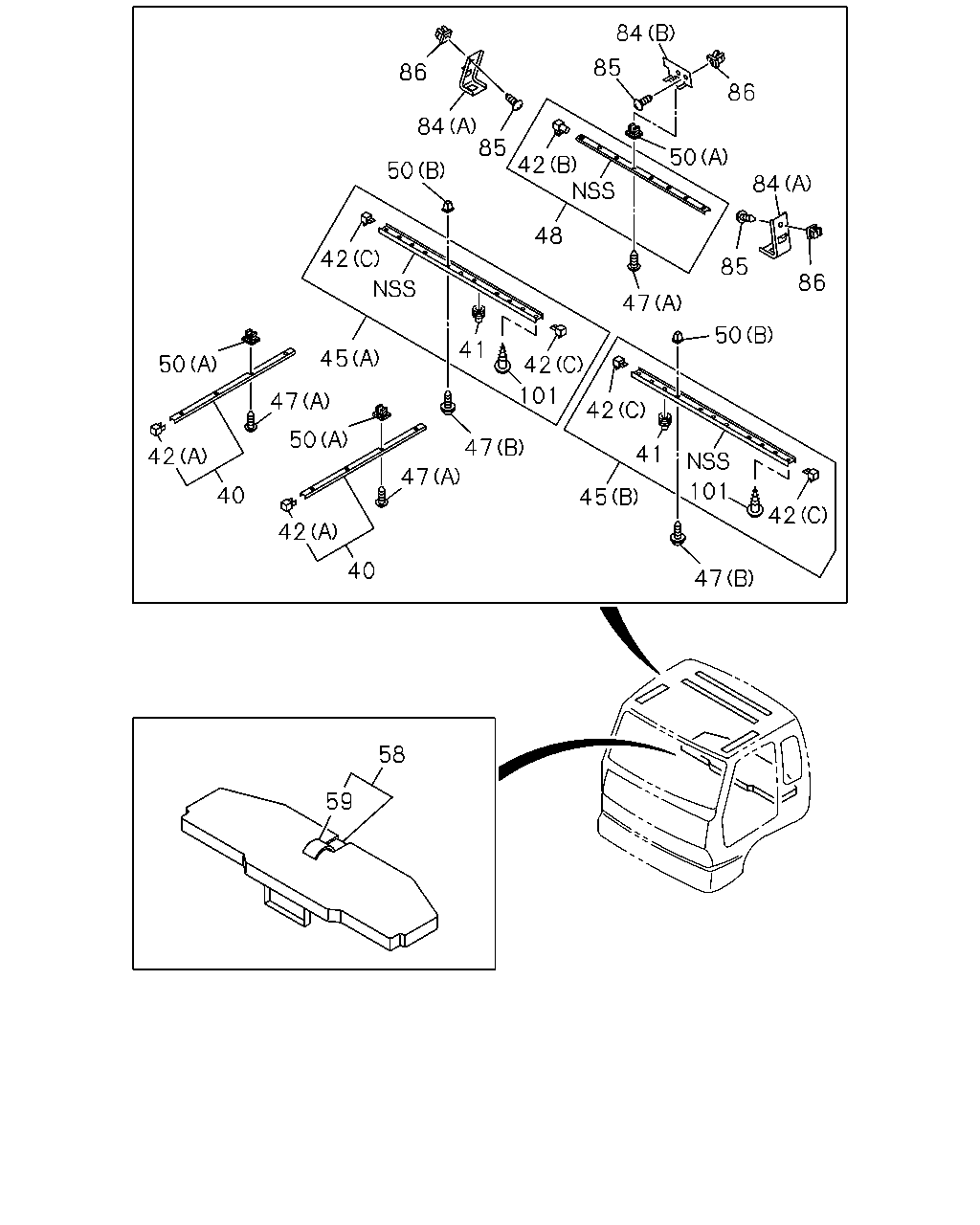

7-70 — SEPARATER AND BED
(#21147) — 22 parça
◀
[770A] CURTAIN ASM;CABIN CENTER (2 parça)
[770A] CURTAIN RAIL (20 parça)
▶
44
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-207-1
01
1
0403-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-208-1
01
1
0403-
84
85
86
86
84
85
50
42
50
84
48
42
85
86
47
50
41
45
50
42
101
47
42
50
47
41
42
47
101
40
45
42
42
40
47
58
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
1-73996-380-1
01
1
0403-
40
RAIL; CURTAIN,SIDE
1-73996-379-0
01
1
0403-
41
HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE
1-73996-398-0
14
1
0403-
42
STOPPER; CURTAIN RAIL
(C)
1-73907-657-0
02
1
0403-
42
STOPPER; CURTAIN RAIL
(A)
1-73996-393-0
02
1
0403-
42
STOPPER; CURTAIN RAIL
(B)
1-73996-399-0
01
1
0403-
45
RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A)
1-73908-374-2
01
1
0403-
45
RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)
1-73908-373-1
01
1
0403-
47
SCREW; CURTAIN RAIL
(A) M5X20 MAL
5-09981-059-0
17
1
0403-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0403-
48
RAIL; CURTAIN,BACK
1-73996-385-1
01
1
0403-
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
07
1
0403-
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 MAL
8-94279-078-0
17
1
0403-
58
BED; MAT
MATTRESS SLEEPER CAB<E40>
1-75116-531-1
01
1
0403-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40>
1-75116-700-1
01
1
0403-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0403-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0403-
85
SCREW; BRKT
M5X20 MAL
5-09981-059-0
09
1
0403-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 MAL
8-94279-078-0
09
1
0403-
101
SCREW; STOPPER
1-73907-400-0
02
1
0403-
