◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#2114) — 136 parça

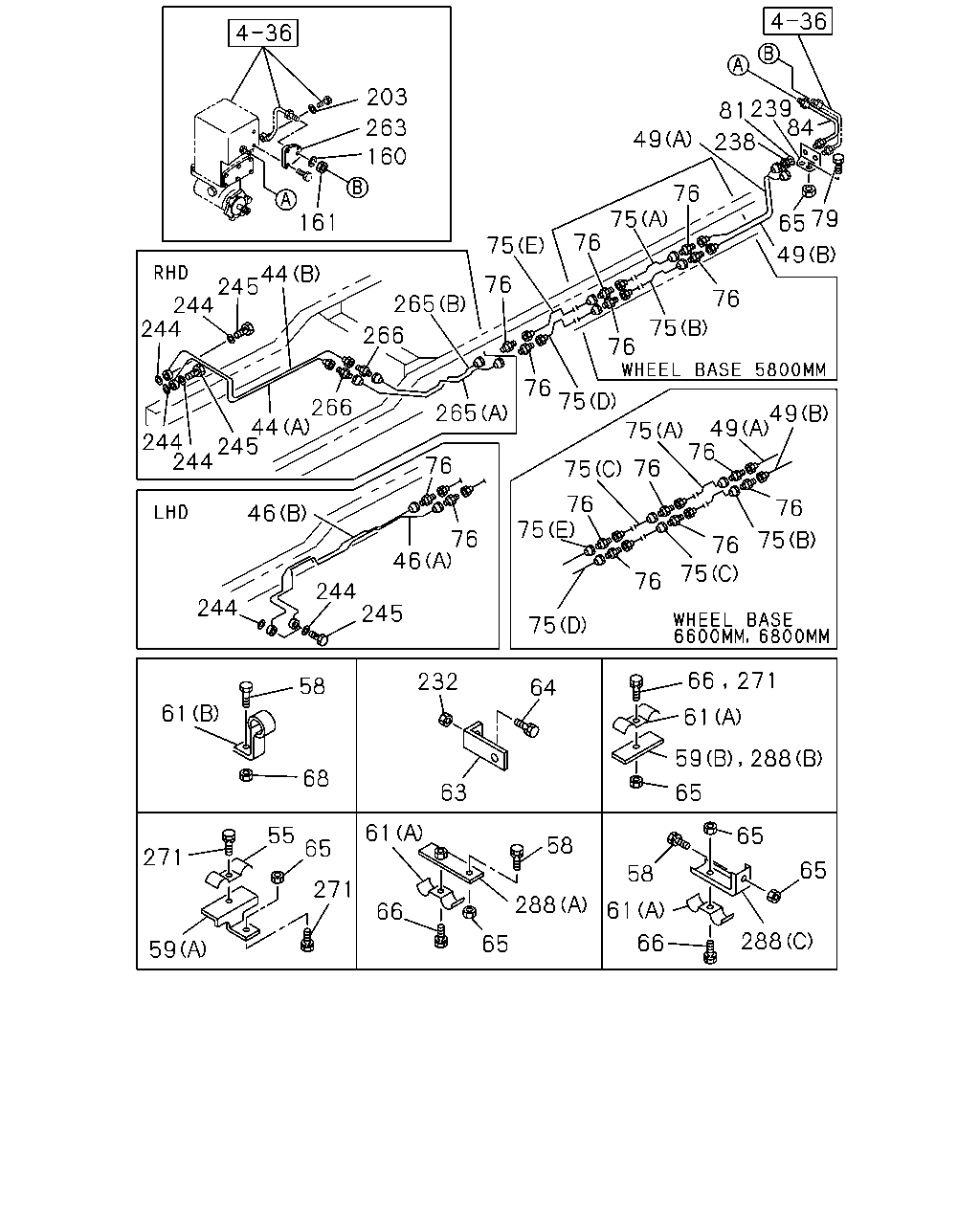

çizim 28479
203 81 239 84 263 49 238 160 76 161 79 65 75 76 75 49 44 245 244 244 76 76 265 75 266 76 76 75 266 265 49 44 244 245 244 49 76 75 76 76 75 76 75 76 46 76 75 76 46 75 76 244 245 244 75 271 232 58 64 61 61 68 63 65 61 55 65 58 65 271 65 58 271 288 61 66 288 66 65 59 59 288 66
BalonParca AdiParca NoAdetTipApplied Date A B
44 PIPE; OIL,P/S UNIT TO NIPPLE
(A) 		1-21111-579-0 01 1 9001-9212 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
(A) 		1-21114-484-0 01 1 9301- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
(B) 		1-21111-580-0 01 1 9001-9212 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
(B) 		1-21114-485-0 01 1 9301- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
(A) 		1-21111-813-0 01 1 9001-9212 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
(A) 		1-21114-537-0 01 1 9301- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
(B) 		1-21112-248-0 01 1 9001-9212 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
(B) 		1-21114-538-0 01 1 9301- ●
49 PIPE; OIL,FLEX HOSE TO UNION
(A) 		1-21111-525-0 01 1 9001-9212 ● ●
49 PIPE; OIL,FLEX HOSE TO UNION
(A) 		1-21114-471-0 01 1 9301- ● ●
49 PIPE; OIL,FLEX HOSE TO UNION
(B) 		1-21111-526-0 01 1 9001-9212 ● ●
49 PIPE; OIL,FLEX HOSE TO UNION
(B) 		1-21114-472-0 01 1 9301- ● ●
55 CLIP; P/S RUBBER HOSE
WHEEL BASE 5800MM(58W) ID=13 & 13 L=16 & 16 		1-09700-072-0 22 1 9001- ●
55 CLIP; P/S RUBBER HOSE
WHEEL BASE 6800MM(68W) ID=13 & 13 L=16 & 16 		1-09700-072-0 24 1 9001- ●
55 CLIP; P/S RUBBER HOSE
ID=13 & 13 L=16 & 16 		1-09700-072-0 20 1 9001- ●
58 BOLT; CLIP
M6X20 W/LK WASHER 		9-01900-620-0 03 1 9001-9204 ●
58 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205-9606 ●
58 BOLT; CLIP
M6X20 FLANGE 		0-28680-620-0 03 1 9607-9704 ●
58 BOLT; CLIP
M6X25 FLANGE 		0-28680-625-0 03 1 9705- ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9911- ● ●
58 BOLT; CLIP
M6X20 W/LK WASHER 		9-01900-620-0 04 1 9001-9204 ●
58 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 04 1 9205-9606 ●
58 BOLT; CLIP
M6X20 FLANGE 		0-28680-620-0 04 1 9607-9704 ●
58 BOLT; CLIP
M6X25 FLANGE 		0-28680-625-0 04 1 9705- ●
58 BOLT; CLIP
M6X16 W/LK WASHER 		9-01910-616-0 02 1 9001-9005 ●
58 BOLT; CLIP
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9006-9606 ●
58 BOLT; CLIP
M6X16 FLANGE 		0-28080-616-0 02 1 9607- ●
59 BRACKET; CLIP,OIL PIPE
WHEEL BASE 5800MM(58W) (A) 		1-47465-168-1 22 1 9001- ●
59 BRACKET; CLIP,OIL PIPE
WHEEL BASE 6800MM(68W) (A) 		1-47465-168-1 24 1 9001- ●
59 BRACKET; CLIP,OIL PIPE
(A) 		1-47465-168-1 18 1 9001- ●
59 BRACKET; CLIP,OIL PIPE
(B) 		1-47466-005-0 03 1 9001- ●
61 CLIP; OIL PIPE
(A) ID=13 & 13 L=16 & 16 		1-09700-072-0 03 1 9001- ●
61 CLIP; OIL PIPE
(B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9911- ● ●
61 CLIP; OIL PIPE
(A) ID=13 & 13 L=16 & 16 		1-09700-072-0 04 1 9001- ●
61 CLIP; OIL PIPE
(B) ID=13 H=24 L=20 		9-09527-012-0 02 1 9001- ●
63 BRACKET; CLIP,P/S 9-47465-417-0 01 1 9001- ●
64 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9001-9204 ●
64 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9606 ●
64 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9607- ●
65 NUT; BRKT
WHEEL BASE 5800MM(58W) M6 		9-09110-406-0 22 1 9001-9606 ●
65 NUT; BRKT
WHEEL BASE 5800MM(58W) M6 FLANGE 		0-91150-106-0 22 1 9607-9910 ●
65 NUT; BRKT
WHEEL BASE 5800MM(58W) M6 FLANGE 		0-91150-106-0 21 1 9911- ●
65 NUT; BRKT
WHEEL BASE 6800MM(68W) M6 		9-09110-406-0 24 1 9001-9606 ●
65 NUT; BRKT
WHEEL BASE 6800MM(68W) M6 FLANGE 		0-91150-106-0 24 1 9607-9910 ●
65 NUT; BRKT
WHEEL BASE 6800MM(68W) M6 FLANGE 		0-91150-106-0 23 1 9911- ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9001-9606 ● ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9001-9606 ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9910 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9910 ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9911- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9911- ●
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9001-9012 ●
65 NUT; BRKT
M6 		9-09110-406-0 21 1 9001-9606 ●
65 NUT; BRKT
M6 FLANGE 		0-91150-106-0 21 1 9607-9910 ●
65 NUT; BRKT
M6 FLANGE 		0-91150-106-0 20 1 9911- ●
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9101-9606 ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-9910 ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9911- ●
66 BOLT; BRKT,OIL PIPE
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9001-9204 ●
66 BOLT; BRKT,OIL PIPE
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9606 ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9910 ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 9911- ●
66 BOLT; BRKT,OIL PIPE
M6X25 W/LK WASHER 		9-01900-625-0 02 1 9001-9204 ●
66 BOLT; BRKT,OIL PIPE
M6X25 W/LK WASHER 		0-50040-625-0 02 1 9205-9606 ●
66 BOLT; BRKT,OIL PIPE
M6X25 FLANGE 		0-28680-625-0 02 1 9607- ●
66 BOLT; BRKT,OIL PIPE
M8X20 W/LK WASHER 		9-01900-820-0 03 1 9001-9204 ●
66 BOLT; BRKT,OIL PIPE
M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9606 ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 03 1 9607-9910 ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 9911- ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9911- ● ●
68 NUT; CLIP,OIL PIPE
M6 		9-09110-406-0 02 1 9001-9606 ●
68 NUT; CLIP,OIL PIPE
M6 FLANGE 		0-91150-106-0 02 1 9607- ●
75 PIPE; OIL,P/S,UNION TO UNION
(D) 		1-21113-353-0 01 1 9001-9212 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
(D) 		1-21114-480-0 01 1 9301- ● ●
75 PIPE; OIL,P/S,UNION TO UNION
(E) 		1-21113-354-0 01 1 9001-9212 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
(E) 		1-21114-481-0 01 1 9301- ● ●
75 PIPE; OIL,P/S,UNION TO UNION
MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5LM/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) (A) 		1-21111-570-0 01 1 9001-9012 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) EXC. BUS BODY REAR OVERHANG<YK4> (A) 		1-21111-570-0 01 1 9101-9212 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) EXC. BUS BODY REAR OVERHANG<YK4> (A) 		1-21114-473-0 01 1 9301- ● ●
75 PIPE; OIL,P/S,UNION TO UNION
MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5LM/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) (B) 		1-21111-571-0 01 1 9001-9012 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) EXC. BUS BODY REAR OVERHANG<YK4> (B) 		1-21111-571-0 01 1 9101-9212 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) EXC. BUS BODY REAR OVERHANG<YK4> (B) 		1-21114-474-0 01 1 9301- ● ●
75 PIPE; OIL,P/S,UNION TO UNION
MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) (A) 		1-21113-068-0 01 1 9001-9012 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> (A) 		1-21113-068-0 01 1 9101-9212 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> (A) 		1-21114-477-0 01 1 9301- ● ●
75 PIPE; OIL,P/S,UNION TO UNION
MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) (B) 		1-21113-069-0 01 1 9001-9012 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> (B) 		1-21113-069-0 01 1 9101-9212 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> (B) 		1-21114-478-0 01 1 9301- ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (C) 		1-21111-311-0 02 1 9001-9212 ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (C) 		1-21114-479-0 02 1 9301- ● ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 6600MM(66W) (A) 		1-21111-765-0 01 1 9001-9212 ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 6600MM(66W) (A) 		1-21114-475-0 01 1 9301- ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 6600MM(66W) (B) 		1-21111-766-0 01 1 9001-9212 ●
75 PIPE; OIL,P/S,UNION TO UNION
WHEEL BASE 6600MM(66W) (B) 		1-21114-476-0 01 1 9301- ●
76 UNION; OIL PIPE
M20 STRAIGHT 		9-09233-012-1 06 1 9001- ● ●
76 UNION; OIL PIPE
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M20 STRAIGHT 		9-09233-012-1 02 1 9001- ● ●
79 BOLT; BRKT
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9001-9204 ● ●
79 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9606 ● ●
79 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
79 BOLT; BRKT
M8X16 W/LK WASHER 		9-01910-816-0 02 1 9001-9005 ● ●
79 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9006- ● ●
81 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 02 1 9001- ● ●
84 HOSE; FLEX,P/S
L=450 		1-09364-069-1 01 1 9001- ● ●
160 WASHER; LK,P/S PIPE
ID=23 TOOTH LK INT 		9-09151-222-0 01 1 9001- ● ●
161 NUT; P/S PIPE
M22 		9-09111-422-0 01 1 9001- ● ●
203 GASKET; EYE BOLT
ID=16.2 		1-09630-086-0 02 1 9001- ● ●
232 NUT; BRKT
M8 		9-09110-408-0 01 1 9001-9606 ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607- ●
238 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 9001- ● ●
239 BRACKET; FLEX HOSE 1-44549-005-1 01 1 9001- ● ●
244 GASKET; OIL PIPE,P/S
ID=18 		9-09571-418-0 04 1 9001- ● ●
245 BOLT; EYE,OIL PIPE
M18X36 		1-09675-059-0 02 1 9001-9310 ● ●
245 BOLT; EYE,OIL PIPE
M18X36 		1-09675-205-0 02 1 9311- ● ●
263 BRACKET; P/S PIPE 1-21119-052-0 01 1 9001- ● ●
265 PIPE; OIL,UNION TO UNION
(A) 		1-21111-792-0 01 1 9001-9212 ●
265 PIPE; OIL,UNION TO UNION
(A) 		1-21114-482-0 01 1 9301- ●
265 PIPE; OIL,UNION TO UNION
(B) 		1-21111-793-0 01 1 9001-9212 ●
265 PIPE; OIL,UNION TO UNION
(B) 		1-21114-483-0 01 1 9301- ●
266 UNION; OIL PIPE,P/S
M20 STRAIGHT 		9-09233-012-1 02 1 9001- ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER 		9-01900-620-0 44 1 9001-9204 ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER 		0-50040-620-0 44 1 9205-9606 ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 5800MM(58W) M6X20 FLANGE 		0-28680-620-0 44 1 9607-9704 ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 5800MM(58W) M6X25 FLANGE 		0-28680-625-0 44 1 9705- ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER 		9-01900-620-0 48 1 9001-9204 ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER 		0-50040-620-0 48 1 9205-9606 ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 6800MM(68W) M6X20 FLANGE 		0-28680-620-0 48 1 9607-9704 ●
271 BOLT; P/S OIL PIPE FIX
WHEEL BASE 6800MM(68W) M6X25 FLANGE 		0-28680-625-0 48 1 9705- ●
271 BOLT; P/S OIL PIPE FIX
M6X20 W/LK WASHER 		9-01900-620-0 38 1 9001-9204 ●
271 BOLT; P/S OIL PIPE FIX
M6X20 W/LK WASHER 		0-50040-620-0 38 1 9205-9606 ●
271 BOLT; P/S OIL PIPE FIX
M6X20 FLANGE 		0-28680-620-0 38 1 9607-9704 ●
271 BOLT; P/S OIL PIPE FIX
M6X25 FLANGE 		0-28680-625-0 38 1 9705- ●
288 BRACKET; CLIP,P/S
(A) 		1-47465-052-0 01 1 9001- ●
288 BRACKET; CLIP,P/S
(B) 		1-47466-005-0 01 1 9001-9910 ● ●
288 BRACKET; CLIP,P/S
(B) 		1-47466-005-0 02 1 9911- ● ●
288 BRACKET; CLIP,P/S
(C) 		9-47465-152-0 01 1 9001-9910 ● ●
288 BRACKET; CLIP,P/S
(A) 		1-47465-052-0 02 1 9001- ●
