◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51102 - NKR(RHD)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

8-15 — FIXING PARTS; WIRING HARNESS (#21134) — 137 parça

16 16 16 264 16 48 22 22 22 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=24 H=40 L=24	1-09701-243-1	01	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.589 (E) ID=27	5-09700-323-0	01	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T) (F) ID=20	8-94241-972-0	01	1	0608-	●
16	02.559 CLIP; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0608-		●
16	02.559 CLIP; HARNESS (G) L=135	1-09987-143-1	02	1	0608-	●	●
16	02.559 CLIP; HARNESS 16.065 (H) 1 SET=5 PIECE	1-09987-214-0	02	1	0608-	●	●
16	02.559 CLIP; HARNESS 02.343 (I) ID=16	8-94413-325-0	02	1	0608-	●	●
16	02.559 CLIP; HARNESS 01.166 (J) ID=22 & 22	8-94464-837-0	01	1	0608-	●	●
16	02.559 CLIP; HARNESS (K) ID=15-32	8-97174-404-0	02	1	0608-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (L) L=140	5-09707-031-1	01	1	0608-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	0608-1009	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	0608-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	06	1	1011-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100	8-94327-067-1	04	1	0608-	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=100	8-94327-067-1	04	1	0608-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	10	1	0608-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	11	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.589 (E) ID=27	5-09700-323-0	04	1	0608-		●
16	02.559 CLIP; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0608-		●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0608-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0608-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0608-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=9	8-97063-874-0	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=40 L=90	1-09701-290-0	06	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=30 W/STUD	8-97078-642-2	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	02	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) L=140	5-09707-031-1	03	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.525 (C) T=4.5 & 9	5-09709-023-0	03	1	0608-	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 ID=6 & 10-13	8-97069-515-0	01	1	0608-	●	●

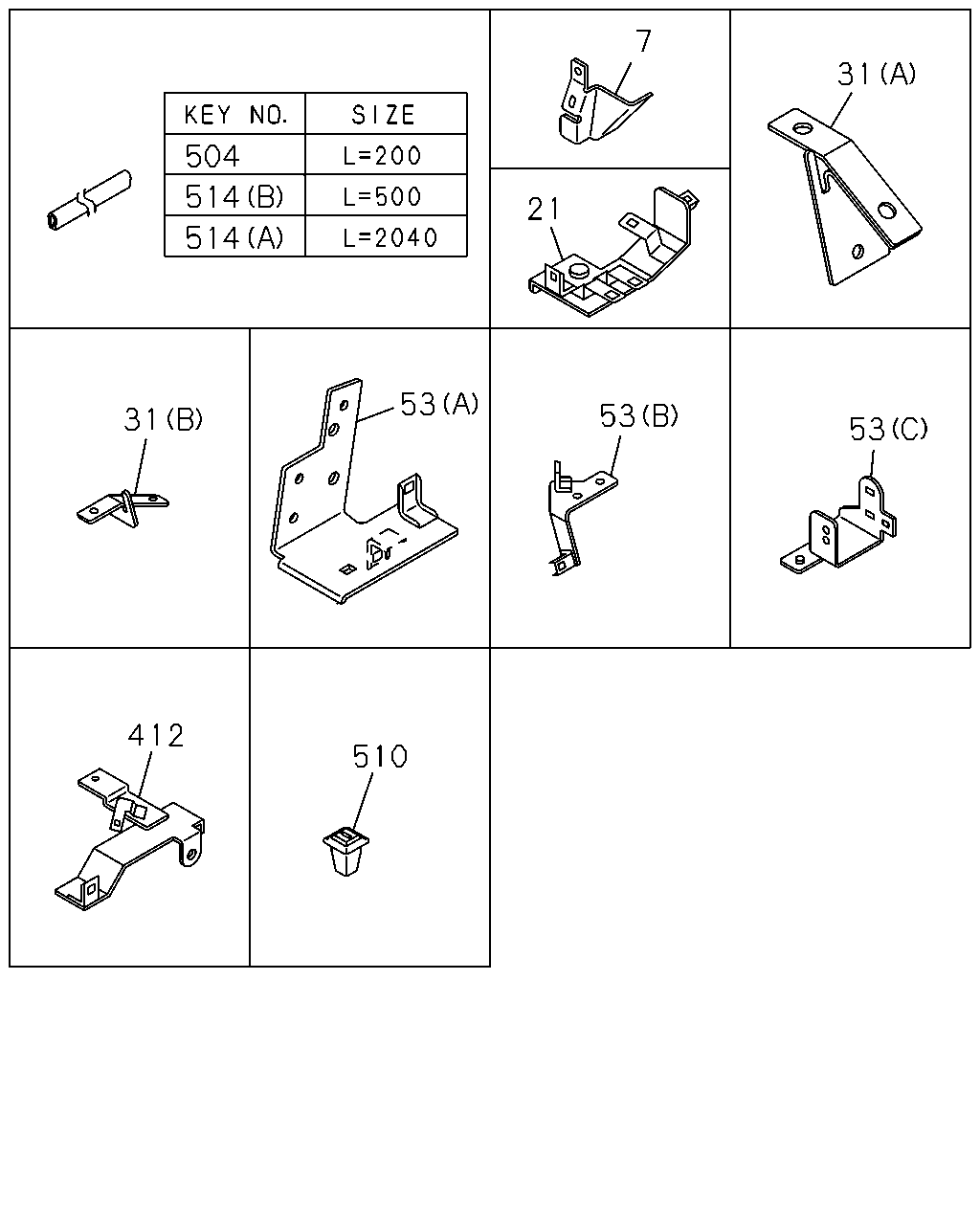

7 31 504 514 21 514 53 53 31 53 412 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR	8-98037-564-1	01	1	0608-	●	●
21	02.483 BRACKET; ENG HARNESS	8-98019-634-0	01	1	0608-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	02	1	0608-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-98019-633-0	01	1	0608-	●	●
53	02.483 BRACKET; HARNESS (A)	8-97357-140-0	01	1	0608-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98026-091-0	01	1	0608-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98028-248-0	01	1	0608-	●	●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0608-	●	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0608-	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0608-	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0608-	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0608-	●	●
514	02.559 FINISHER; HARNESS (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0608-	●	●

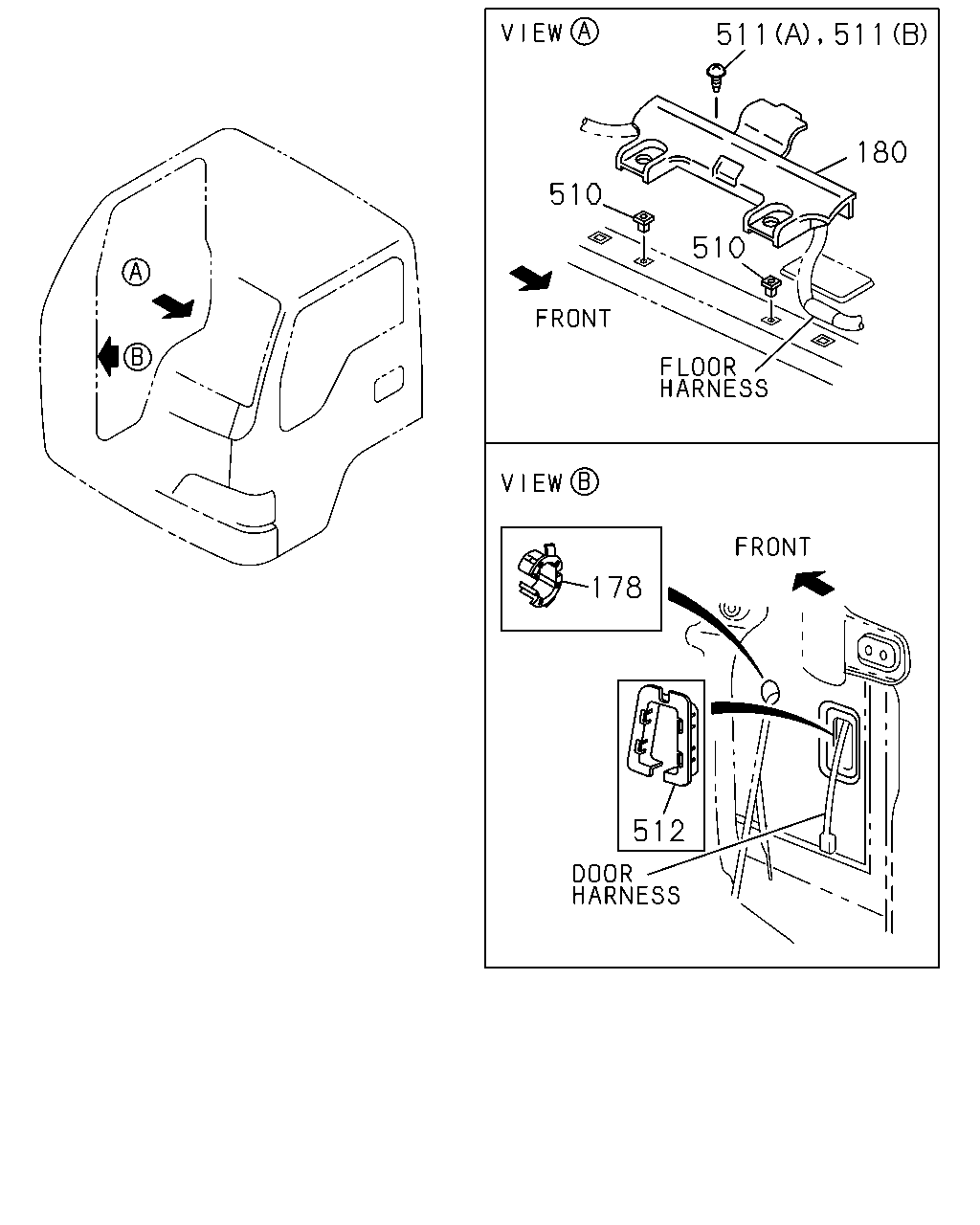

511 180 510 510 178 512 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0608-	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0608-	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0608-	●	●
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0608-0702	●	●
511	02.559 SCREW; HARNESS COVER 04.681 (B) M5X12 TAPPING	0-72180-512-0	04	1	0703-	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0608-	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0608-	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2)	8-97072-950-0	02	1	0608-	●	●

16 22 48 162 488 14 16 205 142 16 48 16 16 48 52 16 48 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0608-	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=24 H=40 L=24	1-09701-243-1	01	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.589 (E) ID=27	5-09700-323-0	01	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T) (F) ID=20	8-94241-972-0	01	1	0608-	●
16	02.559 CLIP; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0608-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0608-		●
16	02.559 CLIP; HARNESS (G) L=135	1-09987-143-1	02	1	0608-	●	●
16	02.559 CLIP; HARNESS 16.065 (H) 1 SET=5 PIECE	1-09987-214-0	02	1	0608-	●	●
16	02.559 CLIP; HARNESS 02.343 (I) ID=16	8-94413-325-0	02	1	0608-	●	●
16	02.559 CLIP; HARNESS 01.166 (J) ID=22 & 22	8-94464-837-0	01	1	0608-	●	●
16	02.559 CLIP; HARNESS (K) ID=15-32	8-97174-404-0	02	1	0608-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (L) L=140	5-09707-031-1	01	1	0608-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	0608-1009	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	0608-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	06	1	1011-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100	8-94327-067-1	04	1	0608-	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=100	8-94327-067-1	04	1	0608-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	10	1	0608-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	11	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.589 (E) ID=27	5-09700-323-0	04	1	0608-		●
16	02.559 CLIP; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0608-		●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0608-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0608-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0608-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=9	8-97063-874-0	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=40 L=90	1-09701-290-0	06	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=30 W/STUD	8-97078-642-2	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	02	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) L=140	5-09707-031-1	03	1	0608-	●	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.525 (C) T=4.5 & 9	5-09709-023-0	03	1	0608-	●	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0608-	●	●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0608-	●	●
162	02.559 CLIP; SW HARNESS 03.162 L=140	5-09707-031-1	01	1	0608-	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0608-	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0608-	●	●

8 139 139 38 516 139 313 481 38 150 466 377 386 377 386 159 159 511 511 139 219 294 515 219 294 469 515 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0608-	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0608-	●	●
139	02.559 BOLT; BRKT 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0608-	●	●
139	02.559 BOLT; BRKT (D)	8-97028-451-3	01	1	0608-	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (A) M8X10 W/LK WASHER	8-97025-916-0	02	1	0608-0610	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (A) M8X10 W/LK WASHER	8-98029-928-0	02	1	0611-	●	●
150	02.343 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0608-1004	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
294	02.559 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0608-	●
294	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
294	02.559 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0608-	●	●
313	02.559 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0608-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0608-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0608-	●	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0608-	●	●
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0608-0702	●	●
511	02.559 SCREW; HARNESS COVER 04.681 (B) M5X12 TAPPING	0-72180-512-0	04	1	0703-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0608-	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0608-	●	●
