◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#2113) — 16 parça

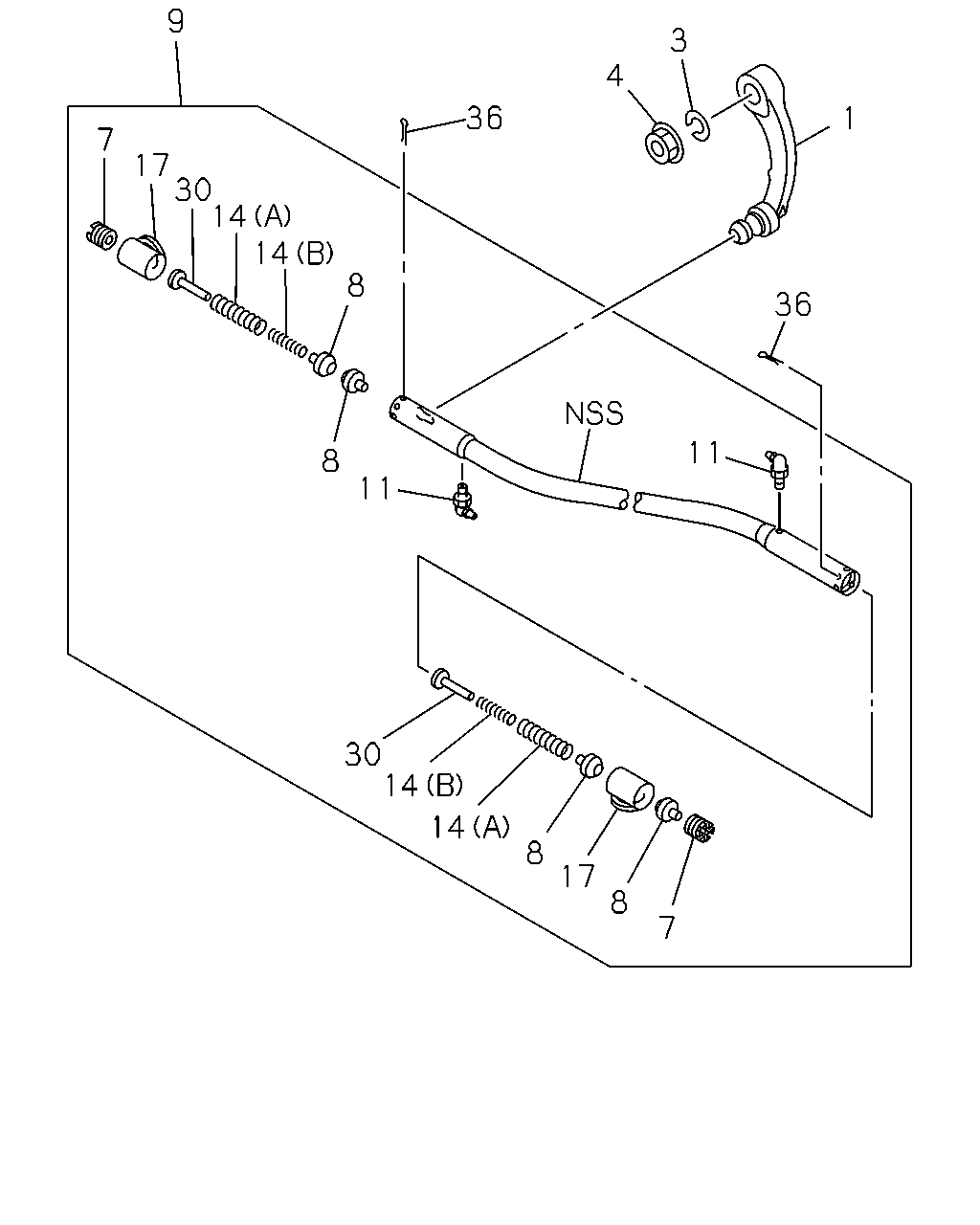

çizim 94486
9 3 4 36 1 7 17 30 14 14 8 36 11 8 11 30 14 14 8 17 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44340-338-0 01 1 9001- ●
1 ARM; PITMAN,STRG 1-44340-346-1 01 1 9001- ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9001- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9001- ● ●
7 SCREW; ADJ,JOINT 1-44375-008-0 02 1 9001- ● ●
8 SEAT; SPR,ROD END
OD=40 		1-09763-007-0 04 1 9001- ● ●
9 LINK; DRAG 1-44350-605-4 01 1 9001- ●
9 LINK; DRAG 1-44350-525-4 01 1 9001- ●
11 NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9001- ● ●
14 SPRING; COIL,DRAG LINK
(A) 		1-09580-037-1 02 1 9001-9704 ● ●
14 SPRING; COIL,DRAG LINK
(A) 		1-09580-555-0 02 1 9705- ● ●
14 SPRING; COIL,DRAG LINK
(B) 		1-09580-038-1 02 1 9001-9704 ● ●
14 SPRING; COIL,DRAG LINK
(B) 		1-09580-556-0 02 1 9705- ● ●
17 GUARD; MUD,DRAG LINK 1-44365-033-1 02 1 9001- ● ●
30 SPACER; DRAG LINK 1-44379-004-0 02 1 9001- ● ●
36 PIN; SPLIT,DRAG LINK 9-08115-065-0 02 1 9001- ● ●
