◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#2112) — 52 parça

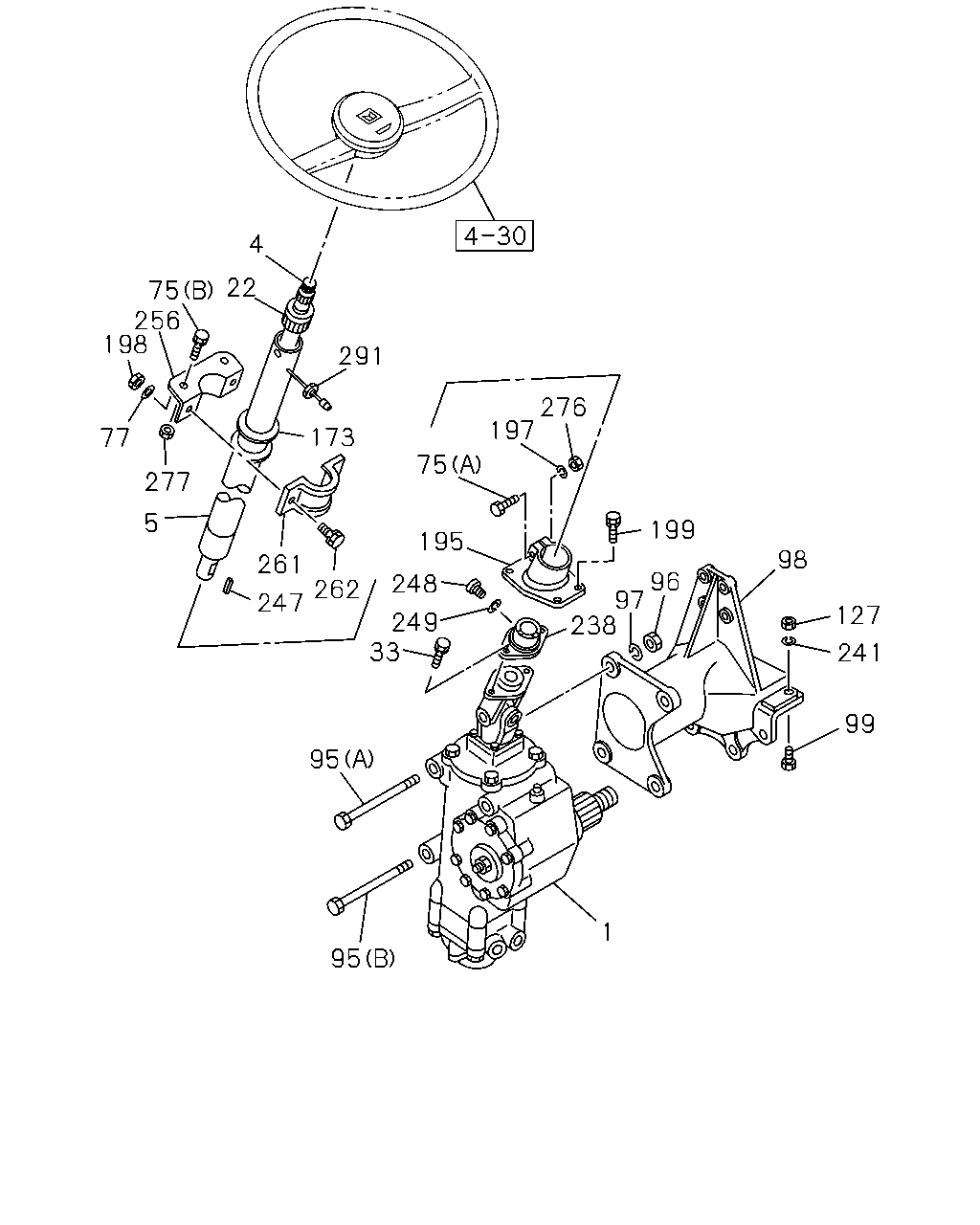

çizim 94153
4 22 75 256 198 291 276 197 173 77 75 277 5 199 195 98 261 96 97 238 248 262 247 127 249 33 241 99 95 1 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-582-0 01 1 9001-9704 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-684-0 01 1 9705- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-583-0 01 1 9001-9704 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-685-0 01 1 9705- ●
4 SHAFT; STRG 1-44131-066-1 01 1 9001- ● ●
5 COLUMN; STRG 1-44211-106-1 01 1 9001- ● ●
22 BUSHING; STRG COLUMN 9-44133-031-0 01 1 9001- ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X22 		9-01911-022-0 02 1 9001-9002 ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X22 W/LK WASHER 		0-50041-022-0 02 1 9003-9606 ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X20 FLANGE 		0-28681-020-0 02 1 9607- ● ●
75 BOLT; STRG COLUMN
(A) M10X55 		9-01056-055-0 01 1 9001-9004 ● ●
75 BOLT; STRG COLUMN
(A) M10X55 		0-10806-055-0 01 1 9005-9606 ● ●
75 BOLT; STRG COLUMN
(A) M10X60 FLANGE 		0-28081-060-0 01 1 9607- ● ●
75 BOLT; STRG COLUMN
(B) M10X20 W/LK WASHER 		9-01911-020-0 02 1 9001-9002 ● ●
75 BOLT; STRG COLUMN
(B) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9606 ● ●
75 BOLT; STRG COLUMN
(B) M10X20 FLANGE 		0-28681-020-0 02 1 9607- ● ●
77 WASHER; PL,COLUMN
ID=10.5 		9-09164-510-0 02 1 9001- ● ●
95 BOLT; STRG UNIT
(A) M16X177 		1-09000-426-0 02 1 9001- ● ●
95 BOLT; STRG UNIT
(B) M16X163 		1-09040-078-0 02 1 9001- ● ●
96 NUT; STRG UNIT
M16 		9-99110-516-0 02 1 9001- ● ●
97 WASHER; PL,STRG UNIT
ID=16.2 		1-09503-223-0 06 1 9001- ● ●
98 BRACKET; STRG GEAR BOX 1-44226-069-1 01 1 9001-9102 ●
98 BRACKET; STRG GEAR BOX 1-44226-133-1 01 1 9103- ●
98 BRACKET; STRG GEAR BOX 1-44226-066-3 01 1 9001-9102 ●
98 BRACKET; STRG GEAR BOX 1-44226-131-0 01 1 9103- ●
99 BOLT; BRKT TO FRAME
M14X45 		9-91066-445-0 06 1 9001-9001 ● ●
99 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 06 1 9002-9606 ● ●
99 BOLT; BRKT TO FRAME
M14X50 FLANGE 		0-28891-450-0 06 1 9607- ● ●
127 NUT; BRKT TO FRAME
M14 		9-99110-514-0 06 1 9001- ● ●
173 SEAT; RUBBER,STRG COLUMN 9-44224-028-0 01 1 9001- ● ●
195 END; STRG COLUMN 1-44215-007-1 01 1 9001- ● ●
197 WASHER; LK,COLUMN END
ID=10.2 		9-09150-510-0 01 1 9001- ● ●
198 NUT; COLUMN END
M10 		9-09111-510-0 02 1 9001- ● ●
199 BOLT; COLUMN END TO PEDAL BOARD
M10X25 		9-01911-025-0 04 1 9001-9002 ● ●
199 BOLT; COLUMN END TO PEDAL BOARD
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9003- ● ●
238 FLANGE; STRG SHAFT 9-44135-007-0 01 1 9001- ● ●
241 WASHER; PL
ID=15 		9-09651-069-0 12 1 9001-9606 ● ●
241 WASHER; PL
ID=15 		9-09651-069-0 06 1 9607- ● ●
247 KEY; WOODRUFF,YOKE TO SHAFT 9-09866-014-0 01 1 9001- ● ●
248 SCREW; YOKE 9-06130-812-0 01 1 9001- ● ●
249 WASHER; LK,YOKE
ID=8.2 		9-09150-508-0 01 1 9001- ● ●
256 BRACKET ASM; STEERING COLUMN 9-44221-182-1 01 1 9001- ● ●
261 CAP; STRG COLUMN 9-44222-014-0 01 1 9001- ● ●
262 BOLT; CAP TO BRKT
M8X16 W/LK WASHER 		9-01910-816-0 02 1 9001-9005 ● ●
262 BOLT; CAP TO BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9006-9606 ● ●
262 BOLT; CAP TO BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9607- ● ●
276 NUT; COLUMN & COVER
M10 		9-09110-410-0 01 1 9001-9307 ● ●
276 NUT; COLUMN & COVER
M10 		9-09110-510-0 01 1 9308-9606 ● ●
276 NUT; COLUMN & COVER
M10 FLANGE 		0-91150-210-0 01 1 9607- ● ●
277 NUT; COLUMN BRKT
M10 		9-09110-510-0 02 1 9308-9606 ● ●
277 NUT; COLUMN BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607- ● ●
291 GROMMET; STRG SHAFT COVER 9-09956-575-0 01 1 9001- ● ●
