4-25B — REAR FINAL DRIVE (#2110) — 156 parça

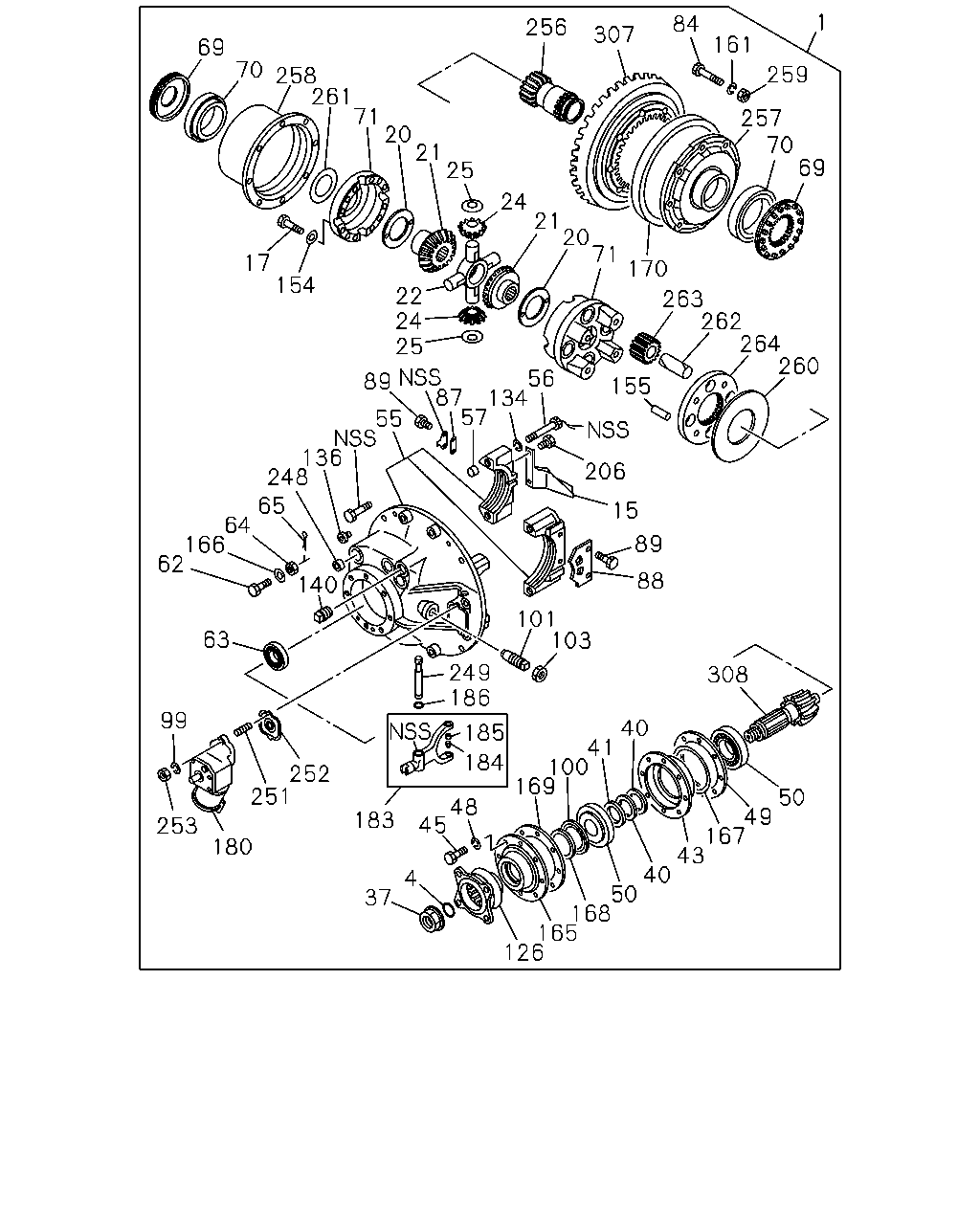

çizim 28722
1 84 256 307 161 69 70 259 258 261 71 20 21 25 257 70 69 24 21 20 71 17 154 170 22 24 25 263 262 264 260 89 56 87 134 57 155 55 136 248 206 65 64 166 62 15 89 140 88 101 103 63 249 186 308 99 40 185 41 100 169 184 252 251 50 49 167 43 40 50 168 165 126 48 45 183 253 180 4 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
38/7 		1-41001-134-0 01 1 9001-9201 ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41001-255-0 01 1 9001- ●
4 GASKET; FLANGE,FINAL PINION 9-09920-607-0 01 1 9001- ● ●
15 CATCHER; OIL 1-41129-003-0 01 1 9001- ● ●
17 BOLT; DIFF CAGE SETTING
M16X85 		9-09804-168-0 08 1 9001- ● ●
17 BOLT; DIFF CAGE SETTING
M16X71 		9-09804-169-0 04 1 9001- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-183-0 AR 1 9001-9009 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-260-0 AR 1 9010-9709 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 9710- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-184-0 AR 1 9001-9009 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-261-0 AR 1 9010-9709 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 9710- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-185-0 AR 1 9001-9009 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-262-0 AR 1 9010-9709 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 9710- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-186-0 AR 1 9001-9009 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-263-0 AR 1 9010-9709 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 9710- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-187-0 AR 1 9001-9009 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-264-0 AR 1 9010-9709 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 9710- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-188-0 AR 1 9001-9009 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-265-0 AR 1 9010-9709 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 9710- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-189-0 AR 1 9001-9009 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-266-0 AR 1 9010-9709 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 9710- ● ●
21 GEAR; SIDE,DIFF 9-41561-089-0 01 1 9001- ● ●
21 GEAR; SIDE,DIFF 1-41561-031-0 01 1 9001- ● ●
22 PIN; CROSS,DIFF PINION 9-41521-073-0 01 1 9001- ● ●
24 GEAR; PINION,DIFF 9-41551-051-0 04 1 9001- ● ●
25 WASHER; THRUST,PINION 1-41552-008-0 04 1 9001-9009 ● ●
25 WASHER; THRUST,PINION 1-41552-022-0 04 1 9010- ● ●
37 NUT; DRIVING PINION
M42 		1-09449-061-0 01 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.50 		9-41229-272-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.52 		9-41229-273-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.54 		9-41229-274-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.56 		9-41229-275-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.58 		9-41229-276-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.60 		9-41229-277-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.51 		9-41229-308-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.53 		9-41229-309-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.55 		9-41229-310-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.57 		9-41229-311-0 AR 1 9001- ● ●
40 SHIM; FINAL PINION
T=3.59 		9-41229-312-0 AR 1 9001- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		9-41229-303-0 AR 1 9001- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.20 		9-41229-304-0 AR 1 9001- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.40 		9-41229-305-0 AR 1 9001- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.60 		9-41229-306-0 AR 1 9001- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.80 		9-41229-307-0 AR 1 9001- ● ●
43 CAGE; FINAL PINION 9-41151-030-0 01 1 9001- ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		9-91656-655-0 08 1 9001-9005 ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9006- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9001- ● ●
49 SHIM; FINAL PINION CAGE
T=0.150 		9-41154-046-0 AR 1 9001- ● ●
49 SHIM; FINAL PINION CAGE
T=0.20 		9-41154-047-0 AR 1 9001- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-048-0 AR 1 9001- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-049-0 AR 1 9001- ● ●
50 BEARING; FINAL PINION 9-00093-121-0 02 1 9001- ● ●
55 CARRIER; DIFF 1-41110-075-1 01 1 9001- ● ●
56 BOLT; BRG CAP 9-09804-215-1 04 1 9001- ● ●
57 DOWEL; BRG CAP 9-41119-033-1 04 1 9001- ● ●
62 BOLT; RET
M8X38 		9-01145-838-0 02 1 9001-9005 ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 9006- ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-180-0 01 1 9001-9102 ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-196-0 01 1 9103- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-181-0 01 1 9001-9102 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-197-0 01 1 9103- ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9001-9707 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9001- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 9-41121-025-0 01 1 9001- ● ●
69 NUT; ADJ,DIFF CAGE 9-41121-024-1 01 1 9001- ● ●
70 BEARING; DIFF CAGE 9-00093-122-0 01 1 9001- ● ●
70 BEARING; DIFF CAGE
NSK ID=100 OD=157 T=36.5 		9-00093-120-0 01 1 9001- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-108-0 01 1 9001- ● ●
84 BOLT; FINAL DRIVE GEAR 9-09801-172-0 08 1 9001- ● ●
87 WASHER; LK 9-41124-014-0 01 1 9001-9809 ● ●
88 PLATE; LK,ADJ NUT 1-41124-003-0 01 1 9001- ● ●
88 PLATE; LK,ADJ NUT 9-41124-013-0 02 1 9001- ● ●
89 BOLT; LK PLATE
M10X20 		9-02341-020-0 02 1 9001-9204 ● ●
89 BOLT; LK PLATE
M10X20 		0-23801-020-0 02 1 9205-9809 ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28781-020-0 02 1 9810- ●
89 BOLT; LK PLATE
M16X40 		9-92351-640-0 02 1 9001-9005 ● ●
89 BOLT; LK PLATE
M16X40 		0-23801-640-0 02 1 9006- ● ●
99 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9001- ● ●
100 SEAL; OIL,FINAL PINION 1-09625-135-0 01 1 9001- ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 9-41127-016-0 01 1 9001- ● ●
103 NUT; ADJ BOLT
M28 		9-09842-003-0 01 1 9001-9902 ● ●
103 NUT; ADJ BOLT
M28 		9-09842-003-0 01 1 9903- ●
126 COUPLING; DRIVING PINION 9-37245-184-1 01 1 9001- ● ●
134 WASHER; LK,BRG CAP
ID=20.2 		9-09150-520-0 04 1 9001- ● ●
136 GROMMET; DIFF CARRIER 9-09956-294-0 03 1 9001- ● ●
140 PLUG; TAPER SCREW 9-09204-333-0 01 1 9001- ● ●
154 WASHER; LK,CAGE SET
ID=16.2 		9-09150-516-0 12 1 9001- ● ●
155 PIN; STRAIGHT,DIFF CAGE 9-08162-063-0 04 1 9001-9010 ● ●
155 PIN; STRAIGHT,DIFF CAGE 1-09740-077-0 04 1 9011- ● ●
161 WASHER; LK
ID=14.2 		9-09150-514-0 08 1 9001- ● ●
165 RETAINER; OIL SEAL,PINION 9-41161-020-0 01 1 9001- ● ●
166 WASHER; PILOT BRG
ID=8.4 OD=26 		9-09164-808-0 04 1 9001- ● ●
167 GASKET; FINAL PINION CAGE 9-09920-641-0 01 1 9001- ● ●
168 RING; FELT,FINAL PINION 9-09573-080-0 01 1 9001- ● ●
169 GASKET; RET,OIL SEAL 9-41162-028-0 01 1 9001- ● ●
170 DRUM; OIL COLLECTOR 9-41317-004-0 01 1 9001-9009 ● ●
180 SHIFT UNIT; CYL TYPE 1-48250-287-0 01 1 9001- ● ●
183 FORK ASM; SHIFT,LOW-HIGH CONT 9-41270-019-0 01 1 9001- ● ●
184 PIN; SHIFT FORK 9-41279-005-0 02 1 9001- ● ●
185 COLLAR; SHIFT FORK 9-41279-006-0 02 1 9001- ● ●
186 GASKET; SHAFT 9-09920-262-0 01 1 9001- ● ●
206 BOLT; OIL CATCHER 9-01991-230-0 02 1 9001-9005 ● ●
206 BOLT; OIL CATCHER 0-50151-230-0 02 1 9006- ● ●
248 CUP; SEALING 9-12319-029-0 03 1 9001-9408 ● ●
248 CUP; SEALING
OD=32 		1-09600-012-1 03 1 9409- ● ●
249 SHAFT; SHIFT FORK 9-41274-003-0 01 1 9001- ● ●
251 STUD; POWER CHAMBER FIX 9-04501-030-0 02 1 9001- ● ●
252 GASKET; CARRIER 9-41279-015-0 01 1 9001- ● ●
253 NUT
M10 		9-09110-410-0 02 1 9001- ● ●
256 GEAR; SUN 1-41262-002-0 01 1 9001- ● ●
257 CASE; DIFF CAGE A 9-41514-008-2 01 1 9001- ● ●
258 CASE; DIFF CAGE B 9-41514-006-1 01 1 9001- ● ●
259 NUT
M14 		9-99110-514-0 08 1 9001-9901 ● ●
259 NUT
M14 		1-09400-077-1 08 1 9902- ● ●
260 WASHER; THRUST,CASE A 9-41268-007-0 01 1 9001-9201 ● ●
260 WASHER; THRUST,CASE A 9-41268-007-0 01 1 9202-9202 ●
260 WASHER; THRUST,CASE A 1-41269-007-0 01 1 9203- ●
261 WASHER; THRUST,DIFF CAGE 9-41519-219-0 01 1 9001-9201 ● ●
261 WASHER; THRUST,DIFF CAGE 9-41519-219-0 01 1 9202-9202 ●
261 WASHER; THRUST,DIFF CAGE 1-41519-029-0 01 1 9203- ●
262 PIN; PLANETARY GEAR 9-41265-007-0 04 1 9001- ● ●
263 GEAR; PLANETARY,FINAL 1-41263-002-1 04 1 9001- ● ●
264 PLATE; CLU,SUN GEAR 9-41266-011-1 01 1 9001- ● ●
307 RING GEAR; FINAL DRIVE 9-41251-155-0 01 1 9001-9201 ●
307 RING GEAR; FINAL DRIVE 1-41251-192-0 01 1 9001- ●
308 PINION; FINAL DRIVE 1-41211-039-4 01 1 9001-9201 ●
308 PINION; FINAL DRIVE 1-41211-261-2 01 1 9001- ●

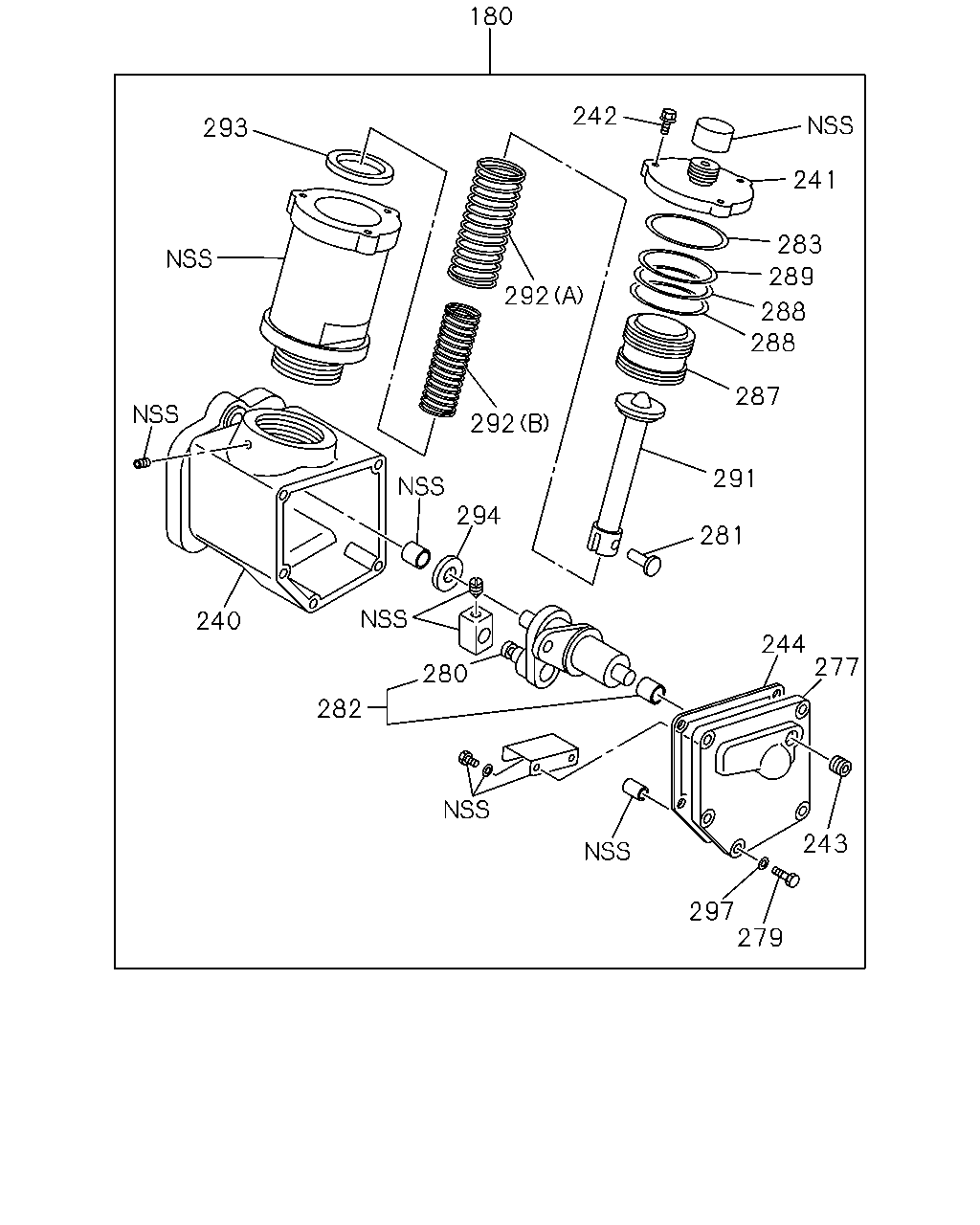

çizim 95418
180 242 293 241 283 289 292 288 288 287 292 291 294 281 240 244 277 280 282 243 297 279
BalonParca AdiParca NoAdetTipApplied Date A B C D
180 SHIFT UNIT; CYL TYPE 1-48250-287-0 01 1 9001- ● ●
240 HOUSING; SHIFT UNIT 1-48261-005-0 01 1 9001- ● ●
241 COVER; SHIFT HSG 1-48269-020-0 01 1 9001- ● ●
242 BOLT; COVER 1-48219-039-0 03 1 9001- ● ●
243 PLUG; COVER 1-48259-104-0 01 1 9001- ● ●
244 GASKET; COVER 9-48259-034-0 01 1 9001- ● ●
277 COVER ASM; SHIFT UNIT 1-48266-008-0 01 1 9001- ● ●
279 SCREW; COVER 1-48259-103-0 05 1 9001- ● ●
280 PIN; LEVER,ACTUATING 1-48269-015-0 01 1 9001- ● ●
281 PIN; CLEVIS 9-88510-342-0 01 1 9001- ● ●
282 BLOCK & PIN ASM; ACTUATING LEVER 1-48269-017-0 01 1 9001- ● ●
283 RING; SEAL 1-48269-019-0 01 1 9001- ● ●
287 PISTON; SHIFT UNIT 1-48262-006-0 01 1 9001- ● ●
288 OILER; FELT PISTON 1-48269-022-0 02 1 9001- ● ●
289 RING; PISTON 1-48269-021-0 01 1 9001- ● ●
291 ROD; PUSH 1-48263-003-0 01 1 9001- ● ●
292 SPRING; PISTON
(A) 		1-48265-004-0 01 1 9001- ● ●
292 SPRING; PISTON
(B) 		1-48265-005-0 01 1 9001- ● ●
293 STOP; PISTON 1-48269-023-0 01 1 9001- ● ●
294 BEARING; HSG 1-48269-016-0 01 1 9001- ● ●
297 WASHER; COVER
ID=6.1 		9-09150-506-0 05 1 9001- ● ●
