Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#211) — 225 parça

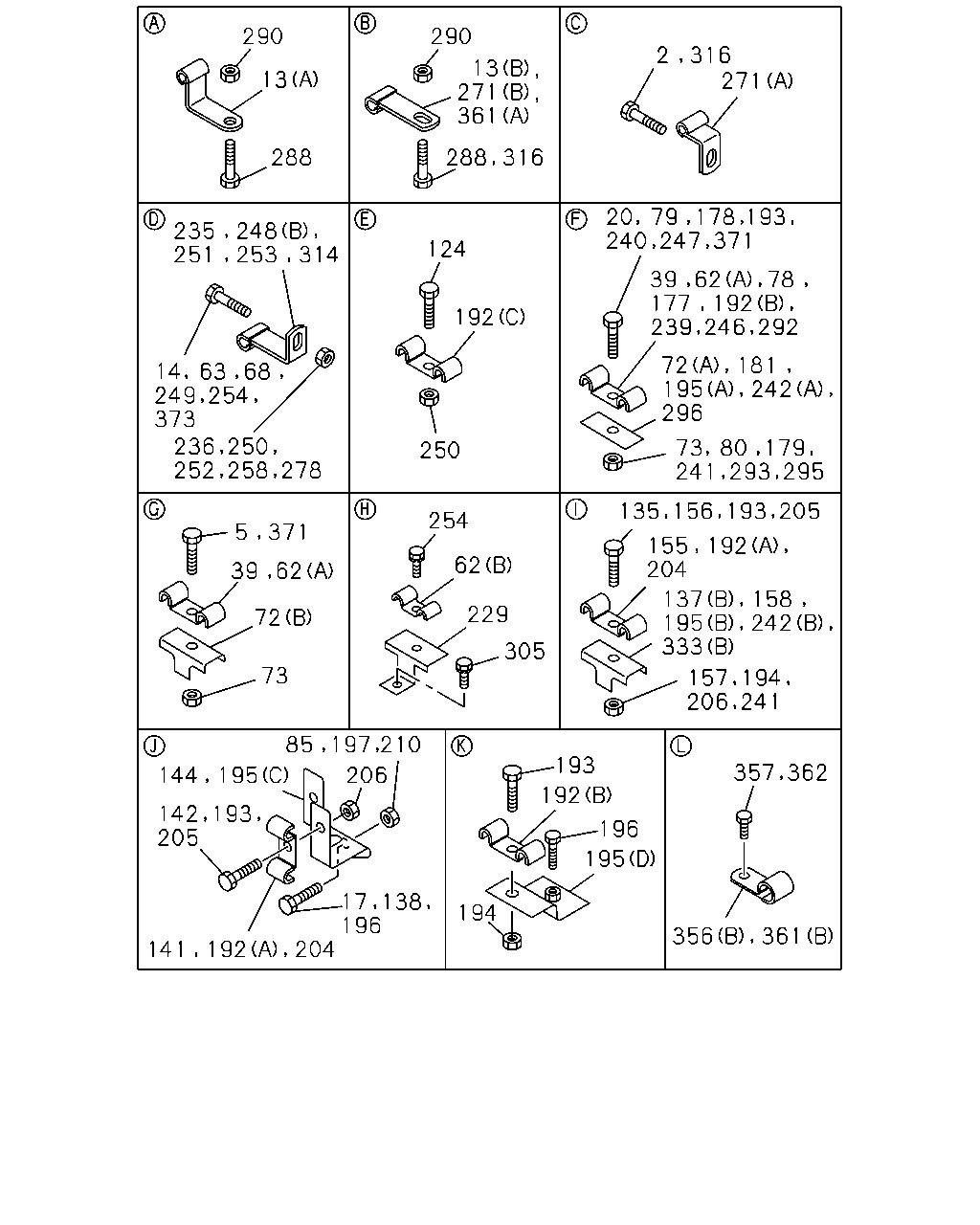

290 290 2 316 271 13 271 361 13 288 288 235 251 248 253 124 177 192 192 72 181 296 63 249 373 236 250 254 5 371 155 204 192 62 39 62 137 158 333 229 72 305 73 157 206 193 357 195 206 144 192 142 205 196 195 138 196 204 194 192 141 316 314 14 68 254 250 252 258 278 85 197 210 193 17 356 361 362 241 194 242 195 135 156 193 205 295 293 241 73 80 179 195 242 239 246 292 78 62 39 371 247 240 20 79 178 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9212-
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9212-
5	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	02	1	9212-
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9212-
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9212-
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9212-
17	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9212-
20	BOLT; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9212-
20	BOLT; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
39	CLIP; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	9212-
39	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	04	1	9212-
62	CLIP; AIR PIPE (B) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9212-
62	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 11X11	1-09700-739-0	02	1	9212-
62	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 9X11	1-09700-747-0	01	1	9212-
62	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 9X11	1-09700-747-0	02	1	9212-
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
68	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. PTO CONTROL<SV6> M8X25 FLANGE	0-28080-825-0	01	1	9212-
68	BOLT; CLIP,AIR PIPE EXC. PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	01	1	9212-
72	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	02	1	9212-
72	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9212-
72	BRACKET; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	02	1	9212-
73	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9212-
73	NUT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
73	NUT; CLIP BRKT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
78	CLIP; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9212-
79	BOLT; PIPE CLIP AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
79	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
79	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
79	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9212-
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
85	NUT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
124	BOLT; PIPE CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9212-
135	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9212-
135	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	04	1	9212-
135	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	03	1	9212-
137	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9212-
137	BRACKET; PIPE CLIP (A) M8 W/NUT	1-47475-439-2	02	1	9212-
138	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
138	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9212-
141	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	9212-
142	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	04	1	9212-
144	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 W/NUT	1-47475-439-2	02	1	9212-
155	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9212-
156	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X35 FLANGE	0-28080-835-0	01	1	9212-
157	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
158	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-427-1	01	1	9212-
177	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9212-
177	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9212-
178	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9212-
178	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
179	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
179	NUT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
181	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	02	1	9212-
181	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9212-
192	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	9212-
192	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9212-
192	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9212-
192	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	04	1	9212-
192	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9212-
193	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9212-
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	06	1	9212-
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	06	1	9212-
193	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9212-
193	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8X25 FLANGE	0-28080-825-0	01	1	9212-
194	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9212-
195	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9212-
195	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9212-
195	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9212-
195	BRACKET; PIPE CLIP (C) M8 W/NUT	1-47475-439-2	02	1	9212-
195	BRACKET; PIPE CLIP (D) 45X55	1-47475-460-1	01	1	9212-
196	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	03	1	9212-
197	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9212-
204	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9212-
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9212-
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9212-
204	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	04	1	9212-
205	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	04	1	9212-
205	BOLT; PIPE CLIP M8X35 FLANGE	0-28080-835-0	02	1	9212-
206	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9212-
210	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9212-
229	BRACKET; PIPE CLIP	1-47465-169-1	01	1	9212-
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8 H=20 L=20	1-09700-604-0	02	1	9212-
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
239	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9212-
239	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9212-
240	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9212-
240	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9212-
241	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9212-
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50	1-47475-299-2	02	1	9212-
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9212-
246	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9212-
247	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20	1-09700-604-0	04	1	9212-
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9212-
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9212-
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9212-
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9212-
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
250	NUT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9212-
251	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9212-
251	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9212-
252	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9212-
252	NUT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9212-
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9212-
253	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9212-
253	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9212-
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9212-
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9212-
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9212-
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9212-
271	CLIP; AIR PIPE FIX FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9212-
271	CLIP; AIR PIPE FIX FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 L=40	9-09524-875-0	01	1	9212-
271	CLIP; AIR PIPE FIX FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> (B) ID=9	9-09524-872-0	02	1	9212-
278	NUT; CLIP,AIR PIPE EXC. PTO CONTROL<SV6> M8	9-09110-408-0	01	1	9212-
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9212-
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9212-
292	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-
292	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9212-
293	NUT; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
295	NUT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
296	BRACKET; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	02	1	9212-
305	BOLT; CLIP BRKT M6X16 W/LK&PL WASHER	1-09980-586-0	01	1	9212-
314	CLIP; AIR PIPE EXC. PTO CONTROL<SV6> ID=6 H=20 L=20	1-09700-603-0	01	1	9212-
316	BOLT; CLIP FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	01	1	9212-
316	BOLT; CLIP FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9501-
316	BOLT; CLIP FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-
333	BRACKET; BRK AIR PIPE (A)	1-79738-175-1	01	1	9212-
333	BRACKET; BRK AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	02	1	9212-
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=50	1-47475-299-2	01	1	9212-
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B)	1-47475-427-1	03	1	9212-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	5-09700-165-0	01	1	9212-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B)	9-09524-565-0	01	1	9212-
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9212-
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9212-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) ID=14	1-09987-154-0	01	1	9212-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (C) L=250	5-09707-030-0	01	1	9212-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (B) ID=16 L=20	9-09525-532-0	01	1	9212-
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9212-
371	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	02	1	9212-
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> M8X40 FLANGE	0-28080-840-0	03	1	9212-
371	BOLT; CLIP,AIR PIPE WHEEL BASE 3700MM(37W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
373	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9212-
373	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9212-

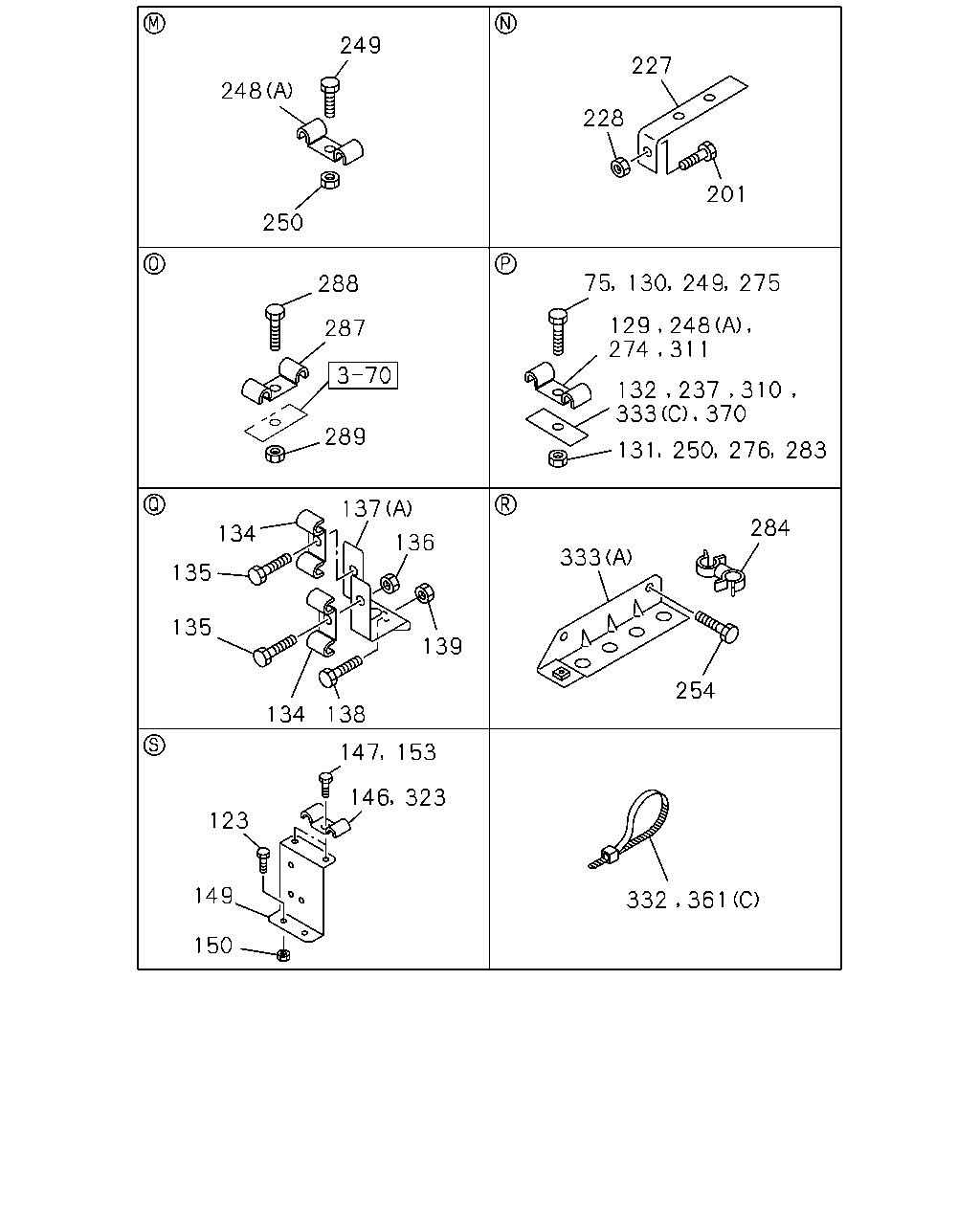

249 227 248 228 201 250 75 130 249 275 288 274 287 289 131 250 276 283 137 284 134 136 333 135 135 139 254 134 138 147 153 146 323 123 149 150 332 361 333 370 132 237 310 311 129 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9212-
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9212-
129	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9212-
130	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
131	NUT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
132	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9212-
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9212-
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9212-
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9212-
134	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9212-
134	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9212-
135	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9212-
135	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	04	1	9212-
135	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	03	1	9212-
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9212-
137	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9212-
137	BRACKET; PIPE CLIP (A) M8 W/NUT	1-47475-439-2	02	1	9212-
138	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
138	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9212-
139	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9212-
146	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9212-
147	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9212-
149	BRACKET; PIPE CLIP	1-47475-728-1	01	1	9212-
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9212-
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9212-
201	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9212-
227	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-730-0	01	1	9212-
228	NUT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
237	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	02	1	9212-
237	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	02	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9212-
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20	1-09700-604-0	04	1	9212-
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9212-
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9212-
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9212-
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9212-
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
250	NUT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9212-
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9212-
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9212-
254	BOLT; PIPE CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9212-
274	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9212-
274	CLIP; AIR PIPE ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	9212-
275	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9212-
276	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9212-
283	NUT; CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	01	1	9212-
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	9212-
287	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9212-
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9212-
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
310	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> L=50	1-47475-299-2	01	1	9212-
311	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9212-
323	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9212-
332	CLIP; BAND L=140	5-09707-031-0	01	1	9212-
333	BRACKET; BRK AIR PIPE (A)	1-79738-175-1	01	1	9212-
333	BRACKET; BRK AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	02	1	9212-
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=50	1-47475-299-2	01	1	9212-
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B)	1-47475-427-1	03	1	9212-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) ID=14	1-09987-154-0	01	1	9212-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (C) L=250	5-09707-030-0	01	1	9212-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (B) ID=16 L=20	9-09525-532-0	01	1	9212-
370	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9212-

353 203 354 354 203 353 59 16 357 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>	1-47466-005-0	01	1	9212-
59	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE	1-09984-141-0	02	1	9212-
203	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9212-
353	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9212-
354	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9212-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	5-09700-165-0	01	1	9212-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B)	9-09524-565-0	01	1	9212-
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9212-
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
