Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#21093) — 86 parça

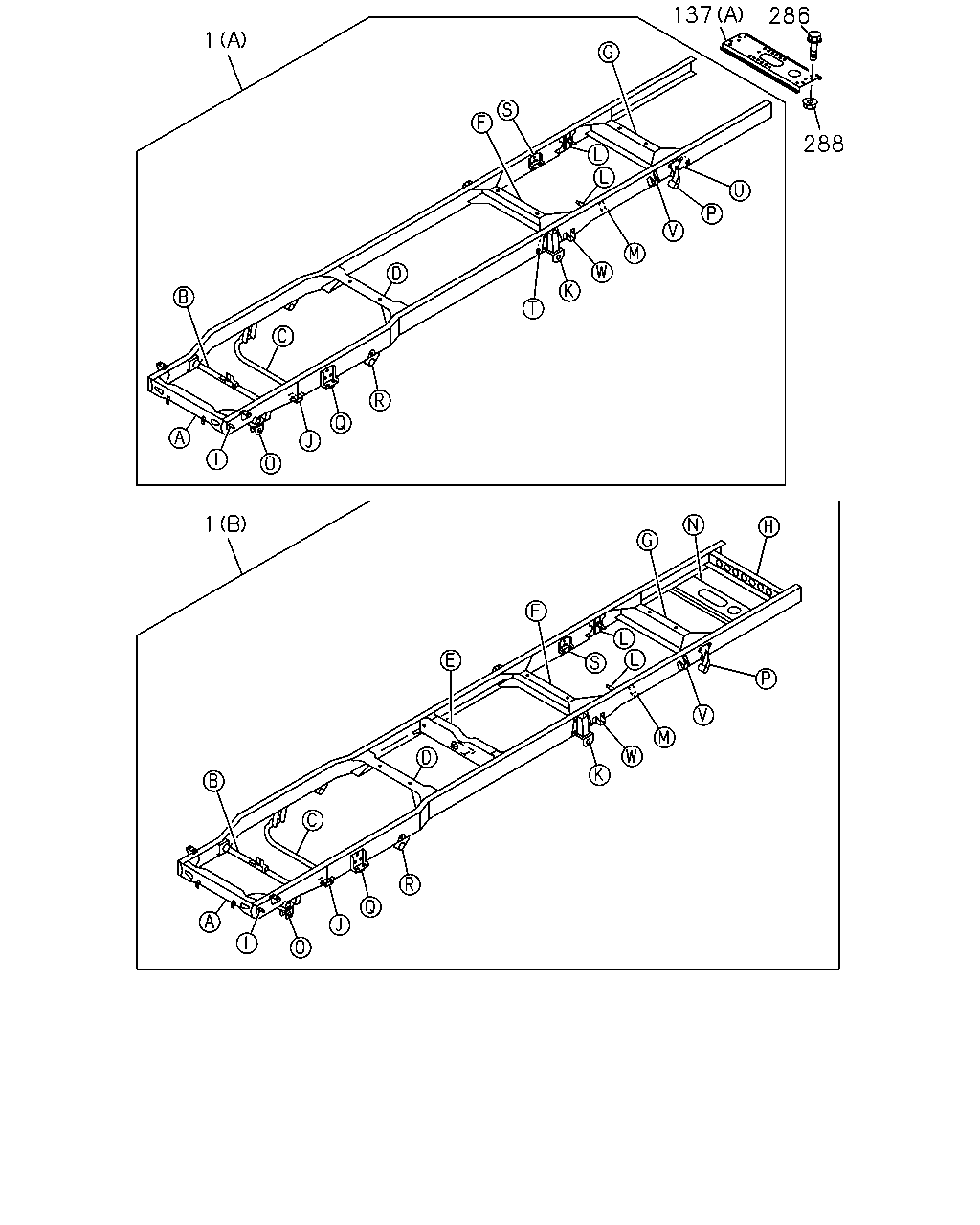

137 286 1 288 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) (A)	8-98018-021-3	01	1	0608-	●
1	07.003 FRAME ASM (B)	8-98018-023-1	01	1	0608-		●
137	07.629 BRACKET; SPARE TIRE EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A)	8-97205-235-1	01	1	0608-	●
137	07.629 BRACKET; SPARE TIRE (B)	8-97076-885-1	01	1	0608-		●
286	07.632 BOLT; SPARE TIRE BRKT EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.068 M10X30 FLANGE	0-28661-030-0	06	1	0608-0804	●
286	07.632 BOLT; SPARE TIRE BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.068 M10X30 FLANGE	0-28661-030-0	06	1	0805-	●
288	07.632 NUT; SPARE TIRE BRKT EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 04.085 M10 FLANGE	0-91180-210-0	06	1	0608-0804	●
288	07.632 NUT; SPARE TIRE BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.085 M10 FLANGE	0-91180-210-0	06	1	0805-	●

39 217 173 103 103 147 147 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	07.112 BRACKET; FRT SPR,RR REAR WIDE TREAD(V4T)	8-94258-091-0	02	1	0608-	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0608-		●
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (A)	8-97223-748-0	02	1	0608-	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	02	1	0608-		●
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (B)	8-97223-750-0	02	1	0608-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-750-0	02	1	0608-		●
147	07.535 RUBBER; SUB SPRING REAR WIDE TREAD(V4T)	8-97254-387-0	04	1	0608-	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0608-		●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (A)	8-94372-324-1	02	1	0608-	●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (B)	8-97213-460-4	02	1	0608-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING REAR WIDE TREAD(V4T)	8-94258-963-0	02	1	0608-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-94258-963-0	02	1	0608-		●

20 17 2 17 42 34 74 75 344 75 74 188 345 198 198 130 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST REAR WIDE TREAD(V4T)	8-97034-332-2	01	1	0608-	●
2	07.010 MEMBER; CROSS,1ST	8-97034-332-2	01	1	0608-		●
17	07.039 GUSSET; 1ST C/MBR REAR WIDE TREAD(V4T)	8-97088-205-1	02	1	0608-	●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	0608-		●
20	07.012 MEMBER; CROSS,2ND REAR WIDE TREAD(V4T)	8-97078-581-1	01	1	0608-	●
20	07.012 MEMBER; CROSS,2ND	8-97078-581-1	01	1	0608-		●
34	07.012 MEMBER; CROSS,3RD REAR WIDE TREAD(V4T)	8-97047-768-2	01	1	0608-	●
34	07.012 MEMBER; CROSS,3RD	8-97047-768-2	01	1	0608-		●
42	07.011 MEMBER; CROSS,ENG MTG REAR WIDE TREAD(V4T)	8-98011-485-2	01	1	0608-	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98011-485-2	01	1	0608-		●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER, LH-LOWER	8-97101-837-1	02	1	0608-		●
74	07.039 GUSSET; 4TH C/MBR RH-LOWER, LH-UPPER	8-97101-838-1	02	1	0608-		●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) RH-UPPER, LH-LOWER	8-97062-499-0	02	1	0608-	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER, LH-LOWER	8-97062-499-0	02	1	0608-		●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) RH-LOWER, LH-UPPER	8-97062-500-0	02	1	0608-	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER, LH-UPPER	8-97062-500-0	02	1	0608-		●
130	07.014 MEMBER; CROSS,END	8-94257-620-2	01	1	0608-		●
139	07.012 MEMBER; CROSS,6TH REAR WIDE TREAD(V4T)	8-97062-498-1	01	1	0608-	●
139	07.012 MEMBER; CROSS,6TH	8-97062-498-1	01	1	0608-		●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97078-869-1	01	1	0608-		●
198	07.039 GUSSET; 6TH C/MBR REAR WIDE TREAD(V4T) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0608-	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0608-		●
198	07.039 GUSSET; 6TH C/MBR REAR WIDE TREAD(V4T) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0608-	●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0608-		●
344	07.012 MEMBER; CROSS,4TH	8-97078-707-3	01	1	0608-		●
345	07.012 MEMBER; CROSS,5TH REAR WIDE TREAD(V4T)	8-97062-497-3	01	1	0608-	●
345	07.012 MEMBER; CROSS,5TH	8-97062-497-3	01	1	0608-		●

101 358 63 140 140 142 137 105 24 215 51 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT REAR WIDE TREAD(V4T)	8-97065-788-1	01	1	0608-	●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-788-1	01	1	0608-		●
24	07.105 BRACKET; FRT SPR,FRT REAR WIDE TREAD(V4T)	8-94366-816-1	01	1	0608-	●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-816-1	01	1	0608-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER REAR WIDE TREAD(V4T)	8-98003-209-0	02	1	0608-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98003-209-0	02	1	0608-		●
63	01.270 BRACKET; RAD MTG REAR WIDE TREAD(V4T)	8-98035-104-1	01	1	0608-	●
63	01.270 BRACKET; RAD MTG	8-98035-104-1	01	1	0608-		●
101	07.112 BRACKET; RR SPR,FRT REAR WIDE TREAD(V4T)	8-97034-156-1	02	1	0608-	●
101	07.112 BRACKET; RR SPR,FRT	8-97034-156-1	02	1	0608-		●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T)	8-94459-512-1	01	1	0608-	●
105	07.112 BRACKET; RR SPR,RR	8-94459-512-1	01	1	0608-		●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T)	8-94459-511-1	01	1	0608-	●
105	07.112 BRACKET; RR SPR,RR	8-94459-511-1	01	1	0608-		●
137	07.629 BRACKET; SPARE TIRE EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A)	8-97205-235-1	01	1	0608-	●
137	07.629 BRACKET; SPARE TIRE (B)	8-97076-885-1	01	1	0608-		●
140	07.112 BRACKET; S/ABS,RR REAR WIDE TREAD(V4T) 07.395 (B)	8-94101-303-0	01	1	0608-	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-94101-303-0	01	1	0608-		●
140	07.112 BRACKET; S/ABS,RR REAR WIDE TREAD(V4T) (A)	8-97012-285-0	01	1	0608-	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97012-285-0	01	1	0608-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE REAR WIDE TREAD(V4T)	8-97035-308-0	01	1	0608-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE	8-97035-308-0	01	1	0608-		●
215	07.524 BUSHING; BRKT,RR SPRING REAR WIDE TREAD(V4T)	8-97184-699-1	04	1	0608-	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0608-		●
358	07.039 BRACKET; CAB EARTH REAR WIDE TREAD(V4T)	8-97210-488-0	01	1	0608-	●
358	07.039 BRACKET; CAB EARTH	8-97210-488-0	01	1	0608-		●

376 376 376 376 376 376 376 376 376 176 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
118	07.529 NUT; STOPPER REAR WIDE TREAD(V4T) M8 LOCK NUT	0-91370-008-0	04	1	0608-	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	04	1	0608-		●
176	04.085 BOLT; C/MBR,ENG MTG REAR WIDE TREAD(V4T) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	0608-	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	0608-		●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X28 TAPER END	9-06750-828-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (F) D10X30 TAPER END	9-06751-030-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (G) D10X36 TAPER END	9-06751-036-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.105 (H) D12X30 TAPER END	9-06751-230-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.535 (I) D12X34 TAPER END	9-06751-234-0	AR	1	0608-	●	●
