4-25A — REAR FINAL DRIVE (#2109) — 131 parça

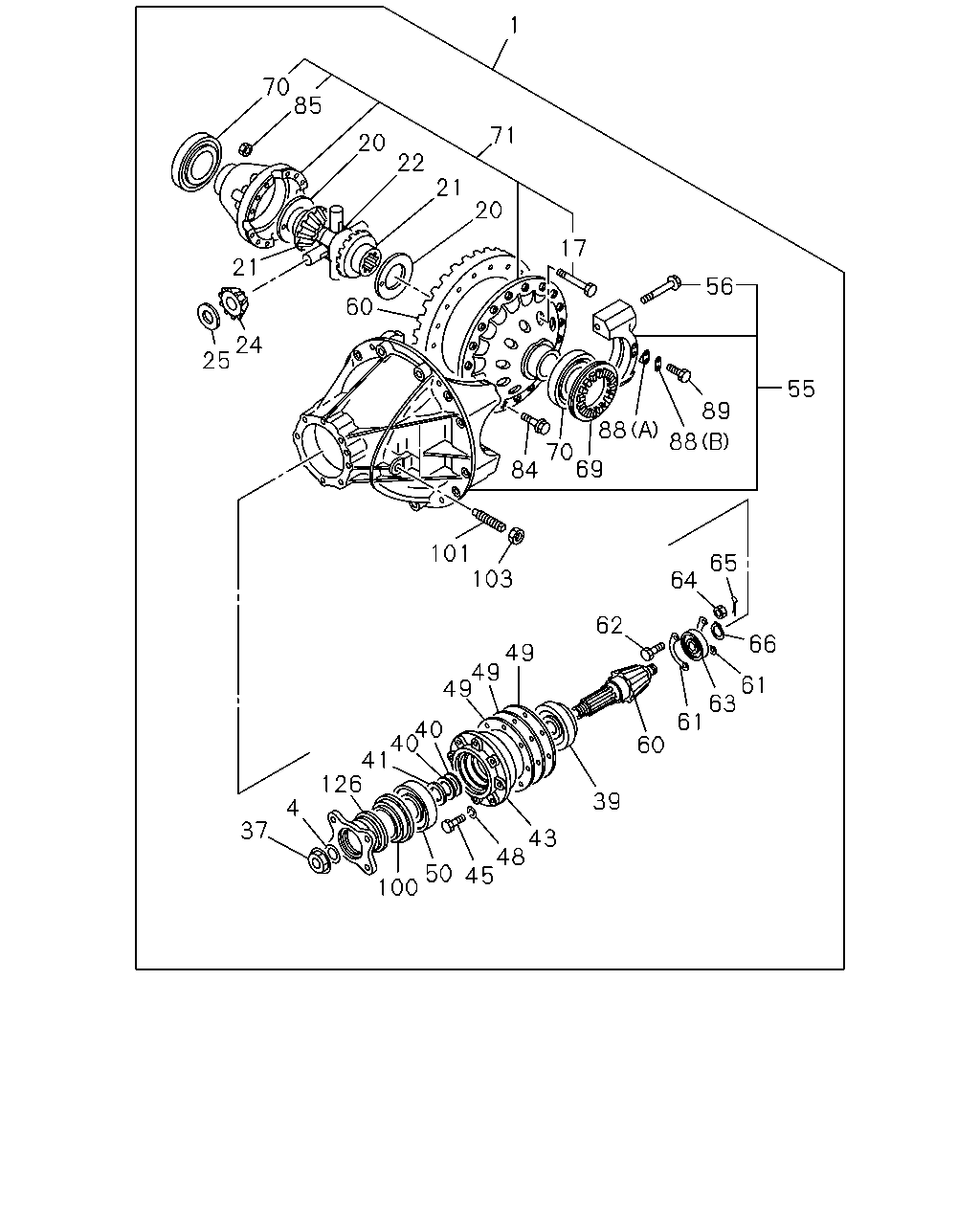

çizim 28477
1 70 85 71 20 22 21 20 21 17 56 60 24 25 55 89 88 88 70 101 103 65 64 62 66 49 49 49 61 63 61 40 40 41 126 60 39 4 37 43 48 45 50 100 84 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
6RB1 STD ENG(07L) WHEEL BASE 5800MM(58W) 39/8 		1-41000-671-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 39/8 		1-41000-671-0 01 1 9208-9702 ●
1 DRIVE ASM; FINAL,RR
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 39/8 		1-41000-671-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
6RB1 STD ENG(07L) WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) 39/8 		1-41000-504-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
BUS BODY REAR OVERHANG<YK4> 39/8 		1-41000-504-0 01 1 9208-9702 ●
1 DRIVE ASM; FINAL,RR
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAR OVERHANG<YK4> 39/8 		1-41000-504-0 01 1 9208-9702 ●
1 DRIVE ASM; FINAL,RR
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 39/8 		1-41000-504-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 39/7 		1-41000-495-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
6RB1 STD ENG(07L) WHEEL BASE 6600MM(66W) 39/7 		1-41000-495-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 39/7 		1-41000-495-0 01 1 9208- ●
1 DRIVE ASM; FINAL,RR
6RB1 STD ENG(07L) WHEEL BASE 6800MM(68W) 41/8 		1-41000-672-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 41/8 		1-41000-672-0 01 1 9208-9702 ●
1 DRIVE ASM; FINAL,RR
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 41/8 		1-41000-672-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
LEFT HAND DRIVE(LVR6FB) P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 41/8 		1-41000-672-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
6RB1 STD ENG(07L) WHEEL BASE 6800MM(68W) 39/7 		1-41000-719-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 39/7 		1-41000-719-0 01 1 9208-9702 ●
1 DRIVE ASM; FINAL,RR
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 39/7 		1-41000-719-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-356-0 01 1 9001- ●
1 DRIVE ASM; FINAL,RR
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 41/8 		1-41000-465-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
6RB1 STD ENG(07L) WHEEL BASE 6600MM(66W) 41/8 		1-41000-465-0 01 1 9001-9207 ●
1 DRIVE ASM; FINAL,RR
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAR OVERHANG<YK4> 41/8 		1-41000-465-0 01 1 9208-9702 ●
1 DRIVE ASM; FINAL,RR
BUS BODY REAR OVERHANG<YK4> 41/8 		1-41000-465-0 01 1 9208-9702 ●
1 DRIVE ASM; FINAL,RR
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAR OVERHANG<YK4> 41/8 		1-41000-465-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
RIGHT HAND DRIVE(LVR5FB) BUS BODY REAR OVERHANG<YK4> 41/8 		1-41000-465-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
LEFT HAND DRIVE(LVR6FB) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 41/8 		1-41000-465-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
39/9 		1-41001-319-0 01 1 9001- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 9001- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 08 1 9001- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 9001- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-169-0 AR 1 9001- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-170-0 AR 1 9001- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-171-0 AR 1 9001- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-172-0 AR 1 9001- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-173-0 AR 1 9001- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-174-0 AR 1 9001- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-175-0 AR 1 9001- ● ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-076-0 02 1 9001- ● ● ● ● ●
22 PIN; CROSS,DIFF PINION
OD=32 		1-41521-002-1 01 1 9001- ● ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-022-0 04 1 9001- ● ● ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-001-0 04 1 9001- ● ● ● ● ●
37 NUT; DRIVING PINION
M39 FLANGE 		1-09449-056-2 01 1 9001- ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-086-0 01 1 9001- ● ● ● ● ●
39 BEARING; FINAL PINION
NTN 		9-00093-072-1 01 1 9001- ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		9-00093-206-2 01 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 9001- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 9001- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 9001- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 9001- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 9001- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 9001- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 9001- ● ● ● ● ●
43 CAGE; FINAL PINION
T=75 		1-41151-005-0 01 1 9001- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		9-91656-450-0 08 1 9001-9005 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 9006- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 9001- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-009-0 AR 1 9001- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-010-0 AR 1 9001- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-011-0 AR 1 9001-9903 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.300 		1-41154-104-0 AR 1 9904- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.150 		1-41154-012-0 AR 1 9001-9903 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.400 		1-41154-105-0 AR 1 9904- ● ● ● ● ●
50 BEARING; FINAL PINION
NTN 		1-09812-013-0 01 1 9001- ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-070-1 01 1 9001- ● ● ● ● ●
55 CARRIER; DIFF 1-41110-070-0 01 1 9001-9902 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-120-1 01 1 9903- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9001- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-370-2 01 1 9001-9607 ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-543-0 01 1 9608- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-373-2 01 1 9001-9608 ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-517-0 01 1 9609- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-379-2 01 1 9001-9608 ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-549-0 01 1 9609- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-378-2 01 1 9001- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-380-2 01 1 9001- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9001-9702 ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 9703- ● ● ● ● ●
62 BOLT; RET
M8X36 		9-01145-836-0 02 1 9001-9005 ● ● ● ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 9006-9702 ● ● ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-007-0 01 1 9001-9509 ● ● ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-229-2 01 1 9510- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-015-0 01 1 9001-9509 ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 9510- ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9001-9707 ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708- ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9001- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 9001- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 01 1 9001- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 01 1 9001- ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9001-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9001-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-046-0 01 1 9001-9902 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-270-0 01 1 9903- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-035-0 01 1 9001-9902 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-269-0 01 1 9903- ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		9-09802-561-0 16 1 9001-9804 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 9805- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		9-99110-514-0 12 1 9001-9901 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 9902- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9001- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9001- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		9-02040-816-0 04 1 9001-9204 ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9205- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 9001- ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST
M24X104 		9-41127-006-0 01 1 9001-9902 ● ● ● ● ●
103 NUT; ADJ BOLT
M28 		9-09842-003-0 01 1 9001-9902 ● ● ● ● ●
126 COUPLING; DRIVING PINION
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 		1-37245-081-3 01 1 9001-9207 ● ● ● ●
126 COUPLING; DRIVING PINION
6RB1 STD ENG(07L) WHEEL BASE 5800MM(58W),WHEEL BASE 6600MM(66W) 		1-37245-081-3 01 1 9001-9207 ● ● ●
126 COUPLING; DRIVING PINION
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAR OVERHANG<YK4> 		1-37245-081-3 01 1 9208-9702 ● ● ●
126 COUPLING; DRIVING PINION
BUS BODY REAR OVERHANG<YK4> 		1-37245-081-3 01 1 9208-9702 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-081-3 01 1 9208-9702 ●
126 COUPLING; DRIVING PINION
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAR OVERHANG<YK4> 		1-37245-081-4 01 1 9703- ● ● ●
126 COUPLING; DRIVING PINION
RIGHT HAND DRIVE(LVR5FB) BUS BODY REAR OVERHANG<YK4> 		1-37245-081-4 01 1 9703- ● ● ●
126 COUPLING; DRIVING PINION
LEFT HAND DRIVE(LVR6FB) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37245-081-4 01 1 9703- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-081-4 01 1 9703- ●
126 COUPLING; DRIVING PINION
6RB1 STD ENG(07L) WHEEL BASE 6800MM(68W) 		1-37245-100-3 01 1 9001-9207 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-100-3 01 1 9001-9207 ●
126 COUPLING; DRIVING PINION
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		1-37245-100-3 01 1 9208-9702 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-100-3 01 1 9208-9702 ●
126 COUPLING; DRIVING PINION
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		1-37245-100-4 01 1 9703- ● ● ●
126 COUPLING; DRIVING PINION
LEFT HAND DRIVE(LVR6FB) P85 PROP SHAFT<B5N> BUS BODY REAR OVERHANG<YK4> 		1-37245-100-4 01 1 9703- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-100-4 01 1 9703- ●
