◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51102 - NKR(RHD)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#21088) — 9 parça

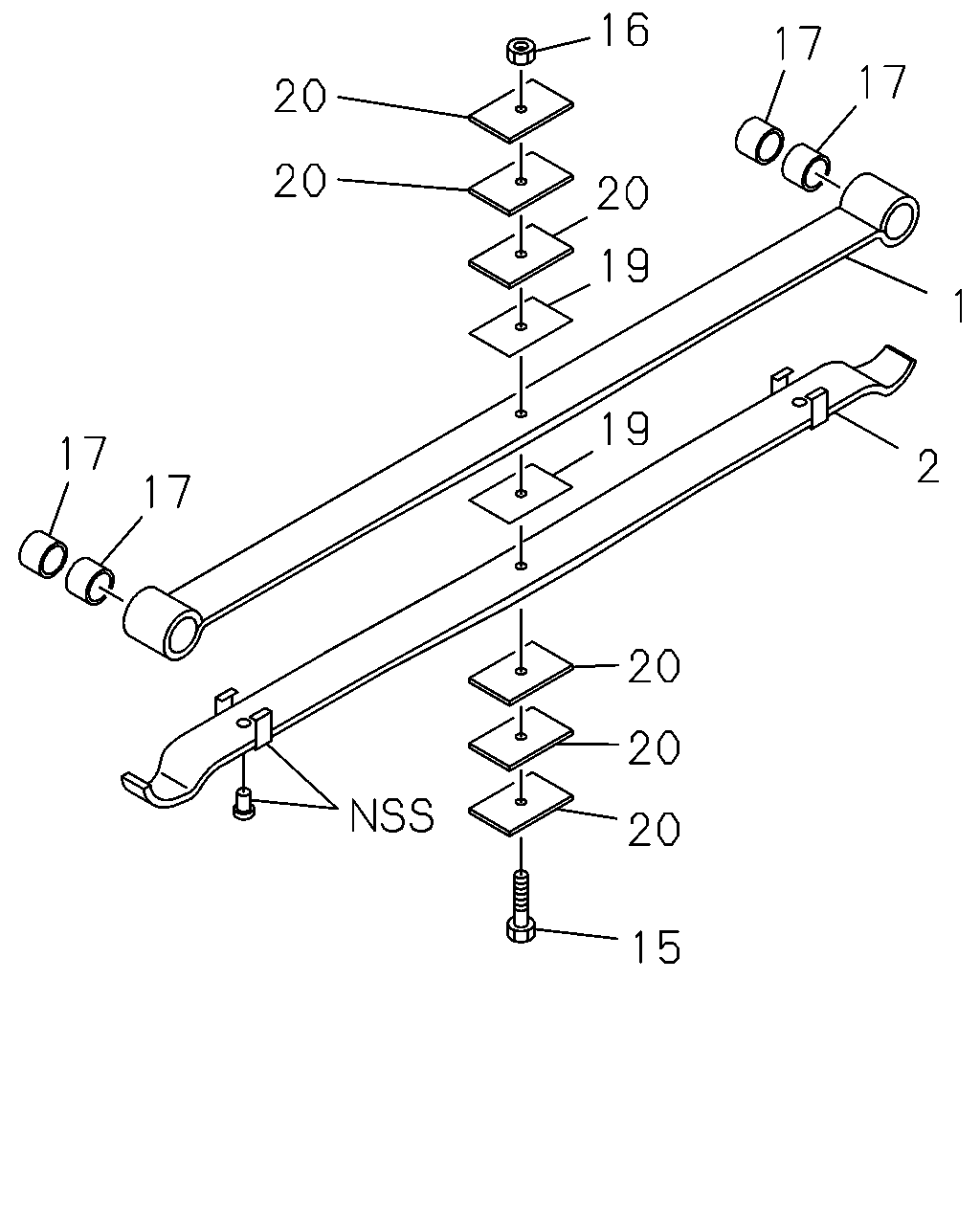

çizim 56269
16 17 17 20 20 20 19 1 19 17 2 17 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98042-920-0, 98042920 		8-98045-597-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98042-921-0, 98042921 		8-98045-598-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98042-920-0, 98042920 		8-97330-056-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98042-921-0, 98042921 		8-97330-058-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: A = 8-98042-920-0, 98042920, B = 8-98042-921-0, 98042921 		8-98045-599-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98042-920-0, 98042920, B = 8-98042-921-0, 98042921 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=43.25 ASM PART: A = 8-98042-920-0, 98042920, B = 8-98042-921-0, 98042921 		8-98040-327-0 04 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98042-920-0, 98042920, B = 8-98042-921-0, 98042921 		8-94478-008-1 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=8 ASM PART: A = 8-98042-920-0, 98042920, B = 8-98042-921-0, 98042921 		8-94360-988-0 06 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
