4-20 — REAR AXLE CASE AND SHAFT (#2108) — 234 parça

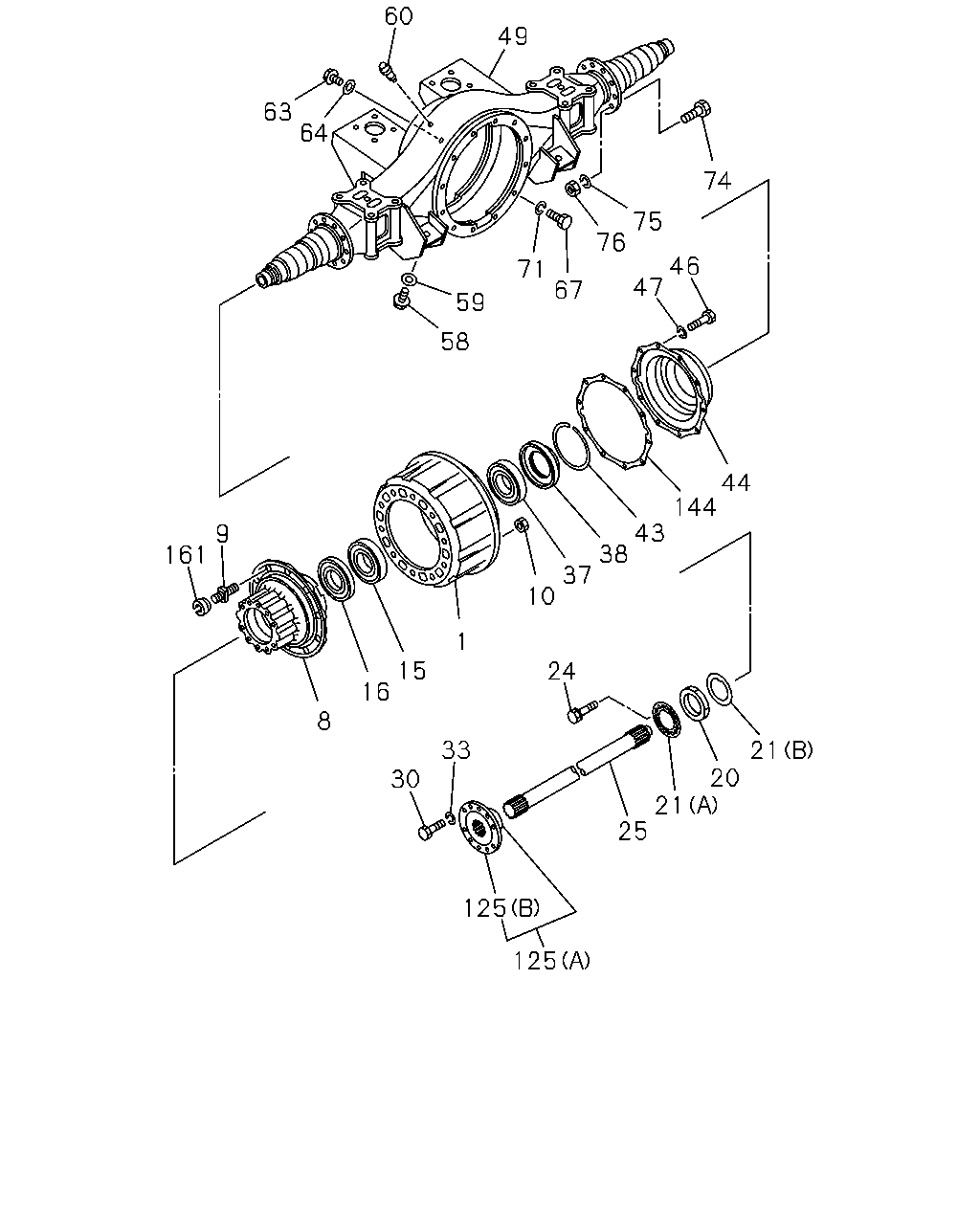

çizim 28476
60 49 63 64 74 75 76 46 47 71 67 59 58 44 144 43 38 37 10 9 161 1 15 24 16 8 33 21 20 30 21 25 125 125
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
AXLE RATIO 2 SPEED<W9Y> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-275-2 01 1 9001- ● ●
1 DRUM; BRK,RR
AXLE RATIO 2 SPEED<W9Y> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-274-2 01 1 9001- ● ●
1 DRUM; BRK,RR
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-149-2 01 1 9001- ● ●
1 DRUM; BRK,RR
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-148-2 01 1 9001-9109 ● ●
1 DRUM; BRK,RR
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-194-4 01 1 9110- ● ●
1 DRUM; BRK,RR
SINGLE SPEED-AXLE RATIO<W9Z> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-137-1 01 1 9001- ● ●
1 DRUM; BRK,RR
SINGLE SPEED-AXLE RATIO<W9Z> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-136-1 01 1 9001- ● ●
8 HUB; RR AXLE
AXLE RATIO 2 SPEED<W9Y> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-027-5 02 1 9001- ● ●
8 HUB; RR AXLE
AXLE RATIO 2 SPEED<W9Y> EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-029-1 02 1 9001- ● ●
8 HUB; RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-022-2 02 1 9001- ● ●
8 HUB; RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-028-2 02 1 9001- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5 LH THREAD,M22X49.5 RH THREAD 		1-42332-041-0 10 1 9001-9111 ● ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J),FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q), FINALGEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X52 LH THREAD,M22X53.5 RH THREAD 		1-42332-136-0 20 1 9112-9201 ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X49.5 RH THREAD 		1-42331-041-0 10 1 9001-9111 ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X53.5 RH THREAD 		1-42331-136-0 10 1 9112-9201 ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34 LH THREAD,M22X51.5 RH THREAD 		1-42332-046-0 08 1 9001-9109 ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34.5 LH THREAD,M22X53.5 RH THREAD 		1-42332-117-0 08 1 9110- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X53.5 RH THREAD 		1-42331-136-0 10 1 9202-9202 ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X53.5 RH THREAD 		1-42331-136-0 20 1 9203- ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34,M22X51.5 RH THREAD 		1-42331-046-0 08 1 9001-9109 ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34.5,M22X53.5 RH THREAD 		1-42331-117-0 08 1 9110- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X52 LH THREAD,M22X53.5 RH THREAD 		1-42332-136-0 10 1 9112-9201 ● ●
10 NUT; WHEEL PIN,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-037-0 20 1 9001-9111 ● ●
10 NUT; WHEEL PIN,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-071-0 20 1 9112- ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-037-0 16 1 9001-9109 ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		9-09110-522-0 16 1 9110-9609 ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 FLANGE 		1-09440-055-0 16 1 9610-9904 ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 FLANGE 		1-09440-065-0 16 1 9905- ● ●
15 BEARING; HUB OUTER,RR AXLE
AXLE RATIO 2 SPEED<W9Y> KOYO 		1-09812-050-0 02 1 9001- ● ●
15 BEARING; HUB OUTER,RR AXLE
AXLE RATIO 2 SPEED<W9Y> NSK 		9-00093-115-0 02 1 9001- ● ●
15 BEARING; HUB OUTER,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> 		9-00093-026-0 02 1 9001- ● ●
16 SEAL; OIL,RR HUB,OUTER
AXLE RATIO 2 SPEED<W9Y> 		1-09625-370-0 02 1 9001- ● ●
16 SEAL; OIL,RR HUB,OUTER
SINGLE SPEED-AXLE RATIO<W9Z> 		1-09625-332-0 02 1 9001- ● ●
20 NUT; BRG,RR HUB
AXLE RATIO 2 SPEED<W9Y> M88 		9-09843-062-2 02 1 9001- ● ●
20 NUT; BRG,RR HUB
SINGLE SPEED-AXLE RATIO<W9Z> 		9-09843-059-2 02 1 9001- ● ●
21 WASHER; LK,BRG NUT
AXLE RATIO 2 SPEED<W9Y> (B) 		9-09853-034-0 02 1 9001- ● ●
21 WASHER; LK,BRG NUT
AXLE RATIO 2 SPEED<W9Y> (A) ID=88 		9-09854-112-0 02 1 9001- ● ●
21 WASHER; LK,BRG NUT
SINGLE SPEED-AXLE RATIO<W9Z> (C) 		9-09854-111-0 02 1 9001- ● ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		9-01910-616-0 06 1 9001-9005 ● ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9006-9701 ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 9702- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42171-122-2 01 1 9001- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42171-121-2 01 1 9001- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-290-0 01 1 9101-9410 ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-425-0 01 1 9411- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-289-0 01 1 9101-9410 ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-424-0 01 1 9411- ● ●
25 SHAFT; AXLE,RR
SINGLE SPEED-AXLE RATIO<W9Z> 		1-42171-144-2 02 1 9001-9406 ● ●
25 SHAFT; AXLE,RR
SINGLE SPEED-AXLE RATIO<W9Z> 		1-42171-421-0 02 1 9407- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09020-095-1 20 1 9001- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-614-0 20 1 9001-9408 ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 9409- ● ●
37 BEARING; HUB INNER,RR AXLE
AXLE RATIO 2 SPEED<W9Y> 		9-00093-116-0 02 1 9001- ● ●
37 BEARING; HUB INNER,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9001- ● ●
37 BEARING; HUB INNER,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> KOYO ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9001- ● ●
38 SEAL; OIL,RR HUB,INNER
AXLE RATIO 2 SPEED<W9Y> 		9-09924-393-0 02 1 9001- ● ●
38 SEAL; OIL,RR HUB,INNER
SINGLE SPEED-AXLE RATIO<W9Z> 		1-09625-351-0 02 1 9001- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
AXLE RATIO 2 SPEED<W9Y> 		9-09950-180-0 02 1 9001- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> 		9-09950-103-0 02 1 9001- ● ●
44 CATCHER; OIL,RR AXLE SHAFT
AXLE RATIO 2 SPEED<W9Y> 		1-42319-046-0 02 1 9001- ● ●
46 BOLT; OIL CATCHER,RR AXLE SHAFT
AXLE RATIO 2 SPEED<W9Y> M8X12 		9-02040-812-0 20 1 9001-9112 ● ●
46 BOLT; OIL CATCHER,RR AXLE SHAFT
AXLE RATIO 2 SPEED<W9Y> M8X12 		9-02040-812-0 20 1 9202-9204 ● ●
46 BOLT; OIL CATCHER,RR AXLE SHAFT
AXLE RATIO 2 SPEED<W9Y> M8X12 		0-20800-812-0 20 1 9205- ● ●
47 WASHER; LK,OIL CATCHER,RR AXLE SHAFT
AXLE RATIO 2 SPEED<W9Y> ID=8.2 		9-09150-508-0 20 1 9001- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42130-627-5 01 1 9001-9201 ● ●
49 CASE; RR AXLE
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42130-627-6 01 1 9202- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) 		1-42150-148-0 01 1 9101-9204 ● ●
49 CASE; RR AXLE
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42150-148-1 01 1 9205- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SINGLE SPEED-AXLE RATIO<W9Z> 		1-42110-898-2 01 1 9001-9204 ● ●
49 CASE; RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> 		1-42110-898-3 01 1 9205- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-42110-901-3 01 1 9001-9204 ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9001- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 9001- ● ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 01 1 9001- ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-09604-021-0 01 1 9001-9307 ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 9308- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=24.5 OD=32.5 		9-09920-392-0 01 1 9001-9307 ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X40 		9-92051-640-0 06 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X40 		9-92061-640-0 06 1 9004-9201 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X40 		9-92061-640-0 06 1 9202- ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X90 		9-91056-690-0 02 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X90 		9-91066-690-0 02 1 9004-9201 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X90 		9-91066-690-0 02 1 9202- ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X70 		9-91056-670-0 04 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X60 		9-91066-660-0 04 1 9004-9204 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) M16X60 		9-91066-660-0 04 1 9205-9307 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M16X60 		9-91066-660-0 04 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X50 		9-92061-650-0 08 1 9101-9204 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) M16X50 		9-92061-650-0 08 1 9205-9307 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M16X50 		9-92061-650-0 08 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X65 		9-91056-665-0 04 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 9004- ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X45 		9-92041-645-0 04 1 9001-9204 ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X45 		0-20801-645-0 04 1 9205-9708 ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X45 		0-20801-645-0 02 1 9709- ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X40 		9-92051-640-0 08 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X40 		9-92061-640-0 08 1 9004- ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X90 		9-91056-690-0 01 1 9001-9005 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X90 		0-10806-690-0 01 1 9006- ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-516-0 12 1 9001-9003 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 9004- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09000-014-1 14 1 9001-9204 ●
74 BOLT; RR BRK ASM SETTING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50 		1-09000-014-1 14 1 9001-9204 ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09000-014-1 14 1 9205-9403 ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 9404- ● ●
74 BOLT; RR BRK ASM SETTING
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M14X50 		1-09000-014-1 16 1 9001-9204 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-514-0 20 1 9001-9001 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-614-0 20 1 9002-9401 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 20 1 9402- ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-414-0 20 1 9001-9001 ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 20 1 9002- ● ●
125 FLANGE ASM; AXLE SHAFT
AXLE RATIO 2 SPEED<W9Y> (B) 		9-42172-010-0 02 1 9001-9410 ● ●
125 FLANGE ASM; AXLE SHAFT
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (B) 		9-42172-010-0 02 1 9411- ● ●
125 FLANGE ASM; AXLE SHAFT
AXLE RATIO 2 SPEED<W9Y> (A) 		9-42172-011-0 02 1 9001-9410 ● ●
125 FLANGE ASM; AXLE SHAFT
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (A) 		9-42172-011-0 02 1 9411- ● ●
144 GASKET; OIL CATCHER
AXLE RATIO 2 SPEED<W9Y> 		1-42319-047-0 02 1 9001- ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-026-1 10 1 9001-9202 ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 10 1 9001-9202 ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 20 1 9203-9304 ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 20 1 9305-9704 ● ●

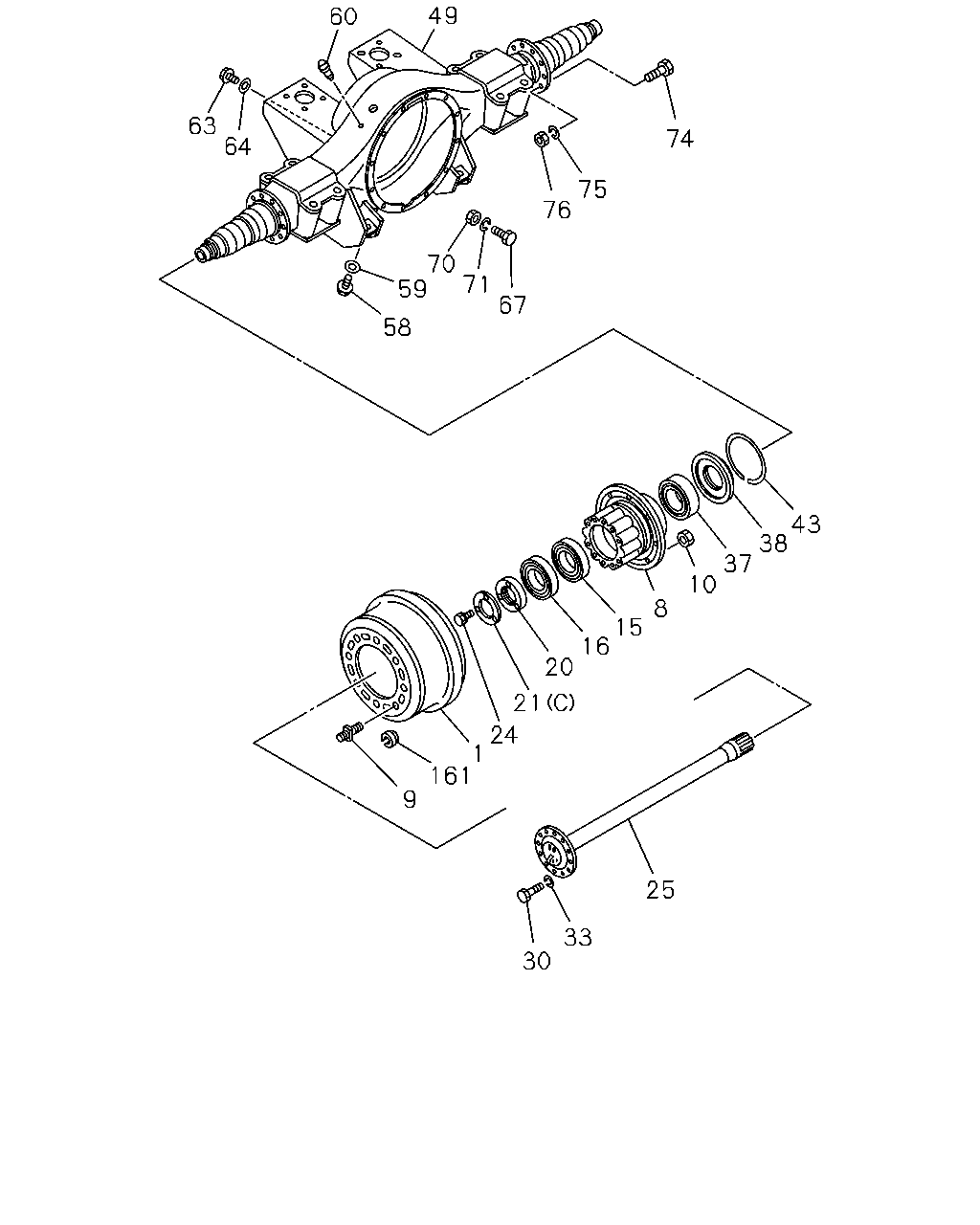

çizim 94417
49 60 63 64 74 75 76 70 71 59 67 58 43 38 37 10 8 15 16 20 21 24 1 161 9 25 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
AXLE RATIO 2 SPEED<W9Y> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-275-2 01 1 9001- ● ●
1 DRUM; BRK,RR
AXLE RATIO 2 SPEED<W9Y> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-274-2 01 1 9001- ● ●
1 DRUM; BRK,RR
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-149-2 01 1 9001- ● ●
1 DRUM; BRK,RR
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-148-2 01 1 9001-9109 ● ●
1 DRUM; BRK,RR
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-194-4 01 1 9110- ● ●
1 DRUM; BRK,RR
SINGLE SPEED-AXLE RATIO<W9Z> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-137-1 01 1 9001- ● ●
1 DRUM; BRK,RR
SINGLE SPEED-AXLE RATIO<W9Z> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-136-1 01 1 9001- ● ●
8 HUB; RR AXLE
AXLE RATIO 2 SPEED<W9Y> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-027-5 02 1 9001- ● ●
8 HUB; RR AXLE
AXLE RATIO 2 SPEED<W9Y> EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-029-1 02 1 9001- ● ●
8 HUB; RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-022-2 02 1 9001- ● ●
8 HUB; RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42311-028-2 02 1 9001- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5 LH THREAD,M22X49.5 RH THREAD 		1-42332-041-0 10 1 9001-9111 ● ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J),FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q), FINALGEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X52 LH THREAD,M22X53.5 RH THREAD 		1-42332-136-0 20 1 9112-9201 ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X49.5 RH THREAD 		1-42331-041-0 10 1 9001-9111 ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X53.5 RH THREAD 		1-42331-136-0 10 1 9112-9201 ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34 LH THREAD,M22X51.5 RH THREAD 		1-42332-046-0 08 1 9001-9109 ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34.5 LH THREAD,M22X53.5 RH THREAD 		1-42332-117-0 08 1 9110- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X53.5 RH THREAD 		1-42331-136-0 10 1 9202-9202 ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X51.5,M22X53.5 RH THREAD 		1-42331-136-0 20 1 9203- ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34,M22X51.5 RH THREAD 		1-42331-046-0 08 1 9001-9109 ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X34.5,M22X53.5 RH THREAD 		1-42331-117-0 08 1 9110- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X52 LH THREAD,M22X53.5 RH THREAD 		1-42332-136-0 10 1 9112-9201 ● ●
10 NUT; WHEEL PIN,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-037-0 20 1 9001-9111 ● ●
10 NUT; WHEEL PIN,RR AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-071-0 20 1 9112- ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-037-0 16 1 9001-9109 ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		9-09110-522-0 16 1 9110-9609 ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 FLANGE 		1-09440-055-0 16 1 9610-9904 ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 FLANGE 		1-09440-065-0 16 1 9905- ● ●
15 BEARING; HUB OUTER,RR AXLE
AXLE RATIO 2 SPEED<W9Y> KOYO 		1-09812-050-0 02 1 9001- ● ●
15 BEARING; HUB OUTER,RR AXLE
AXLE RATIO 2 SPEED<W9Y> NSK 		9-00093-115-0 02 1 9001- ● ●
15 BEARING; HUB OUTER,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> 		9-00093-026-0 02 1 9001- ● ●
16 SEAL; OIL,RR HUB,OUTER
AXLE RATIO 2 SPEED<W9Y> 		1-09625-370-0 02 1 9001- ● ●
16 SEAL; OIL,RR HUB,OUTER
SINGLE SPEED-AXLE RATIO<W9Z> 		1-09625-332-0 02 1 9001- ● ●
20 NUT; BRG,RR HUB
AXLE RATIO 2 SPEED<W9Y> M88 		9-09843-062-2 02 1 9001- ● ●
20 NUT; BRG,RR HUB
SINGLE SPEED-AXLE RATIO<W9Z> 		9-09843-059-2 02 1 9001- ● ●
21 WASHER; LK,BRG NUT
AXLE RATIO 2 SPEED<W9Y> (B) 		9-09853-034-0 02 1 9001- ● ●
21 WASHER; LK,BRG NUT
AXLE RATIO 2 SPEED<W9Y> (A) ID=88 		9-09854-112-0 02 1 9001- ● ●
21 WASHER; LK,BRG NUT
SINGLE SPEED-AXLE RATIO<W9Z> (C) 		9-09854-111-0 02 1 9001- ● ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		9-01910-616-0 06 1 9001-9005 ● ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9006-9701 ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 9702- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42171-122-2 01 1 9001- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42171-121-2 01 1 9001- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-290-0 01 1 9101-9410 ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-425-0 01 1 9411- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-289-0 01 1 9101-9410 ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42171-424-0 01 1 9411- ● ●
25 SHAFT; AXLE,RR
SINGLE SPEED-AXLE RATIO<W9Z> 		1-42171-144-2 02 1 9001-9406 ● ●
25 SHAFT; AXLE,RR
SINGLE SPEED-AXLE RATIO<W9Z> 		1-42171-421-0 02 1 9407- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09020-095-1 20 1 9001- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-614-0 20 1 9001-9408 ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 9409- ● ●
37 BEARING; HUB INNER,RR AXLE
AXLE RATIO 2 SPEED<W9Y> 		9-00093-116-0 02 1 9001- ● ●
37 BEARING; HUB INNER,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9001- ● ●
37 BEARING; HUB INNER,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> KOYO ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9001- ● ●
38 SEAL; OIL,RR HUB,INNER
AXLE RATIO 2 SPEED<W9Y> 		9-09924-393-0 02 1 9001- ● ●
38 SEAL; OIL,RR HUB,INNER
SINGLE SPEED-AXLE RATIO<W9Z> 		1-09625-351-0 02 1 9001- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
AXLE RATIO 2 SPEED<W9Y> 		9-09950-180-0 02 1 9001- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> 		9-09950-103-0 02 1 9001- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42130-627-5 01 1 9001-9201 ● ●
49 CASE; RR AXLE
FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-42130-627-6 01 1 9202- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) 		1-42150-148-0 01 1 9101-9204 ● ●
49 CASE; RR AXLE
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 		1-42150-148-1 01 1 9205- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SINGLE SPEED-AXLE RATIO<W9Z> 		1-42110-898-2 01 1 9001-9204 ● ●
49 CASE; RR AXLE
SINGLE SPEED-AXLE RATIO<W9Z> 		1-42110-898-3 01 1 9205- ● ●
49 CASE; RR AXLE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-42110-901-3 01 1 9001-9204 ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9001- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 9001- ● ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 01 1 9001- ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-09604-021-0 01 1 9001-9307 ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 9308- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=24.5 OD=32.5 		9-09920-392-0 01 1 9001-9307 ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X40 		9-92051-640-0 06 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X40 		9-92061-640-0 06 1 9004-9201 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X40 		9-92061-640-0 06 1 9202- ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X90 		9-91056-690-0 02 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X90 		9-91066-690-0 02 1 9004-9201 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X90 		9-91066-690-0 02 1 9202- ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X70 		9-91056-670-0 04 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X60 		9-91066-660-0 04 1 9004-9204 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) M16X60 		9-91066-660-0 04 1 9205-9307 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M16X60 		9-91066-660-0 04 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
AXLE RATIO 2 SPEED<W9Y> M16X50 		9-92061-650-0 08 1 9101-9204 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) M16X50 		9-92061-650-0 08 1 9205-9307 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) ,FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M16X50 		9-92061-650-0 08 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X65 		9-91056-665-0 04 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 9004- ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X45 		9-92041-645-0 04 1 9001-9204 ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X45 		0-20801-645-0 04 1 9205-9708 ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X45 		0-20801-645-0 02 1 9709- ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X40 		9-92051-640-0 08 1 9001-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
SINGLE SPEED-AXLE RATIO<W9Z> M16X40 		9-92061-640-0 08 1 9004- ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X90 		9-91056-690-0 01 1 9001-9005 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M16X90 		0-10806-690-0 01 1 9006- ●
70 NUT; CARRIER
SINGLE SPEED-AXLE RATIO<W9Z> M16 		9-99111-416-0 04 1 9001-9708 ● ●
70 NUT; CARRIER
SINGLE SPEED-AXLE RATIO<W9Z> M16 		9-99111-416-0 02 1 9709- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-516-0 12 1 9001-9003 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 9004- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09000-014-1 14 1 9001-9204 ●
74 BOLT; RR BRK ASM SETTING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50 		1-09000-014-1 14 1 9001-9204 ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09000-014-1 14 1 9205-9403 ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 9404- ● ●
74 BOLT; RR BRK ASM SETTING
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M14X50 		1-09000-014-1 16 1 9001-9204 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-514-0 20 1 9001-9001 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-614-0 20 1 9002-9401 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 20 1 9402- ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-414-0 20 1 9001-9001 ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 20 1 9002- ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-026-1 10 1 9001-9202 ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 10 1 9001-9202 ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 20 1 9203-9304 ● ●
161 RING; SPRING,REAR WHEEL
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 20 1 9305-9704 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
